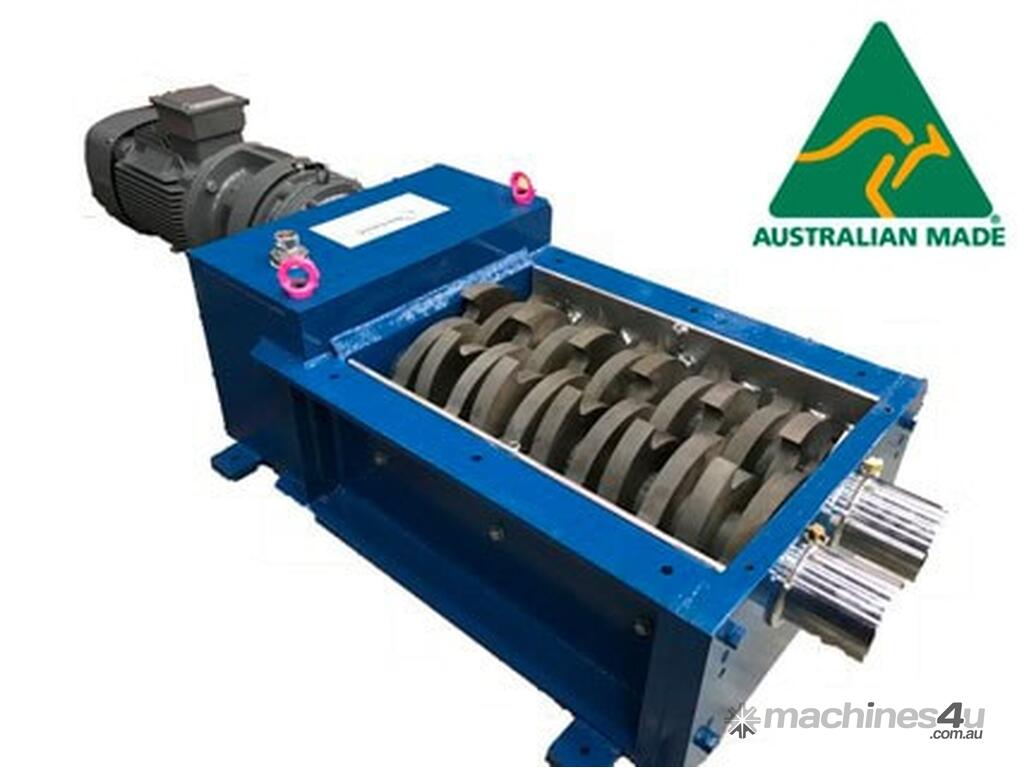

AZ15WL 15kW Dual Shaft Shredder

A medium sized shredder with plenty of torque for tough applications.

This unit has 182mm between shaft centres which allows larger items to be effectively grabbed. Suitable for paper, plastics, product destruction, wood offcuts, light metals, car oil filters, glass and plastic bottles.

Key Features:
Made in Australia
1 x 15kW drive
High torque/low speed
60mm hexagonal shaft
Planetary reduction gearbox
High surface hardness/high core strength alloy cutters
10, 16, 20 or 31mm cutters
Hot dip galvanised casing
Optional seal protection plates
DOL control panel with auto reverse and overload protection.

Specifications
Output size (mm): Cutter dependent
Motor 1 x 15kW
3 Phase Voltage 415V/50Hz
Full load current 27 amps
DOL starting current 216 amps
Shaft centres (mm): 180
Shaft diameter (mm): 60
Length over cutters (mm): 700
Cutting Chamber Width (mm): 490
Number of shafts 2
Cutter Width (mm): 10/20/31
Machine length (mm): 2226
Width (mm): 900
Height (mm): 398
Weight (kgs): 900
