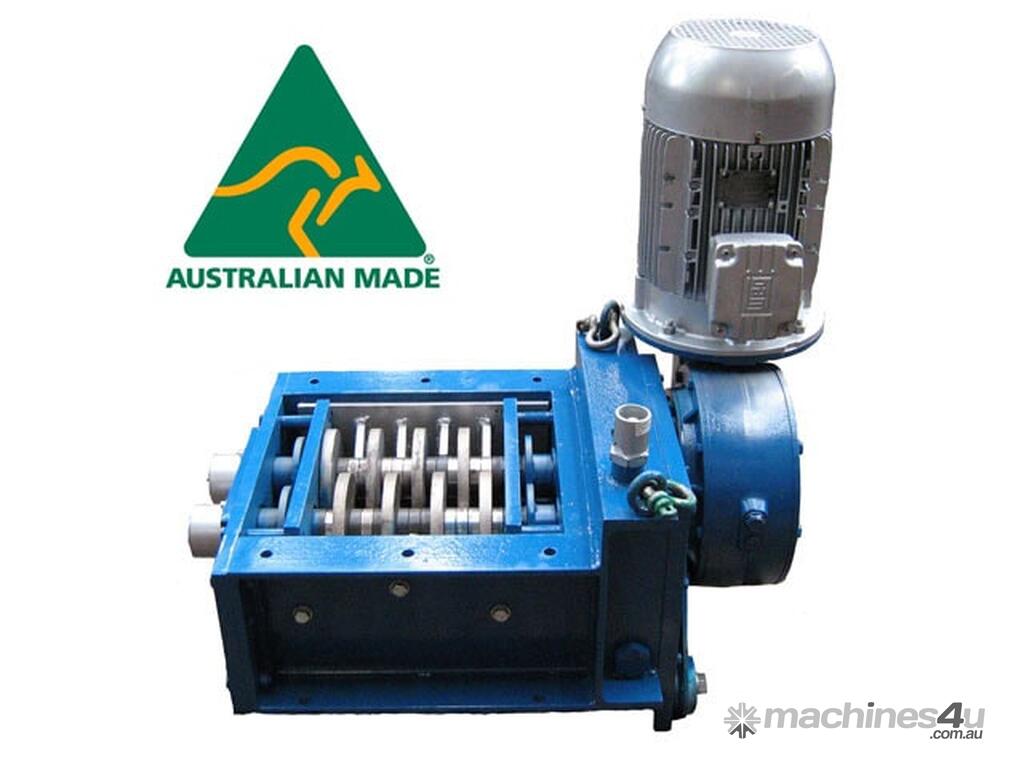

AZ5 5kW Dual Shaft Shredder

A small but versatile shredder for specialised applications

The AZ5 is our smallest shredder but it has a wide range of uses where throughput is low and the input material is less bulky. Used for small product destruction, swarf, glass, PETbottles, plastics, paper, food byproduct processing, laboratory shredding and a host of other specialist applications, the AZ5 is a robust but versatile machine.

Key Features:
Made In Australia
1 x 5kW drive
High torque/low speed
41mm hexagonal shaft
Worm drive gearbox
High surface hardness/high core strength alloy cutters
10, 16 or 31mm cutters
Hot dip galvanised casing
Optional seal protection plates
DOL control panel with auto reverse and overload protection.

Specifications
Output size (mm): Cutter dependent
Motor 1 x 5kW
3 Phase Voltage 415V/50Hz
Full load current 10 amps
DOL starting current 80 amps
Shaft centres (mm): 129
Shaft diameter (mm): 41
Length over cutters (mm): 402
Cutting Chamber Width (mm): 358
Number of shafts 2
Cutter Width (mm): 10/16/31
Machine length (mm): 897
Width (mm): 923
Height (mm): 420
Weight (kgs): 250
