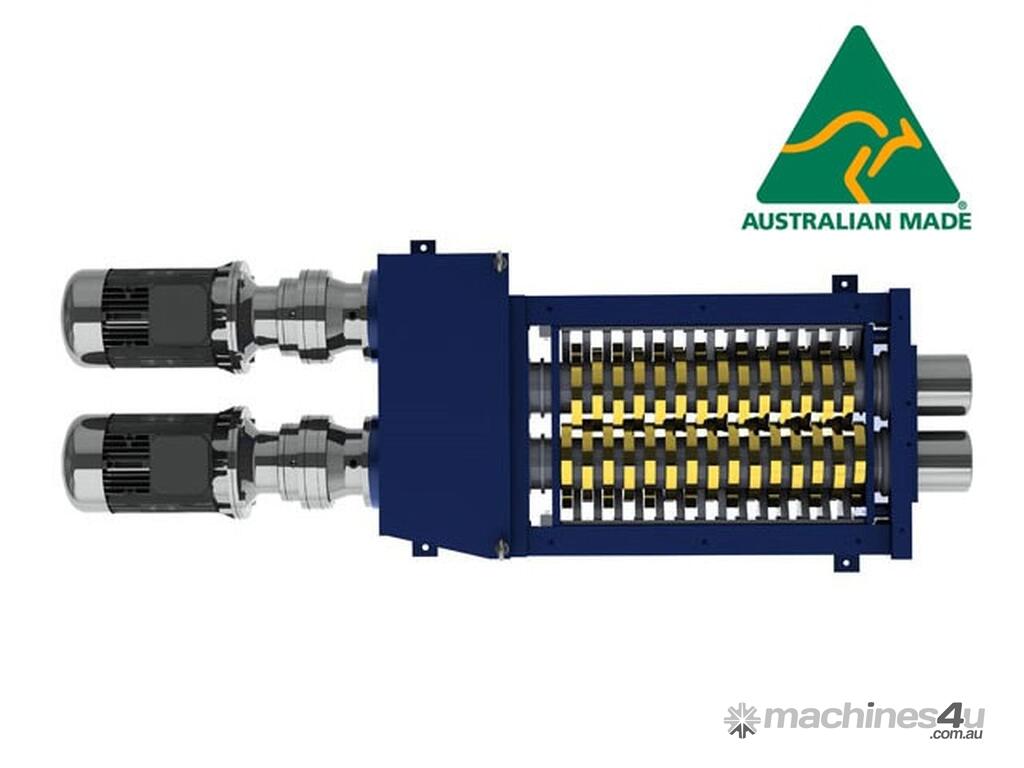

AZ50HD 37kW Dual Shaft Shredder

Powerful and robust shredder for tough applications

With 229mm shaft centres the AZ50HD is a capable shredder for heavy duty applications and can be configured with customised cutting chamber lengths.

The AZ50HD is our most popular and versatile shredder. Originally developed to eliminate shaft breakages common on smaller machines in tough applications such as paper and tyre shredding, the AZ50HD has proven itself to be a reliable and robust performer.

This unit can be configured to shred most materials including paper, tyres, oil filters, steel drums and medical waste.

Key Features:
Made in Australia
2 x 18.5kW drives
High torque/low speed
120mm hexagonal shaft
Planetary reduction gearboxes
High surface hardness/high core strength repairable alloy cutters
20, 31, 47, 62 or 94mm cutters
Hot dip galvanised casing
Optional seal protection plates
VSD or DOL control panel with auto reverse and overload protection.

Specifications
Output size (mm): Cutter dependent
Motor 37kW (2x18.5kW)
3 Phase Voltage 415V/50Hz
Full load current 66 amps
DOL starting current 536 amps
Shaft centres (mm): 229
Shaft diameter (mm): 120
Length over cutters (mm): 1060/1180/1274/custom
Cutting Chamber Width (mm): 599
Number of shafts 2
Cutter Width (mm): 20/31/47/62/94
Machine length (mm): 3127
Width (mm): 1048
Height (mm): 425
Weight (kgs): 2300 (std)
