400mm Trench Bucket, 700mm GP Bucket
1200mm Mud Bucket?1000mm Rake & Ripper

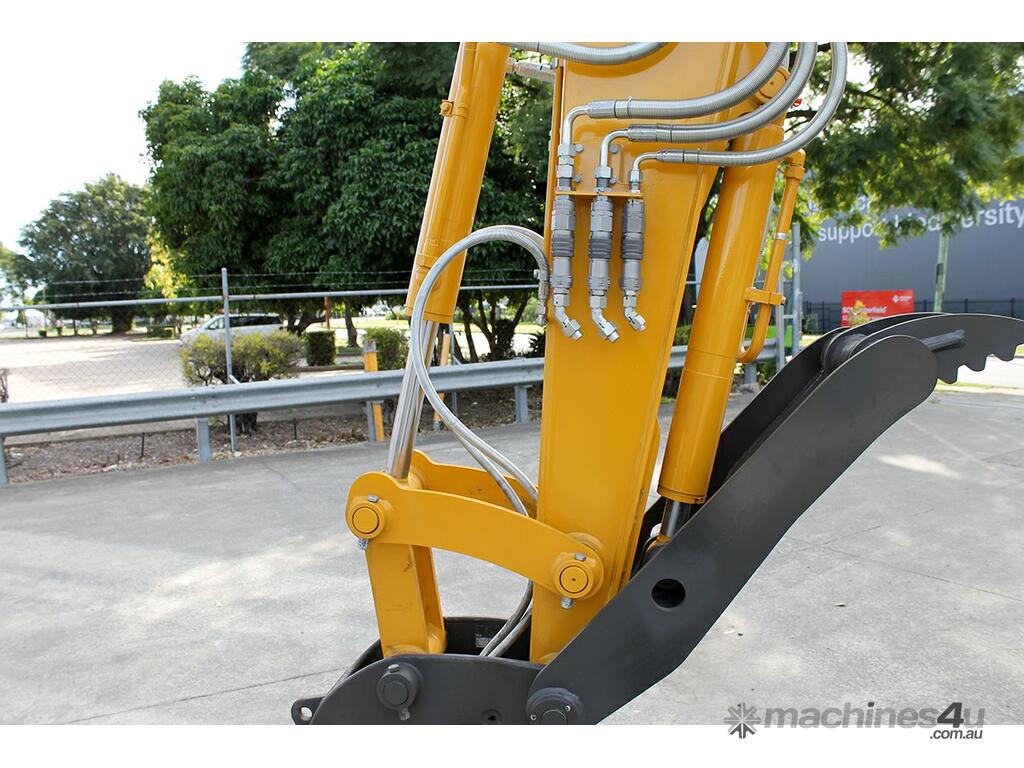

Hydraulic Thumb Grabber, Hydraulic Quick Hitch
Up to 3-Year / 3000 Hours Warranty with Australian-Backed Parts
Comfortable Full AC Cabin

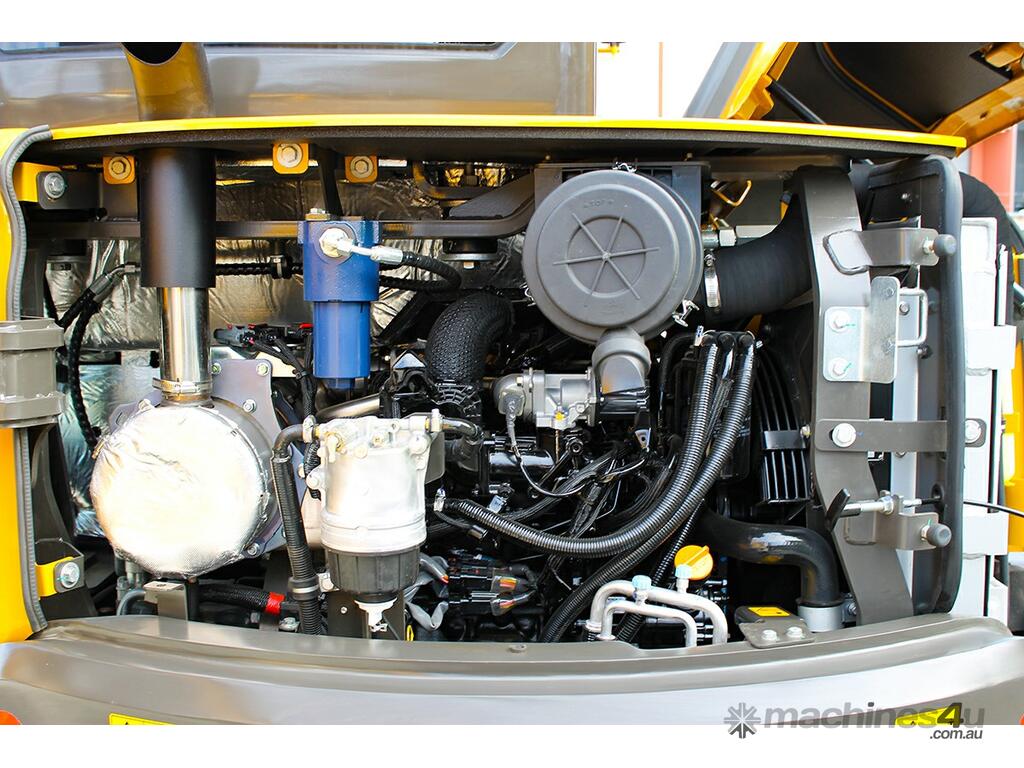

Powerful 59 HP Yanmar engine
Well-known MILLER Quick Hitch
Leading Brand HAWE InLine Pump system
Impressive 152 L/min Hydraulic Fluid Rate
Maximum 45 kN Digging Force
Large 0.18 m³ GP bucket
Two-speed Travel up to 4.4km/h
Engines
Engine Model YANMAR 4TNV86CT
Travel Motor Eddie
Main Pump HAWE InLine (Hengli)
Engine Power 59HP

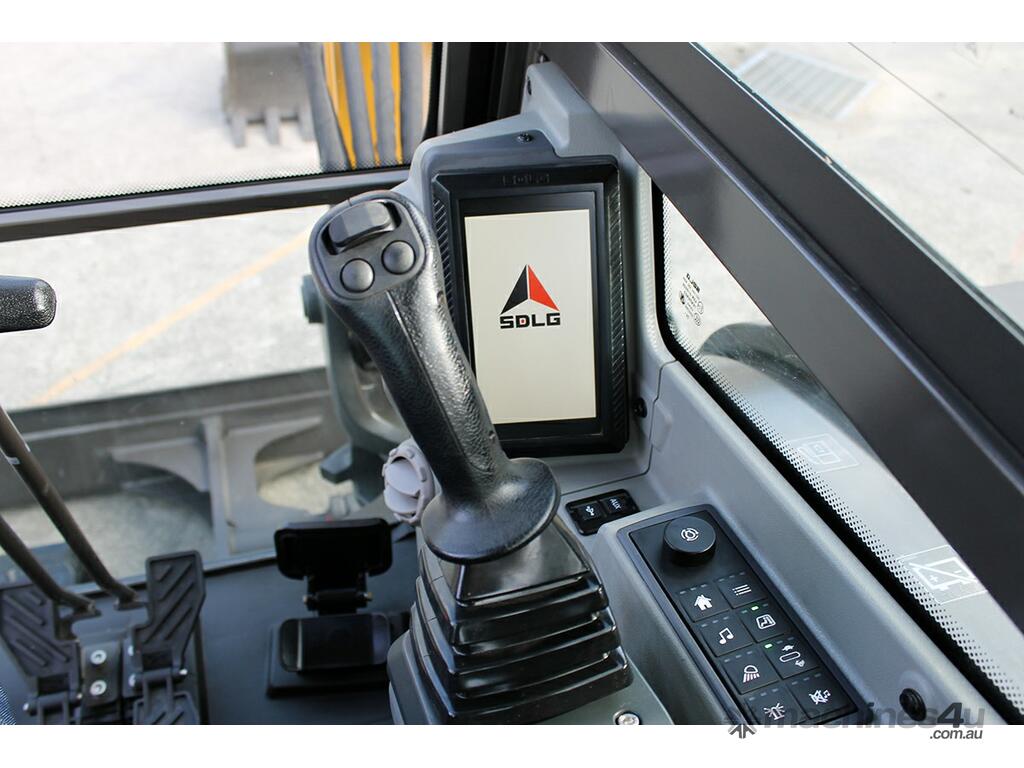

Controlling System Pilot Control
Number of Cylinders 4
Working Range
Max Digging Height 5608mm
Max Digging Depth 3492mm
Max Digging Radius 6043mm
Hydraulic Fluid rate 152 L/min
Max Walking Speed 2.2/4.4 Km/h
Specification
Boom Swing function YES
Track Expandable 1980mm Fixed
Max Grade ability 30°
Bucket Capacity 0.18m3
Dimensions
Overall Length 5526mm
Overall Width 1980mm
Overall Height 2846mm
Track Length 2542mm
Track Width 400mm
Track High 1580mm
Platform Width 1850mm
Ground Clearance 342mm
Operating Weight 6000KG
Capacity
Fuel Tank 65L
Engine 7.4L
Hydraulic Tank 45L
