ACHILLES MACHINERY AUSTRALIA

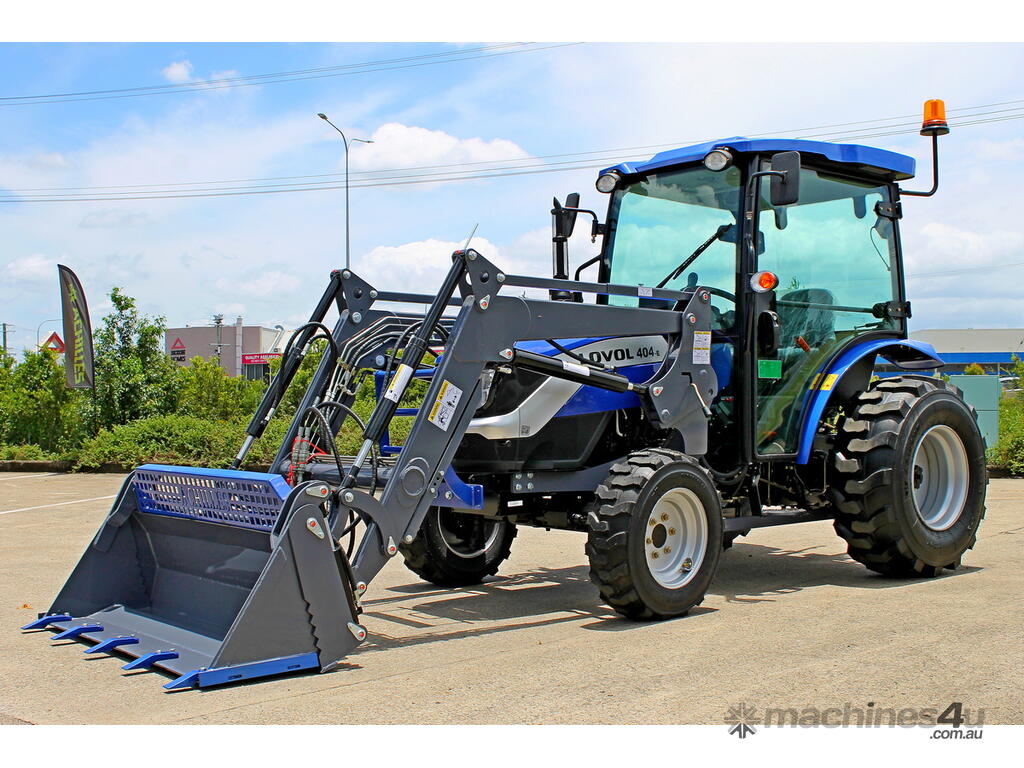

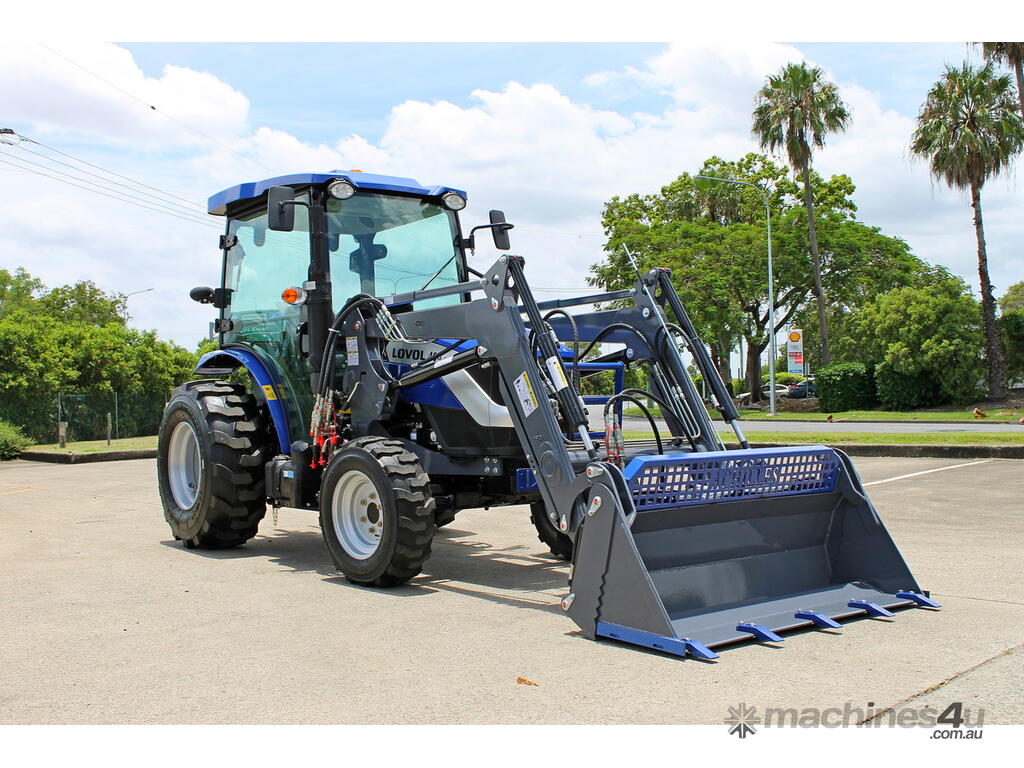

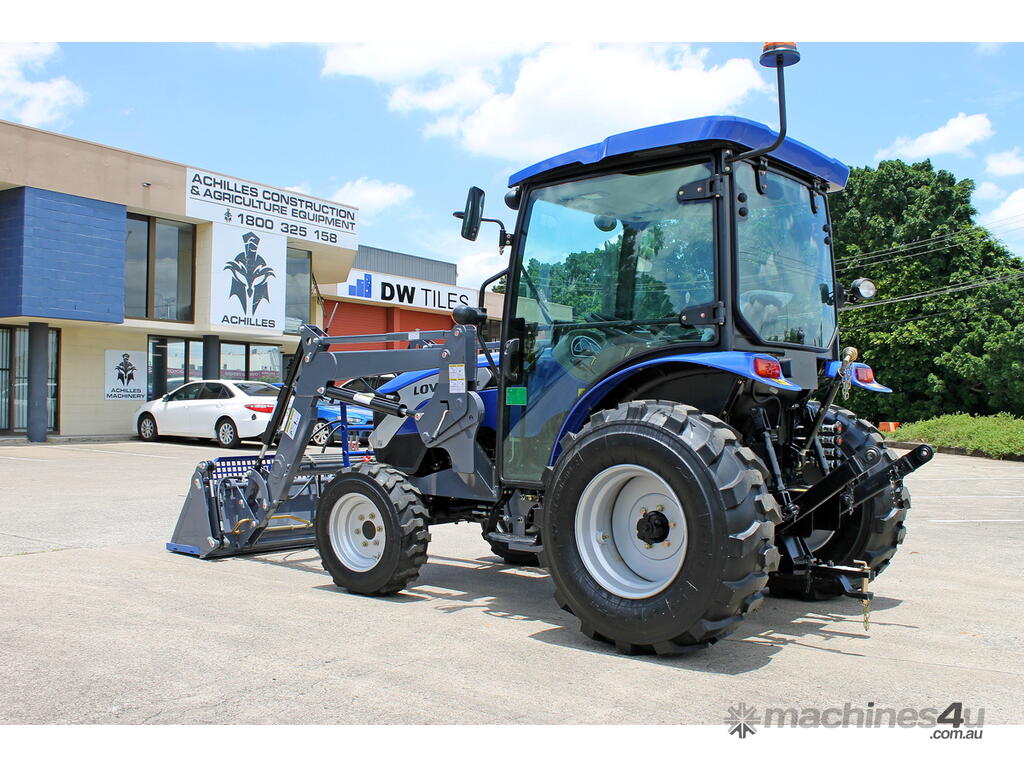

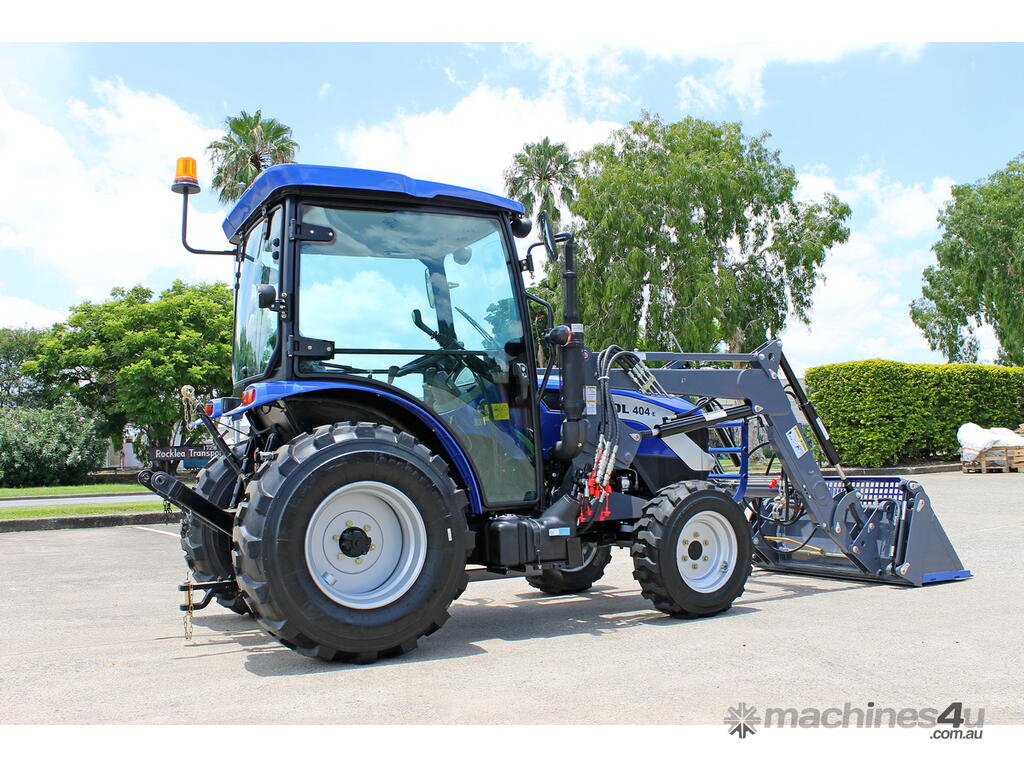

404 AC Cabin Tractor with TZ04D 4in1 Front Load
Combo A: 4Ft Slasher, Bale & Pallet Fork, Post Hole Auger 300mm
Combo B: LW5 Backhoe and 5Ft Grader Blade plus Combo A
All attachments are available for individual purchase
3-Year Warranty with Australian-Backed Parts

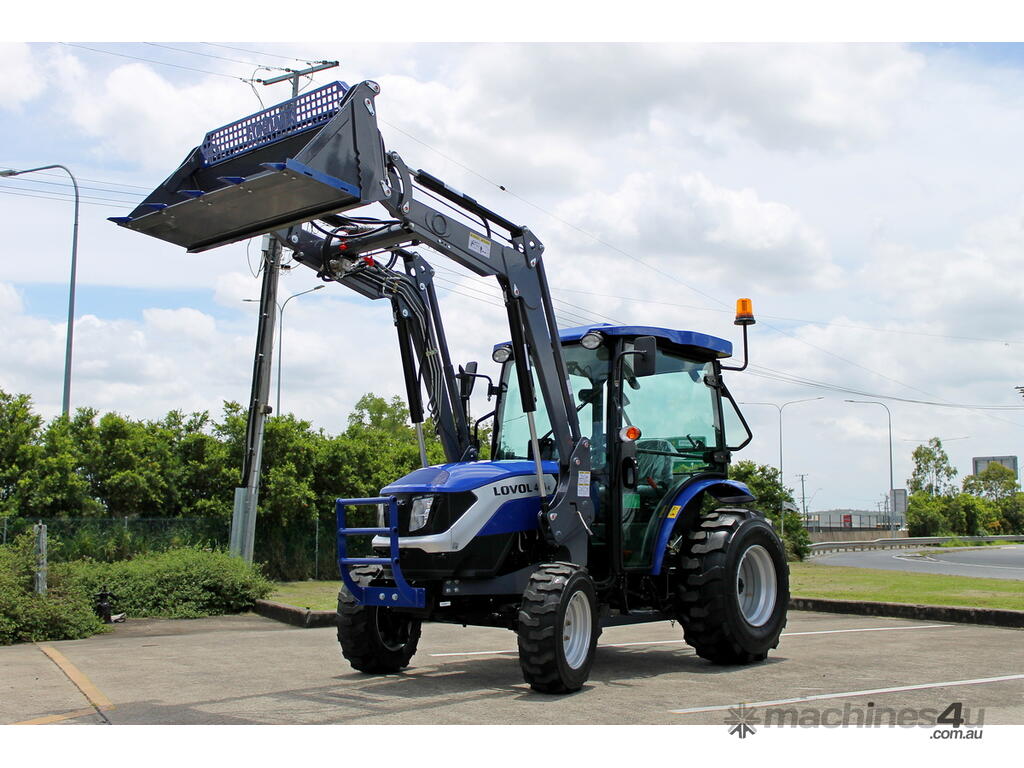

TZ04D 4in1 front loader included

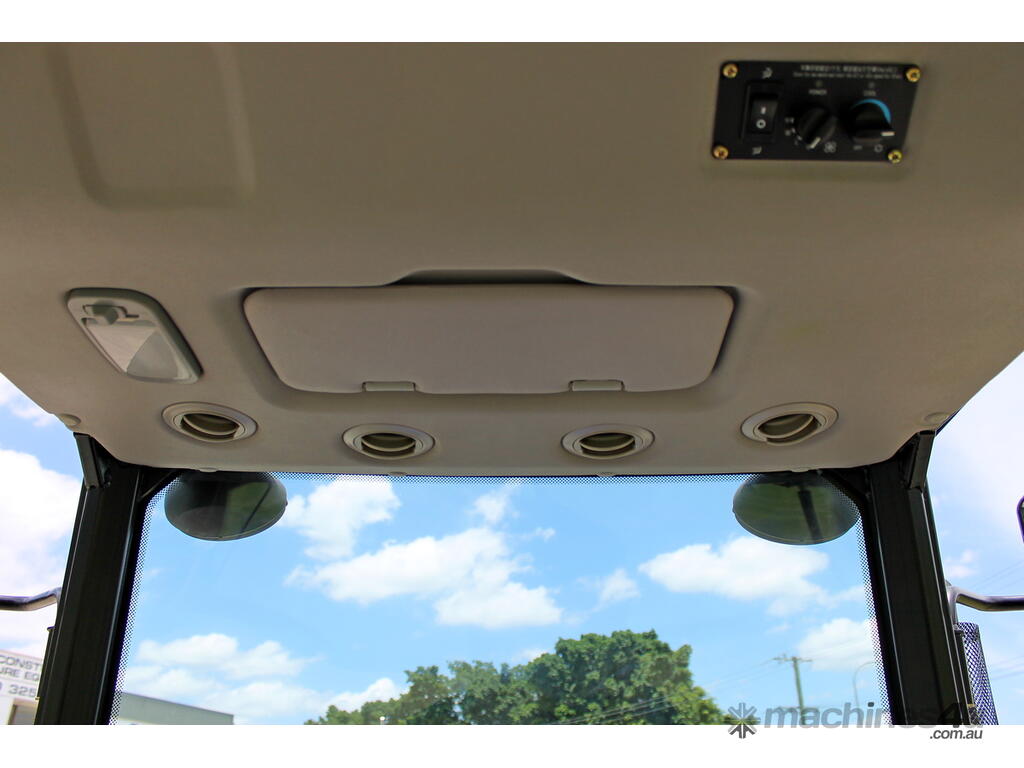

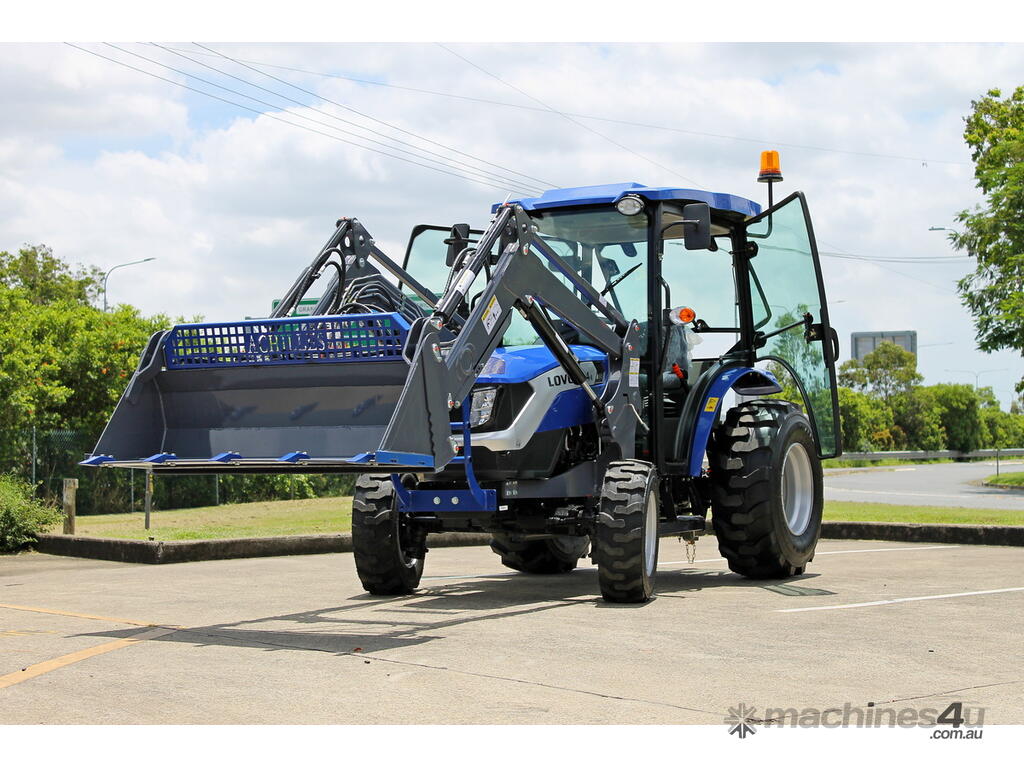

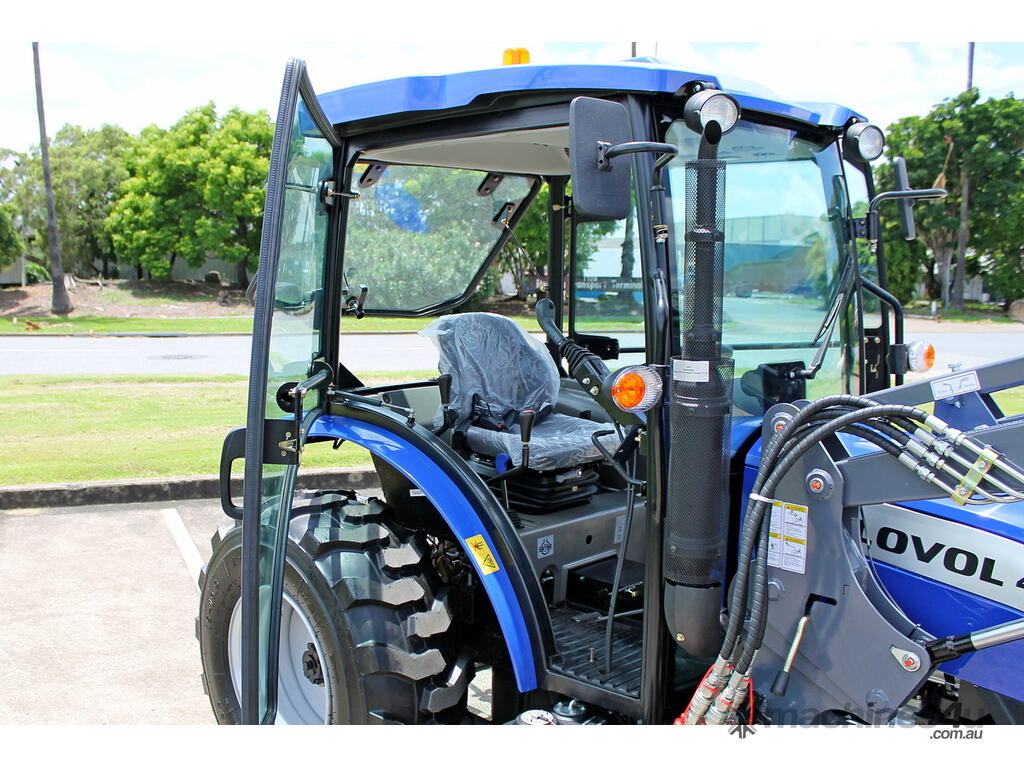

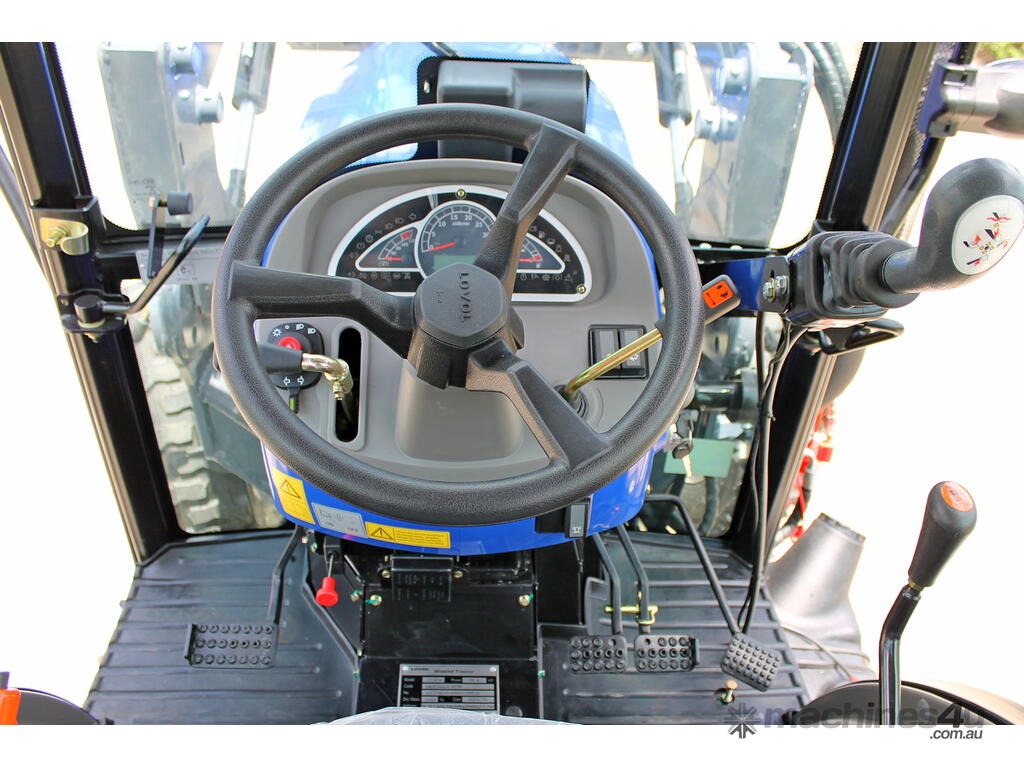

AC Cabin with Dual Door Access
Euro-mount quick hitch system for easy attachment changes.
Full body e-coating coved
Durable cast-iron front and rear axles for long-lasting performance.
Excellent 4WD capabilities with a differential lock for better traction.
Additional hydraulic remote for extended functionality.
Easy adjustable rear wheel track

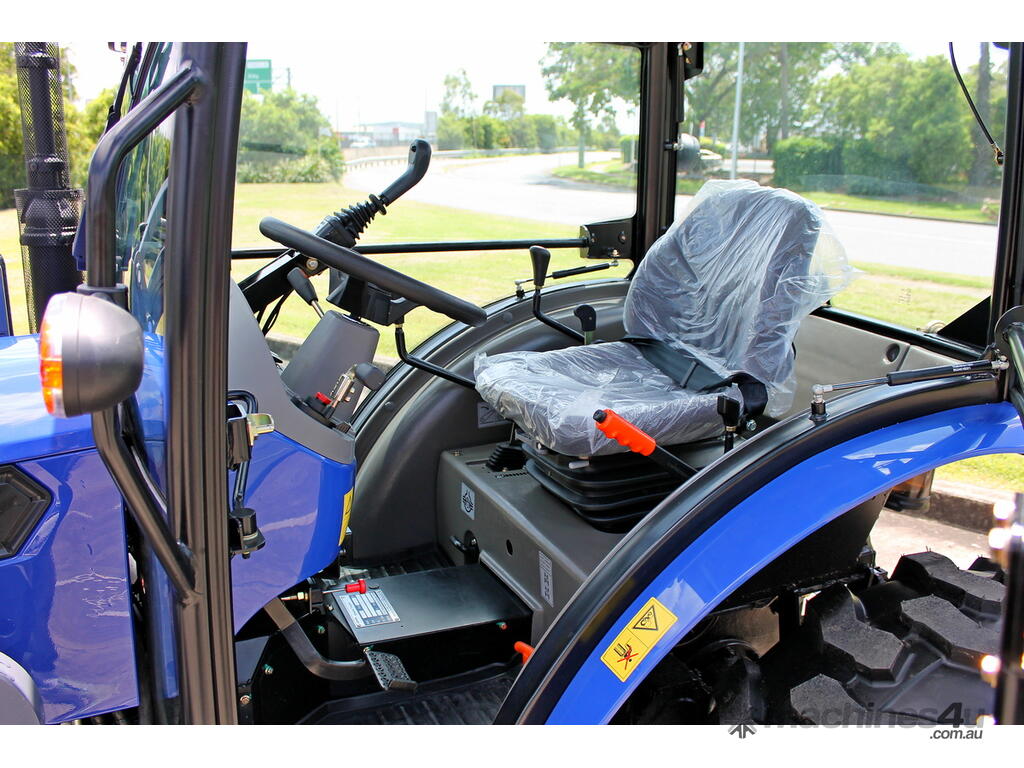

Premium seating with Grammer brand seats for enhanced comfort.
Fitted with industrial tires suitable for various working conditions.
Engine Size

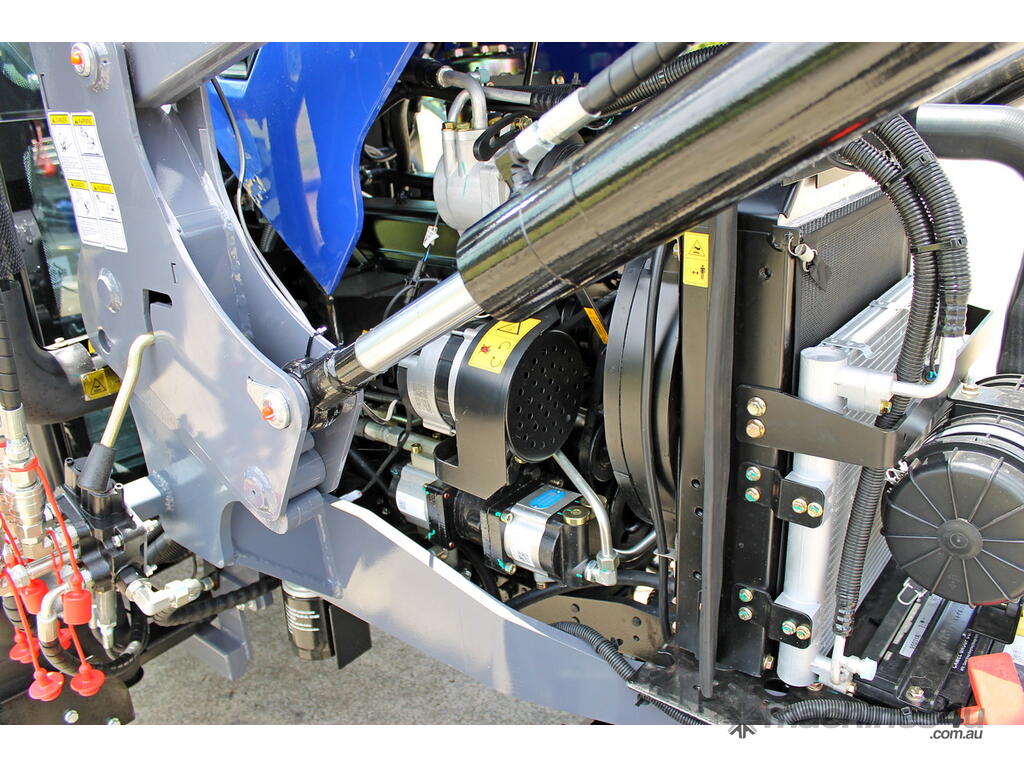

Engine Model LaiDong 4L23BT
Engine Gross Power 40HP
PTO Power 540/720 r/min
No. of Cylinders 4
Rated Speed 2400RPM
Total Displacement 2.31CC
Fuel Tank Capacity 26L
Operations
Front End Load 600 KG
Transmission 8x8 Shuttle Shift
Gearbox Synchromesh Shuttle Shift
Clutch 9inch Dual Stage Dry Clutch
Differential Mechanical gear
Front Axle Bevel gear final drive
Rear Axle Stepless Adjustable Wheel Hub
4wd Front Wheel Assist
Hydraulics
Implement Flow Rate 24 L/min
Steering Flow Rate 12 L/min

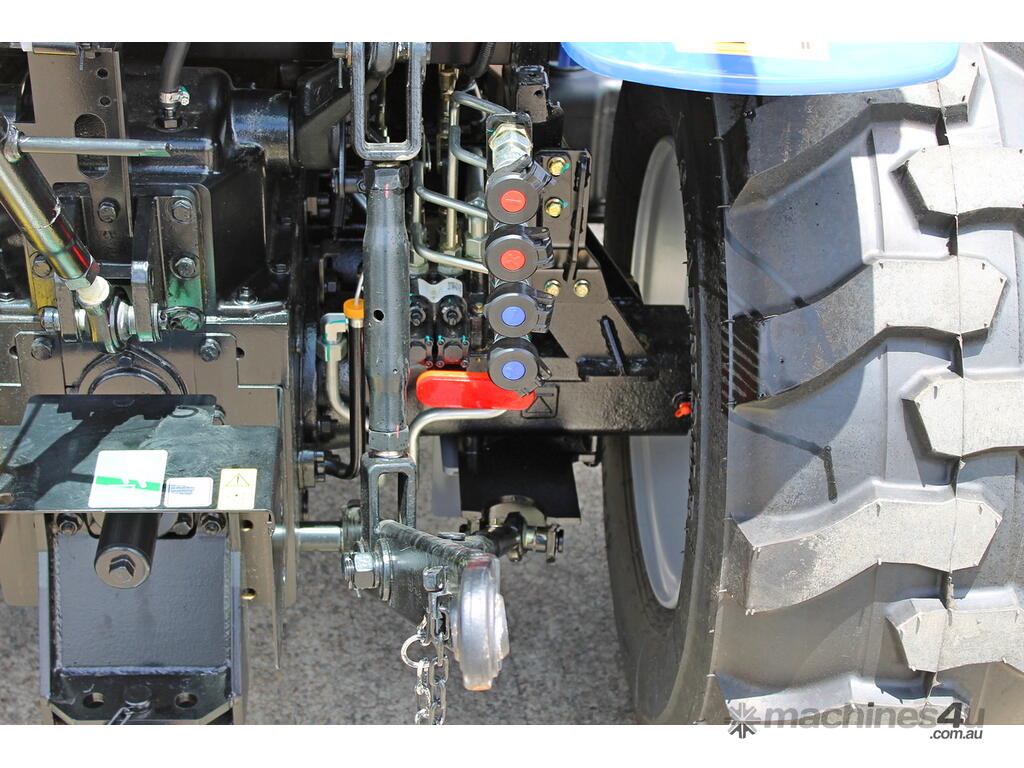

Rear Remotes 2 Pairs
Linkage Standard Cat-1 Rear 3pl
Behind Hitch Point 720kg Lift 610mm
Dimensions
Overall Weight 2650 KG
Overall Length 4900mm
Overall Width 1600-1800mm
Overall Height 2500mm
Ground Clearance 328mm
Front Tyre Size 28X9-15
Rear Tyre Size 15-19.5
