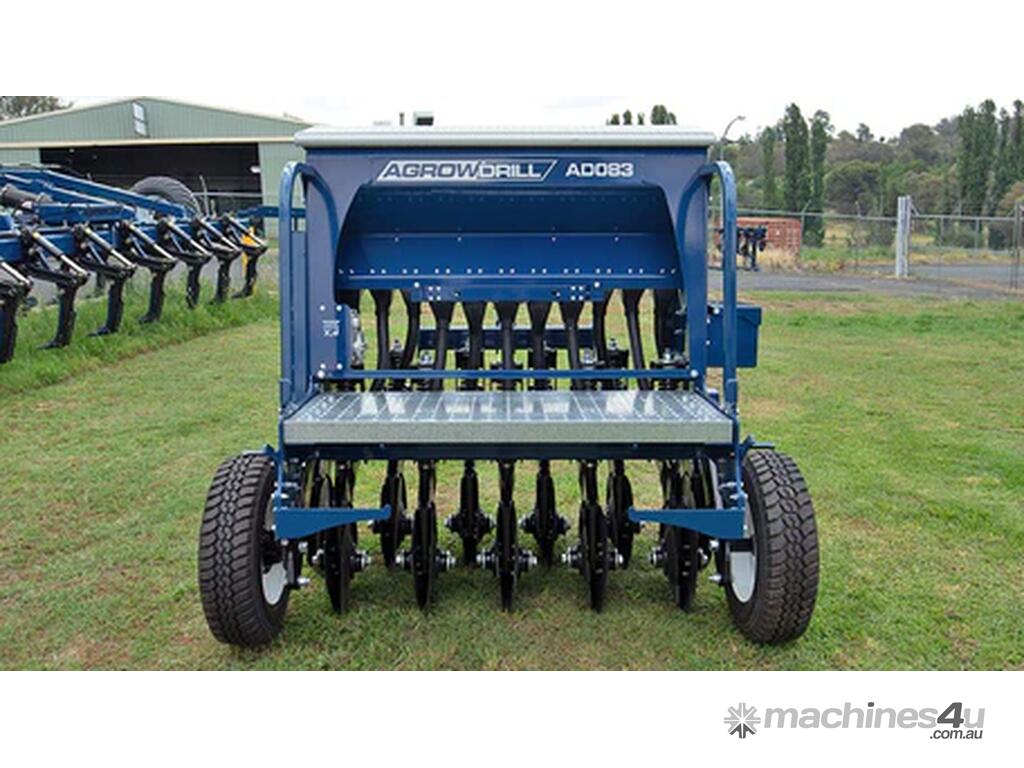

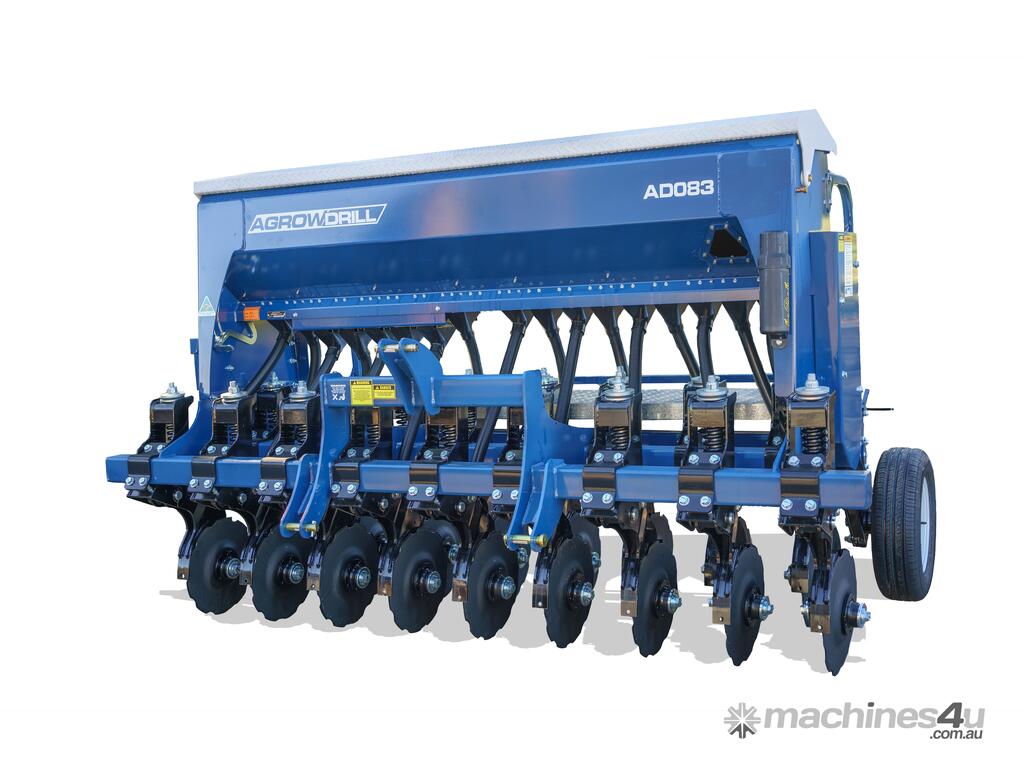

Agrowdrill AD083 Seed Drill | 17x159mm (2.70m) | Double Disc

AD083 Seed Drill (CAT2 3PL)
17 rows x 159 mm spacings
401 Double Disc undercarriage

SPECIFICATIONS:
Working rows: 11
Row spacings: 159 mm
Working width: 2.70 m
Transport width: 2.95 m

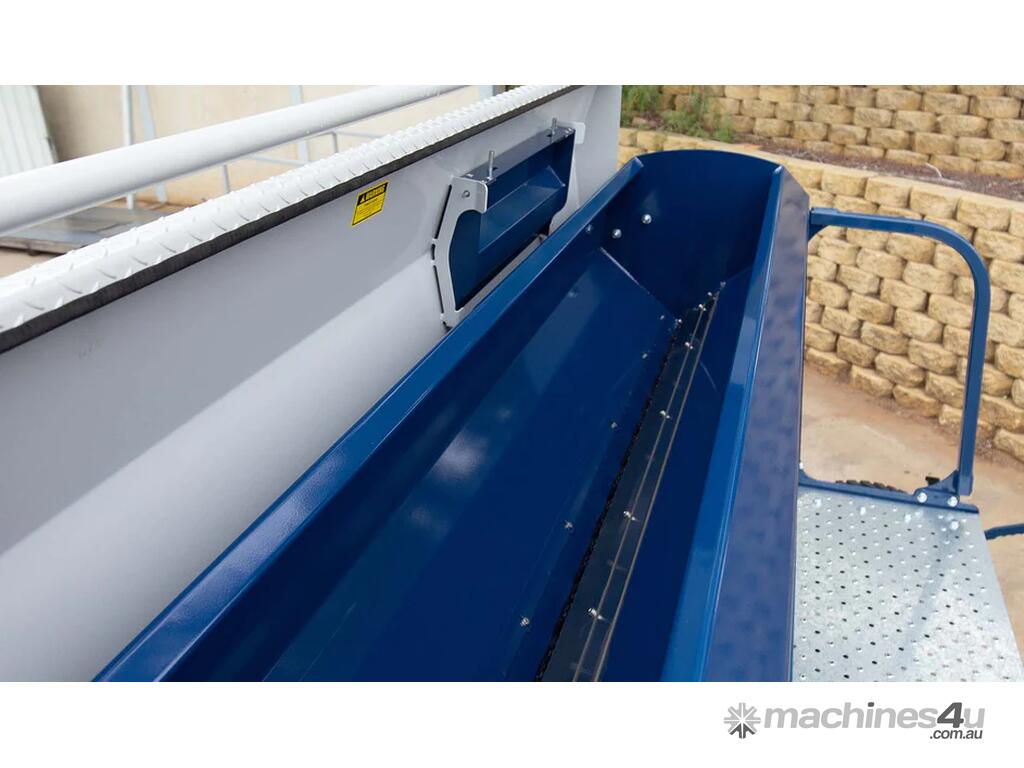

Hopper capacity: 407 L
Undercarriage: 401 Double Disc (205 kg downforce)
Tyre size: 195 R14
Frame RHS: 100 x 100 x 6 mm
Toolbars: 3 toolbars at 450 mm spacings
Underframe clearance: 620 mm
Linkage: CAT2 three-point linkage
Drawbar power: 80-100 hp
Weight: 1.5 tonne

Available optional extras for the AD083 (disc) include:
- Rear tow hitch
- Harrows
- Bean roller

Optional trailing soil rollers:
- Agrowplow Flexi-Roller Mk2
- Agrowplow Rubber Tyre Roller
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

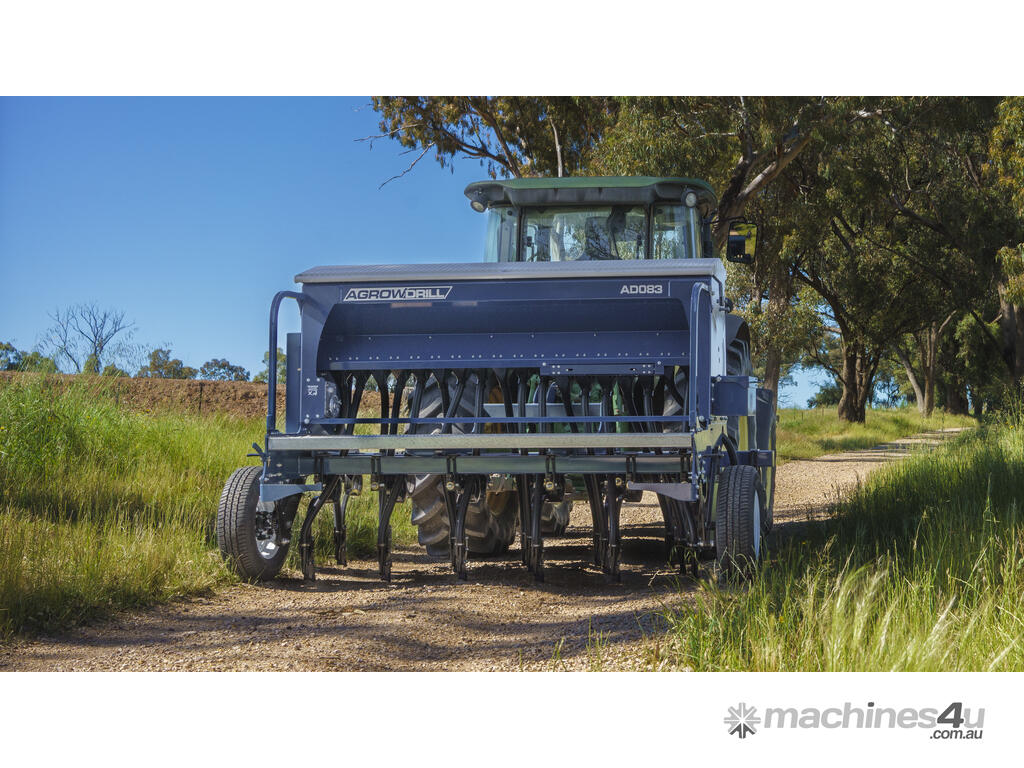

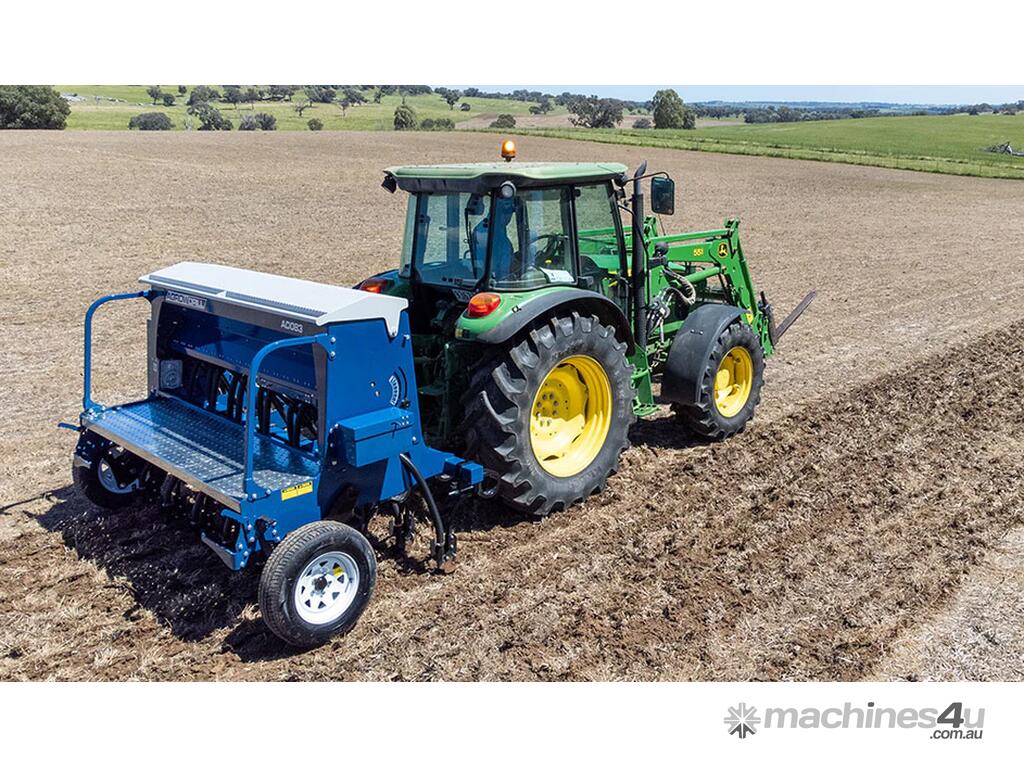

AGROWDRILL (by Agrowplow) AD083 Seed Drill

The perfect compact seeder for grazier and mixed farming needs. Discover the proven benefits of the Agrowplow AD083 Seed Drill. Specially designed for seeding versatility and simplicity, the AD083 assists in pasture renovation, summer crops, and legumes.

DISC SEEDER

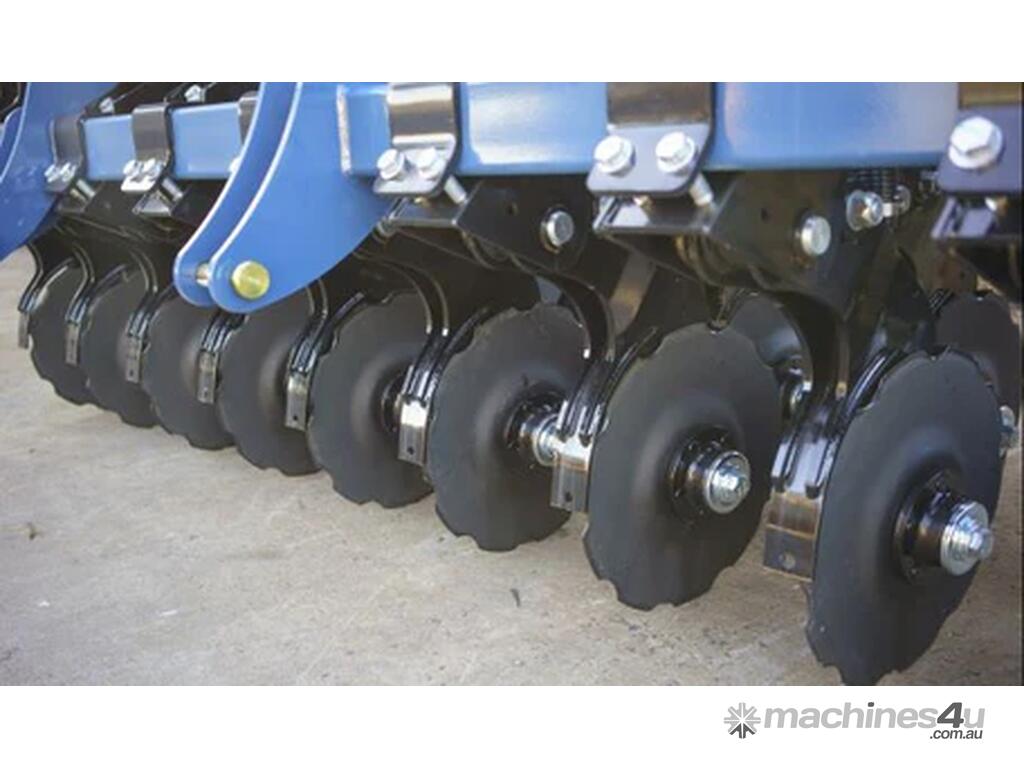

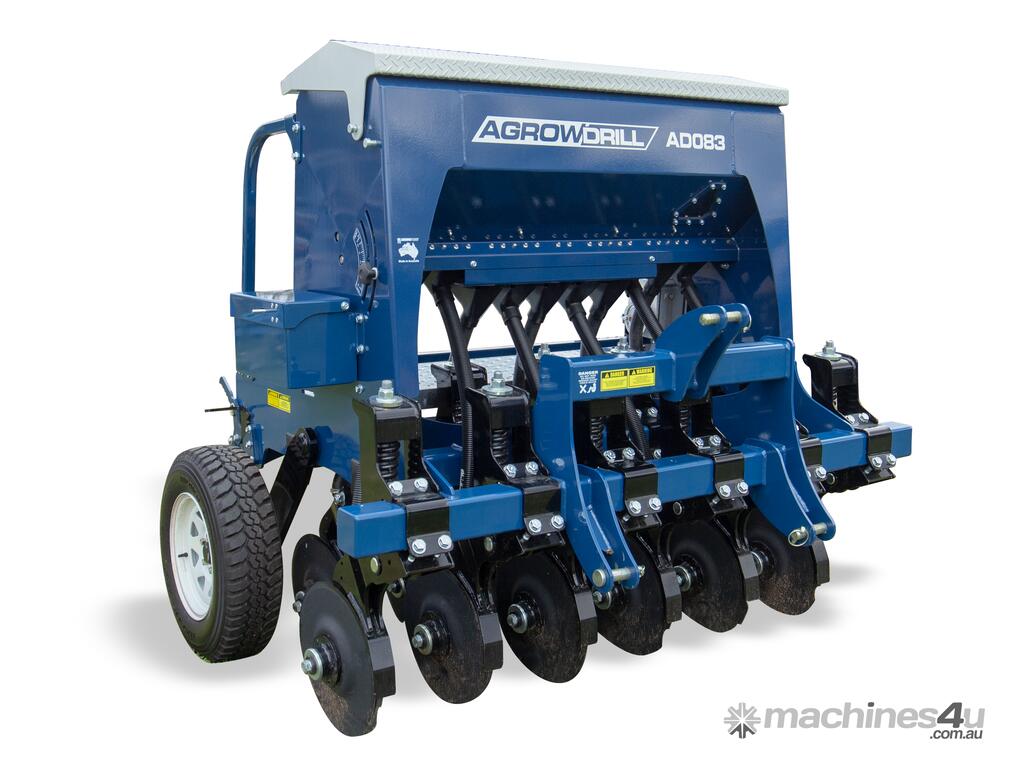

Paired with Agrowplow's 401 Double Disc undercarriage, the AD083 is a great disc seeder with exceptional accuracy and trash management. It features a self-cleaning design that breaks through stubble and high trash conditions to create a clean soil furrow with minimal soil disturbance.

COMPACT AND NARROW
The narrow frame and single seed box make the AD083 a versatile and reliable direct drill for pasture renovation, summer crops, and legumes, especially in vineyards or conditions where travel width is at a premium.

CONFIGURE TO YOUR OPERATION

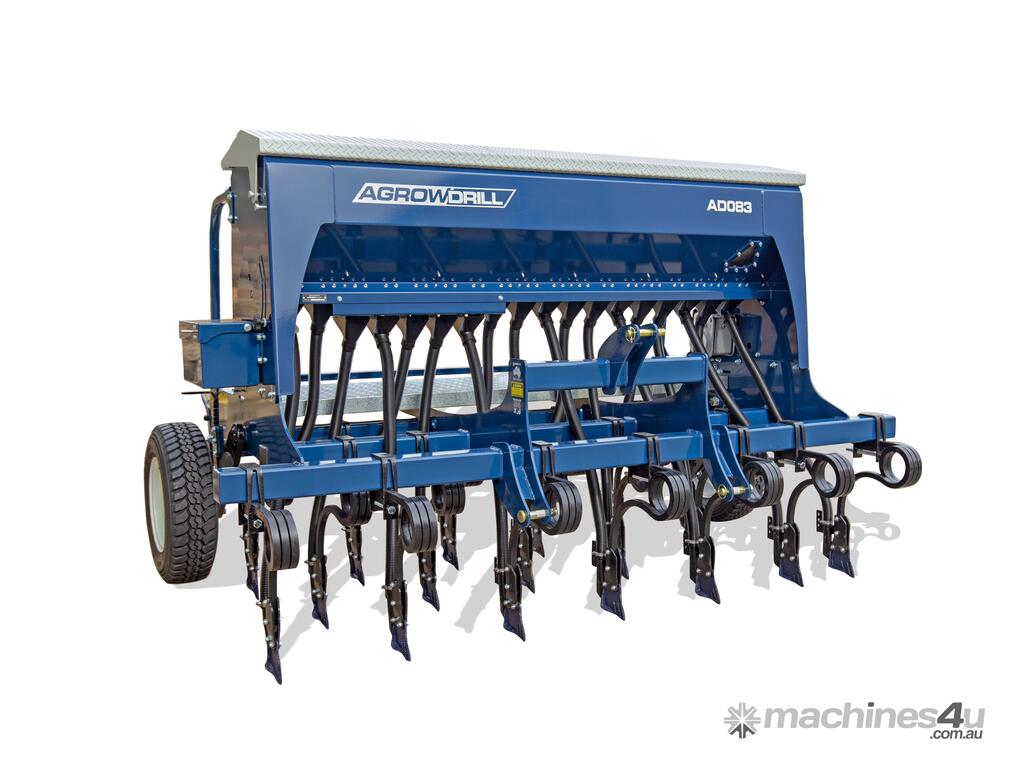

The AD083 is available in 10, 11, 17, or 18 sowing row configurations with a CAT2 three-point linkage. It supports Agrowplow's 425 coil tynes for reliable performance in all conditions or the 401 double-disc unit for high trash or rocky conditions.

SOWING MADE EASY
Unique double-fluted roller distribution, adjusted gates, roller restrictors, and an infinitely variable gearbox makes it easy to sow a wide variety of cereals, grasses, and even large seeds and beans. Easily fine-tune your calibration to allow high rate of fertiliser and low seed rates to suit your farm.

EFFICIENT CLEANING

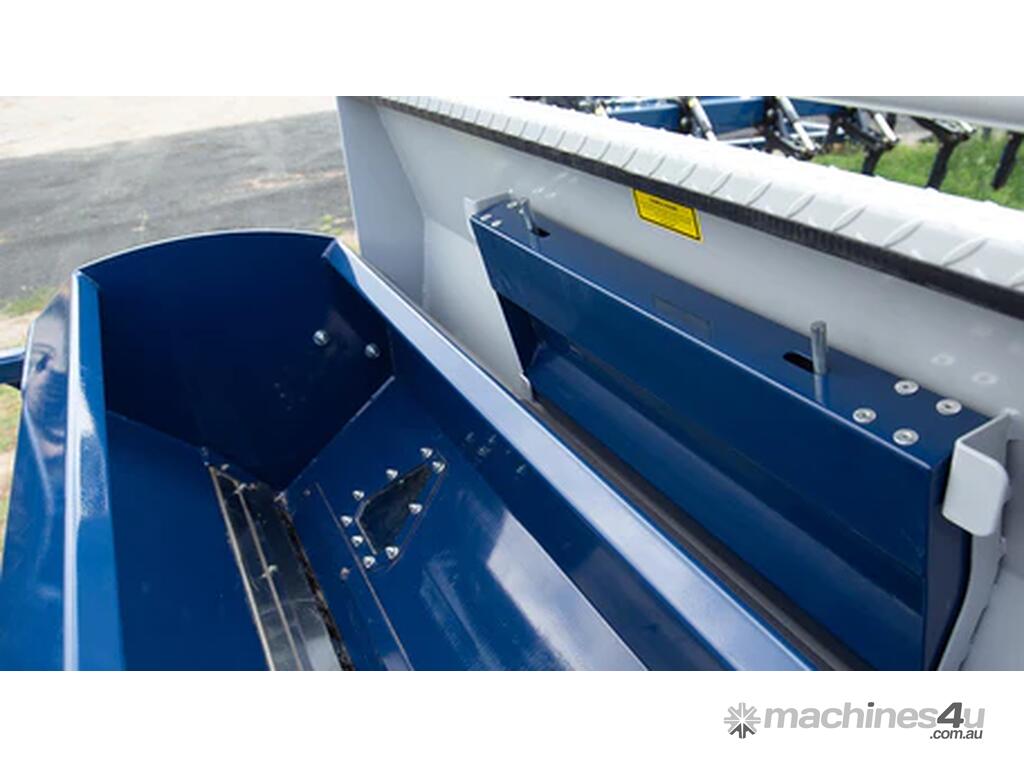

Save time and minimise corrosion with Agrowdrill. Simply set the lever to the box cleaning setting to open the gates and allow remnants to simply fall through to make cleaning simple and quick, and protect the drill from premature wear from corrosion.
