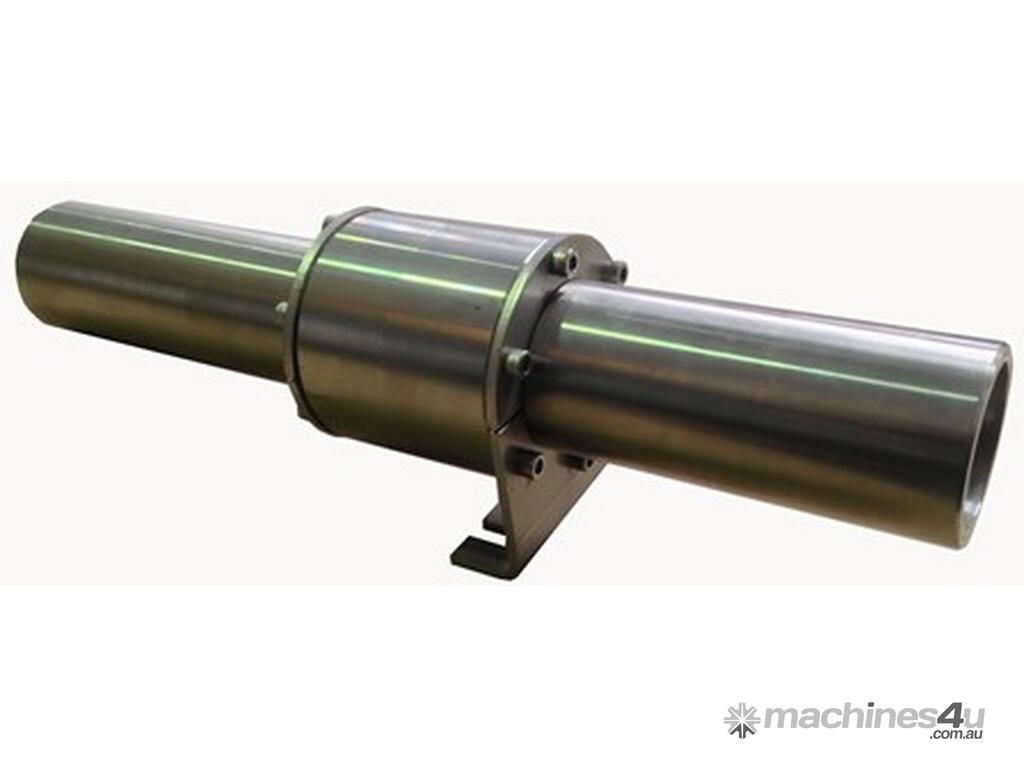

New blovac Pumps & Valves for sale - Air Pump series

Custom Air Pumps Made to Order
Available in aluminum and stainless steel. Prices vary depending on size and material.
extreme distances. Due to their unique design
BLOVAC Air Pumps use two air flow principles,
Venturi and Vortex. Compressed air entering an
internal chamber is condensed and fired through
several Venturi holes. These holes are angled in
such a way as to create a Vortex principle, thus
creating a vacuum. Due to the angle of the
Venturi jets, air is exhausted in a spiral form
enabling material to be conveyed via smooth bore
hose or pipe downstream.
BLOVAC Air Pumps can be placed in line to
continue the energy system over extreme
distances. Australian manufacturers use BLOVAC
Air Pumps for conveying such items as:- Producte • Pharmaceutical Powders Food Products • Plastic Pellets • Metal Objects • Grains • Paper & Textile
• Fumes
• Broken Glass
VERSATILE
Trimmings • Coins
• Coil Springs
BLOVAC Air Pumps are suitable for:-
Cooling. In the blow mode, Air Pumps can be
used to provide cooling for a number of
industrial and manufacturing processes. They
can also be used to aid combustion.

Control. In the vacuum mode, Air Pumps
can be used for vacuuming vacuuming up underweight dconveving them products and conveying them to a capture pture tank.
Air Blasting. BLOVAC Air Pumps used in the
blow mode can be used to quickly blow down
machinery or structures to remove dust fall out.
EFFICIENCY BY DESIGN
If you use compressed air BLOVAC has the
equipment that can cut costs by increasing your
air efficiency. Cleaning, cooling, material handling, conveying, fume removal, combustion enhancement, weight sorting and poisonous
residue removal are some of the many me of the many applications of compressed air which can be made more efficient by using BLOVAC products. If you have a manufacturing problem consult us, Our design department may be able to suggest a
simple air powered solution.
SPECIAL SYSTEMS We understand that it sometimes takes a nonstandard product to solve a special problem. If
you need a product for aspecial application, just
let us know. We frequently customize our
equipment or design new equipment to meet
special needs. BLOVAC has a range of products beyond this literature, please ask your local
distributor for assistance.

Models:

AP38 (38mm Bore)

AP50 (50mm Bore)

AP75 (75mm Bore)

Prices starting from $710 (+ GST)..

MADE TO ORDER.
