Air Tool Spilvac Kit

Spilvac 20L Kit

The SPILVAC SV-20 is a compressed
air operated liquid spill recovery unit.
It recovers spilt liquid without creating
further environmental problems.
As there are no mechanical or electrical
components in its construction, there is
no risk of a spark igniting fumes or
liquids while recovering flammable
materials in an emergency situation.

The venturi that powers the unit is constructed
to create a tornado effect whereby the air being
fired through the venturi creates a vacuum in
the 20 litre drum. It can recover 20 litres of
liquid in 12 seconds. The unit is light in weight
and easy to use. It is supplied with a wall
mounting bracket for easy access and is
finished in safety yellow, making it easy to sight
in an emergency situation.
The hose connector also doubles as a pouring
spout to aid in emptying the tank. The
recovered liquid can be poured from the
collection drum into proper waste tanks for
responsible disposal or recycling, eliminating
the pollution problem that could be caused by
burning or throwing away used absorbents.


FLOW
PE R F ORM A N C E
BAR 7
Pressure PSI 56.89 71.11 85.33 99.56
Air
Consumption
cfm 40
Ips 11.8 14.2 17.5 18.9
Vacuum inHg 67 7.5 8
Water L/sec 1 1.18 1.33 1.67
Oil L/sec 0.55 0.58 0.68 0.73

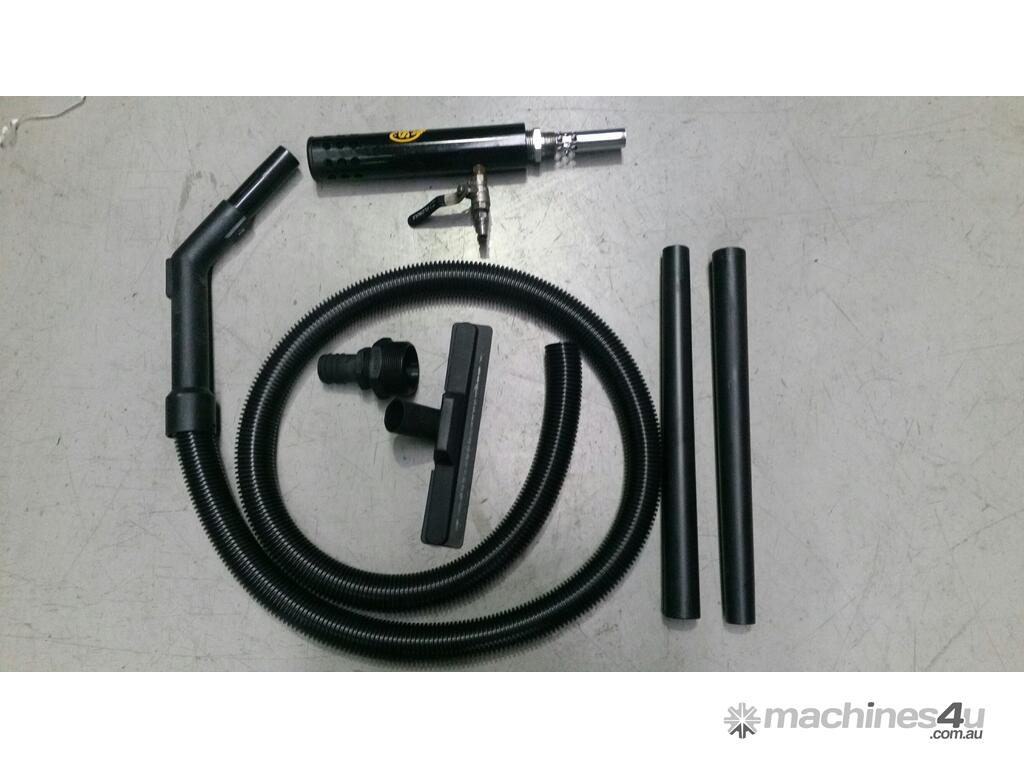

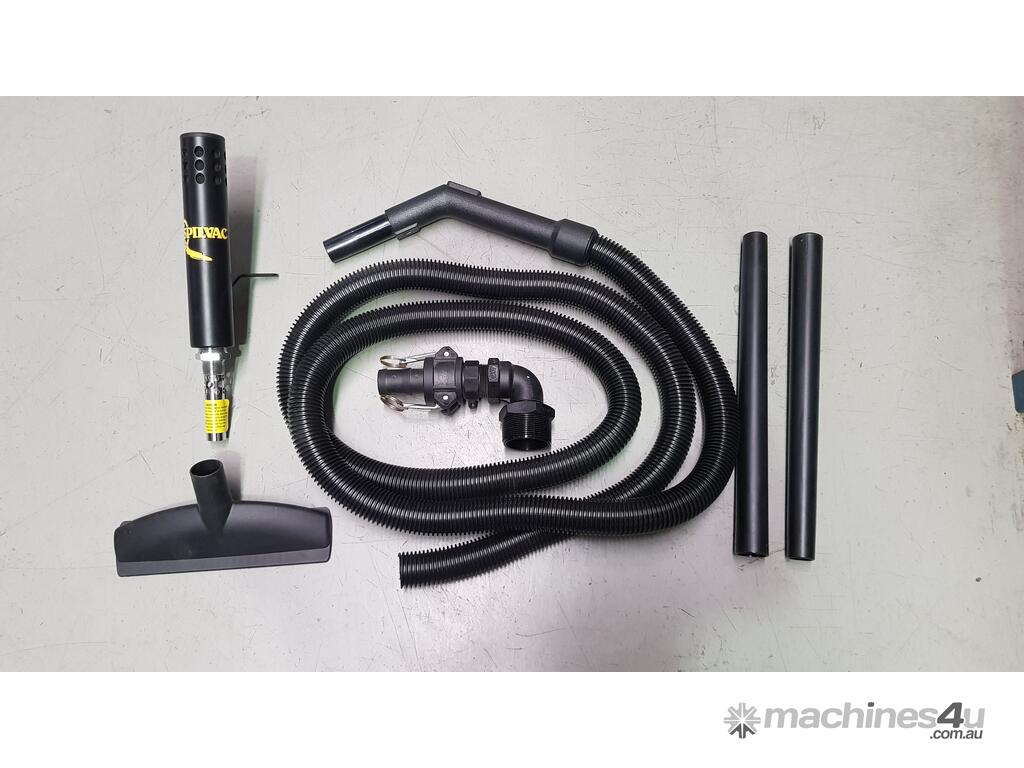

Includes:

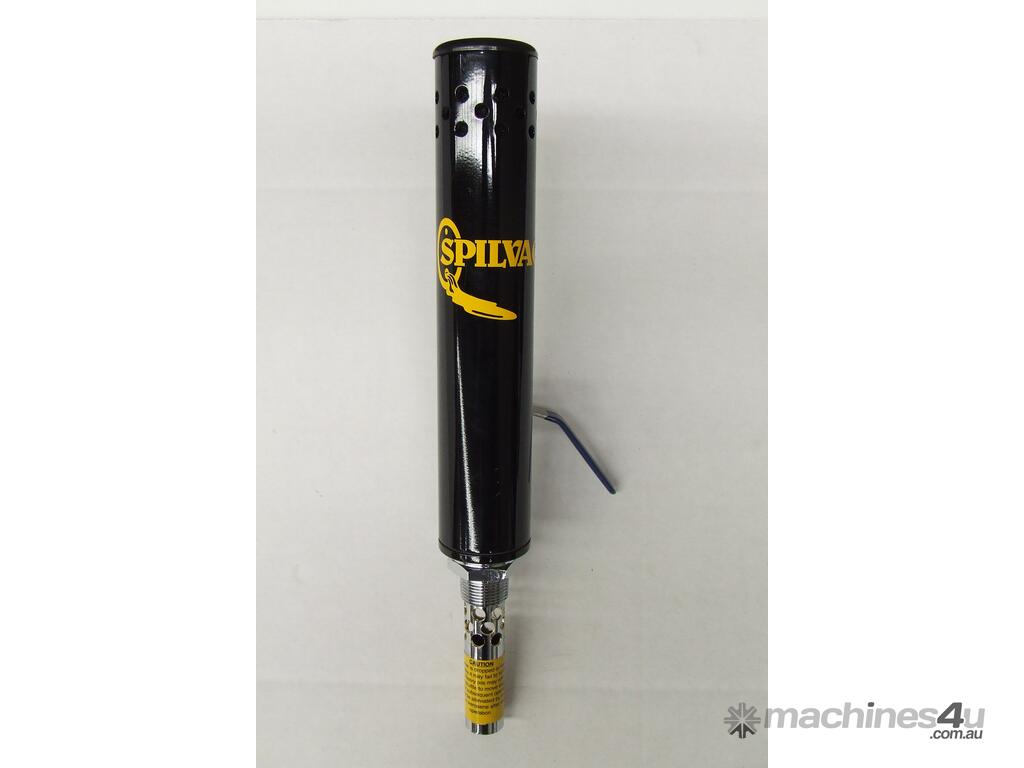

Spilvac Aluminum Pump

On/Off Valve

Chrome Safety Float Valve

32mm Hose Adapter

32mm Wand Set

2-Piece 32mm Squeegee Head

(No Drum)
