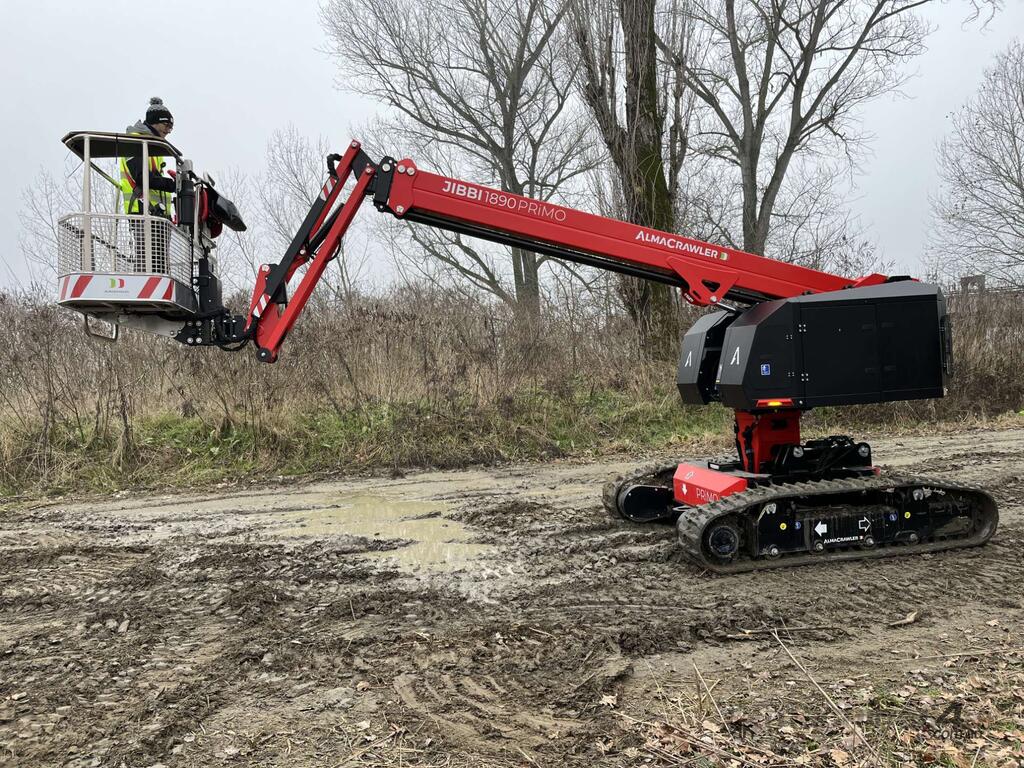

AlmaCrawler JIBBI 1890 EVO Telescopic Boom

NEW ARRIVAL! JIBBI 1890 EVO, self-levelling, tracked telescopic boom now available with a YANMAR Diesel engine.

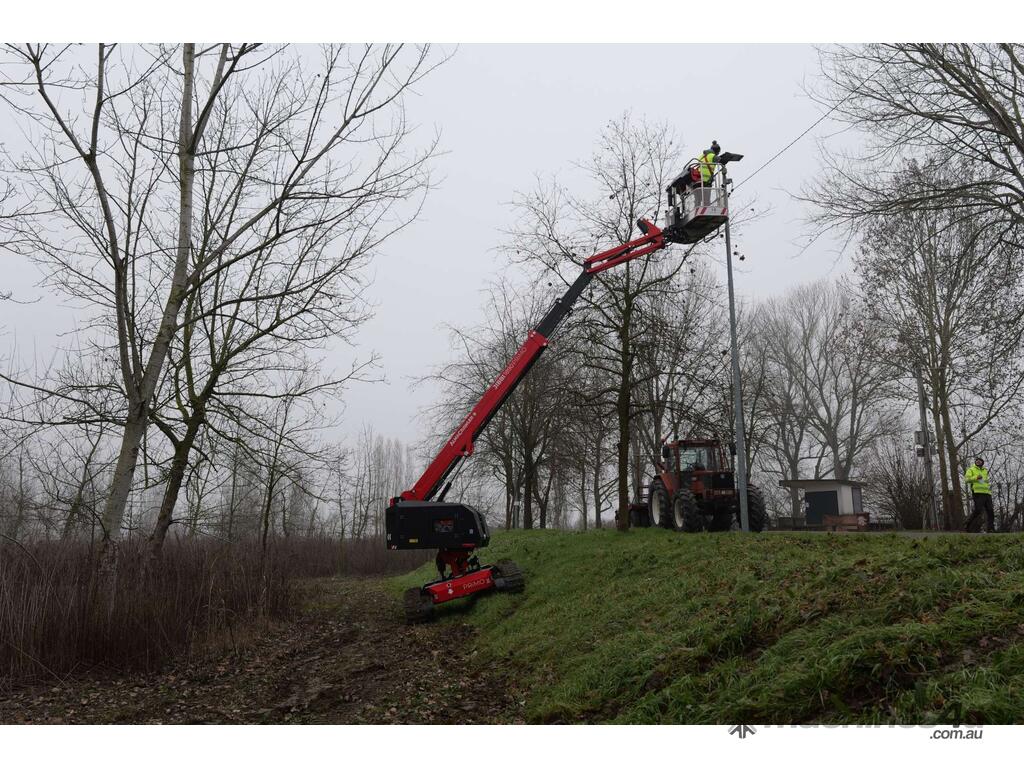

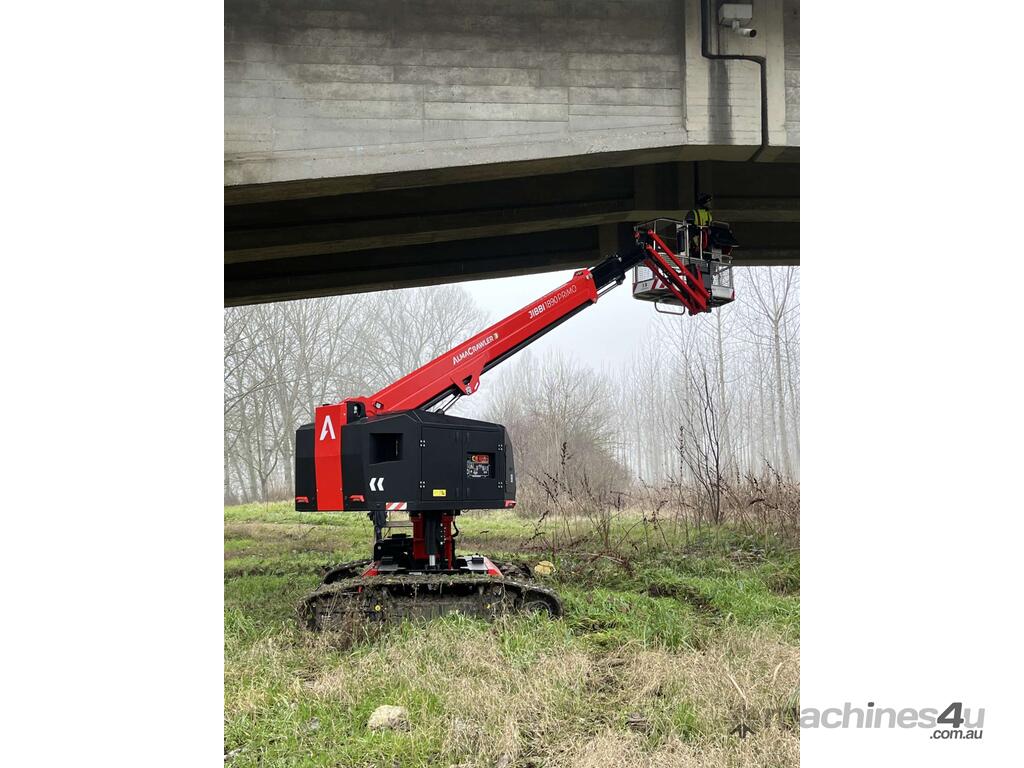

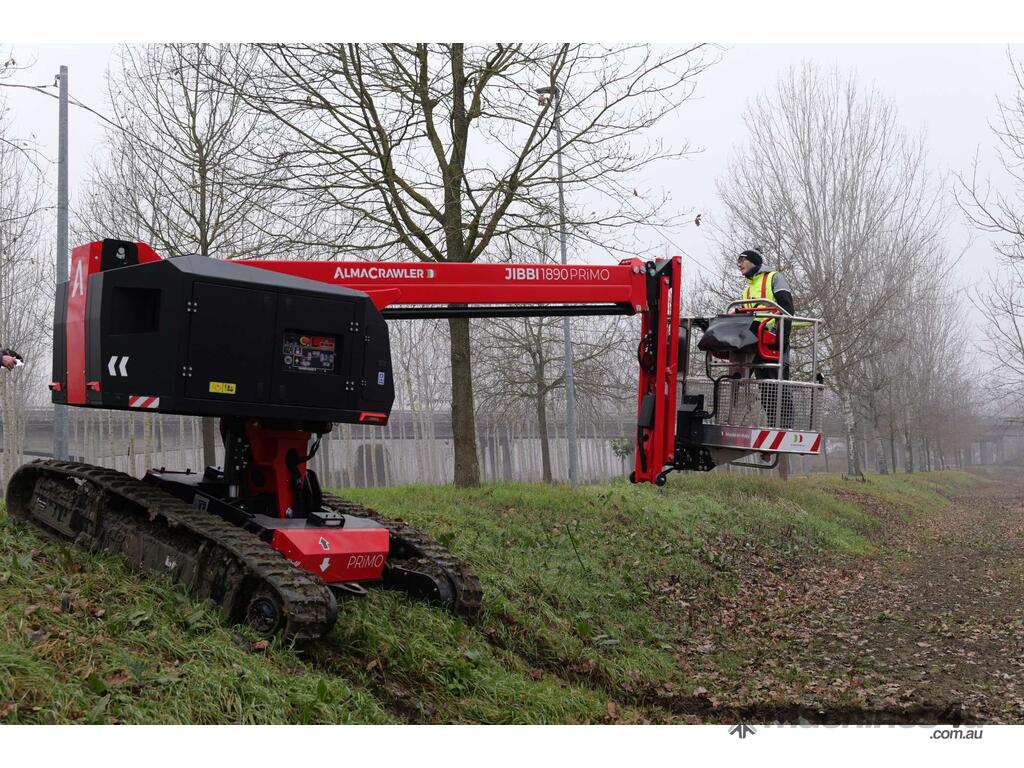

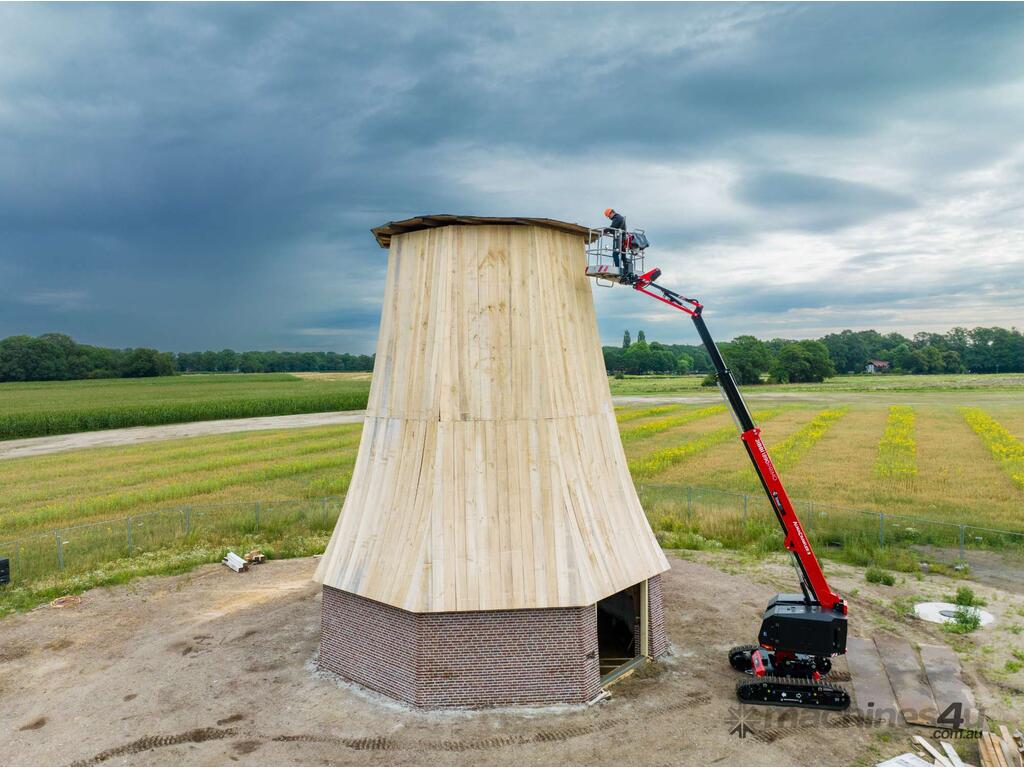

Designed to eliminate jobsite obstacles, with an 18m working height, it can safely be driven up to 14m and on 15° lateral and longitudinal inclination, drastically enhancing operator efficiency, productivity and safety.

The JIBBI 1890 EVO is powered by a reliable Yanmar 3TNV-88F Diesel engine (23.9 HP), which guarantees high performance, low fuel consumption and compliance with emission regulations, ensuring efficiency and reliability even on the toughest job sites.

New Fixed Control Panel
Completely reimagined controller for a streamlined user experience based on industry-accepted standards and rental sector needs. It features a standard Anti-Entrapment bar and comfortable joysticks.

Anti-Entrapment System
The AES anti-entrapment system is designed to prevent serious injury by stopping the unit when the operator is crushed against it. Our innovative system furthermore will go back on its trajectory for 3-5 seconds allowing space for the operator to safely remove himself.

Ultrasonic Anti-Collision System
The UAS sensors safeguard the aerial and travel operations by monitoring the area in front and behind the tracks, on the tail swing, and above and below the basket, preventing collisions with obstacles and offering pothole and drop-off protection. This is an optional kit that can be ordered on the Jibbi 1890 PRiMO.

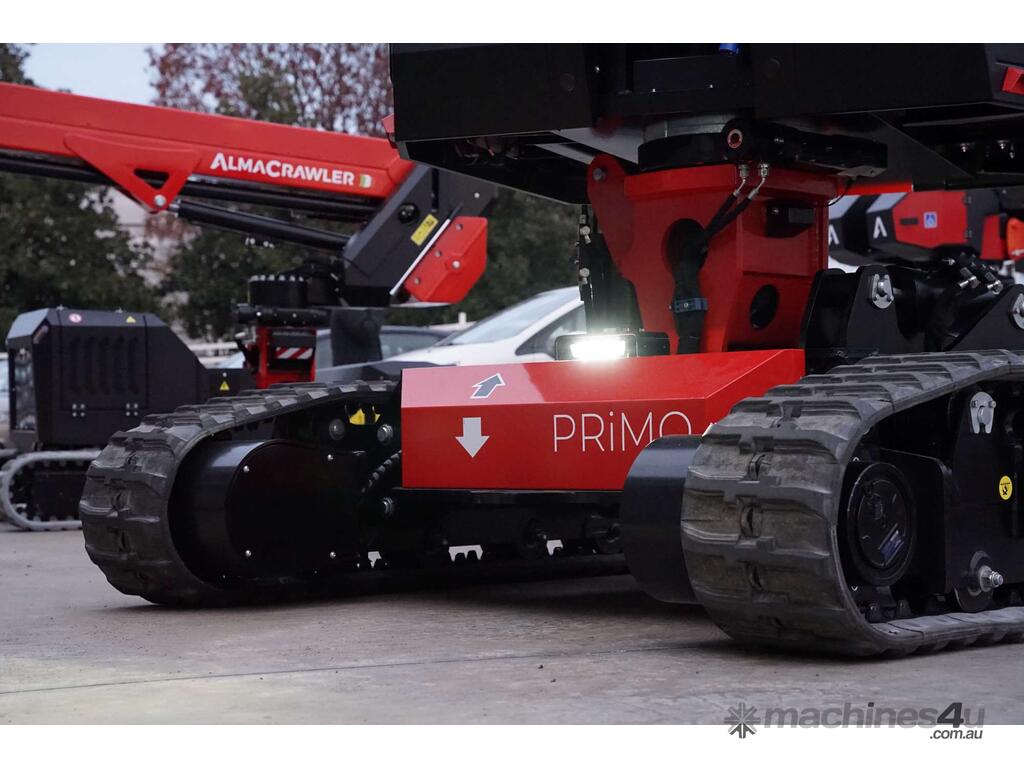

ATS – Automatic Tensioning System

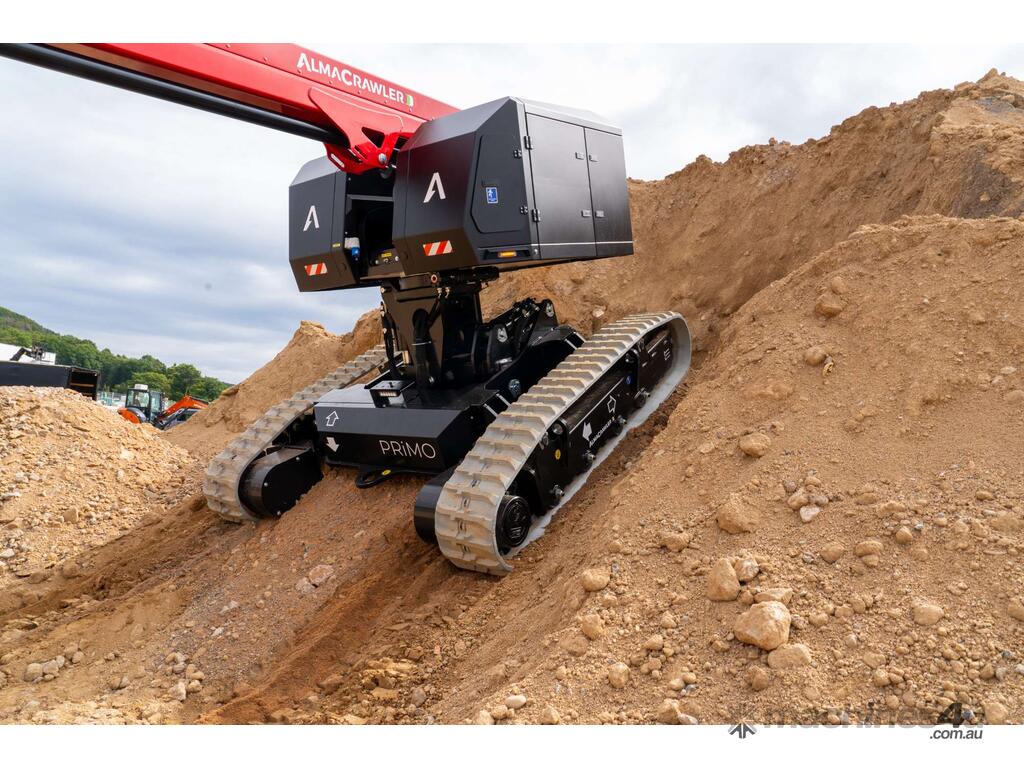

The ATS zero maintenance track tensioning system is connected to and controlled by the main hydraulic system. The tracks are automatically tensioned and require no greasing or maintenance.

Optional extra kits:

Work Lights Kit – an option for work lights positioned on the front and back of the undercarriage and around the basket.

Technical data JIBBI 1890 EVO

Max Working Height: 17.90 m
Max Height Basket Floor: 15.90 m
Max Moving Height: 13.80 m
Max Outreach:
(Load 140 kg): 9.92 m
(Load 250 kg): 8.32 m
Rotation Angle: ±190°

Basket:
Size: 1.80 x 0.70 m
Basket Rotation Angle: ±70°
Max Basket Capacity: 250 kg (2 persons)

Dimensions in Stowed Position:
Length: 5.86 m
Width: 2.20 m
Min Height: 2.16 m

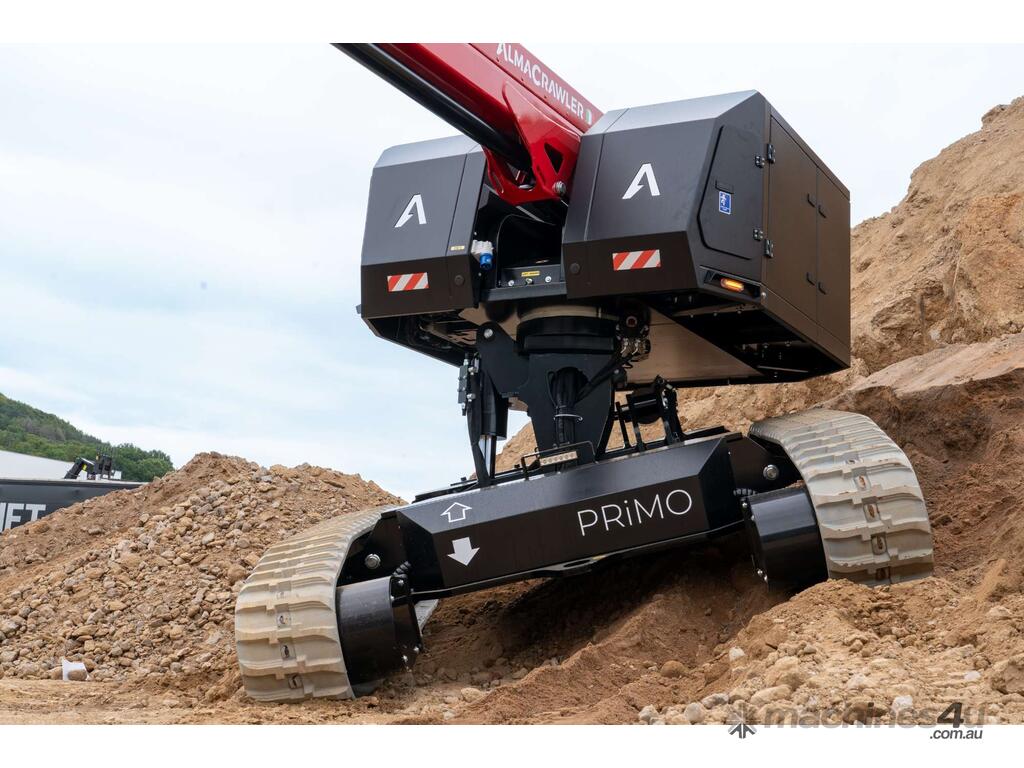

Levelling:
Longitudinal Levelling: ±15.6°
Lateral Levelling: ±15.6°

Performance:
Max Gradeability: 25°
Max Side Gradeability: 25°
Drive Speed (Fast): 4.50 km/h
Drive Speed While at Height: 0.60 km/h

Safety:
Anti-Entrapment System: Yes

Weight:
Total Weight: ~6050 kg


Traffic Load:
(Load in Basket 140 kg):
4.89 kN/m²


Power System
Main Power Source:
YANMAR Diesel 3TNV-88F (23,9 HP)

Extras – On Demand
Non-marking Tracks: Yes
Kit Works Lights: Yes
Arctic Lubricant for Cold Climate: Yes
Ultrasonic Anti-Collision System: Yes
