Almac 1490 Evo Scissor Lift - 14m Working Height

THE BI-LEVELING 14.1M SCISSOR LIFT

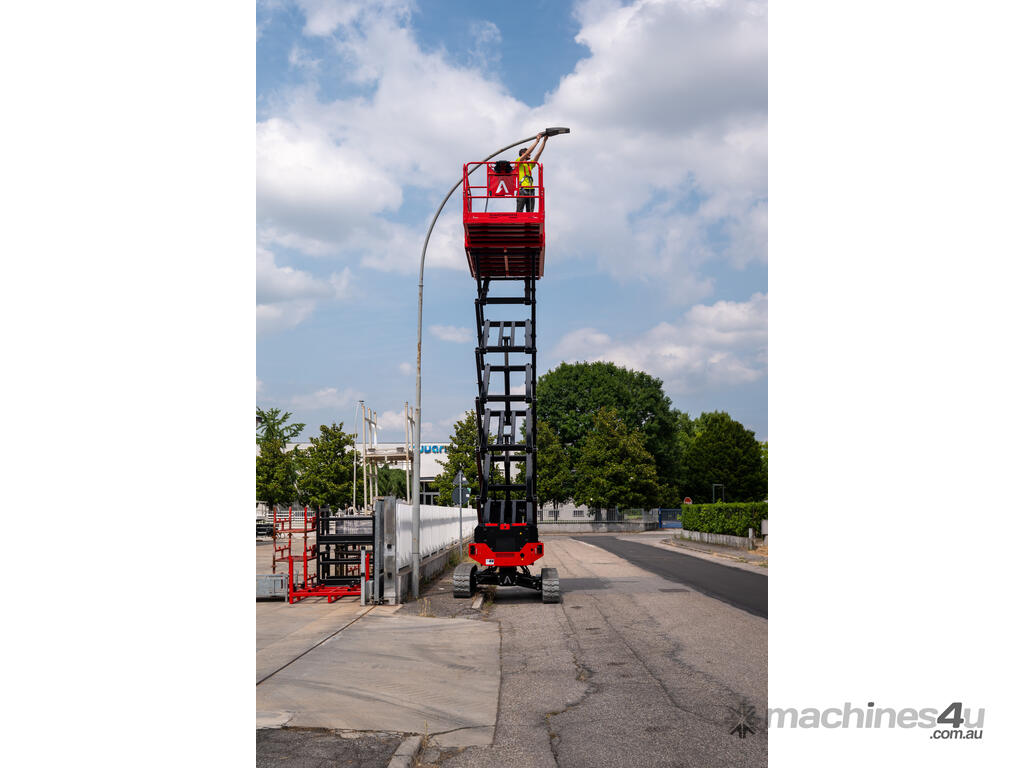

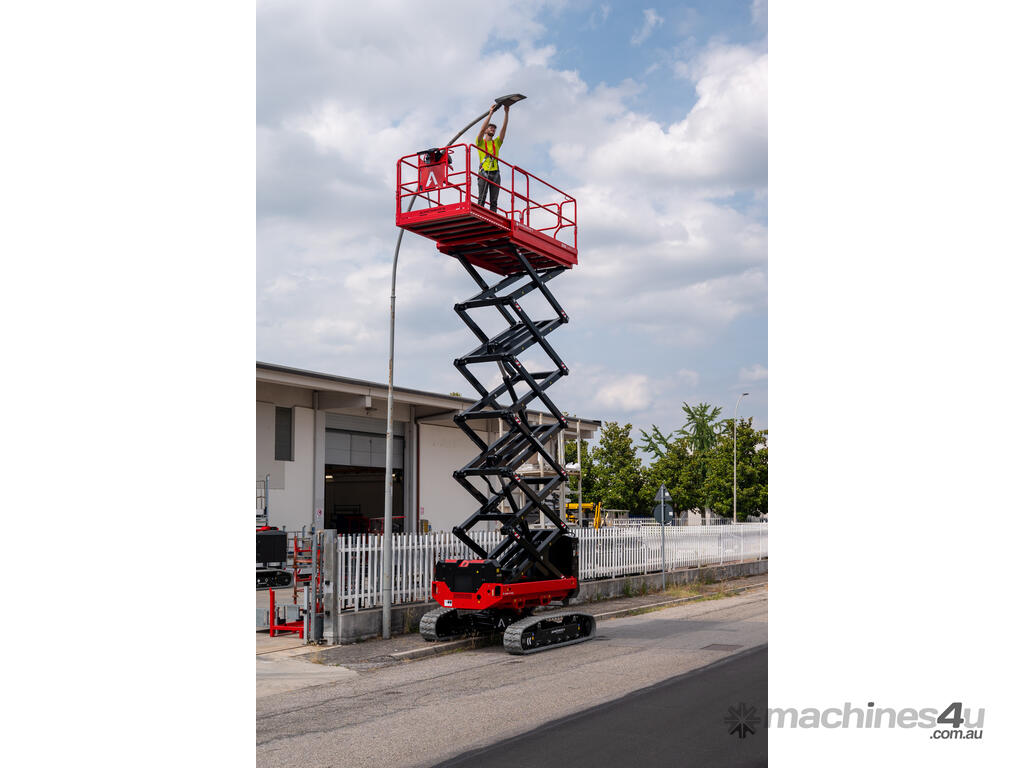

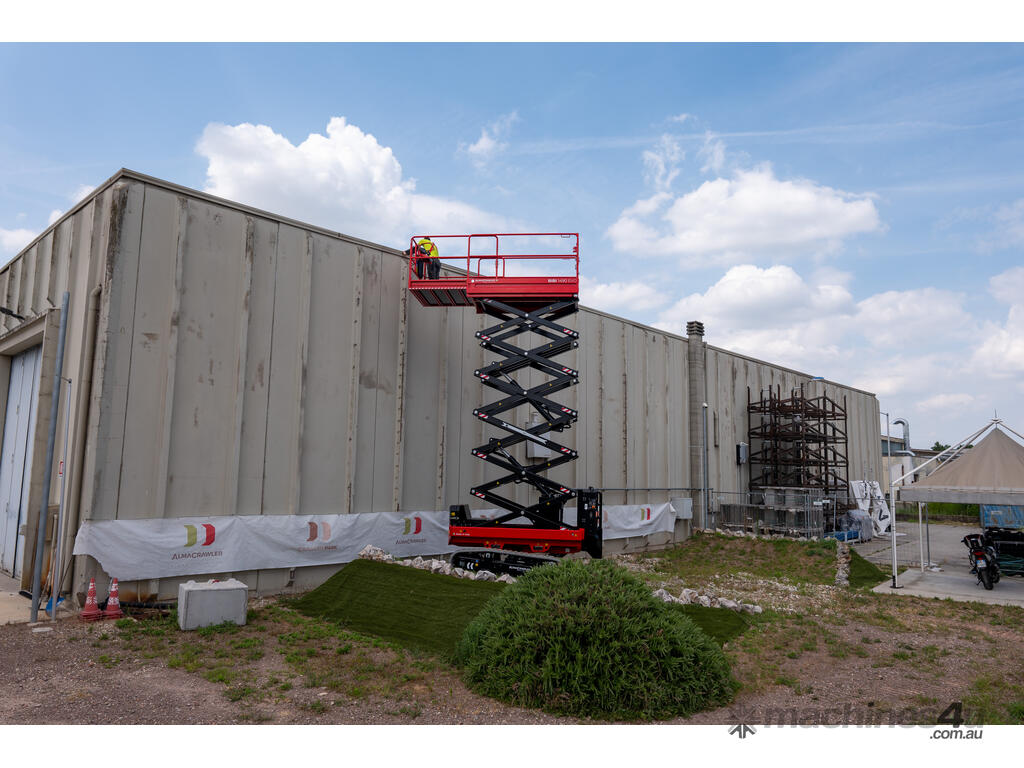

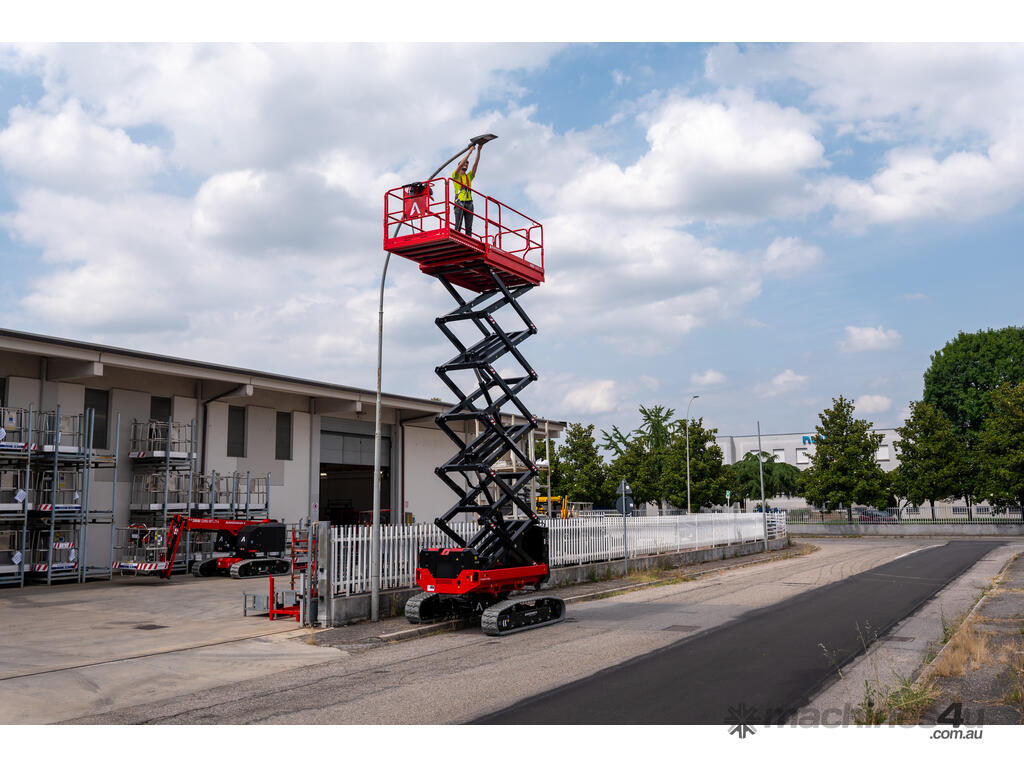

The ATHENA 1490 EVO is the innovative 14.1m tracked scissor lift that, thanks to its patented automatic BI-leveling technology, redefines industry standards. Designed to overcome the limits of traditional platforms, the ATHENA 1490 EVO offers exceptional performance in terms of safety, productivity, and versatility.

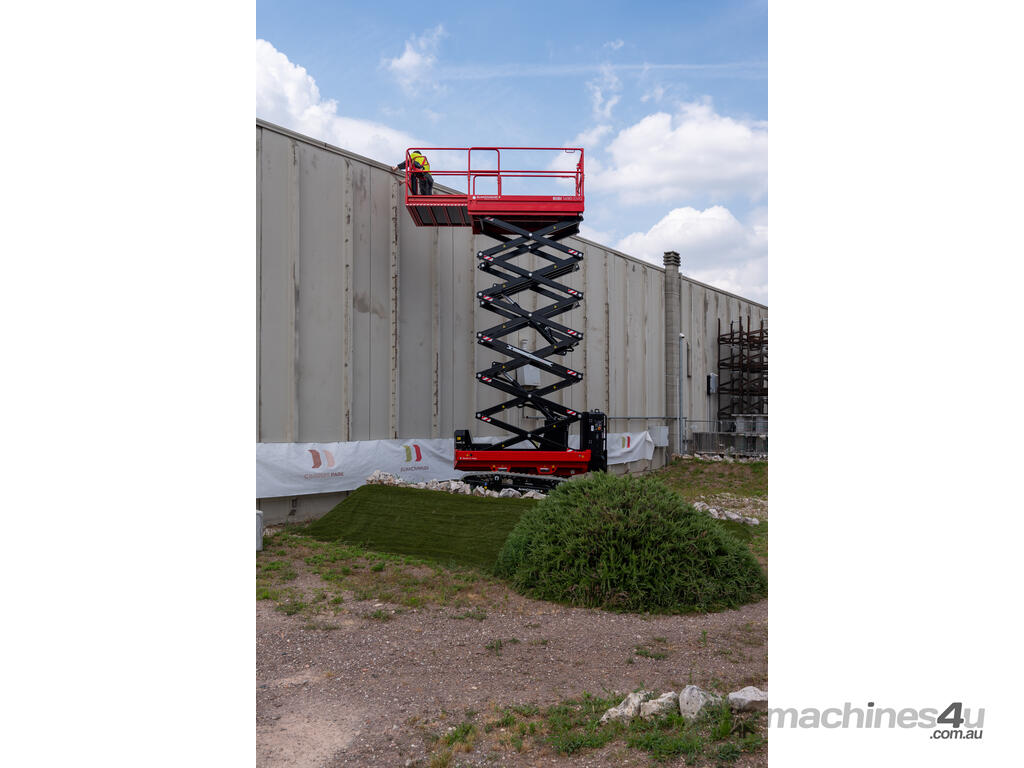

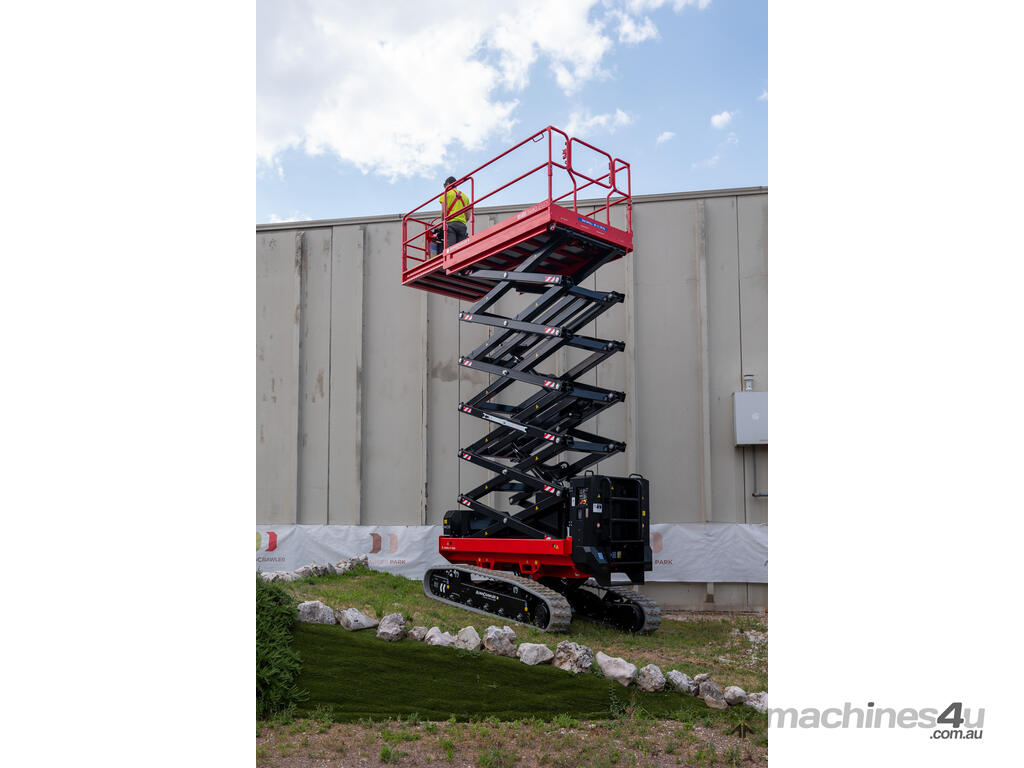

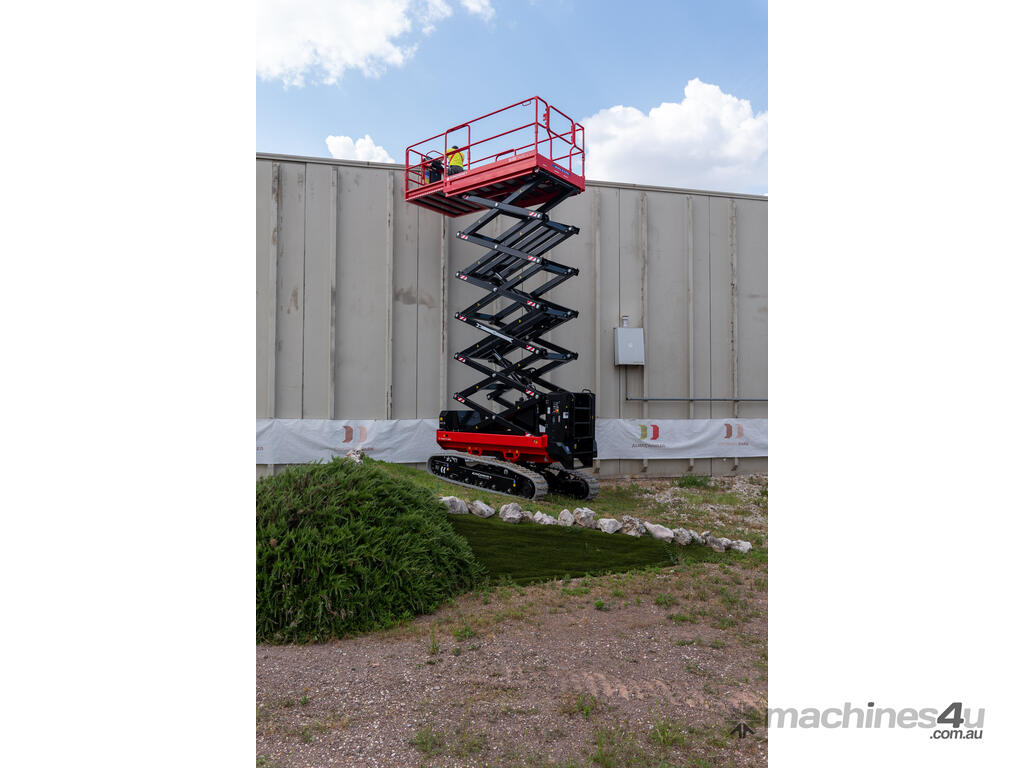

The bi-leveling undercarriage allows it to operate on uneven terrain with front and rear longitudinal leveling up to +/- 15° and lateral leveling up to +/- 14°. The platform offers a maximum working height of 14.1 meters, with a travel height of 9.2 meters. The basket dimensions are 2.32 x 1.57 meters, and the maximum capacity is 400 kg. The ATHENA 1490 EVO is powered by a Yanmar Diesel engine and has a maximum travel speed of 2.5 km/h.

YANMAR DIESEL ENGINE
The ATHENA 1490 EVO is powered by a 17,8 kW Yanmar 3TNV80F-SDSA Diesel engine, known for its reliability and fuel efficiency.

NEW CONTROLLER
New console designed to meet industry-recognized standards and the needs of the rental world, creating a highly intuitive user experience.

It features an anti-entrapment bar (optional) and comfortable, intuitive joysticks.

ANTI-ENTRAPMENT SYSTEM
The AES anti-entrapment system is designed to prevent serious injuries by stopping the platform when the operator is crushed against it. Additionally, our innovative system automatically reverses the platform along its trajectory for 3-5 seconds, allowing the operator to safely free themselves.

ATS – AUTOMATIC TENSIONING SYSTEM
The maintenance-free ATS track tensioning system is connected and controlled by the main hydraulic system.

Optional Extra Kits:
Work light kit – Work lights positioned on the front and rear of the undercarriage and around the basket.


Max. Working Height: 14.10 m
Max. Platform Height: 12.10 m
Capacity: 400 kg
Accelerator: Automatic
Moving Height: 9.20 m
Accelerator: Automatic
Undercarriage: Bi-Levelling
Basket Levelling: Automatic
Longitudinal Levelling Front: +/- 15°
Longitudinal Levelling Rear: +/- 15°
Lateral Levelling: +/- 14°
Side Slope: 25°
Drive Speed: 2.5 km/hr
