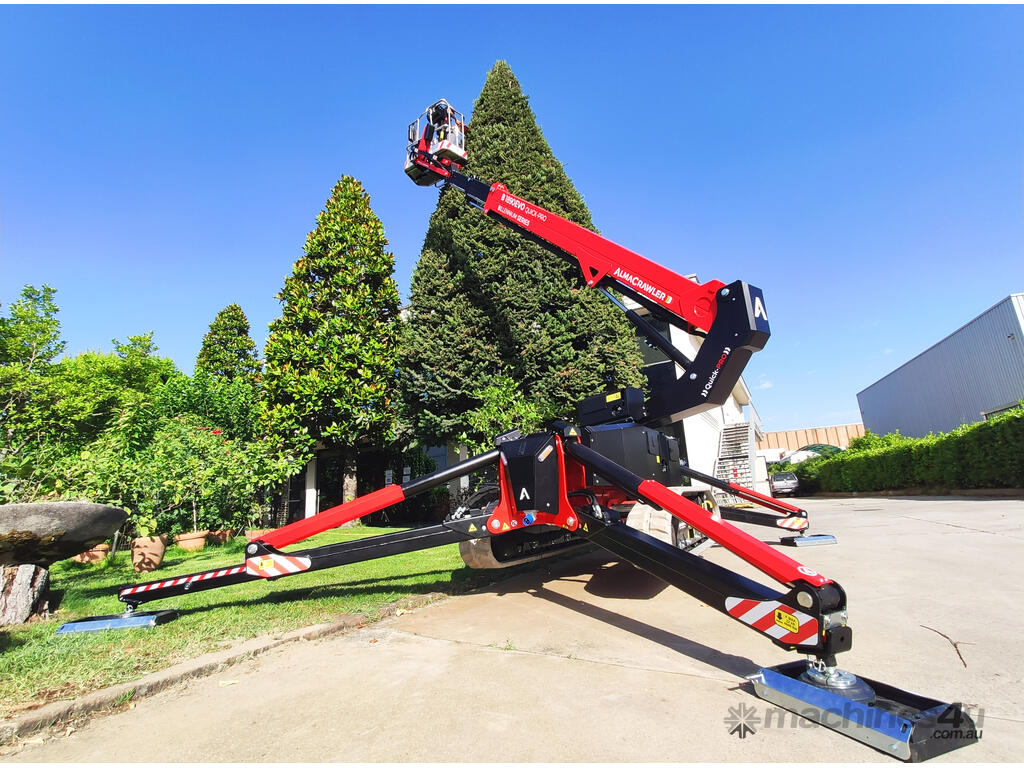

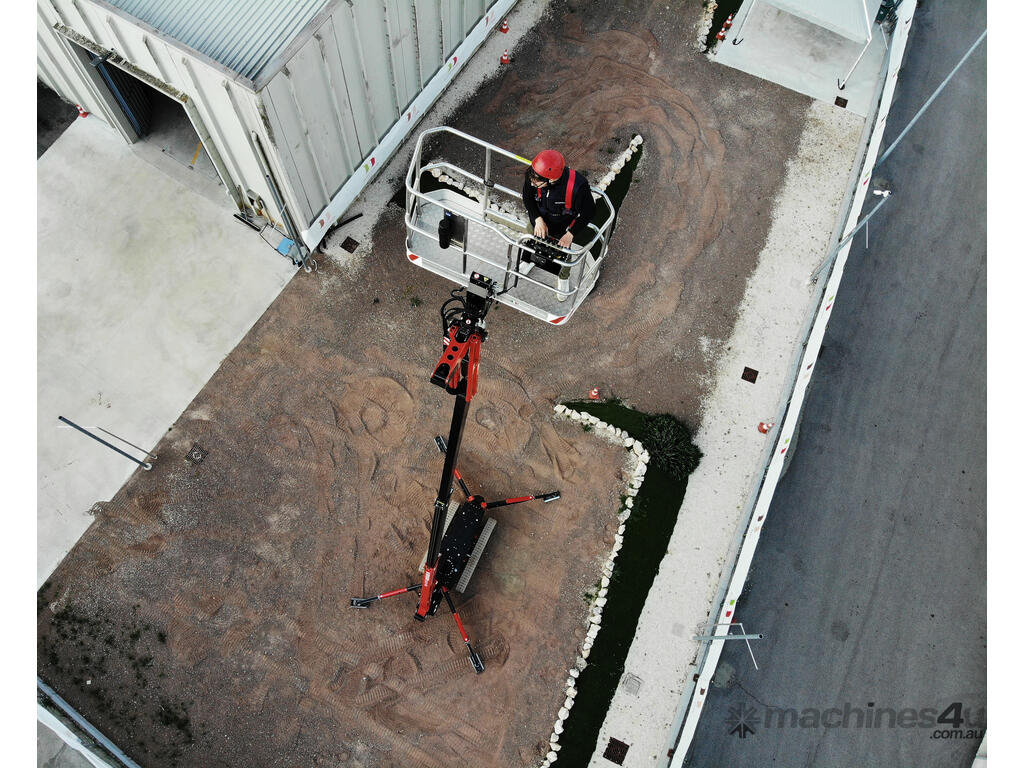

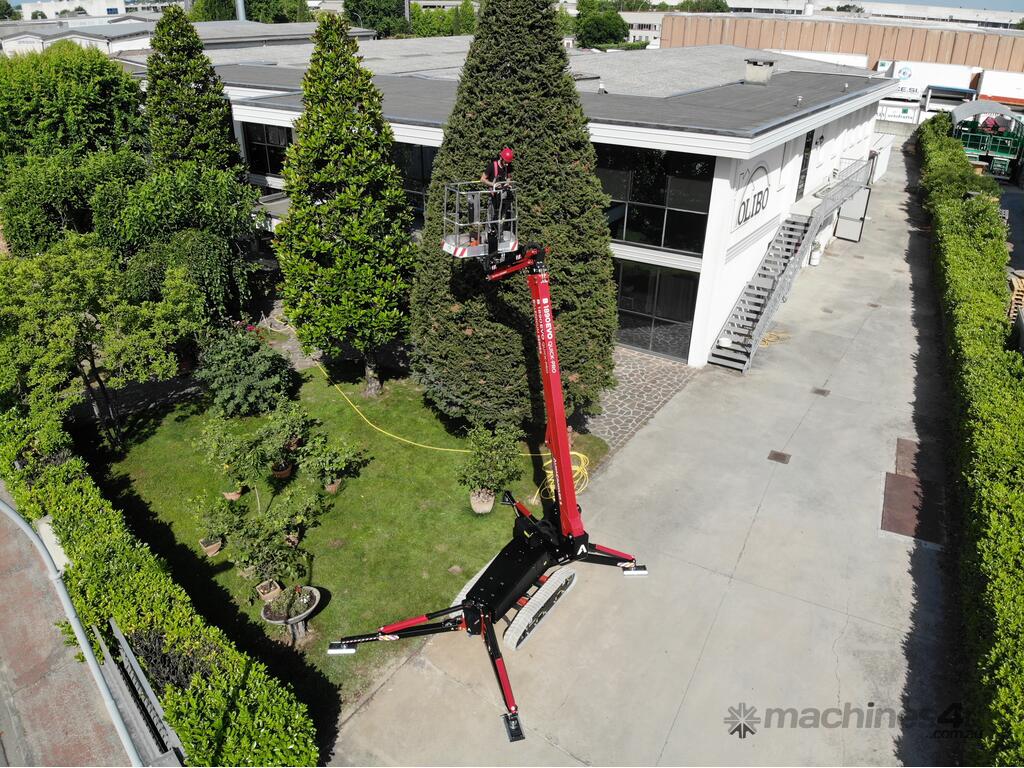

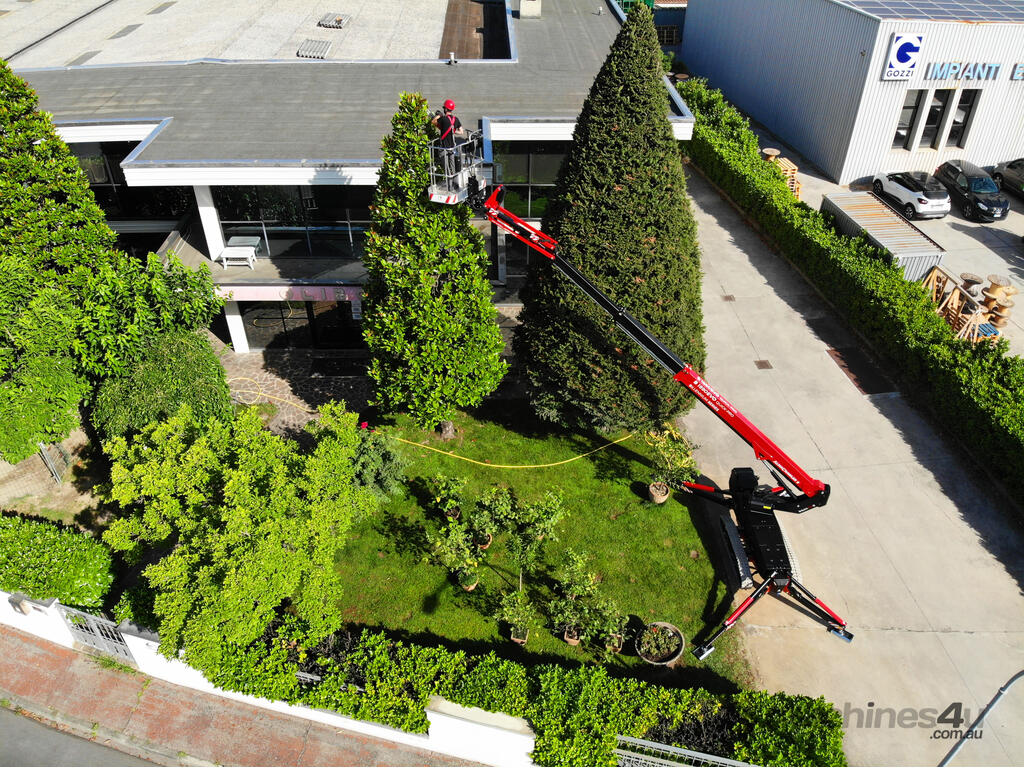

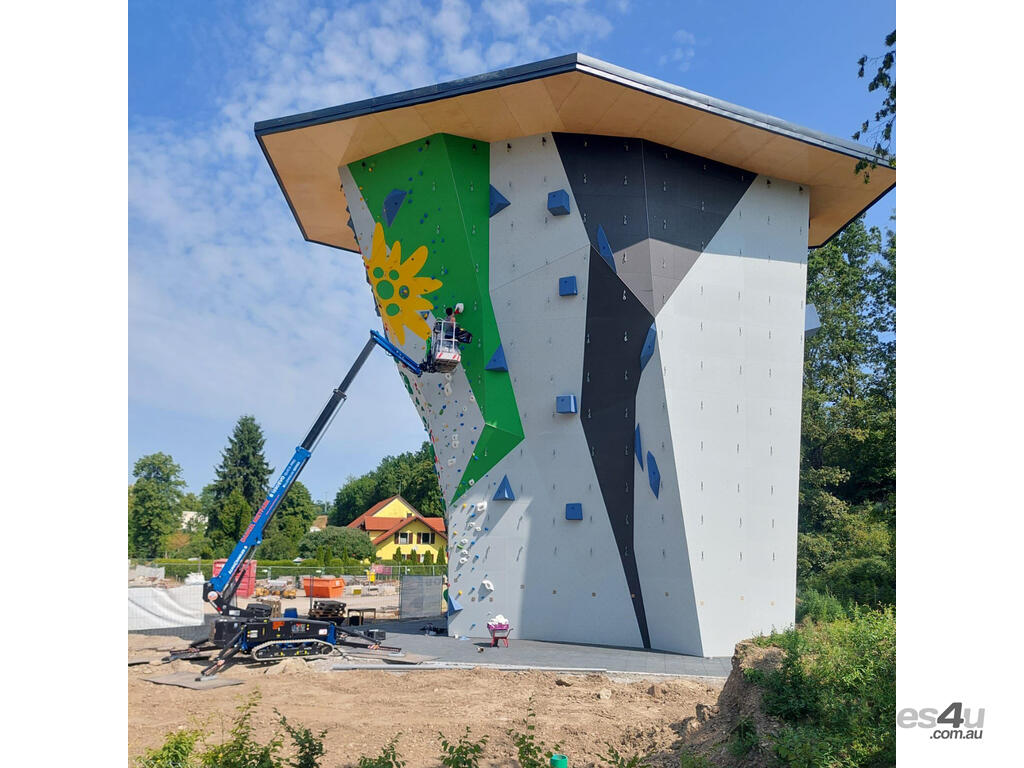

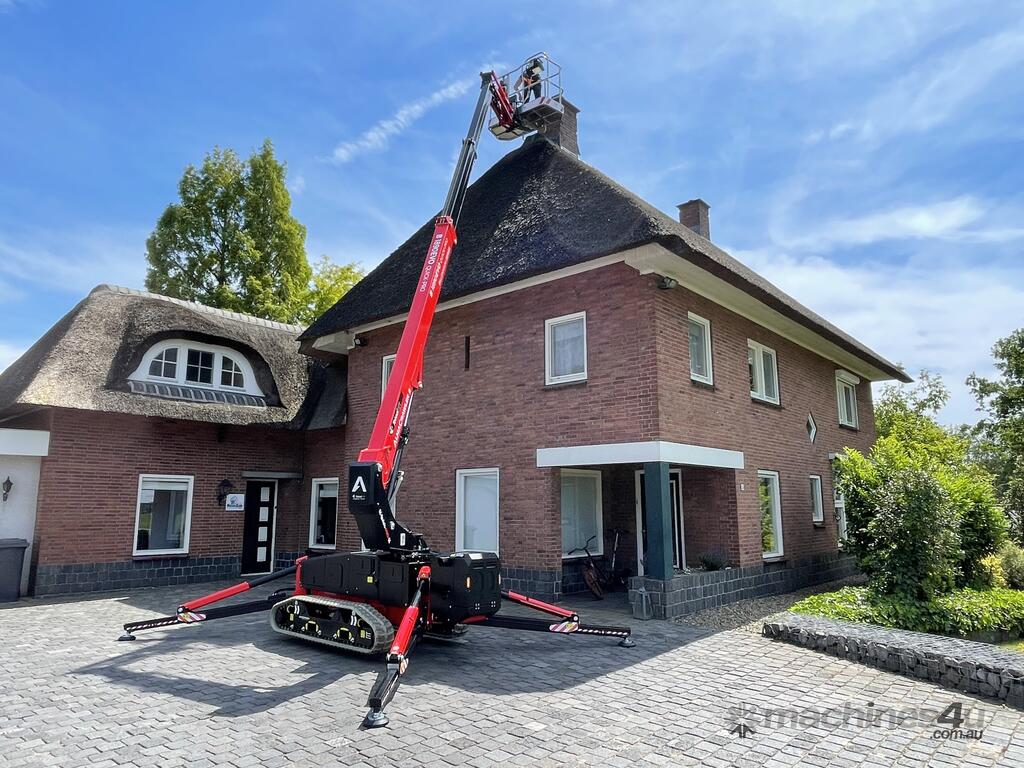

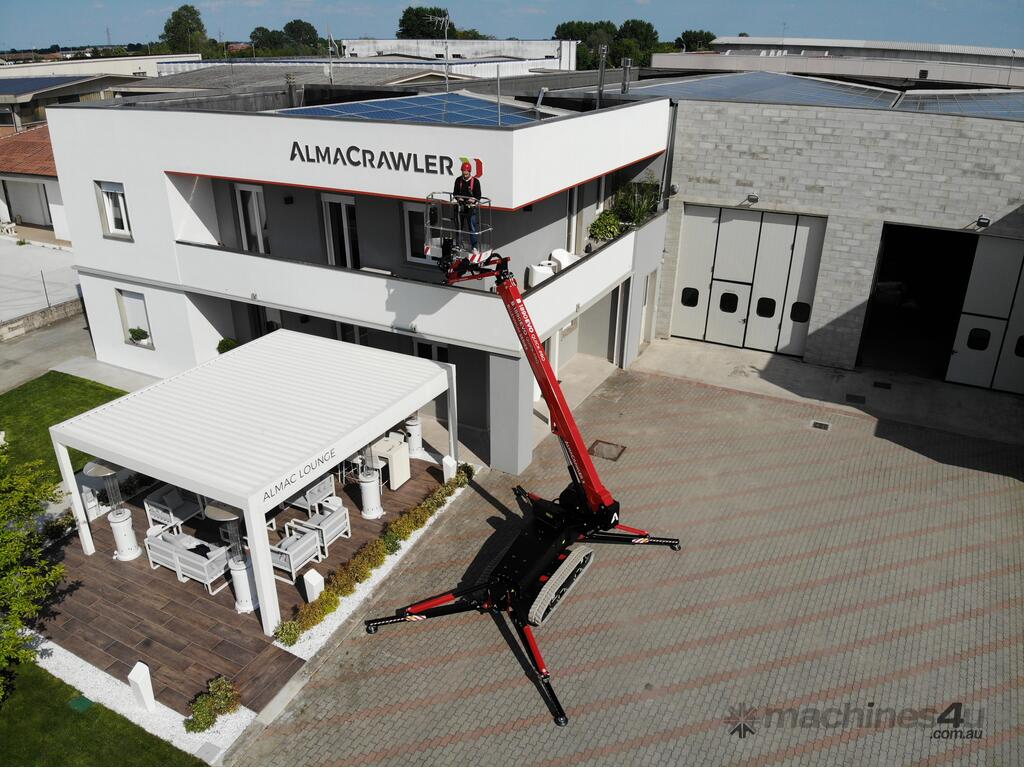

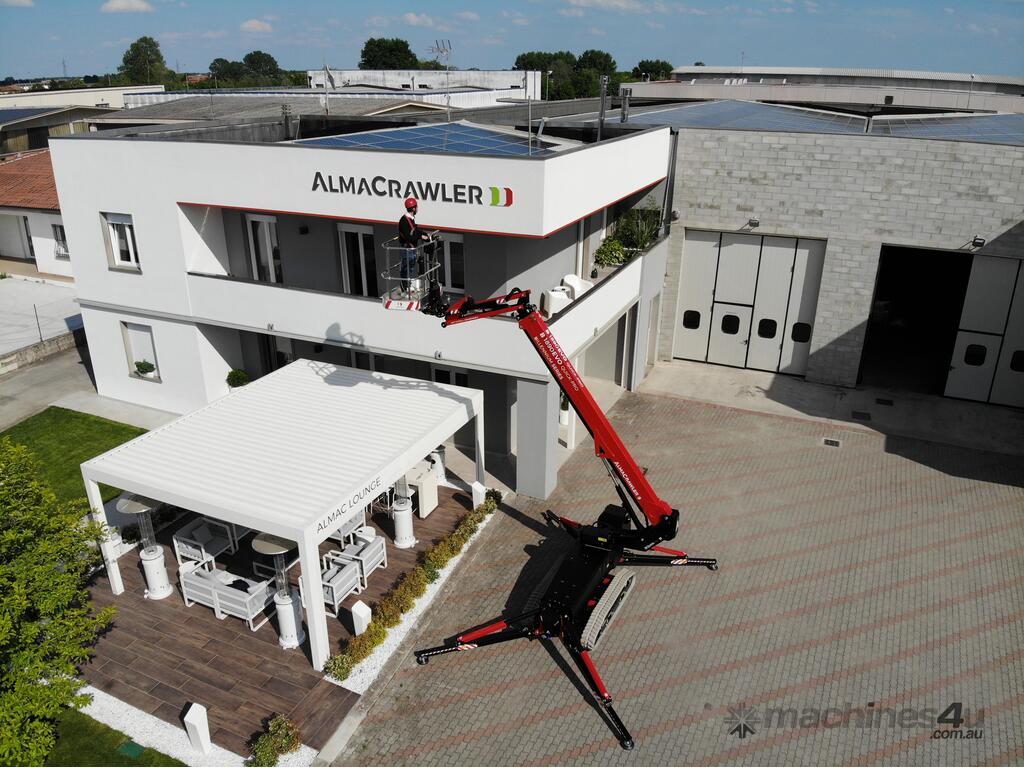

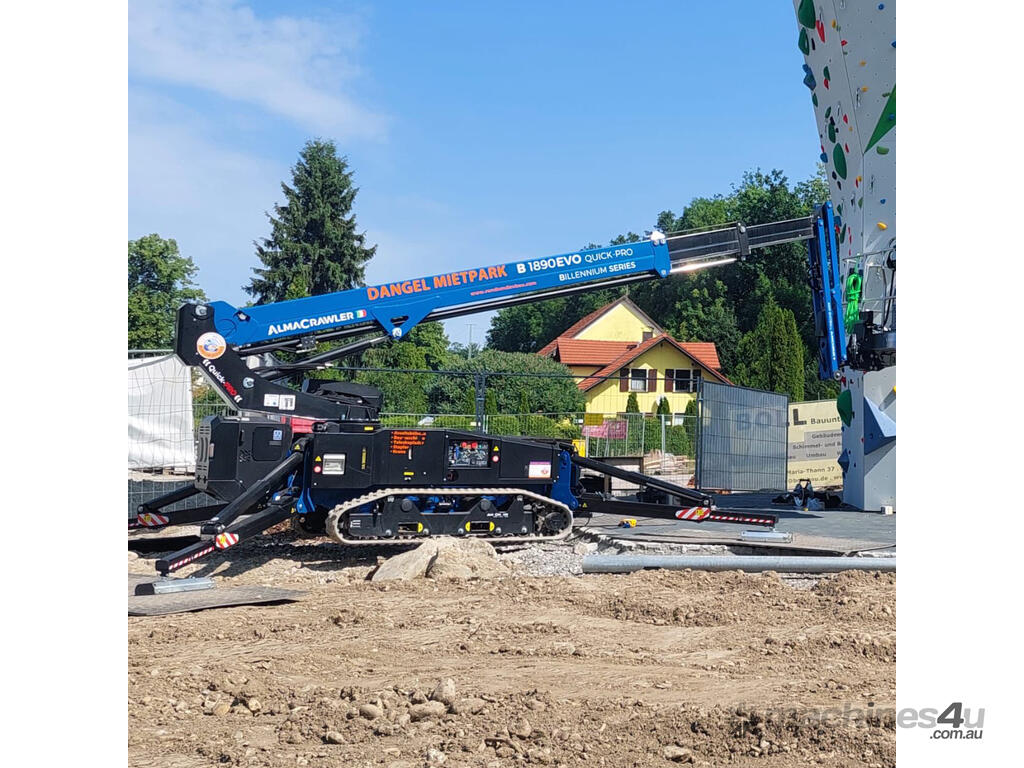

Almac B1890 Quick-Pro LTH Spider Lift - 18m Working Height

Equipped with automatic variable stabilization, the B1890 QUICK-PRO LTH is a new platform designed and manufactured by AlmaCrawler for the BT LINE. With this new line of machines, among which the B1890 QUICK-PRO LTH, AlmaCrawler offers to the professionals of the sector and to the market a new type of self-propelled tracked aerial platforms, which are born from the combination of the peculiar characteristics of the self-propelled wheeled aerial platforms and of the stabilized tracked aerial platforms.

The B1890 QUICK-PRO LTH is therefore an innovative type of aerial platform that AlmaCrawler defines Spiderboom, as it is morphologically unique and allows a better user experience and a superior application adaptability.



Key features of the Spiderboom B1890 QUICK-PRO LTH

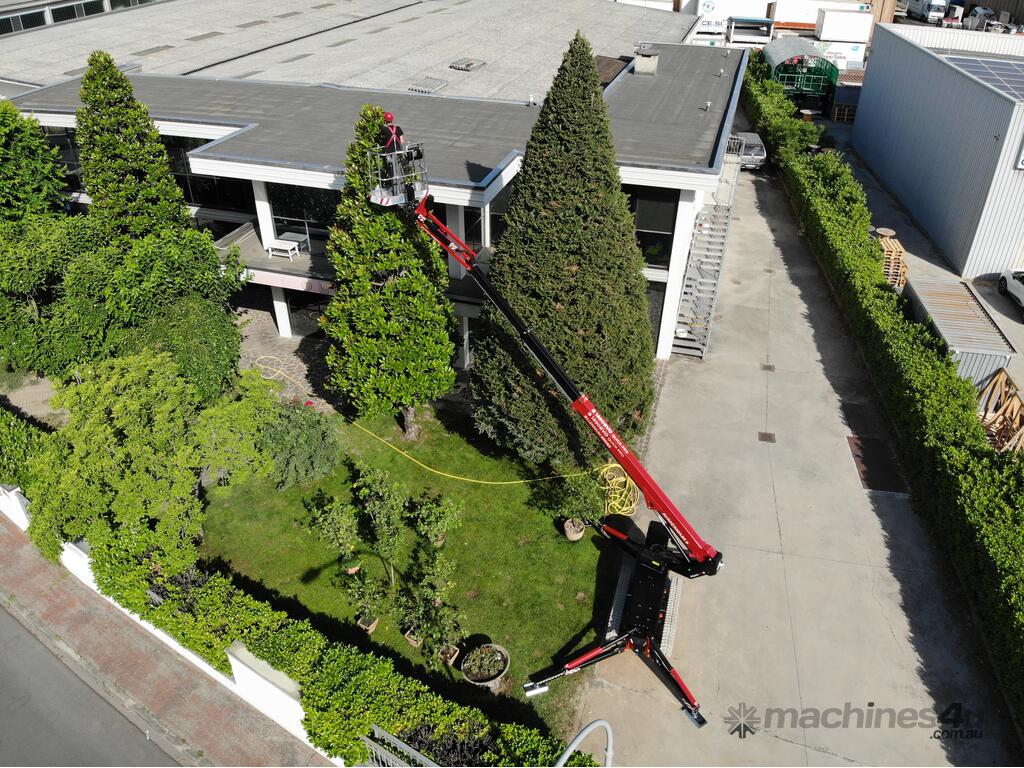

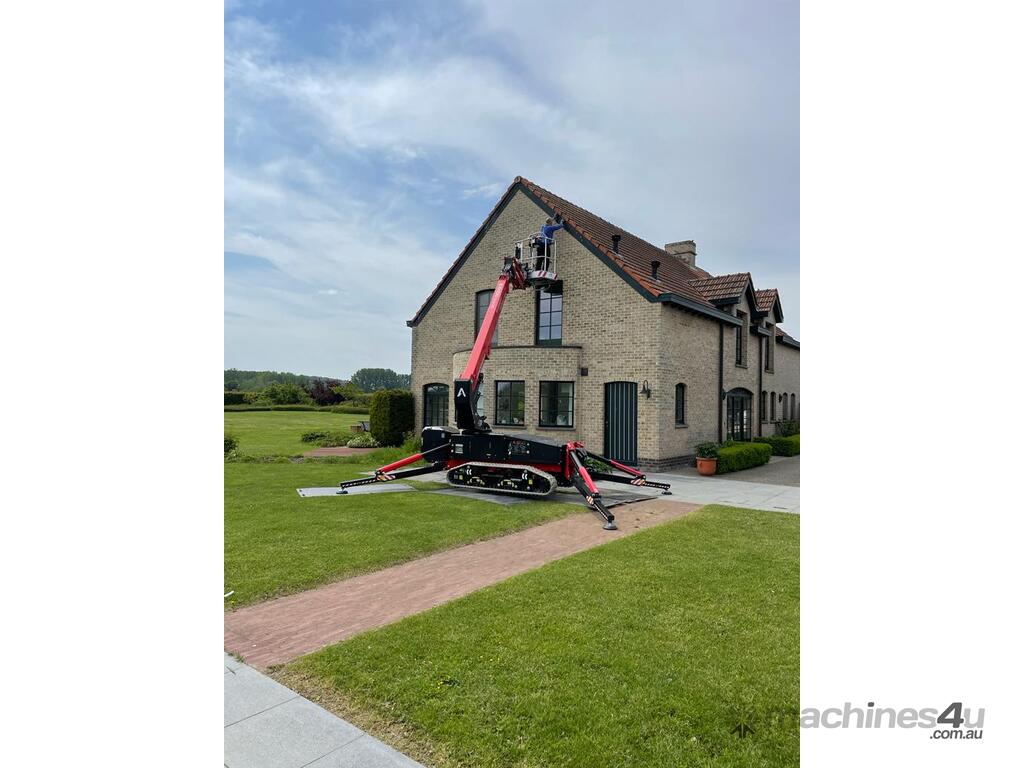

Powered by a Lithium 200Ah – 48V Power Pack, the B1890 QUICK-PRO LTH platform, allows operators to reach up to 18 metres in height, with a maximum outreach of more than 10 metres and a slewing angle of +/- 185°. The basket can rotate up to 70° and can carry a weight of 250 kg.

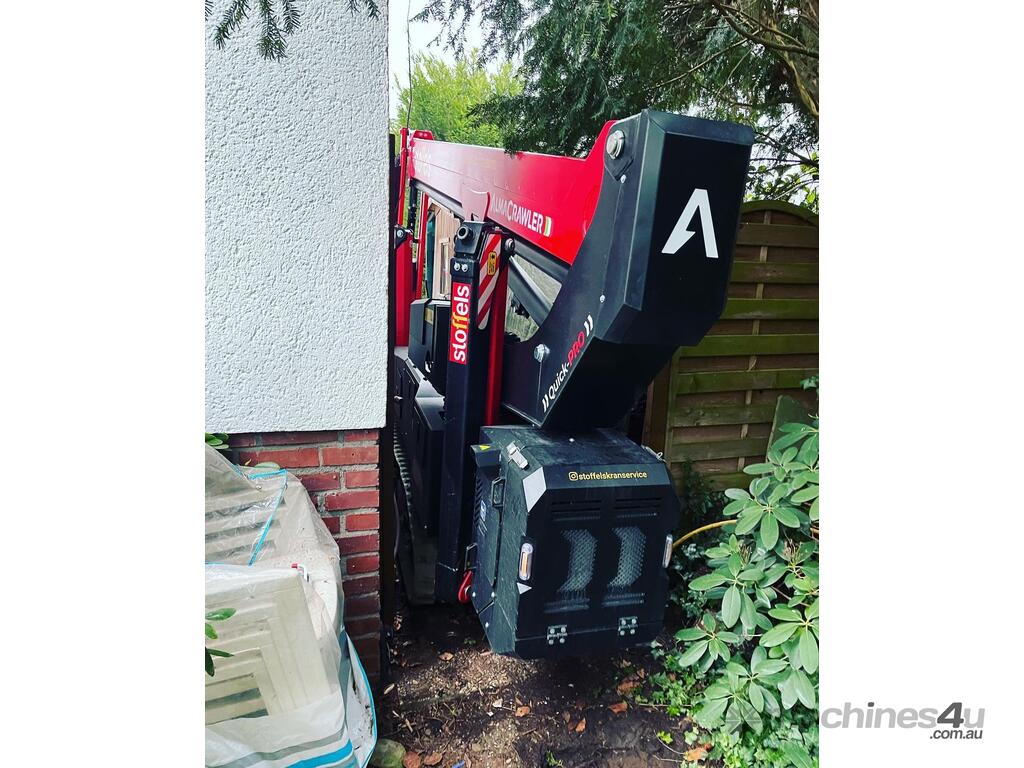

The “XXL Undercarriage” of the B1890 QUICK-PRO LTH has been specifically designed to increase safety in daily loading/unloading and platform movement operations, while respecting the typical compactness characteristics (variable track width 0.79÷1.39 m and undercarriage length of over 2 m).

Among the other different features of the B1890 QUICK-PRO LTH model, there are several technologies that make this platform exclusive in its kind, such as:

Self-Propelled Skilled System – SPS, a technology that allows the platform to be used on longitudinal slopes of up to 10° and lateral slopes of up to 5° in complete safety without the use of outriggers;
Automatic Tensioner System – ATS, hydraulic track tensioning system
Adaptive Working Performance – AWP, outreach performance technology based on the effective stabilisation area.

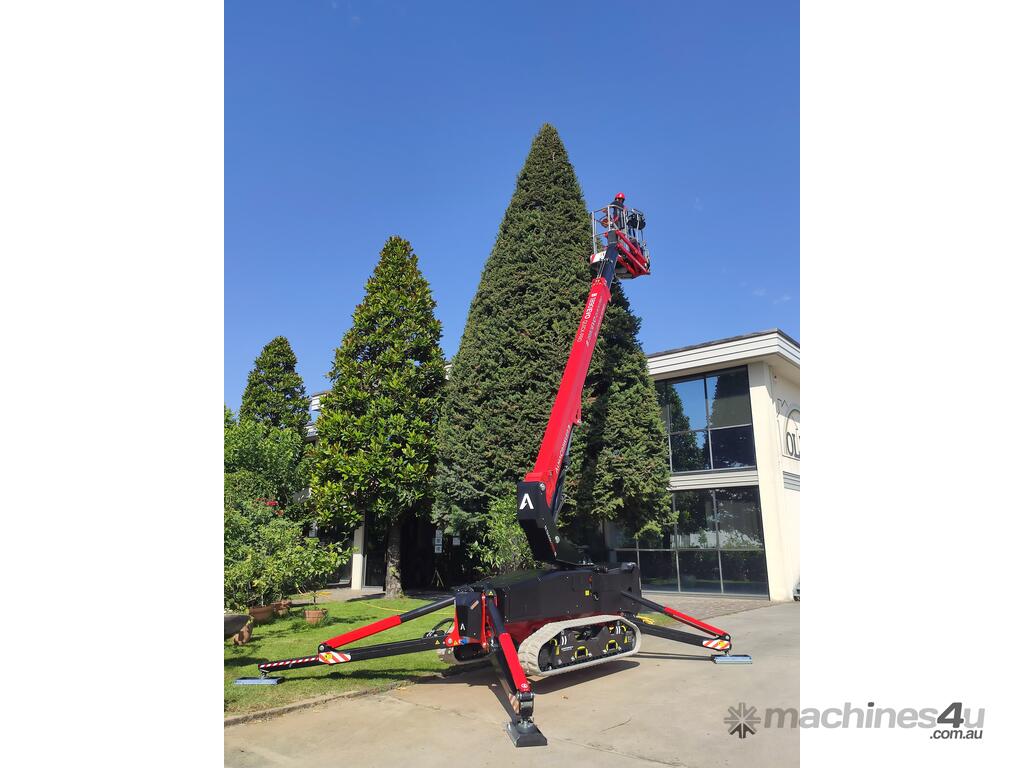

Quick-PRO fully automatic stabilisation system

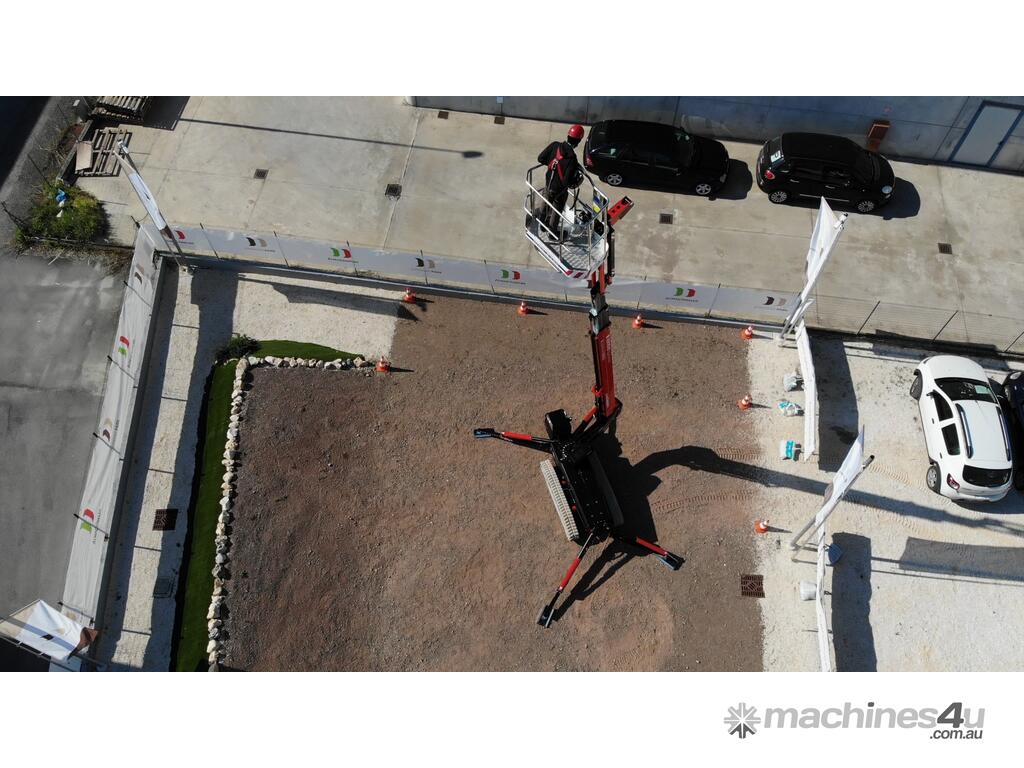

The Quick-PRO is a new automatic stabilisation configuration system that allows 6 different machine positioning configurations to be selected from the control panel via a special selector switch. Thanks to the telescopic stabilisers, it is possible to choose between a narrow stabilisation area of 4.29 m x 2.76 m, a wide stabilisation area of 4.97 m x 3.65 m and 4 different partial stabilisation areas.



Available options
AlmaCrawler’s aim is to offer its customers platforms that are high-performance, safe and able to meet their needs. For these reasons, the aerial platform B1890 QUICK-PRO LTH can be equipped with several options including:

Radio control kit
Tasket Basket, a shrinkable basket that does not require disassembly to cross narrow spaces;
Electric pump220V-2.2KW / 50Hz
Winch kit up to 200kg
Ultrasonic anti-collision system
Customised coating.


Max. Working Height: 18.00 m
Max. Platform Height: 16.00 m
Capacity: 250 kg
Rotation Angle: ±190°
Drive Speed: 2.6 km/hr
Power: Yanmar 2TNV70 10.2 kW (13.9 HP) 3600 rpm
