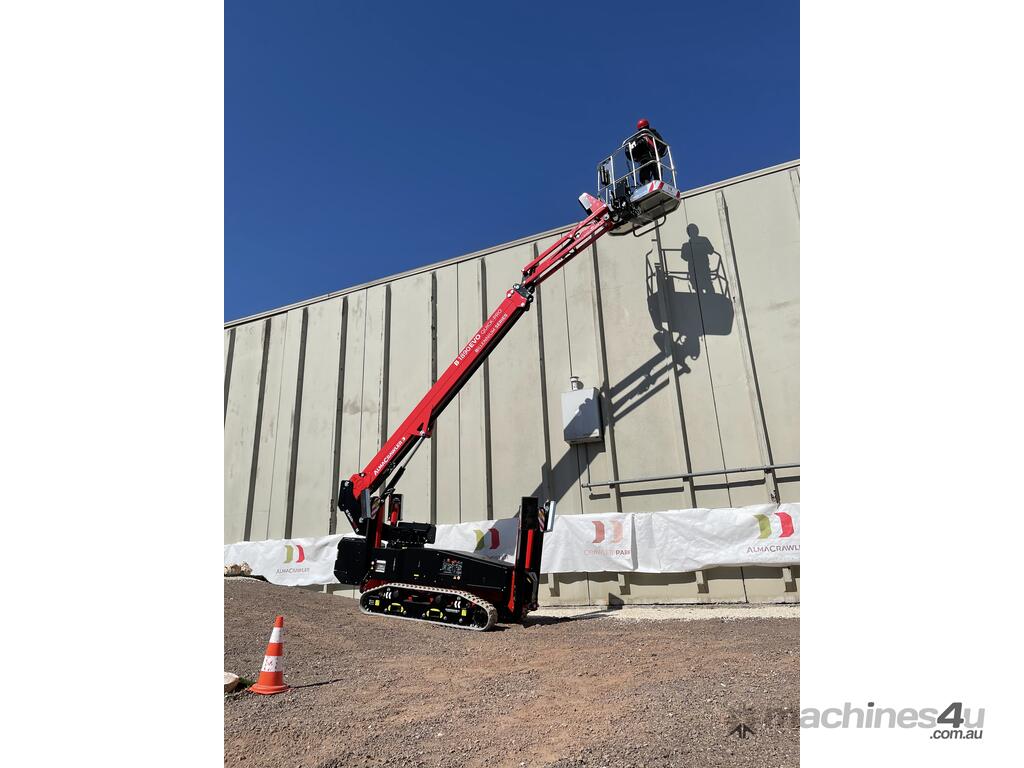

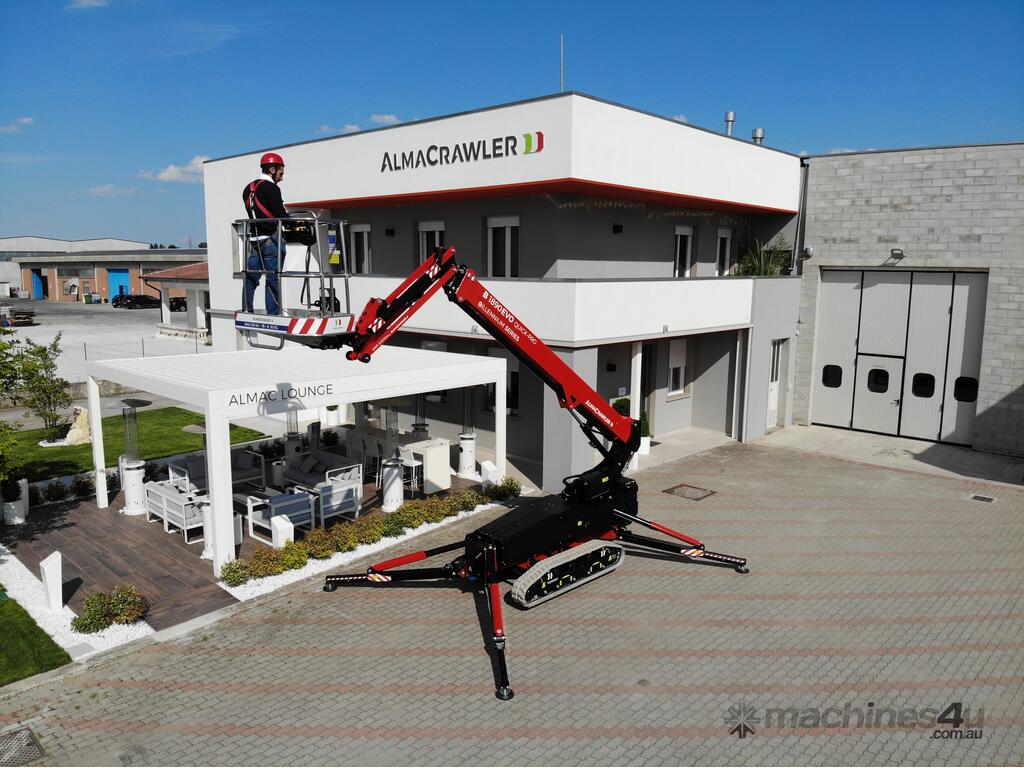

Almacrawler B1890 Quick-Pro Spider Boom

Equipped with automatic variable stabilization, the B1890 QUICK-PRO LTH is a new platform designed and manufactured by AlmaCrawler for the BT LINE. With this new line of machines, among which the B1890 QUICK-PRO LTH, AlmaCrawler offers to the professionals of the sector and to the market a new type of self-propelled tracked aerial platforms, which are born from the combination of the peculiar characteristics of the self-propelled wheeled aerial platforms and of the stabilized tracked aerial platforms.

The B1890 QUICK-PRO LTH is therefore an innovative type of aerial platform that AlmaCrawler defines Spiderboom, as it is morphologically unique and allows a better user experience and a superior application adaptability.

Key features of the Spiderboom B1890 QUICK-PRO LTH

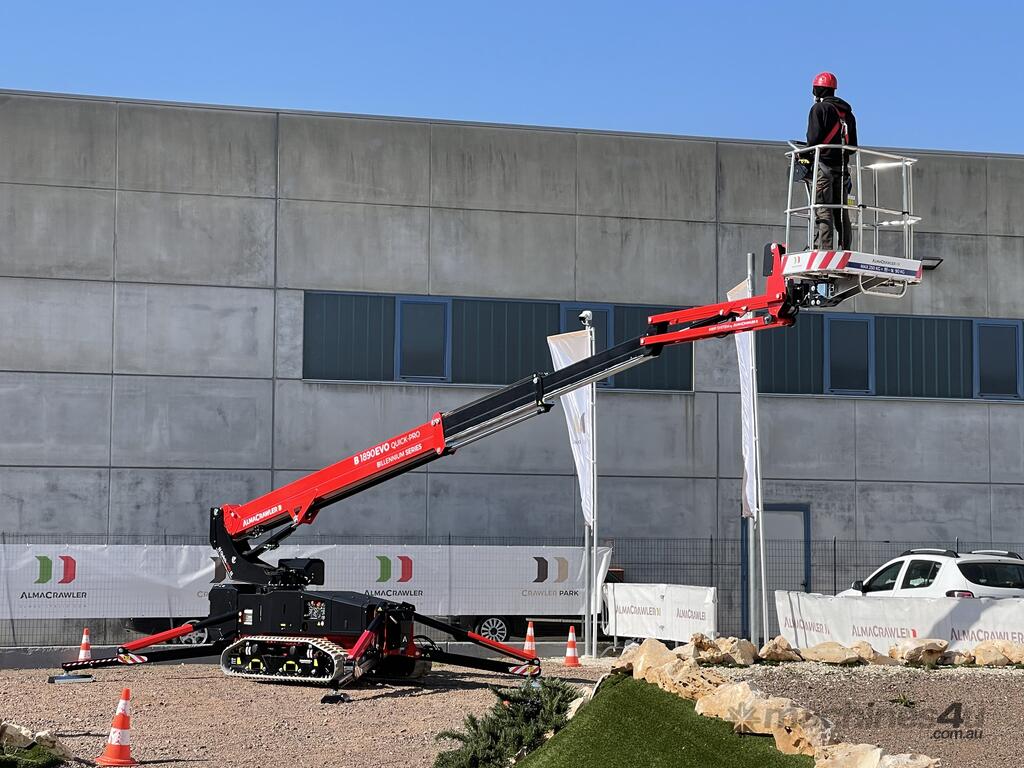

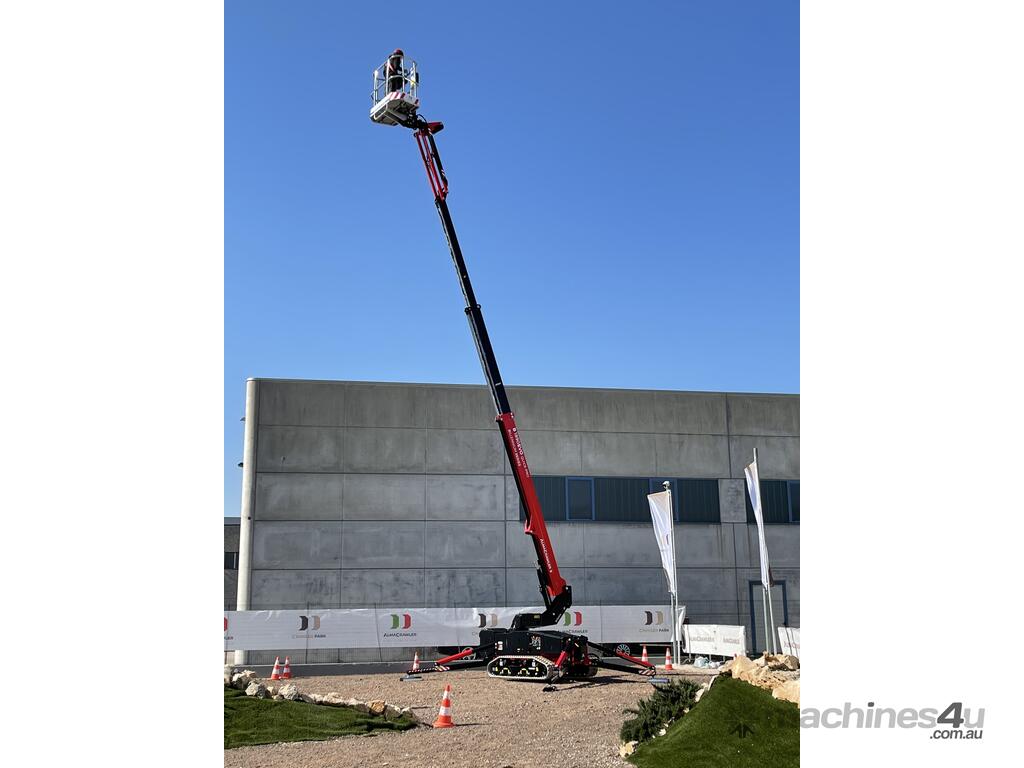

> Powered by a Lithium 200Ah – 48V Power Pack, the B1890 QUICK-PRO LTH platform, allows operators to reach up to 18 metres in height, with a maximum outreach of more than 10 metres and a slewing angle of +/- 185°. The basket can rotate up to 70° and can carry a weight of 250 kg.

> The “XXL Undercarriage” of the B1890 QUICK-PRO LTH has been specifically designed to increase safety in daily loading/unloading and platform movement operations, while respecting the typical compactness characteristics (variable track width 0.79÷1.39 m and undercarriage length of over 2 m).

> Among the other different features of the B1890 QUICK-PRO LTH model, there are several technologies that make this platform exclusive in its kind, such as:

> Self-Propelled Skilled System – SPS, a technology that allows the platform to be used on longitudinal slopes of up to 10° and lateral slopes of up to 5° in complete safety without the use of outriggers;
Automatic Tensioner System – ATS, hydraulic track tensioning system
Adaptive Working Performance – AWP, outreach performance technology based on the effective stabilisation area.

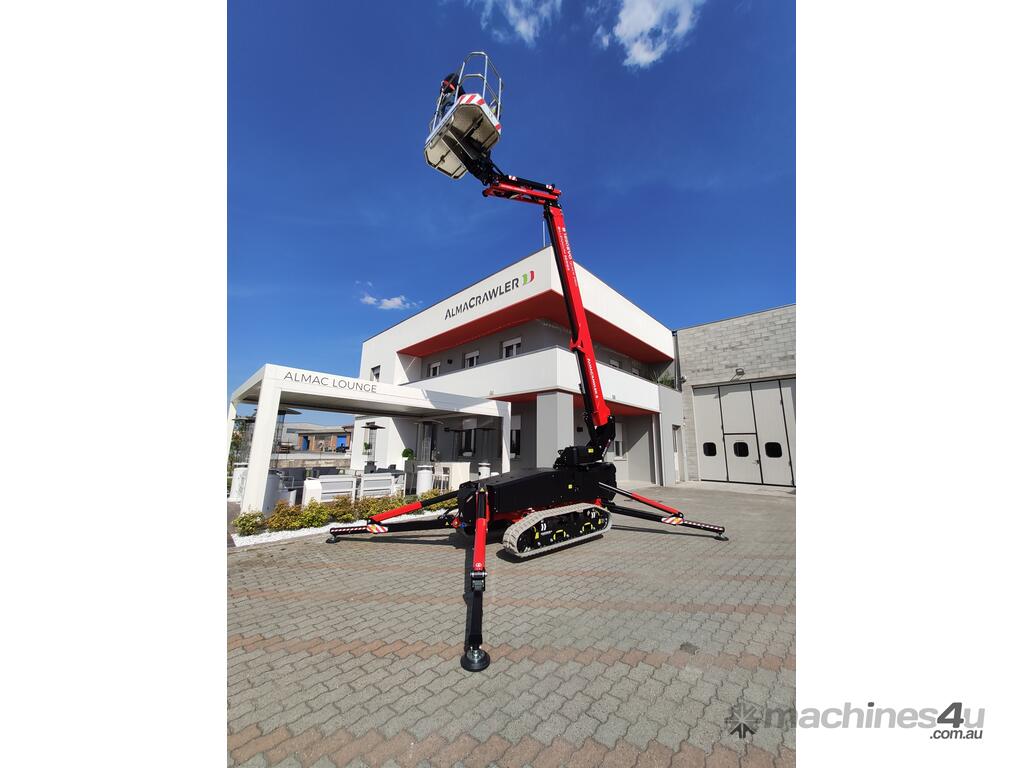

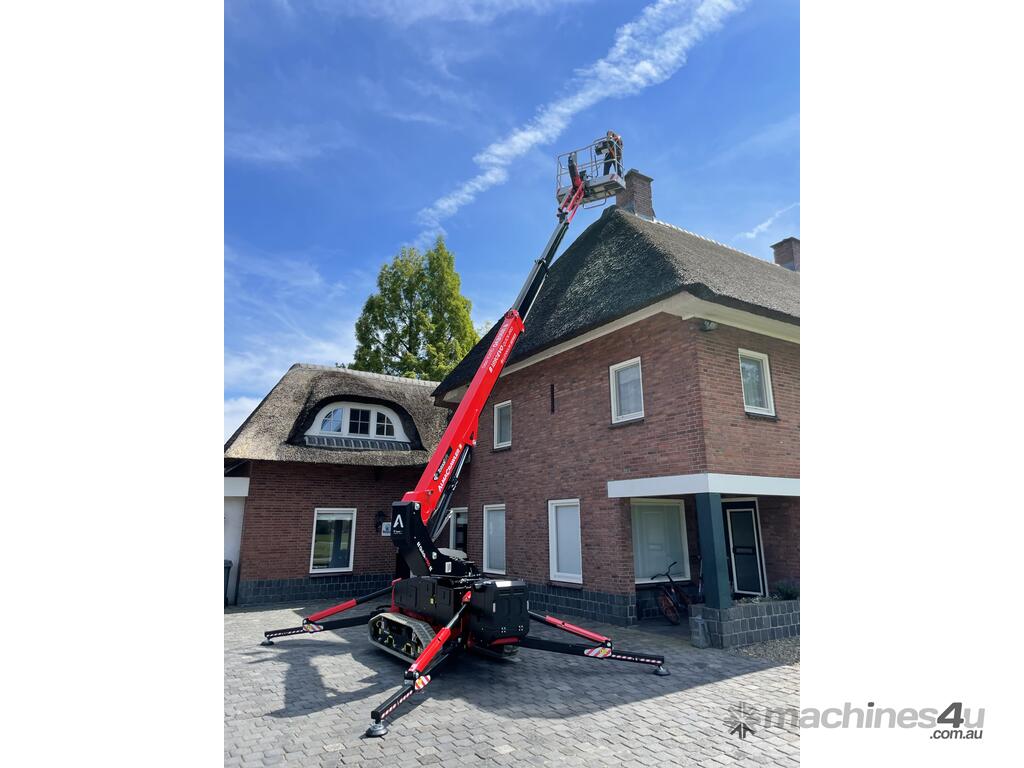

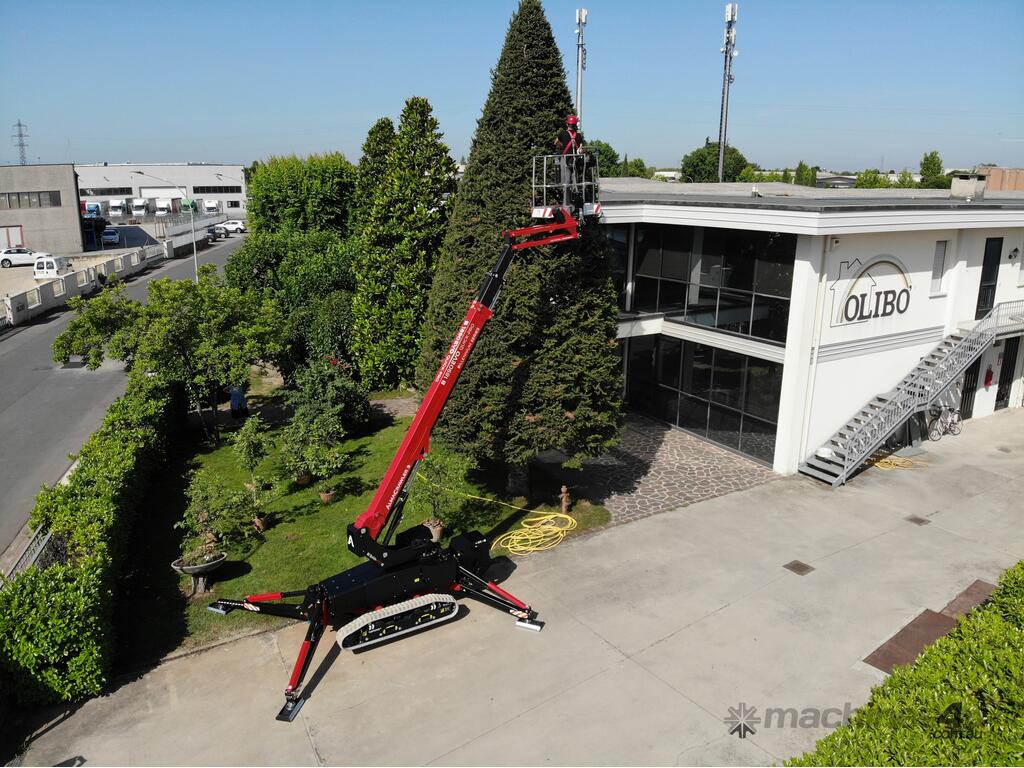

> Quick-PRO fully automatic stabilisation system - The Quick-PRO is a new automatic stabilisation configuration system that allows 6 different machine positioning configurations to be selected from the control panel via a special selector switch. Thanks to the telescopic stabilisers, it is possible to choose between a narrow stabilisation area of 4.29 m x 2.76 m, a wide stabilisation area of 4.97 m x 3.65 m and 4 different partial stabilisation areas.

AlmaCrawler’s aim is to offer its customers platforms that are high-performance, safe and able to meet their needs.

For these reasons, the aerial platform B1890 QUICK-PRO LTH can be equipped with several options including:
- Radio control kit
- Tasket Basket, a shrinkable basket that does not require disassembly to cross narrow spaces;
- Electric pump220V-2.2KW / 50Hz
- Winch kit up to 200kg
- Ultrasonic anti-collision system
- Customised coating.

Technical data B1890 QUICK-PRO EVO LTH:

Working Height:
Max Working Height: 18.00 m
Max Height (Basket Floor): 16.00 m
Moving Height: 9.40 m
Outreach:

Max Outreach (Load 80 kg): 10.80 m
Max Outreach (Load 140 kg): 9.80 m
Max Outreach (Load 200 kg): 8.90 m
Max Outreach (Load 250 kg): 8.20 m

Rotation:
Rotation Angle: ±190°
Basket Rotation Angle: ±70°

Basket:
Basket Size: 1.4 x 0.74 m
Max Basket Capacity: 250 kg

Dimensions (Stowed Position):
Length (with Detached Basket): 5.84 m (5.14 m)
Min Width: 0.79 m
Min Height: 1.98 m

Working Dimensions:
Working Width on Tracks: 1.39 m

Levelling & Stability:
Longitudinal Leveling: ±10°
Lateral Leveling: ±5°
Max Gradeability: 20°
Max Side Gradeability: ±10°
Stabilization Area: 3.65 m x 4.97 m
Stabilization Type: Quick-PRO

Drive Speed:
Fast Drive Speed: 2.6 km/h (2 km/h)
Drive Speed While at Height: 0.4 km/h

Track & Control Features:
Non-marking Tracks: Yes
Cable Remote (LED Console or Display Console): Yes
Removable Pads: Yes

Weight:
Total Weight: ~2940 kg

Power:
Main Power Source: YANMAR 2TNV70, 10.2 kW (13.9 HP), 3600 rpm
Lithium 200Ah – 48V Power Pack
Battery Charger: 2 x 20Ah-48V

Extras (On Demand):
Wide Basket: 1.8 x 0.7 m
Kubota Z602 Diesel Engine (T. weight: 2920 kg): Yes/No
Electric Pump (220V-2.2KW/50Hz): Yes/No
