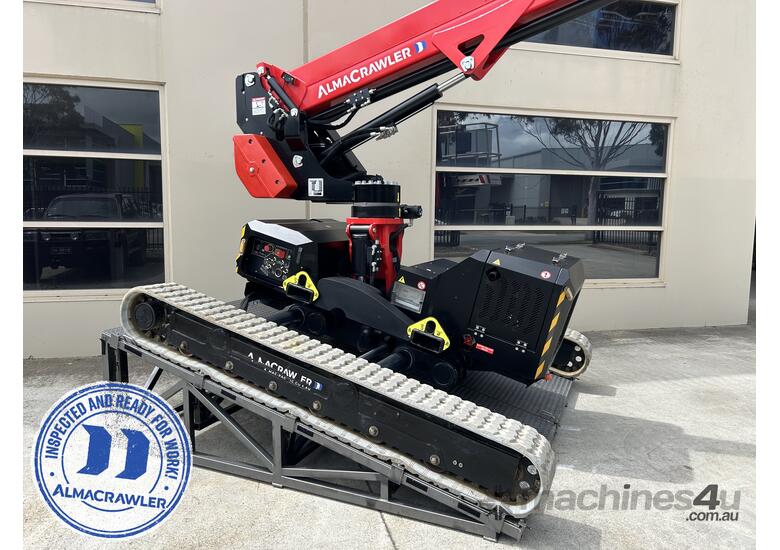

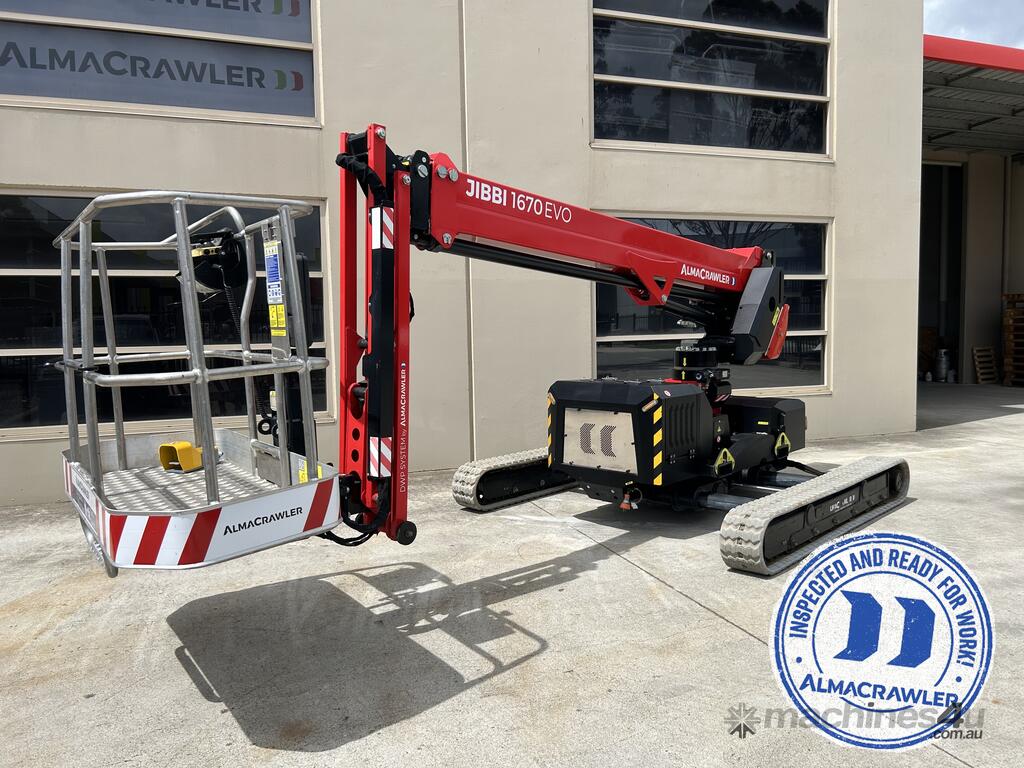

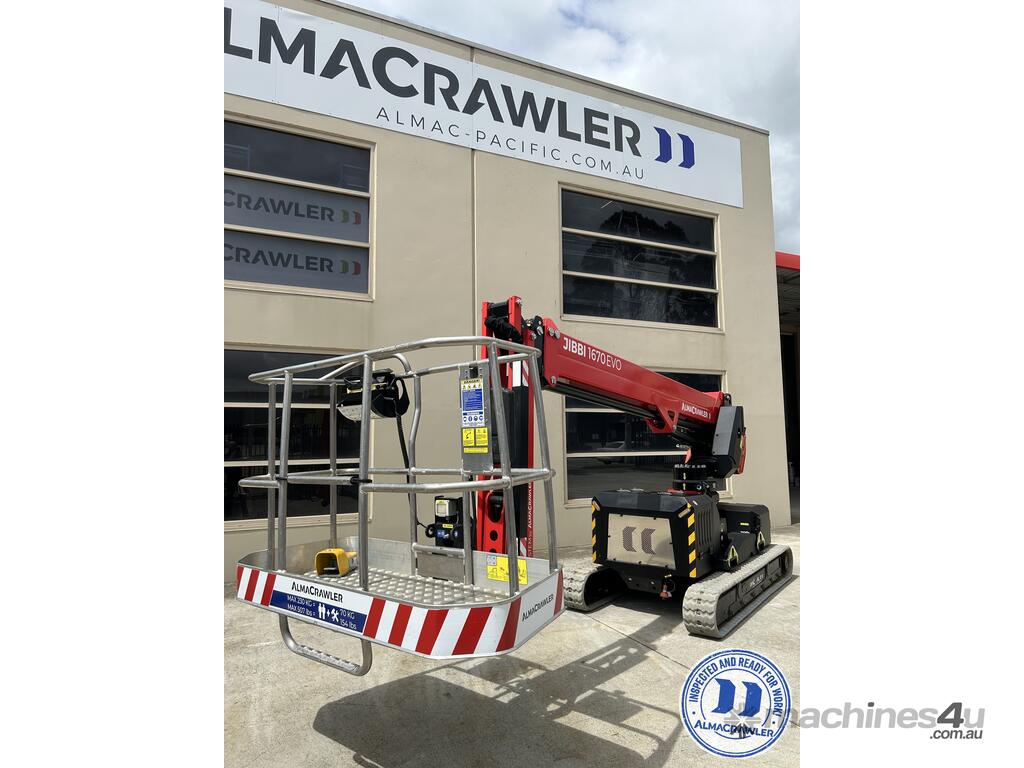

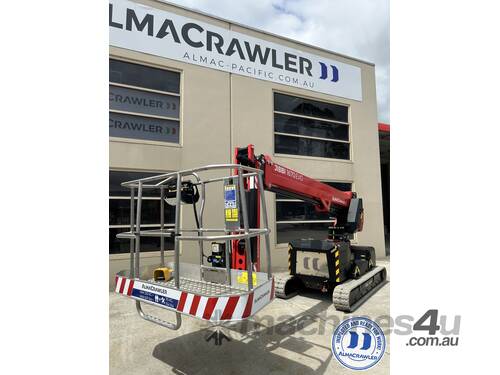

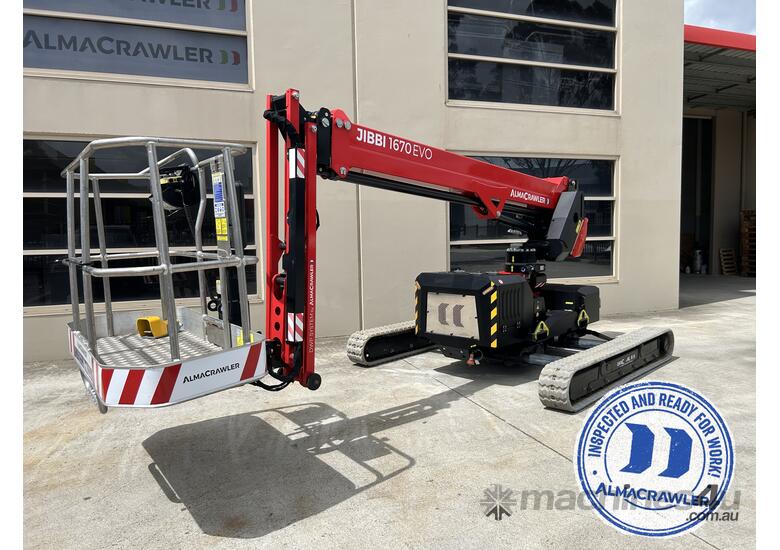

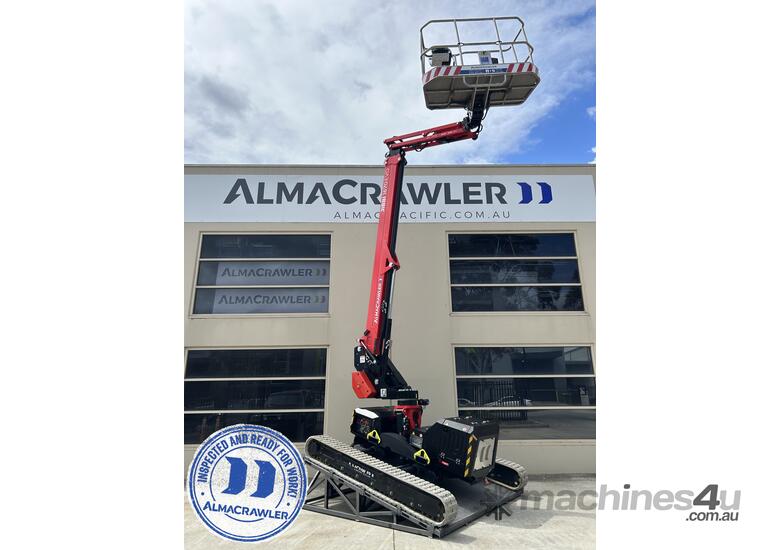

Almacrawler JIBBI 1670 EVO

ALMACRAWLER JIBBI 1670 EVO

Pre-Owned unit Immediately Ready for Work!

This unit has been well cared for in it's former deployement. It's completed it's services for it's former employer and is now ready to get straight back to work in a new home.

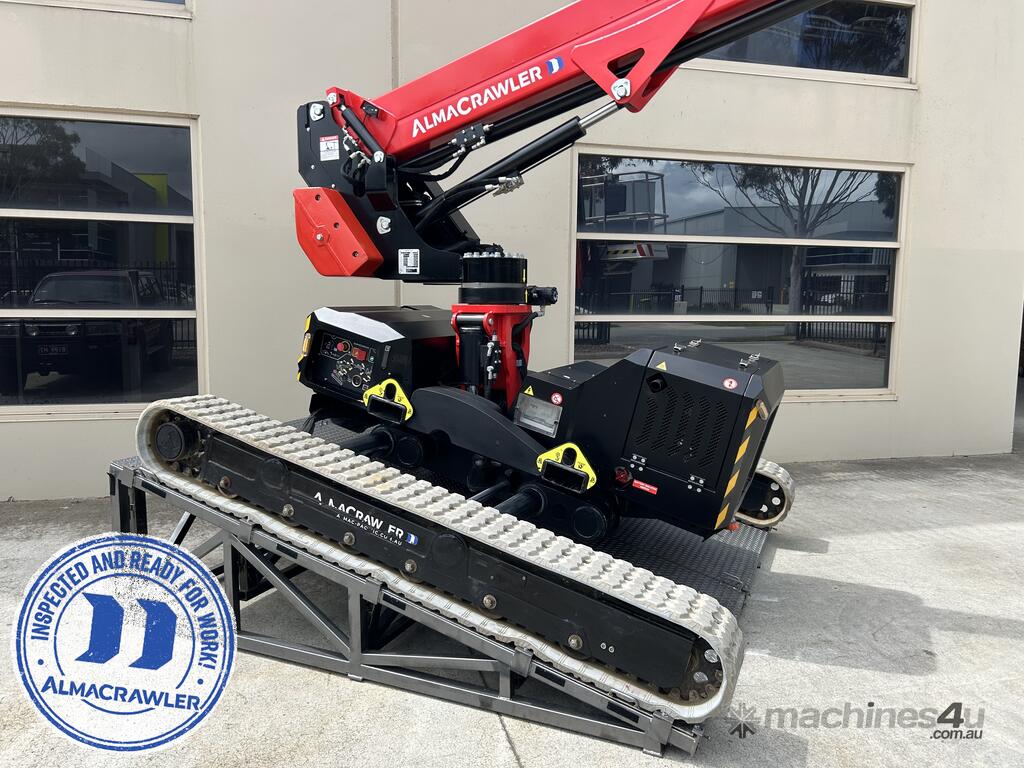

The JIBBI 1670 EVO provides a safe solution when working on steep incliniations or where ever a lighter point loading ground pressure can be required. Utilising a tracked undercarriage and Automatic Dynamic Levelling system, this capable compact machine will find its way into all working positions where traditional machines leave off. Working at height right up until a massive 15 degrees inclination, it can also traverse gradients up to 25 degrees when accessing the jobsite.

With only a low 300 hours of operation registered, this presents as a mechanically young machine.
Original date into commision was 25/11/2020 leaving slightly more than a full 5 year duration remaining before major inspection comes up.

The machine has had a full Almacrawler Inspection & Service. It is immediately ready to deploy straight to the worksite without delay.

This machine is located in Pakenham, Victoria.
Inspections are welcome and recommended when considering pre-owned equipment.

-----

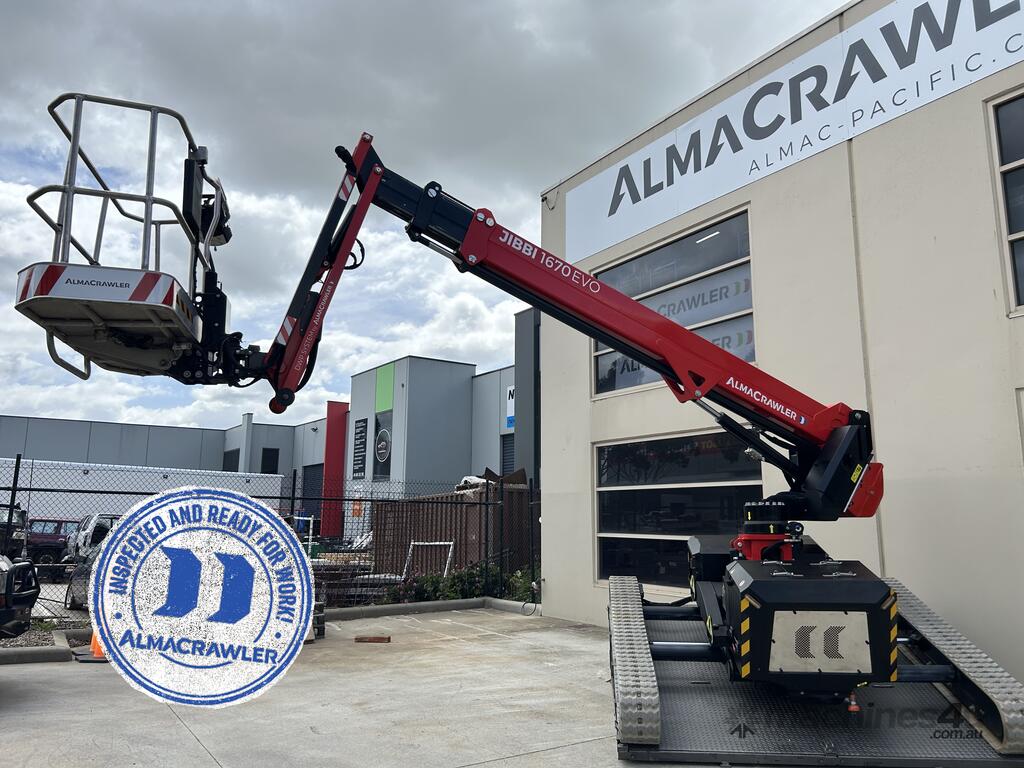

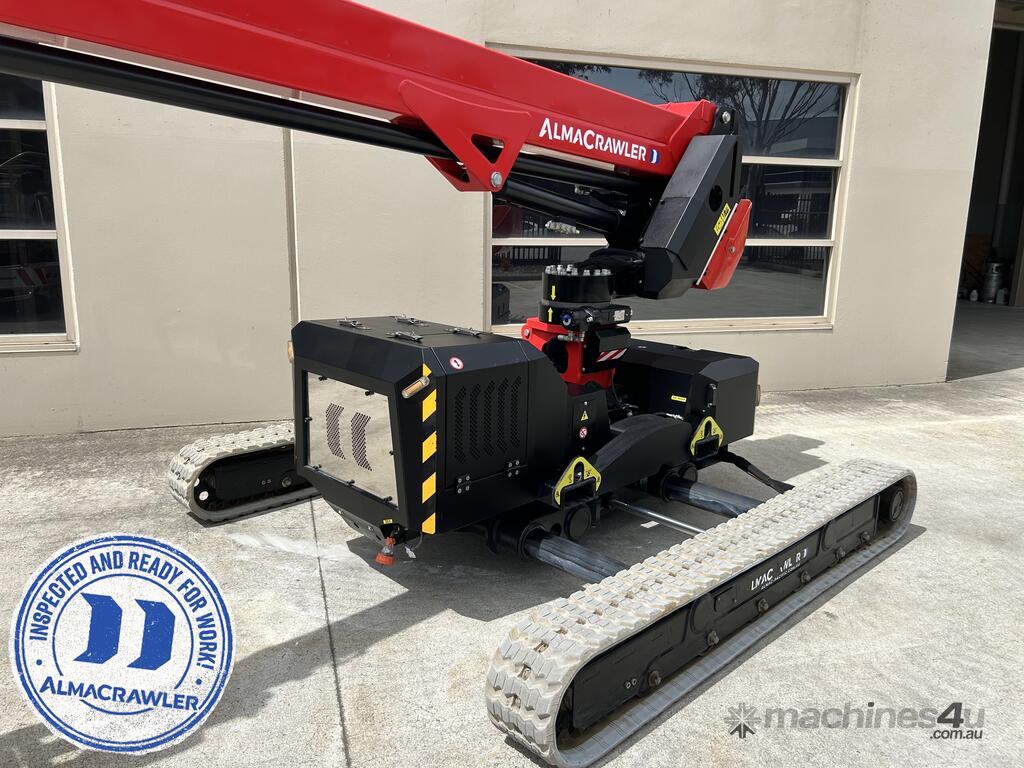

To meet market demands and facilitate the various activities performed by end users in a range of applications, Almac has equipped the JIBBI 1670 EVO with the most advanced technology, while maintaining the high performance characteristics typical of the company’s machinery. The self-propelled boom lift is in fact distinguished by its 8.5 m front and lateral outreach and 9,80 m travel height. The variable track undercarriage offers different track widths, specifically 1.35m, 1.90 m and 2.45 m. Moreover, the track undercarriage can be adjusted during machine travel.

Dynamic and Proactive automatic levelling, which offers the possibility to work on uneven ground and/or steep slopes, guaranteeing total functionality up to a slope of 15°
DWP – Dynamic Working Performance, for dynamic control of the machine’s performance characteristics based on different working parameters, specifically the ground slope, width of the retractable crawler track undercarriage and the basket load, determining the correct position of the machine at all times

Featuring with a 3-cylinder Diesel Yanmar engine (14.1kW – 19.2 HP), this self-propelled boom lift guarantees simplicity of use and movement thanks to its compact size, allowing use in tight spaces.


Technical Specifications

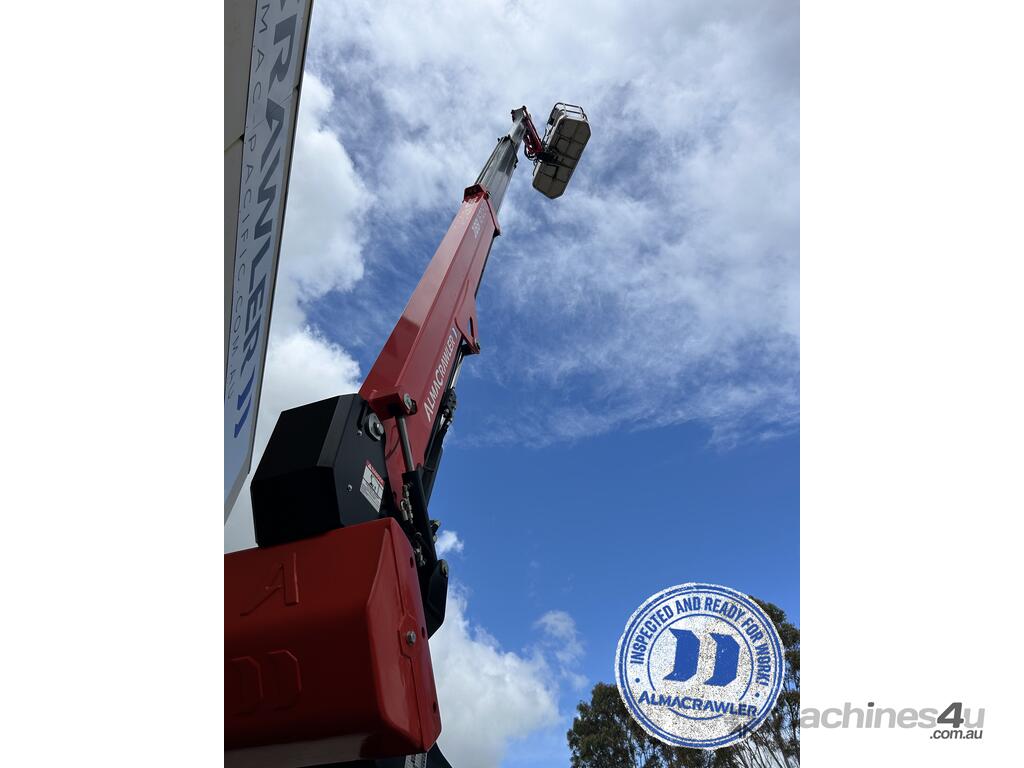

Max Working Height: 16.00 m
Max Height Basket Floor: 14.00 m
Max Moving Height: 9.80 m
Max Outreach:
(Load 80 kg): 8.50 m
(Load 140 kg): 7.70 m
(Load 230 kg): 6.70 m
Rotation Angle: ±110°

Basket:
Size: 1.40 x 0.70 m
Basket Rotation Angle: ±70°
Max Basket Capacity: 230 kg

Dimensions in Stowed Position:
Length (with detached basket): 5.10 m (4.40 m)
Min Width: 1.35 m
Medium Working Width: 1.90 m
Max Working Width: 2.45 m
Min Height: 1.99 m

Levelling:
Longitudinal Levelling: ±15°
Lateral Levelling: ±15°

Performance:
Max Gradeability: 25°
Max Side Gradeability: 25°
Drive Speed (Fast): 2.50 km/h
Speed Over Transport Conditions: 0.40 km/h

Weight:
Total Weight: 3850 kg
Traffic Load (Max Working Width): 3.1 kN/m²

Power System
Engine:
3TNM68-AS Yanmar Diesel Engine: 14 kW – 19.2 Hp (3600 rpm)
