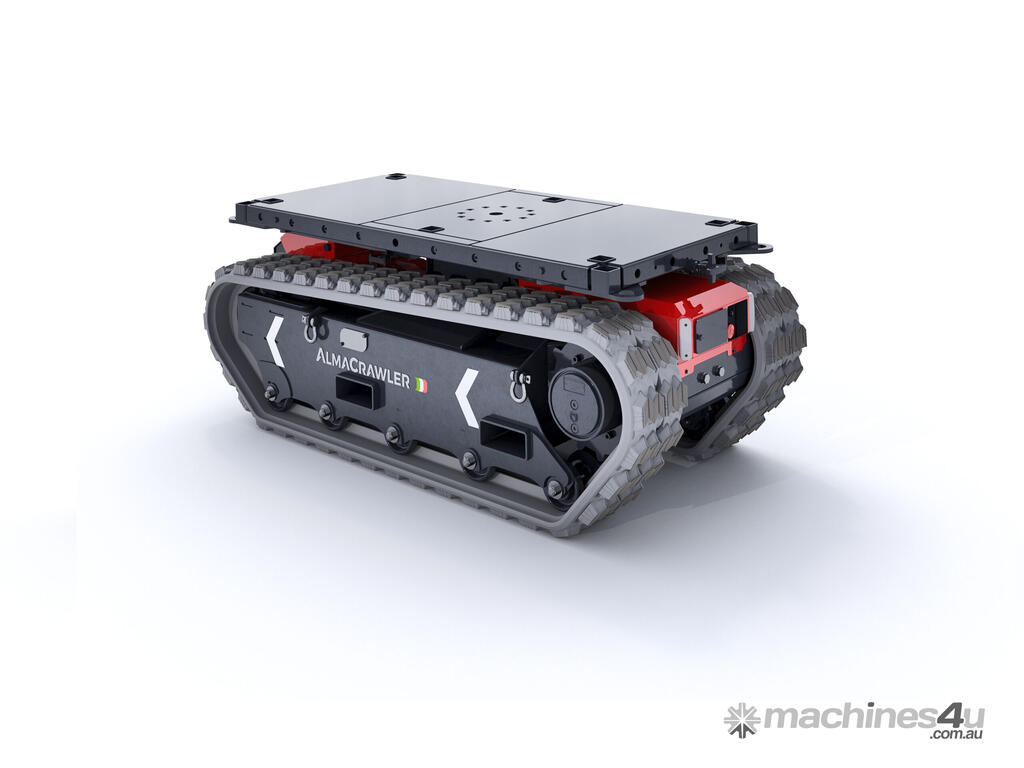

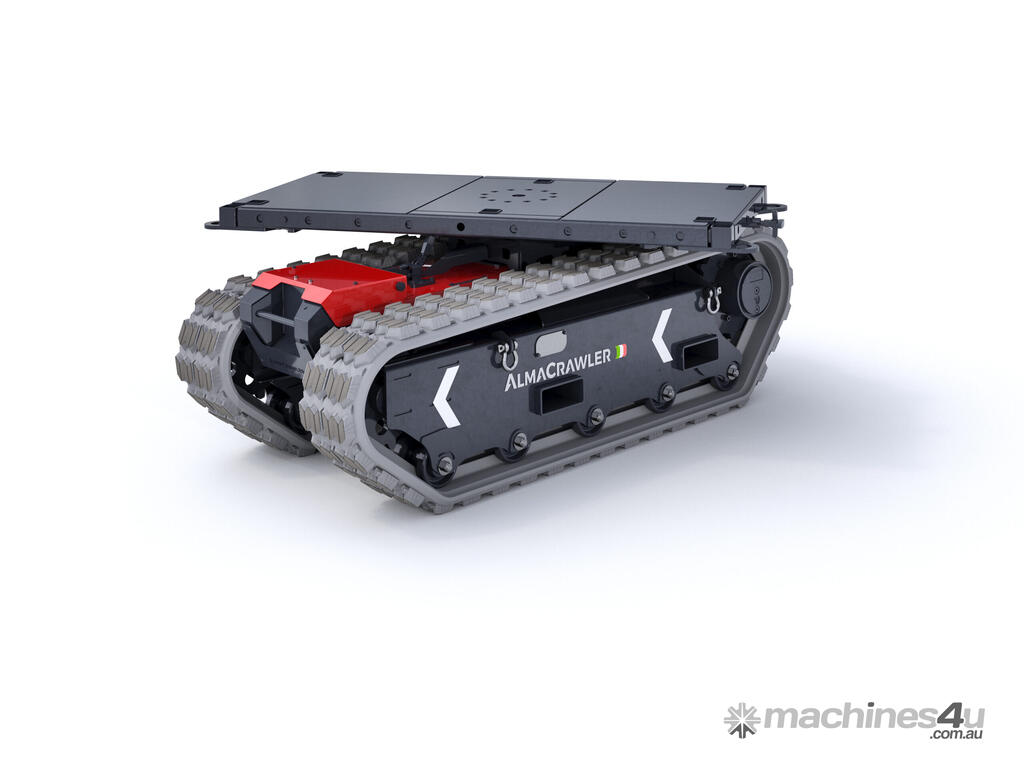

Almacrawler MultiLoader 3.0 RT Tracked Carrier

FULLY ELECTRIC TRACKED CARRIER WITH 3000 KG CAPACITY

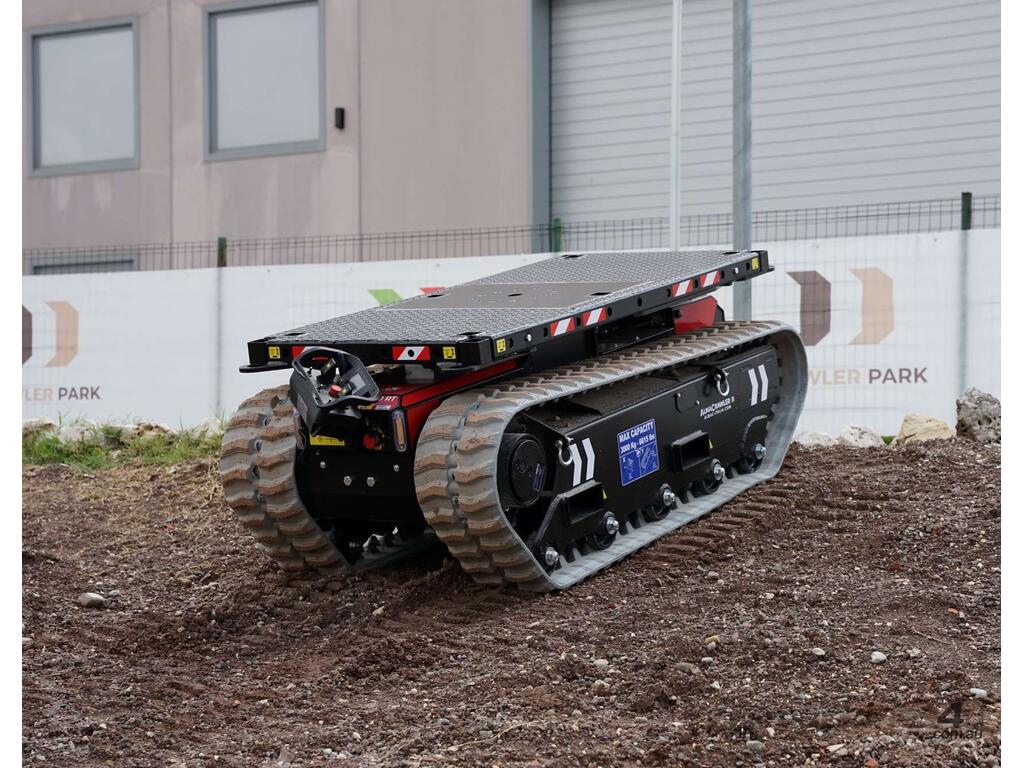

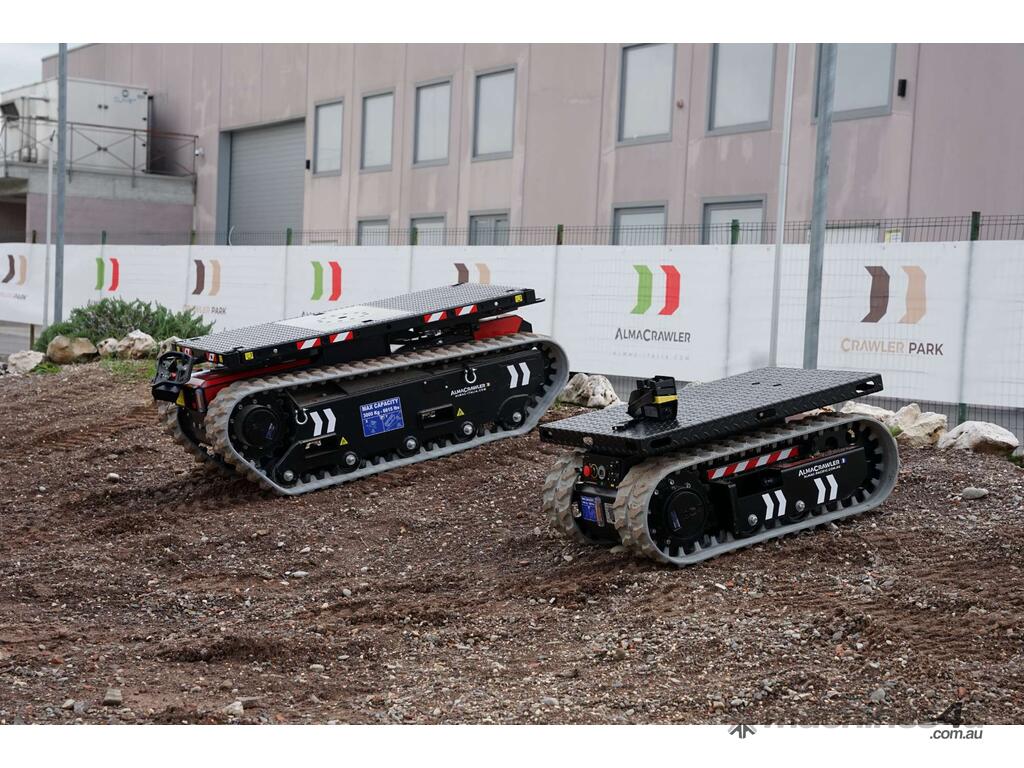

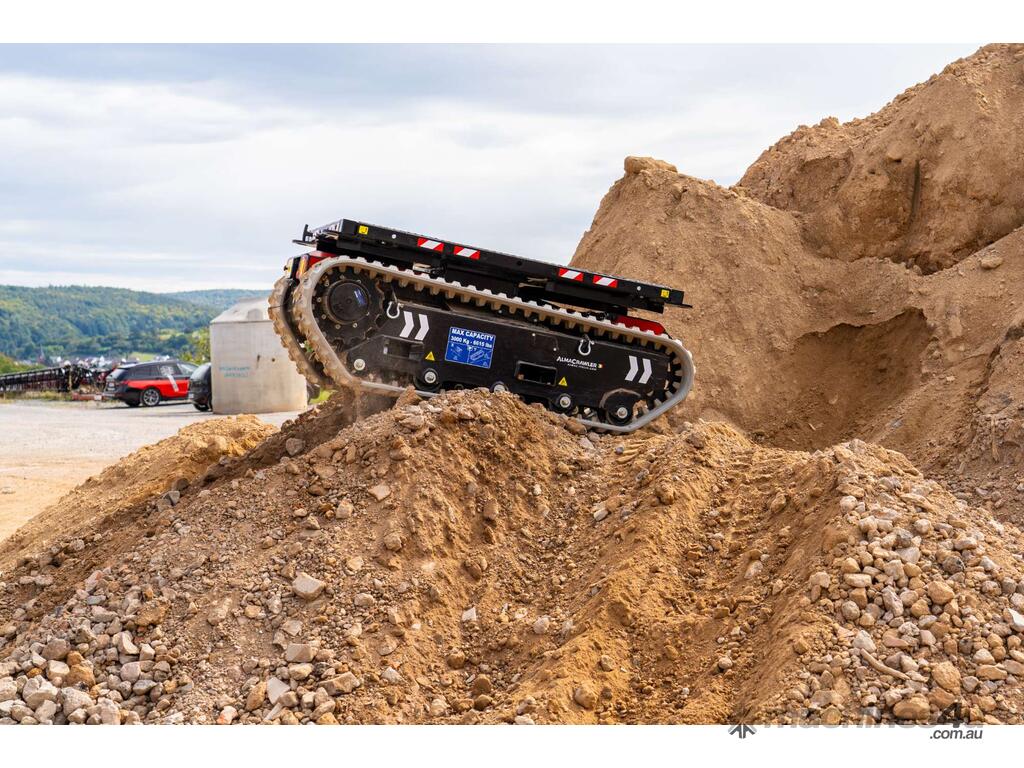

The Multi-Loader 3.0 RT is a variant designed to work on more difficult, uneven and slippery terrain that require a superior ground clearance.
With a ground clearance of a good 220 mm, it is suitable for working in extreme conditions.

It has class-leading electric drive with two super quiet AC electric motors 5.3 kW each (rated IP 67), can be fitted with AGM or Lithium batteries and features three power management configurations:

ECO 1.2 km/h
STD 1.8 km/h
POW 4.2 km/h

Main features
Full electric drive
Fully removable battery pack
Ground clearance of a good 220 mm
Extendable telescopic beams
Swivel platform
Adaptive rollers
Standard features
Radio remote control
Provided with display & double battery
On board diagnostics
12V auxiliary socket
Non-marking tracks
Front and rear hazard ligths
Three different driving modes
MAIN / ED-S / DC-S
Three power management configurations
ECO / STD / POW
Automatic tilt alarm with speed reduction

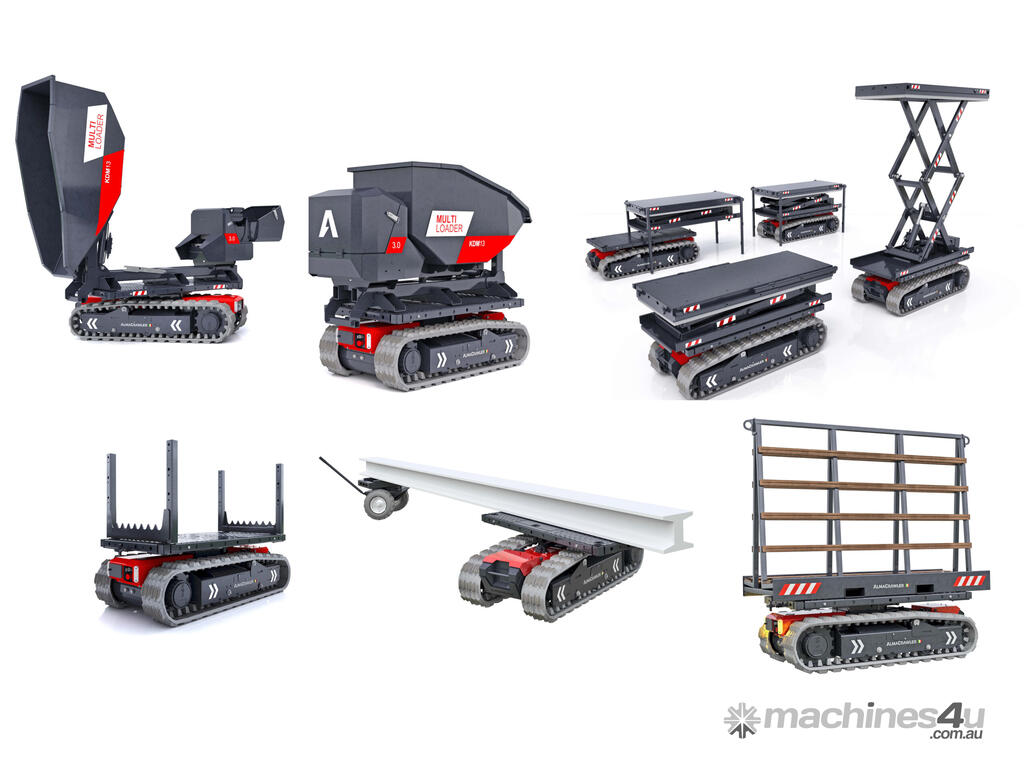

Attachments
The ML 3.0 RT comes with a wide range of fully installable, completely independent attachments to amplify its range of applications and allow operators to achieve more.

Dumper KIT – Installable dumper kit, with rotating base and radio remote controlled.
Dolly – Support extension, helps carry extra-long loads easily.
Multi-Frame – Double-sided a-frame rack for the safe transport and storage of windows, flat glass or insulating glass units.
Lifter KIT – The Lifter Kit is a fully removable hydraulic scissor lift table available in two options: KML 1.0 – Single stage, KML 2.0 – Double stage.
Forest Kit – Forest kit for safe transport of logs.

ELC / LTH Technical data

Max Capacity:
3000 kg (<25°)
Max Capacity at Max Gradient: 2000 kg

Gradients:
Max Longitudinal Gradient: 40°
Max Lateral Gradient: 25°

Dimensions:
Width: 890 mm
Length: 1860 mm
Track Length: 1230 mm
Track Width: 250 mm
Ground Clearance: 220 mm
Platform Ground Height: 720 mm

Performance:
Max Speed: 4.2 km/h
Swivel Platform: Standard

Power:
Electric Motor Power: 10.6 kW
Voltage: 48 V
Battery Capacity & Type: 100 Ah AGM LTH
Charger Input & Time:
110–230 V: 7h – 13A
4h – 20A

Ingress Protection:
IP Rating: IP67

Controller:
Remote Radio Control

Track Features:
Non-marking Tracks: Optional

Weight:
Gross Weight: 975 kg (ELC)
Gross Weight: 805 kg (LTH)

Attachments

- KLM 1.0
Max Capacity: 1000 kg (2200 lbs)
Weight (Empty): 415 kg (915 lbs)
Weight on ML 3.0 FX ELC: 1205 kg (2655 lbs)
Weight on ML 3.0 FX LTH: 1135 kg (2500 lbs)
Battery: 12 V, 100 Ah with charger on board (110V-230V)

- KLM 2.0
Max Capacity: 400 kg (880 lbs)
Weight (Empty): 490 kg (1080 lbs)
Weight on ML 3.0 FX ELC: 1280 kg (2820 lbs)
Weight on ML 3.0 FX LTH: 1210 kg (2667 lbs)
Battery: 12 V, 100 Ah with charger on board (110V-230V)

- KDM 13
Max Capacity: 1300 kg (2870 lbs)
Weight (Empty): 380 kg (840 lbs)
Struck Volume: 0.6 m³ (21 ft³)
Rated Volume (ISO 6483): 0.65 m³ (23 ft³)
Battery: 12 V, 100 Ah with charger on board (110V-230V)
Weight on ML 3.0 FX ELC: 1170 kg (2580 lbs)

- Dolly
Max Capacity: 1500 kg (3310 lbs)
Weight (Empty): 125 kg (275 lbs)

- Forest Kit
Max Capacity: 2950 kg (6500 lbs)
Weight (Empty): 50 kg (110 lbs)
