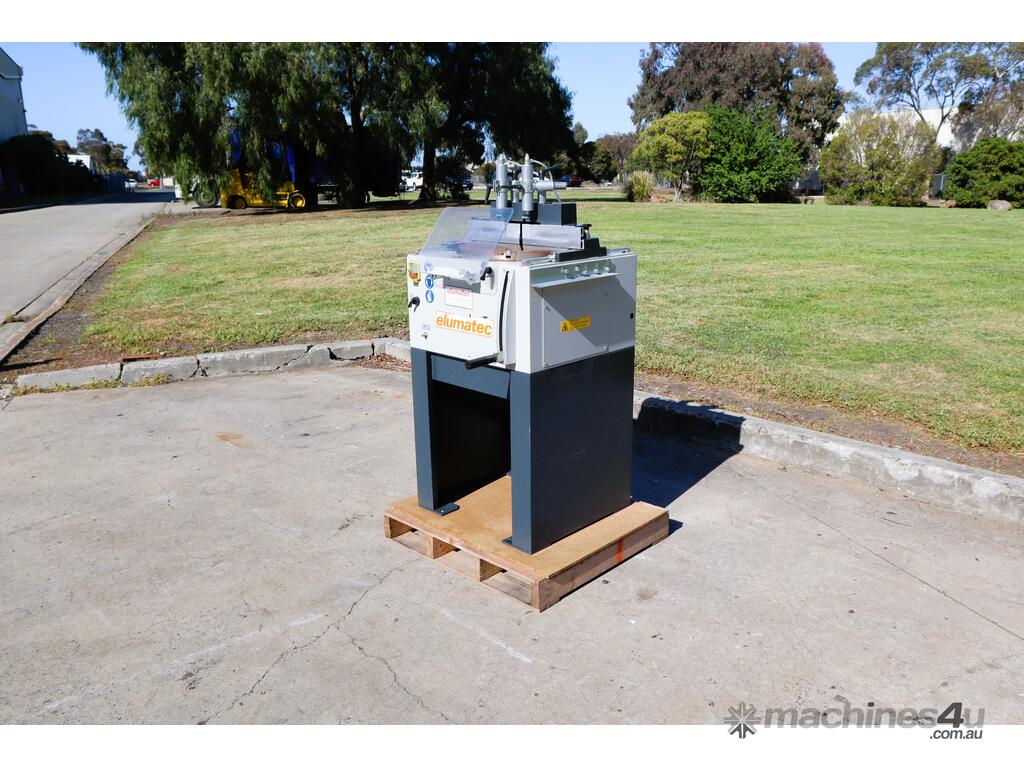

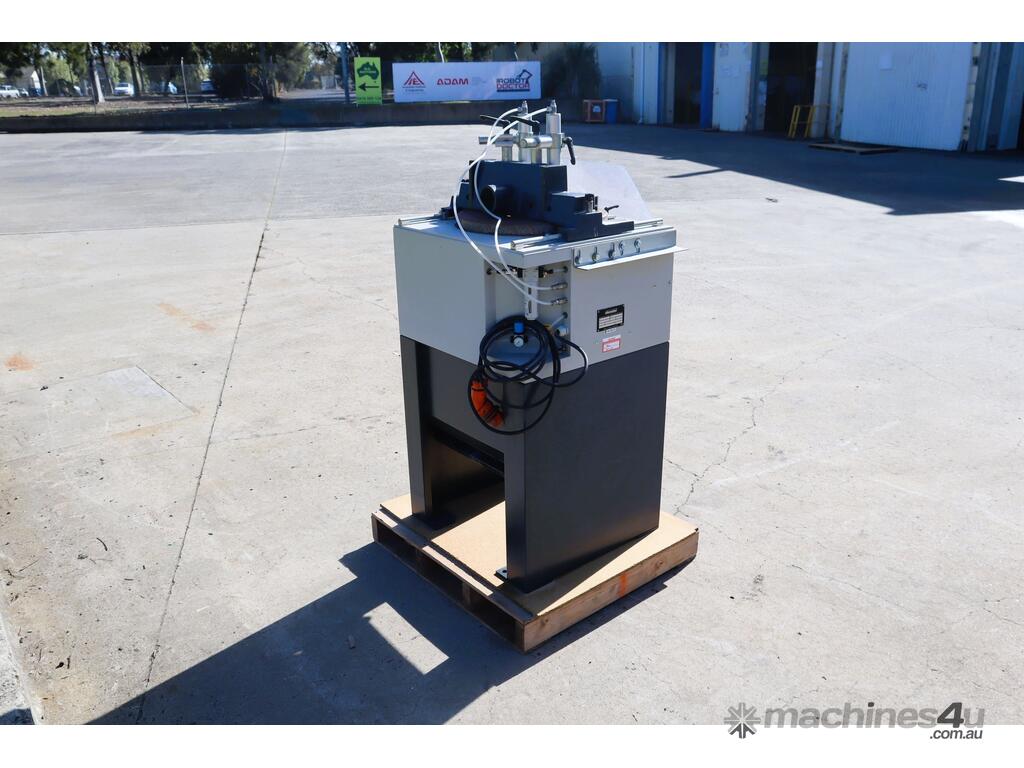

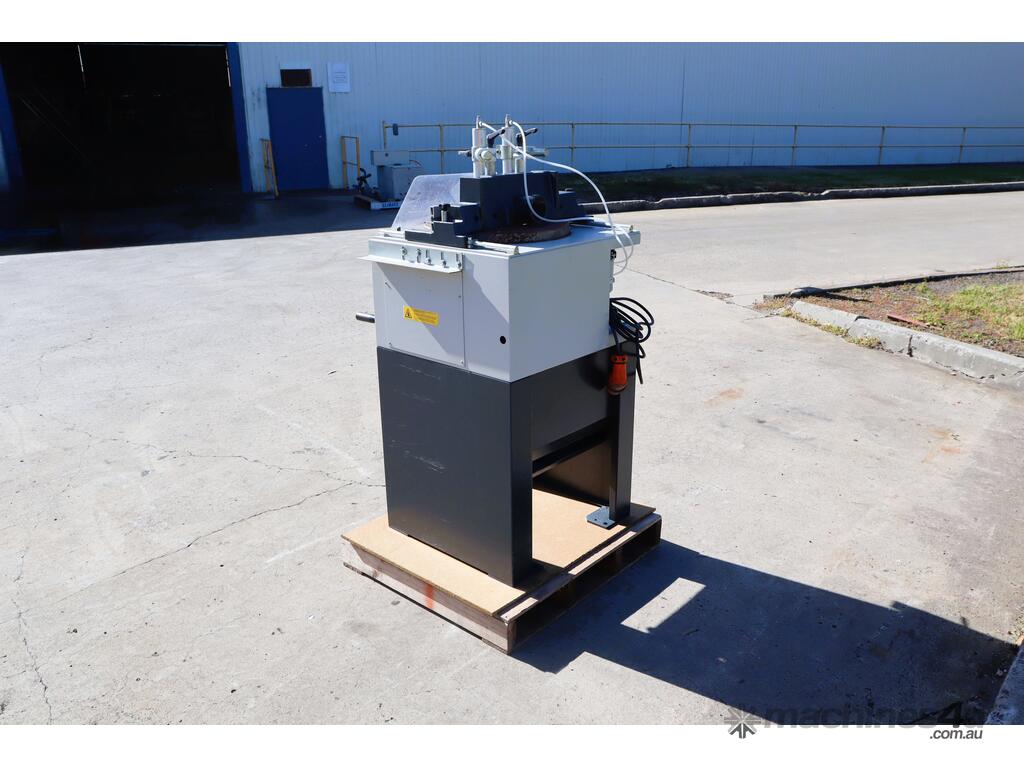

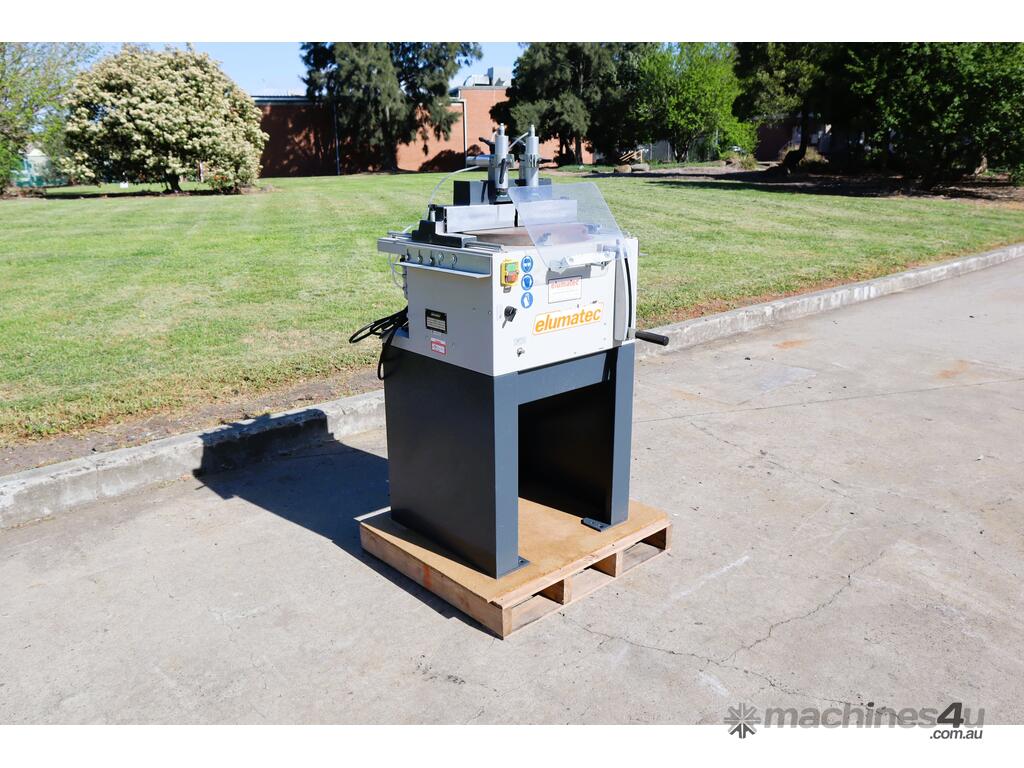

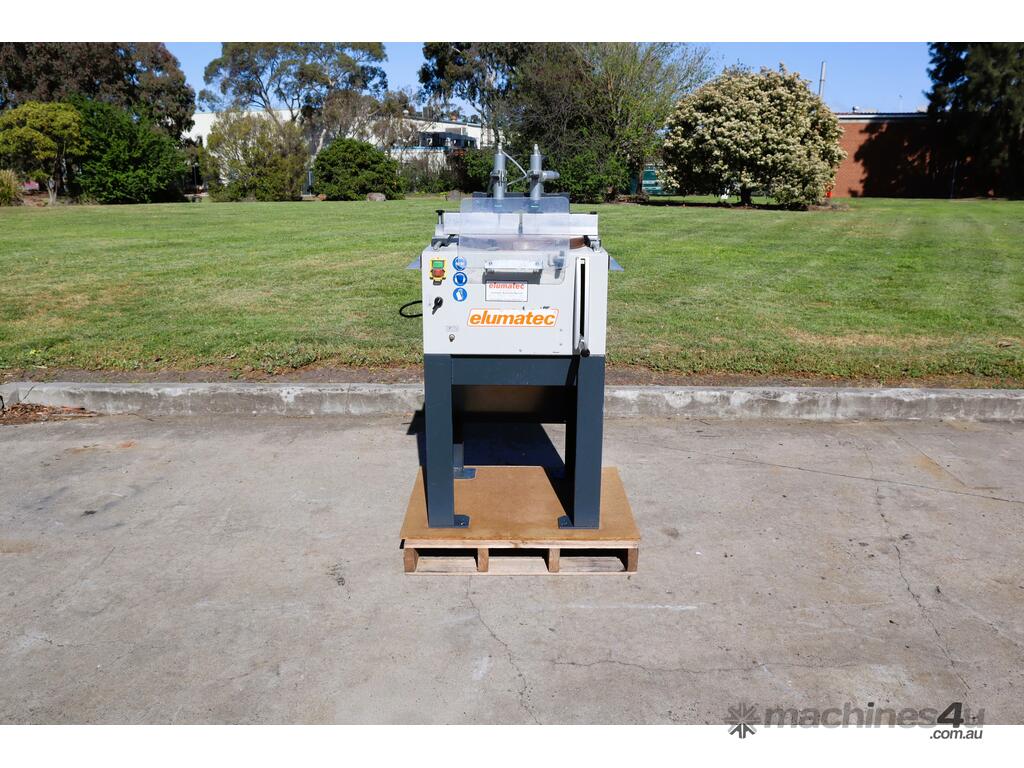

Aluminium PVC Cutting Upsaw Mitre Table Saw - Elumatec TS 161/21

German engineered Elumatec precision table saw designed for cutting aluminium and non-ferrous profiles with accuracy and reliability. This compact and robust model features a 280 mm saw blade driven by a 1.1 kW motor operating at 4100 rpm, ensuring smooth, clean cuts every time.
The adjustable mitre table allows accurate angle positioning with clearly marked degree scales, while the dual pneumatic clamps provide secure material holding during operation. A transparent safety guard enhances operator visibility and protection.
Built for durability and precision, it’s ideal for production workshops, window and door fabrication, and general light metal cutting tasks etc.

Typical Applications:
- Aluminium and PVC profile cutting
- Window and door frame fabrication
- Curtain wall and facade assembly
- Workshop and light industrial use

Features:

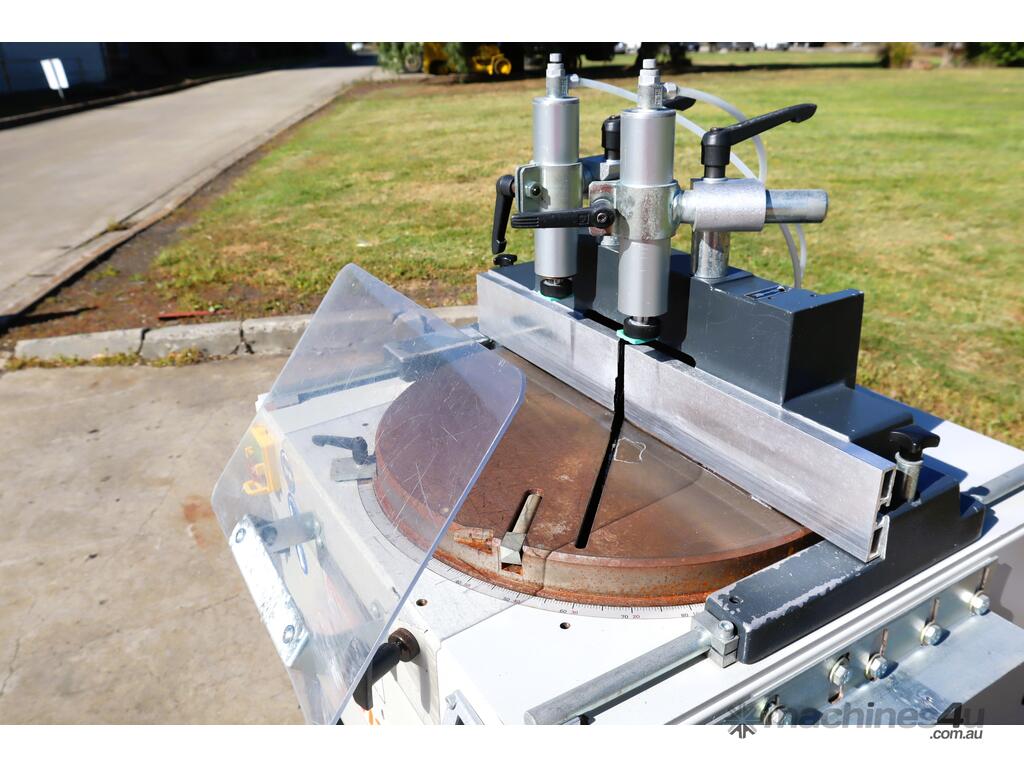

- Dual pneumatic vertical clamps for stable workpiece holding
- Adjustable mitre cutting range with angle scale reference
- Transparent safety guard for improved visibility and safety
- Compact industrial design suited to limited workshop spaces

Make: Elumatec
Model: TS161/21
Year: 2008
Made in Germany

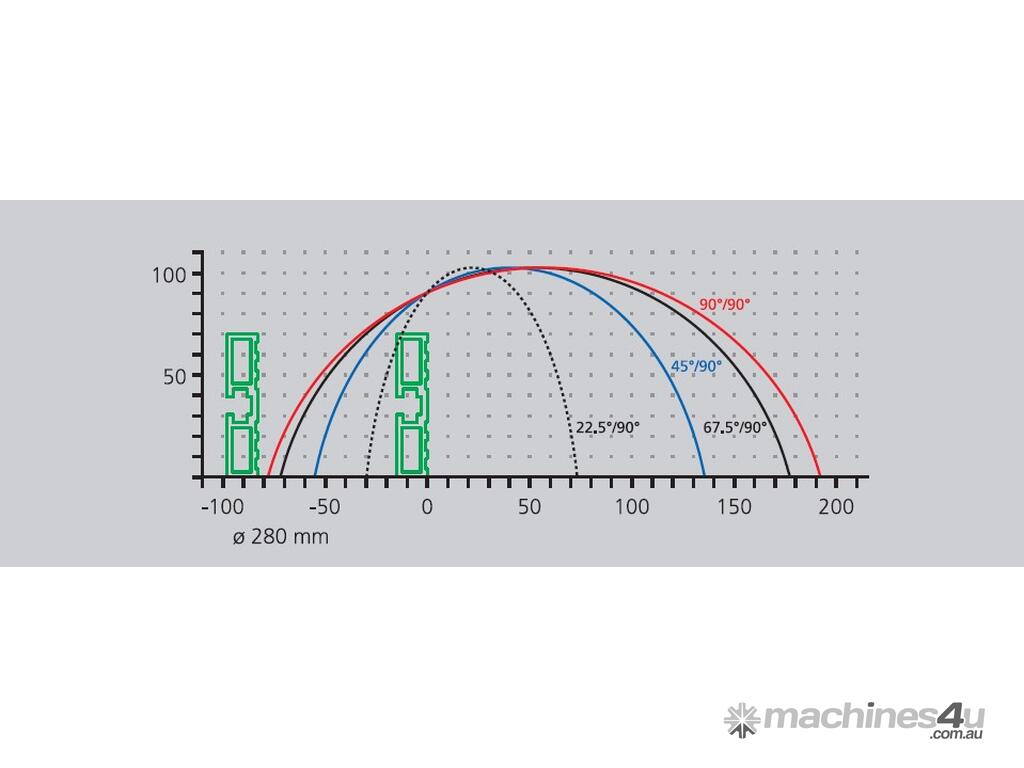

(For cutting range, see cutting diagram in photos)

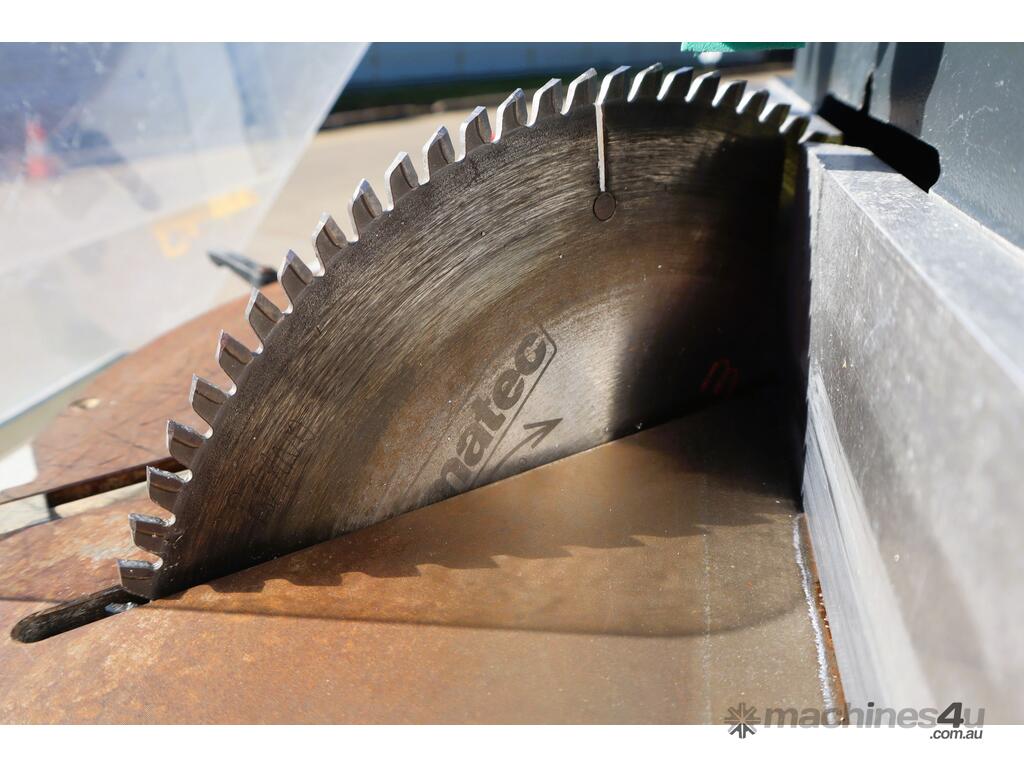

Saw blade diameter (mm): 280
Saw blade speed: 4100 rpm

Rated Voltage: 415V 3 Phase
Power: 1.1kW

Overall Dimensions (mm): 715 L x 640 W x 1315 H
