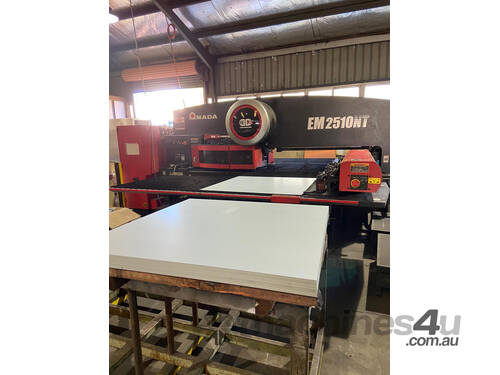

Amada EM2510NT Turret Punch (Second Hand).

For Sale: Used Amada EM2510NT Turret Punch Press (2005 Model) Extremely Low Hours.

Serviced and Maintained by Amada Oceania Engineers since delivered new to current owner.

EM2510NT has been serviced and maintained by Official Amada Service Engineers since 2005.

amada/products/blanking-machines/em-m2e-series/

Twin Servo-Electric Turret Punch Press

The next generation of the cutting edge EM Series turret punch press. Utilizing power saving electric servo drives, this innovative machine combines high speed production, impressive reliability and numerous cost and process improvements.

Achieves high-speed and stable machining
A simple and efficient mechanism – AC servo direct twin drive

A simple and well-balanced structure with a dedicated AC Twin servo motor connected to the left and right of the eccentric shaft. This efficient movement achieves an amazingly high stroke and an optimum stroke for the plate thickness.

Tough frame structure – High rigidity bridge frame.

Frame thickness 50mm (40mm for EM-2510MIIe), upper frame height 150mm higher! As a result, the rigidity has been further increased, resulting in an even tougher structure.


Key Features:
-200kN/20-ton punching force
-58-station turret
-AC servo-electric twin drive for precision, speed, and energy efficiency
-Smooth sheet handling with integrated brush and ball table
-Compatible with CAD/CAM systems for streamlined production
-Service history available

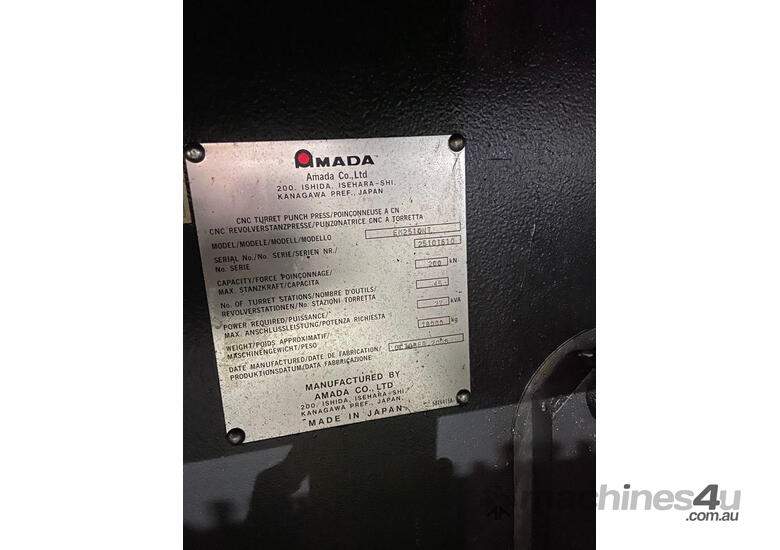

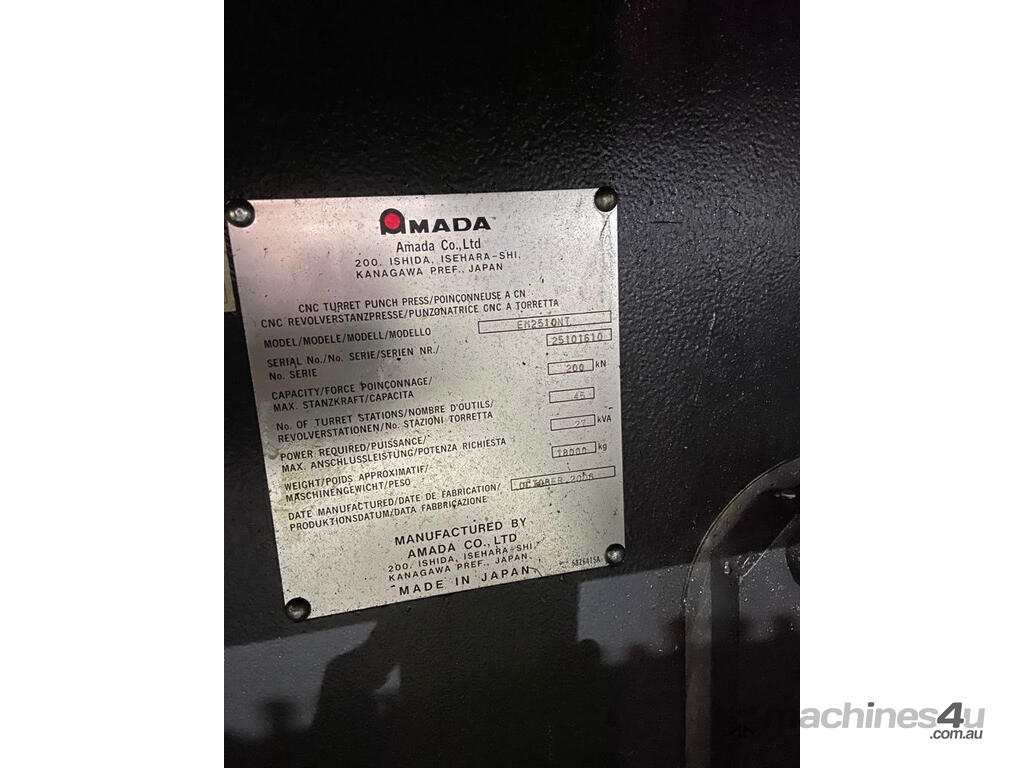

Specifications:
-Press capacity: 200 kN
-Press drive system: AC servo direct twin drive
-Stroke length: 37 mm
-Max. Sheet Size: X: 5000 mm, Y: 1270 mm
-Max. Sheet Weight: 50 kg (F1) / 150 kg (F4)
-Maximum material thickness: 3.4 mm (brush table)
-Axis travel (X × Y): 1270 × 2500 mm
-Axis speed (X / Y): X: 100 m/min, Y: 80 m/min
-Maximum mass of material: 50 kg (F1) / 150 kg (F4)
-Hit rate:
500 hits/min (5 mm stroke, 25.4 mm pitch)
780 hits/min (5 mm stroke, 1.0 mm pitch)
1800 hits/min (1.4 mm stroke, 0.5 mm pitch)
-Punching accuracy: ±0.1 mm (Mild mode: ±0.07 mm)
-Maximum punch size: Ø114.3 mm
-Power requirement: 27 kVA
-Machine mass: 18 t

Station layout:
-Total turret stations: 45
-Auto-index stations: 2 × C-Station (Auto-index capable)
-Auto-index stations: 2 × D-Station (Auto-index capable)

-A-station: 24 stations (tool size up to Ø12.7 mm)
-B-station: 12 stations (tool size up to Ø31.7 mm)
-C-station: 2 stations (tool size up to Ø50.8 mm)
-D-station: 1 stations (tool size up to Ø88.9 mm)
-E-station: 2 stations (tool size up to Ø114.3 mm)
-Max tool size: Ø114.3 mm (E-station)
-Turret rotation speed: 30 rpm
-Auto-index range: ±360° rotation for complex contours and angles
-Tool life management: Available via Amada NC control system

Located in Sydney, NSW.
