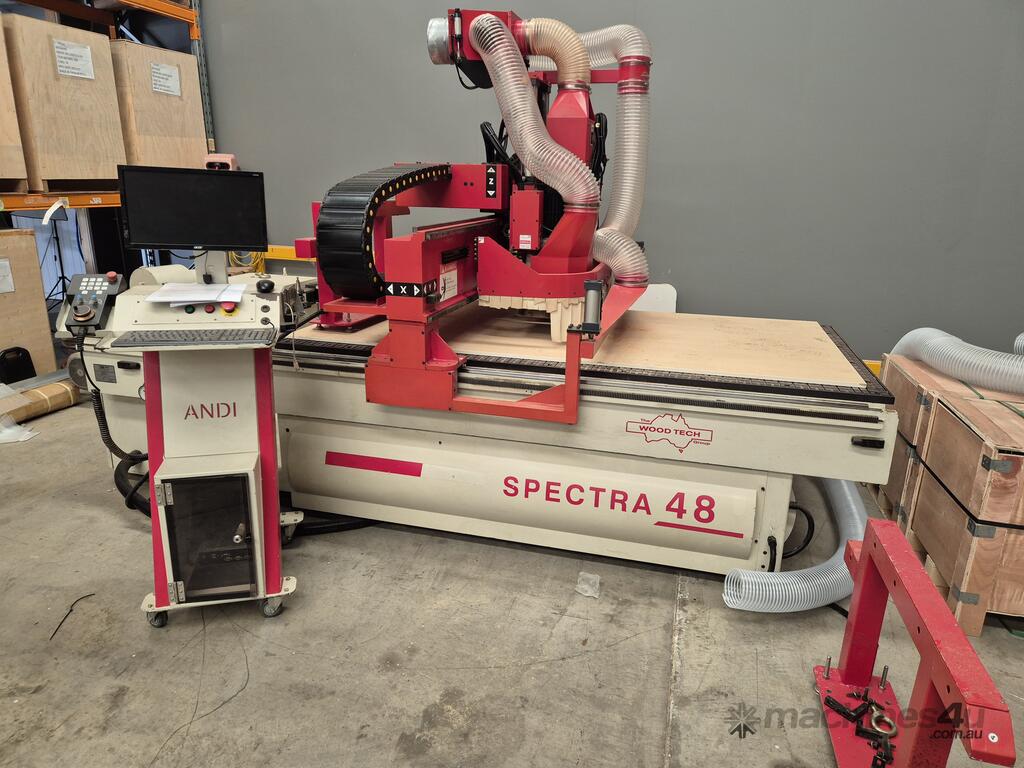

Anderson Spectra 48. Fully manufactured in Taiwan!!. Machine removed in full working order. Extremely well looked after and serviced regularly. Ready to go as a back up machine for shaker doors or a great machine for someone looking to enter the world of CNC equipment to stream line there production.
Machine can be delivered and installed and we have extraction and tooling packages to suit all budgets.
Table Size
2,500mm x 1,300mm
One vacuum zone only
The table top material is a hard phenolic with matrix system
and vacuum suction holes
Three pop up pins are included with stroke of 60mm and the
rod material is steel with sensor detecting
Working Stroke
X: 2,500mm
Y: 1,600mm
Z: 200mm
Rapid Vectorial Traversing
X & Y: 85 M/Min
Z: 20M/Min Depending on material type, thickness and kerf
width
X: Rack and pinion system with two servo motors controlled
Y: Rack and pinion system with servo motor controlled
Z: Ball screw system with servo motor controlled
Working Spindle
1 x 10HP Andi SK-30 spindle (oil mist) with 1,000 – 18,000 rpm
Air nozzle for spindle is a standard feature
Full table coverage
6-Tool pick up station is included
Dust extraction device for spindle is included
5 + 5 vertical boring as a group or individually.
