Manual Arbor Press AP-5

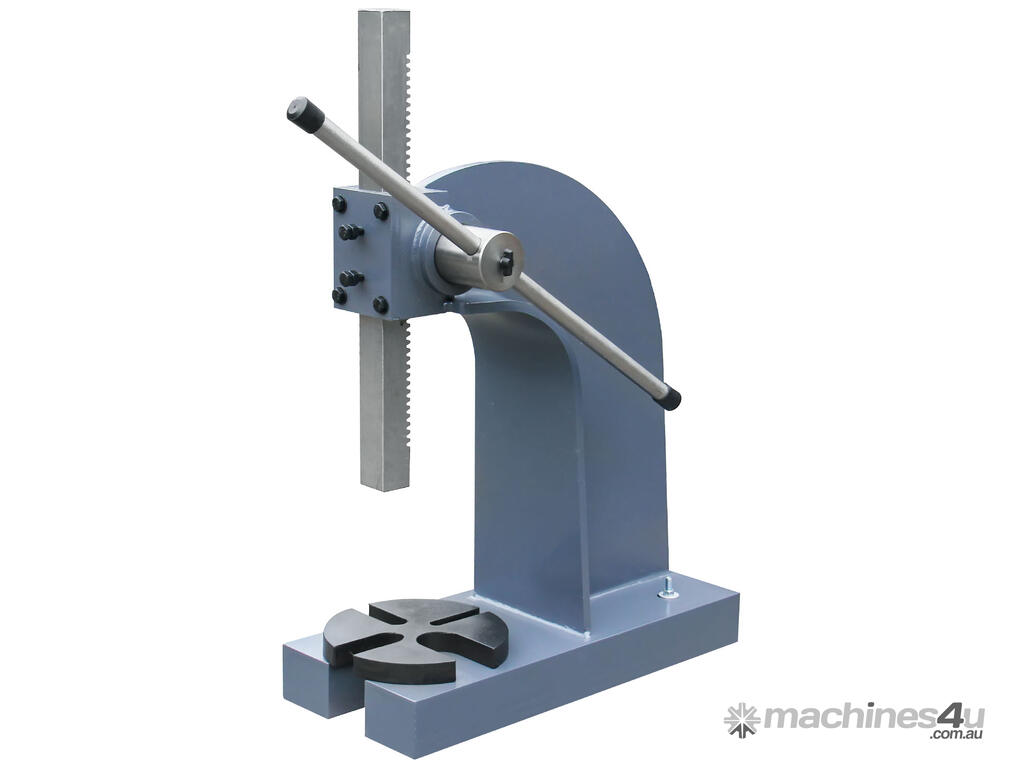

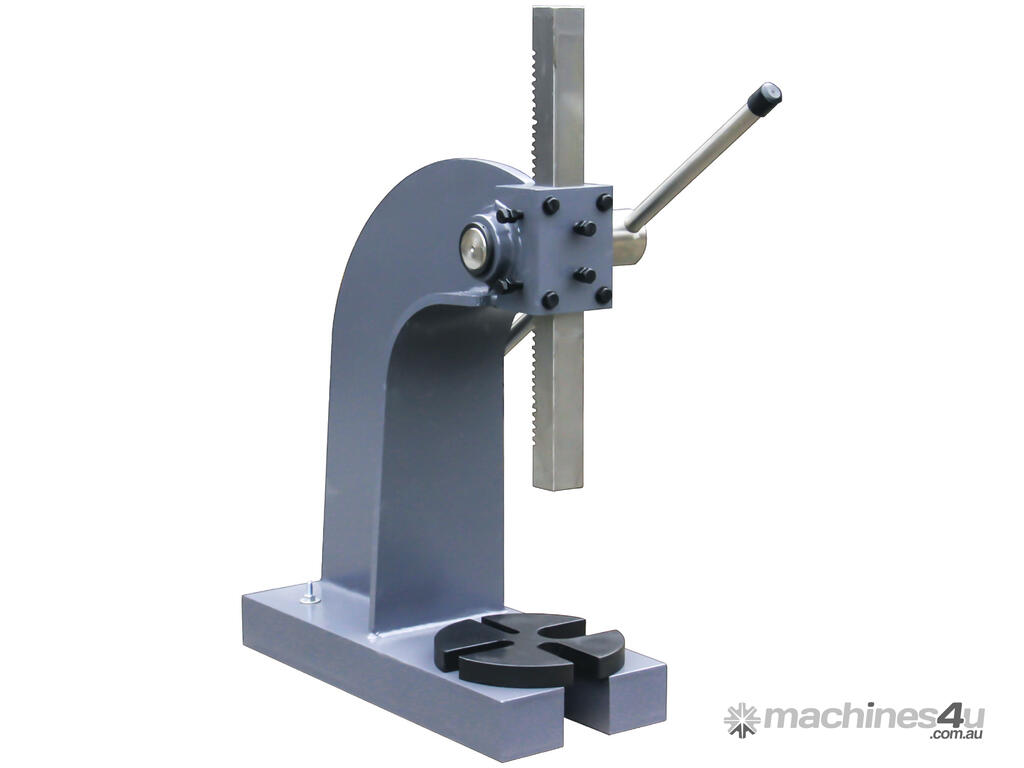

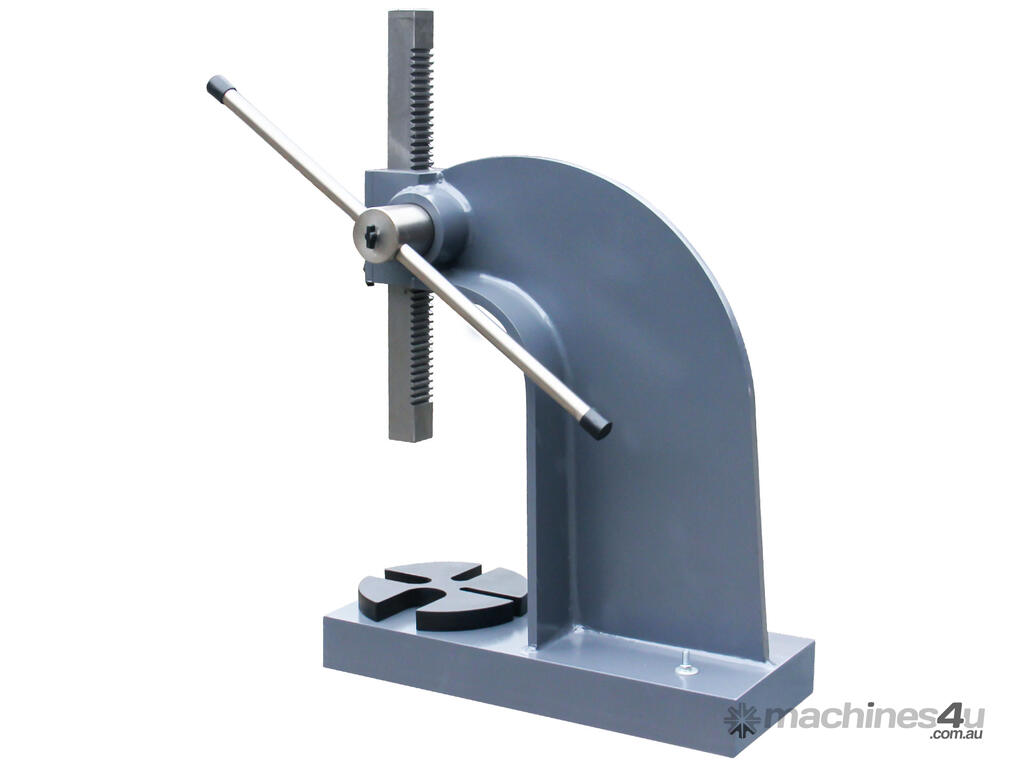

The manual arbor press with steel welded structure, ideal for pressing in and out bearing, bushings; C/W 4-slotted round plate table
Immense Force for Heavy Tasks. 5-tonne capacity tackles robust jobs like pressing large bearings, bushings, gears, or pulleys in automotive/machinery, far surpassing 0.5–2 tonne models without hydraulic complexity.
Precision and Controlled Leverage. ack-and-pinion with hardened pinion delivers smooth, wobble-free ram action for accurate operations.
Durable, Shop-Grade Build. Heavy Steel-Welded frame ensures vibration-free stability and longevity under frequent industrial use, with a 645x276 mm base for secure bench mounting.
Square 50x50 mm Rack. The square profile ensures straight, wobble-free vertical movement when meshed with the pinion, ideal for accurate bearing installation or pin pressing without misalignment.
Features
Steel structure manual arbor press
Rack and pinion leverage gives the same force every time
Compact footprint, occupies very little floor space

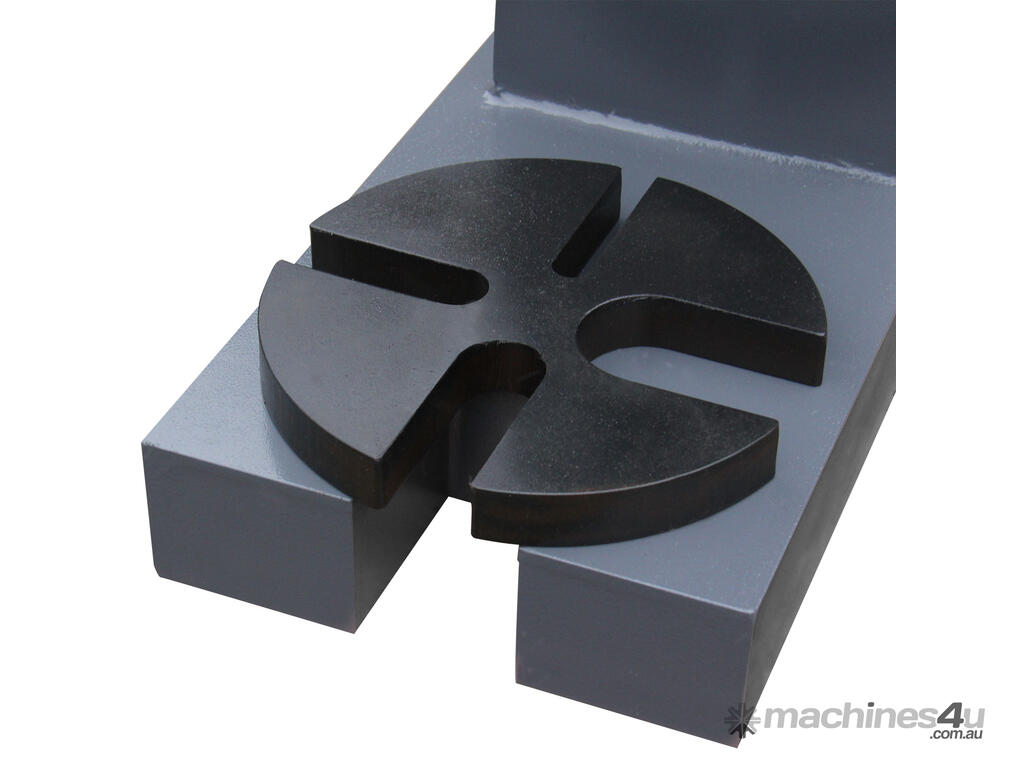

4-Position plate
Specifications
SKU 176505
Modle AP-5
Capacity 5 Tonne
Max. Height & Dia. 400x226 mm
Largest arbor 70 mm
Table size OD 255 mm
Ram square 50x50 mm
Press Height 815 mm
Footprint 645x176 mm
Packing size 76x37x95 cm
N.W./G.W. 118/129 kg
