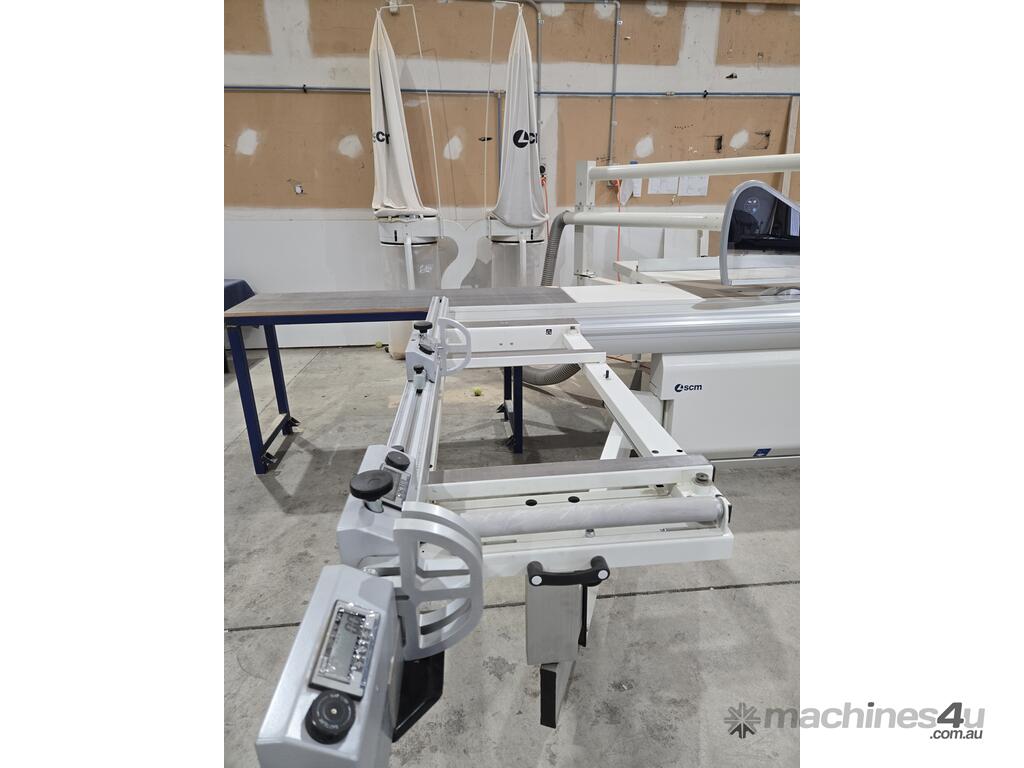

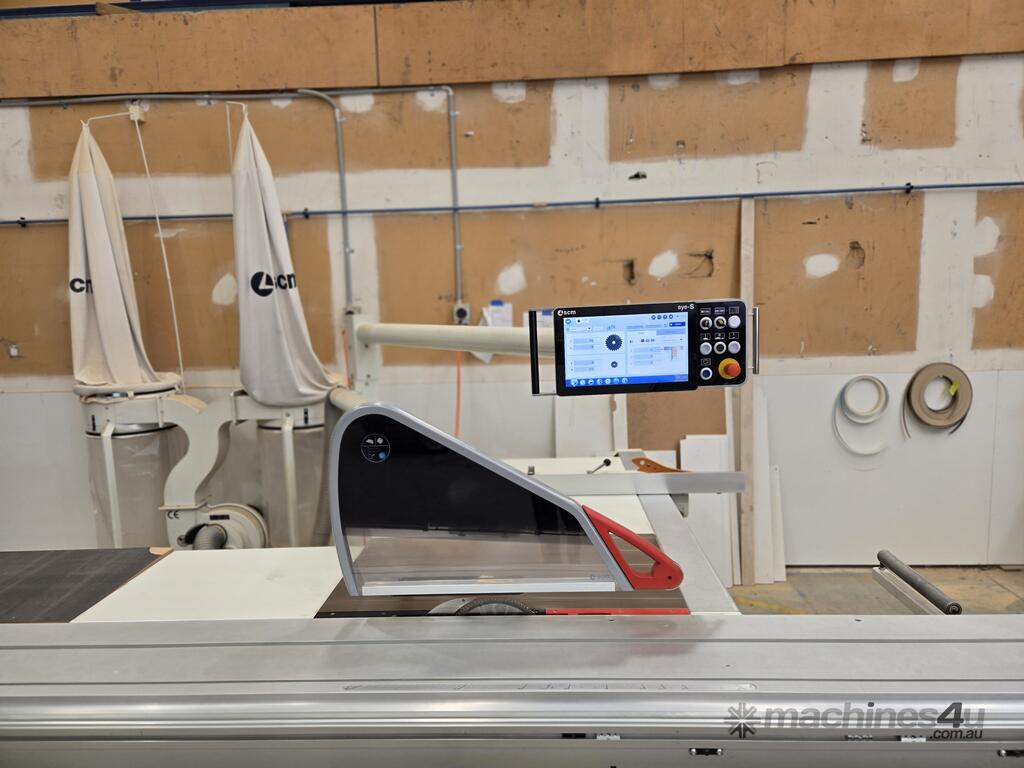

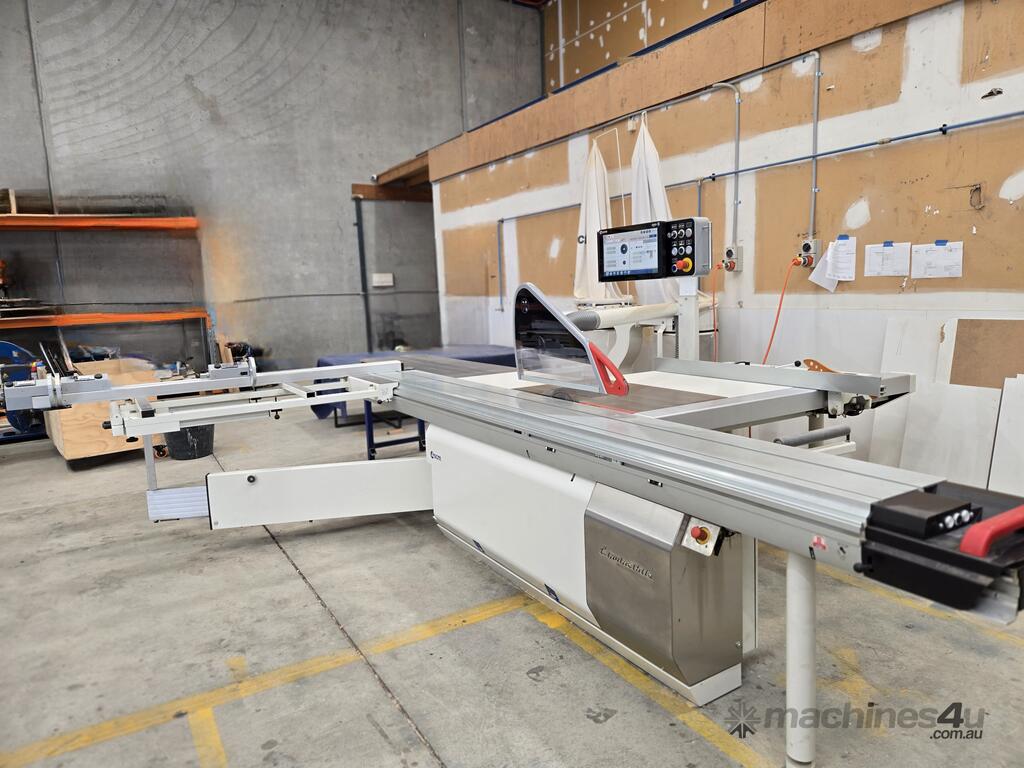

2023. 3800mm SCM panel saw As new with minimal use in excellent condition.
- Main blade diameter (mm) - 400
- Squaring capacity with carriage and extended stop
- - - with 3800 mm carriage - 3800x3200
- Blade tilting (degrees) - 45
- Max. cutting height at 90° (mm) - 140
- Max. cutting height at 45° (mm) - 97
- Rotating blade speed (rpm) -
- Scoring unit speed (rpm) - 8500
- Diam. of exhaust outlet:
at base (mm)
- on overhead saw guard (mm) - 120
- 100
- Main blade motor power (kW)Hp - (7) 9.5hp
- Scoring blade motor power (kW)Hp - (1.3) 1.7hp
- Cutting width on parallel fence (mm) - 1600
- Holytek – SF003F
Number of Bags 2
Bag Diameter 510mm
Bag Capacity .15 m3
Air Speed 45 (M/sec)
Air Flow Rate 5267 m3/h
CFM 3100
Outlet Manifold Sizes 1 x 125mm, 2 x 100mmm
Motor Size 3hp 415V
