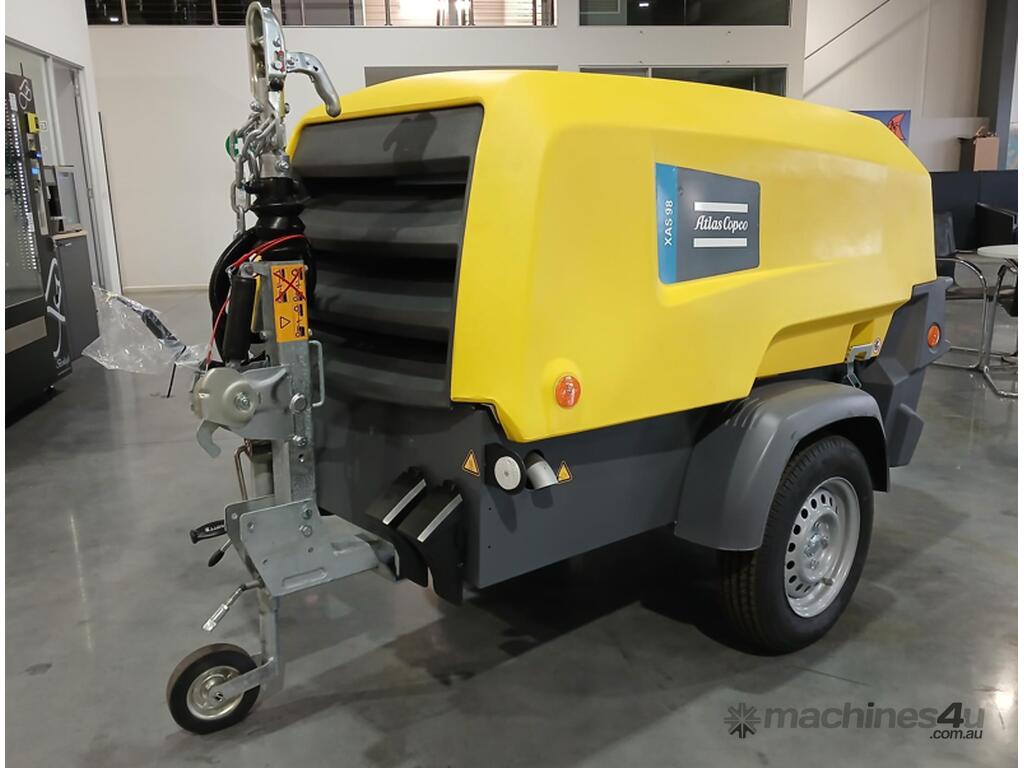

Atlas Copco XAS98 Trailer Mounted Diesel Air Compressor

Atlas Copco XAS98-KD Compressor
The Atlas Copco XAHS 38-XAS 98 KD is a single-stage, oil-injected, rotary screw type air compressor range, powered by a
liquid- cooled, four-cylinder Kubota diesel engine.
The unit hosts the new generation C67 and C90 (XAS 98) screw element in its air end, combined with a Kubota made
diesel engine model V1505 or V1505-T, complying with the Tier 2 emission standard.
Different pressure variants are available.
Special attention has been given to the overall product quality, user friendliness, ease of serviceability, and economical operation to
ensure best in class cost of ownership.

Key Specifications:
• Engine: Kubota V1505-T Diesel
• Free Air Delivery: 187cfm (5.3 m3/min)
• Working Pressure: 100psi (7bar)
• Fuel Tank Capacity: 60L
• Towing: Single-Axle with brakes, Fixed Towbar with 50mm Ball Coupling
• Canopy: Hard Hat Canopy
• Dimensions: 2290 L x 1350mm W x 1400mm H
• Weight: 785kg
• Aftercooler & Water Separator
• Rated To Higher Ambient Conditions Of 50 Degrees
