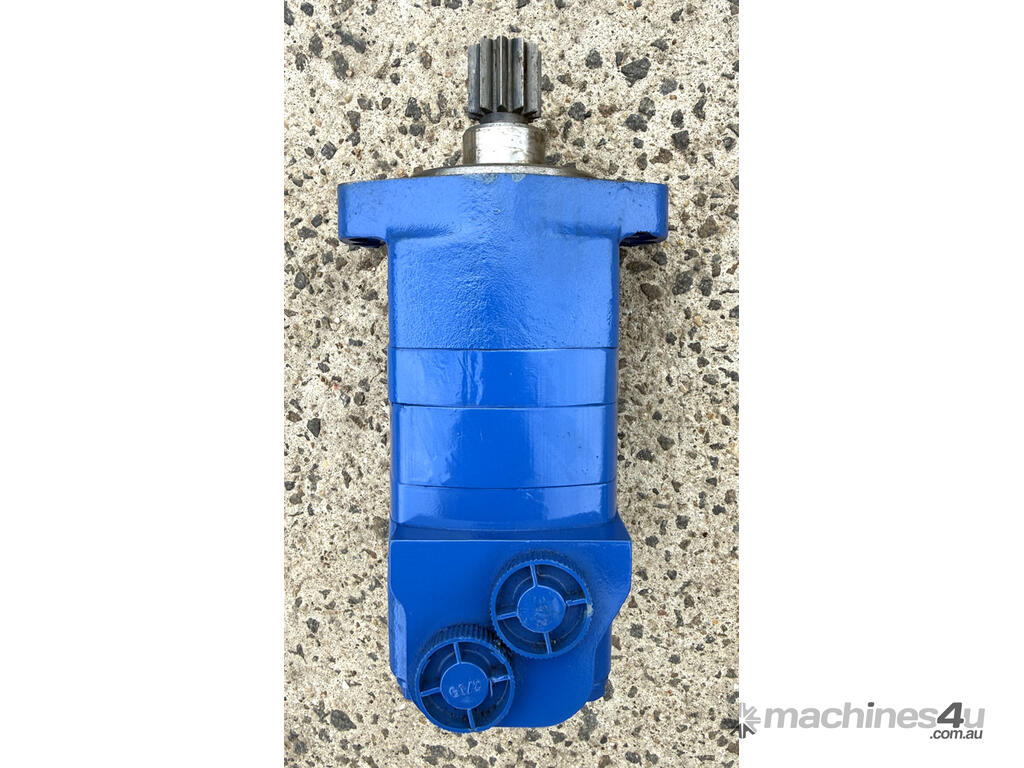

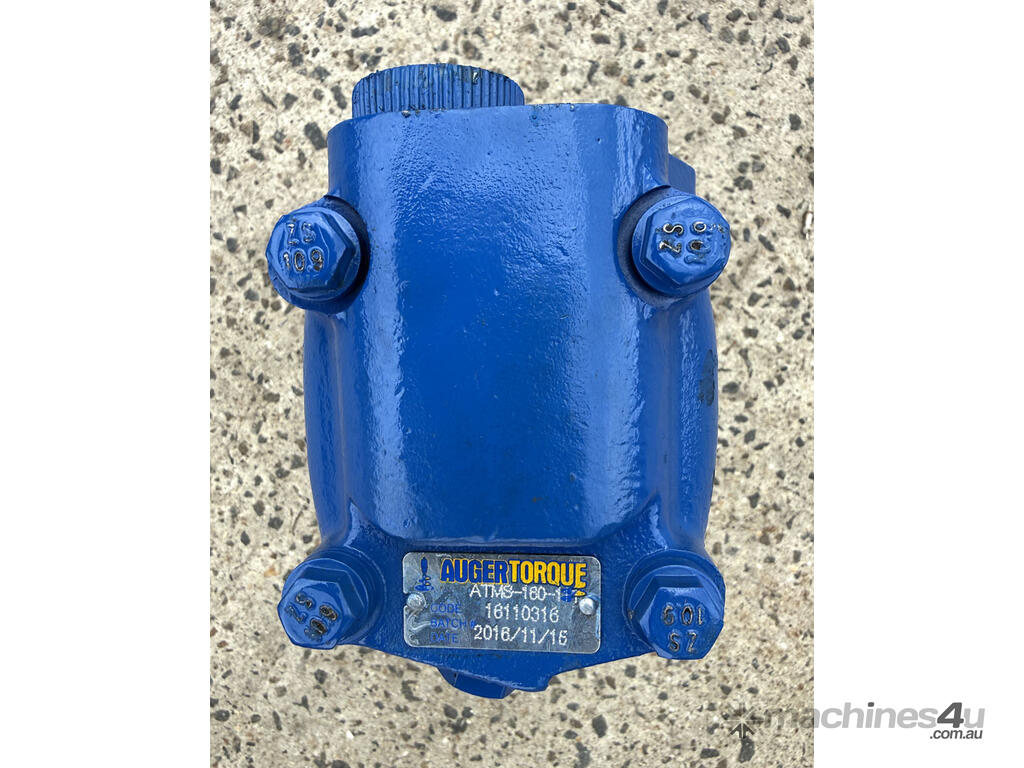

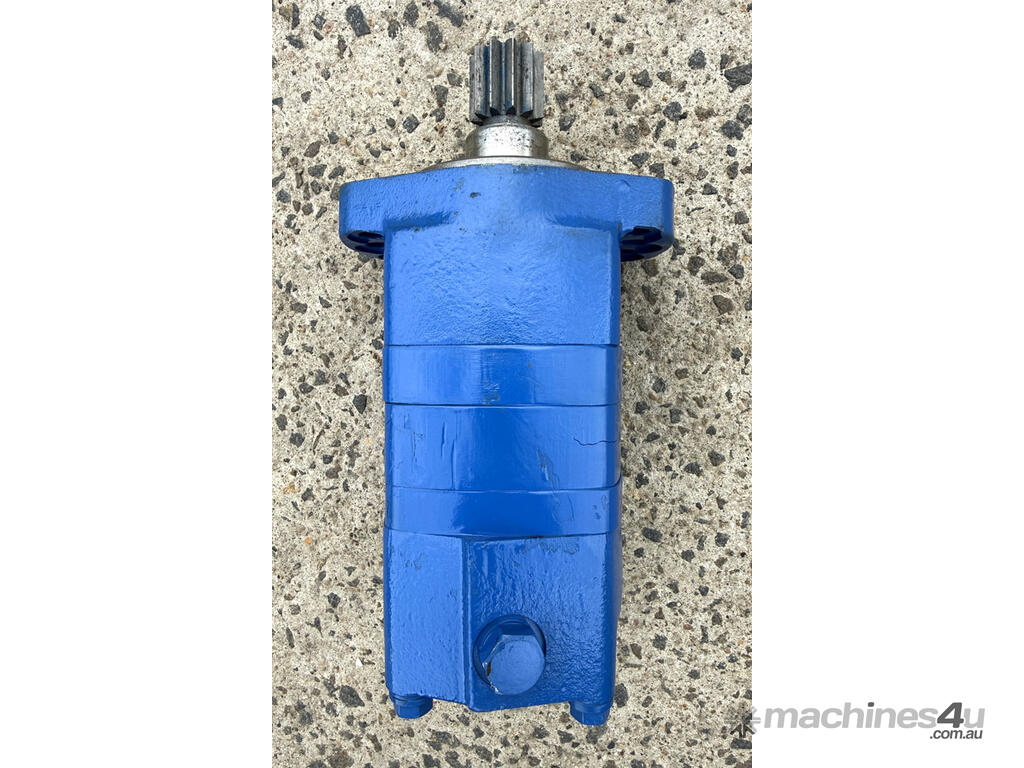

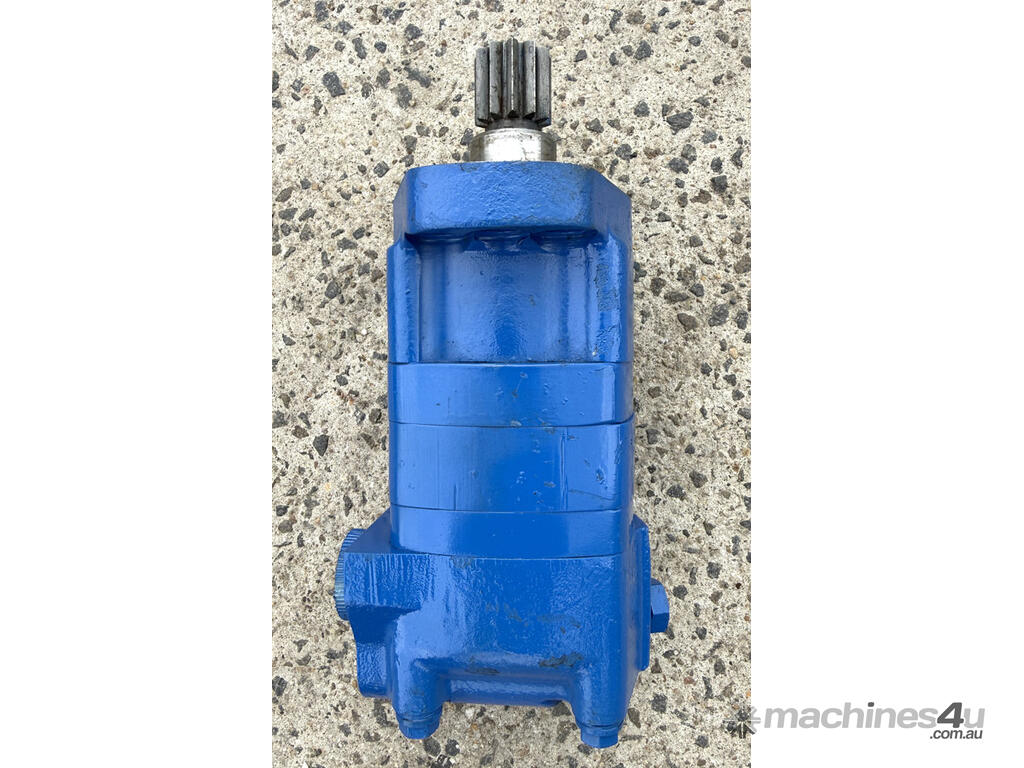

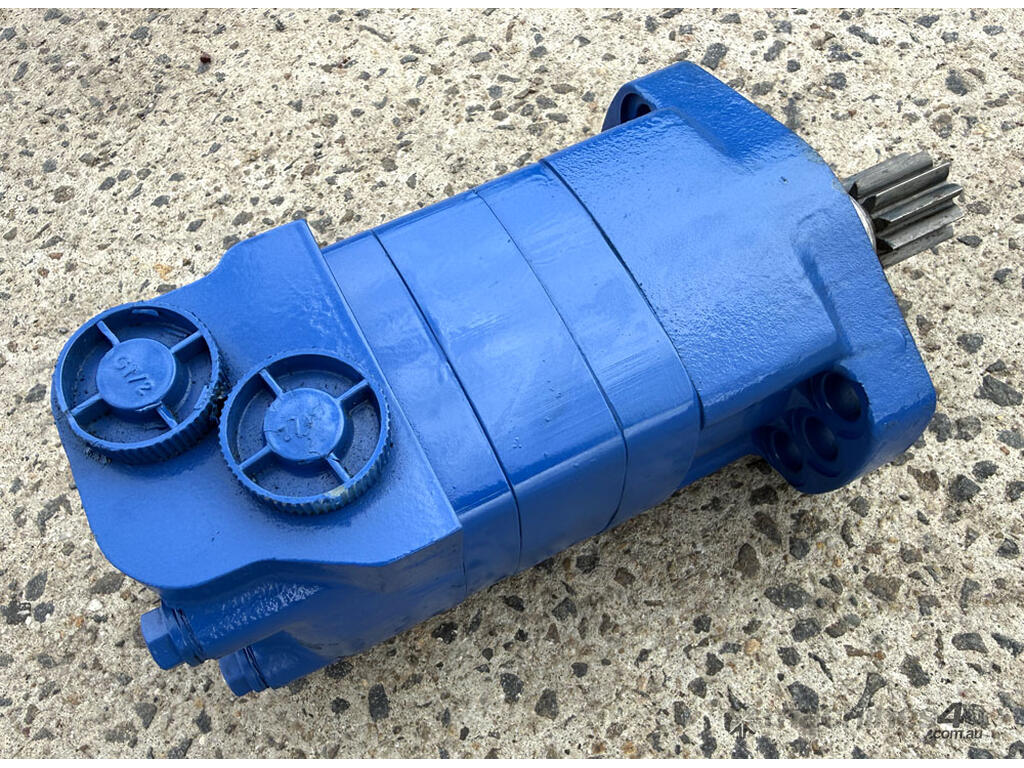

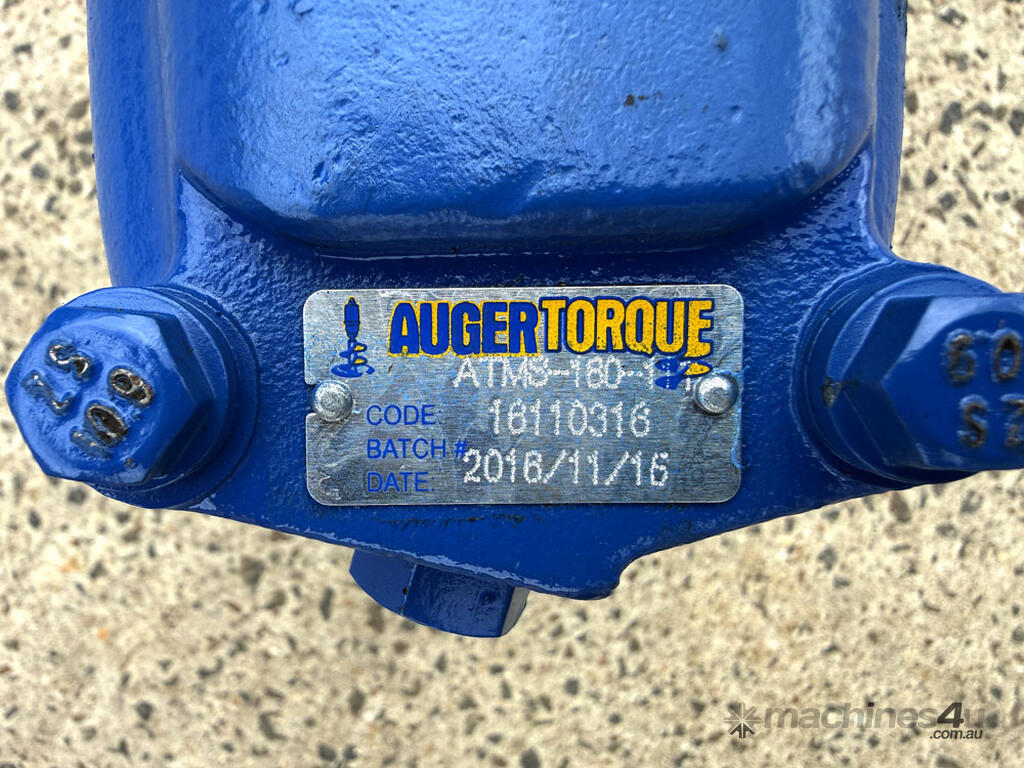

Auger Torque ATMS-180-11T hydraulic motor

The Auger Torque ATMS-180-11T hydraulic motor is a high-torque, low-speed (HTLS) orbital hydraulic motor. It is commonly used as a replacement motor for various industrial and agricultural machinery, often interchanging with parts from manufacturers like Danfoss or M+S Hydraulic.

Ten (10) available. Discount for purchases of two or more.

Key Specifications
Based on standard orbital motor nomenclature and similar models in the series:
_Displacement: 180cc per revolution.

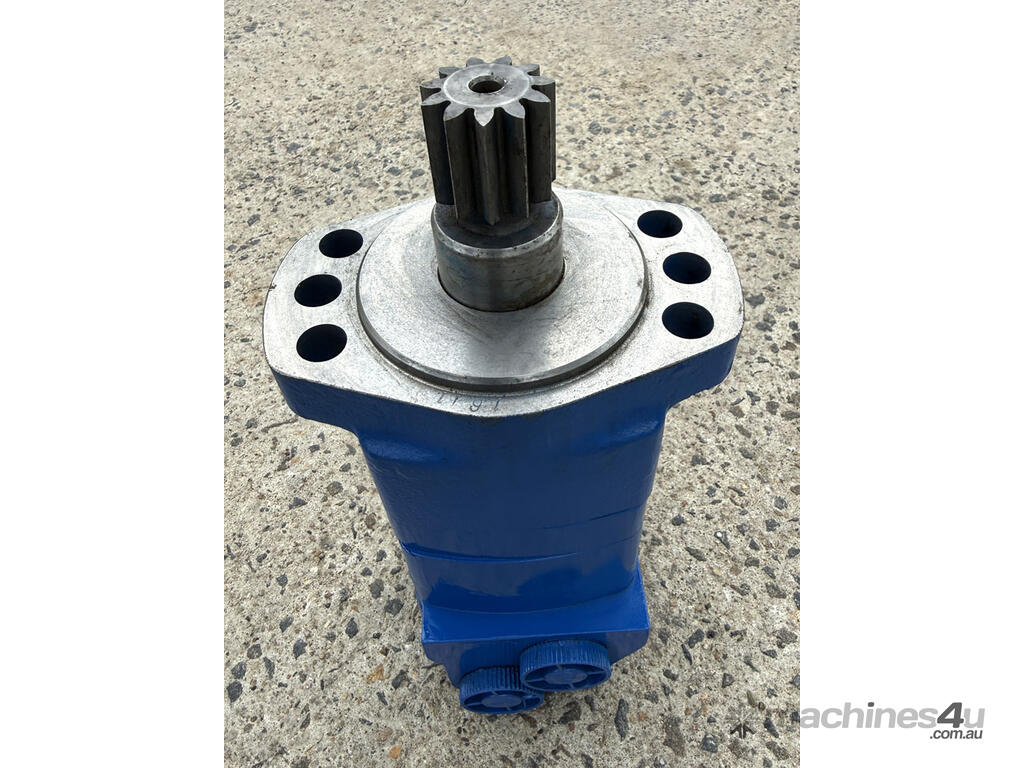

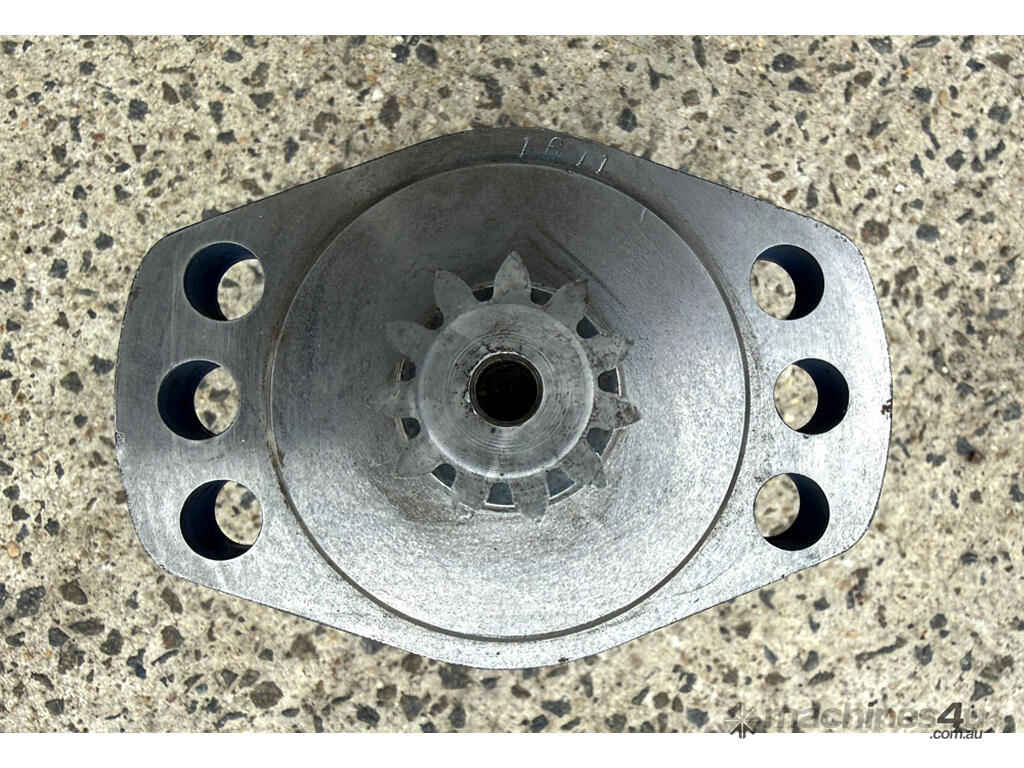

_Shaft Type: The 11T suffix typically indicates an 11-tooth splined shaft.
_Motor Type: Orbital (Gerotor/Geroler) design, known for providing high efficiency under high-pressure conditions.
_Operating Fluids: Recommended use of premium anti-wear mineral-based hydraulic oil (ISO 6743/4) with a minimum viscosity of 13 at 50°C.
_Maximum Temperature: The standard maximum operating temperature for these systems is approximately 82°C (180°F).

Applications
These motors are widely used in:
_Earthmoving & Construction: Excavators and trenching equipment.
_Agriculture: Conveyors, spreaders, and heavy-duty machinery.
_Industrial: Metalworking and food industry machinery where compact, high-torque power is needed.

Maintenance & Installation
_Filtration: Requires filtration to at least ISO cleanliness code 20/16 (nominal 25 micron or better).
_Break-in Period: For optimum life, fill the motor with fluid before loading and run it at moderate load and speed for 10–15 minutes.
_Interchangeability: This model is frequently compatible with Danfoss OMP/OMPX or M+S MS series motors, depending on the specific mounting flange (e.g., SAE A 2-bolt or 4-bolt).
