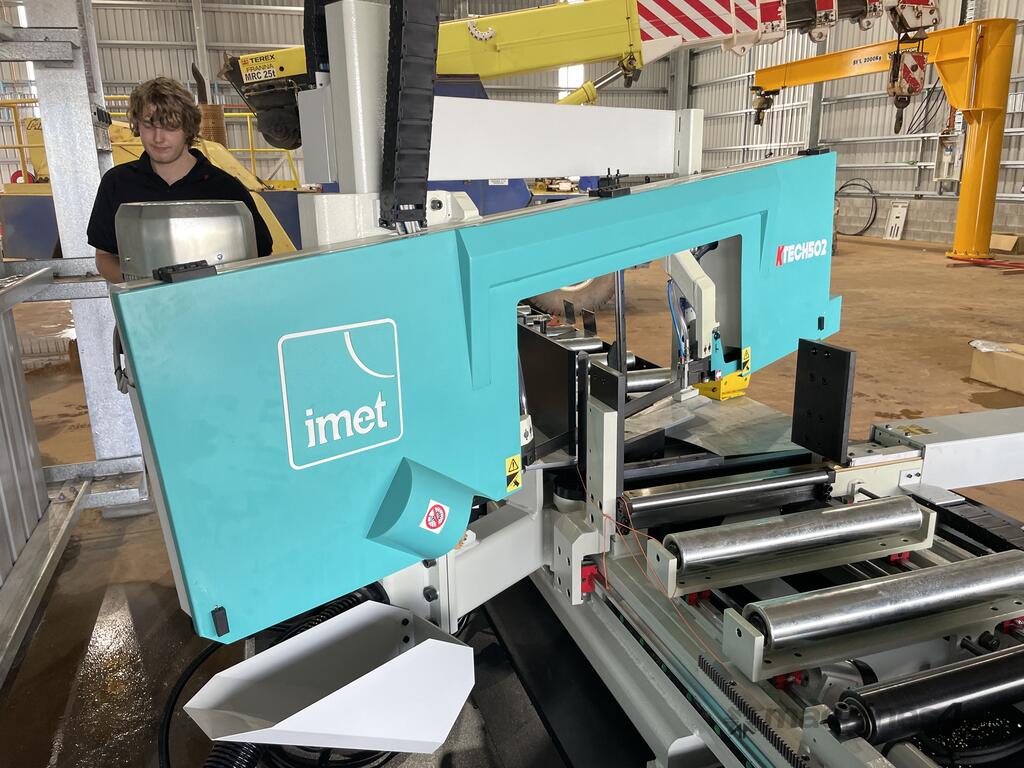

Auto Mitre IMET KTECH 502 CNC Bandsaw 500mm capacity - Made in Italy

IMET KTECH 502 is an automatic double column bandsaw that includes the most advanced technology available to cut bars, tubes, solids, and profiles up to 60° both left and right. An automatic sawing machine with CNC managed feeder and saw frame, KTECH has a 10" touch screen interface to manage the cutting process and is the perfect working tool for professionals.

3 CHOPICES FOR AUTOMATIC FEEDING STROKE - 2000mm - 3000mm - 6000mm

Cutting capacity at 0° Round: 350mmRectangular: 500x310mm
Cutting capacity ata 45° (sx) Round: 300mm
Rectangular: 300x300m
Cutting capacity ata 45° (dx) Round: 300mm
Rectangular: 300x300mm
Cutting capacity ata 60° (sx) Round: 150mm
Rectangular: 150x320mm
Cutting capacity ata 60° (dx) Round: 150mm
Rectangular: 150x320mm
Cutting capacity bundle / scrap-end Max: 500x250mm
Min: 130x20mm
Scrap-end: 255mm
Cutting capacity at 0° solids (C45) 250mm
Minimum cutting diameter 10mm
Minimum cutting length 25mm
Minumum scrap-end 240mm (single cut at 0°)
Blade size 4250x34x1.1mm
Blade speed From 0 to 100 m/min
Blade motor 2.2KW
Blade tension 1900kg/cm2
Feeder length 2000mm with automatic repetition (available also 3000mm option)
Feeder motor power Brushless BMH 2.5 N-m
Hydraulic unit power 0,55Kw
Sawframe rotation power 0,55Kw
Size - Working plate height 3700x2300x2180mm / h 845mm
Weight 2250kg
