The Axotec RGX-840 is an industrial-grade 4G LTE IoT gateway specifically engineered for demanding mobile and vehicle-based applications. Designed for reliability and flexibility, it features a Linux Debian 12 / Bookworm operating system and Raspberry Pi compatibility, allowing for significant savings in software development and system maintenance.
Compact, fanless, and energy-efficient, the RGX-840 provides reliable data processing and communication even in challenging environments. Ideal for industrial automation, telemetry, fleet management, or R&D projects requiring advanced connectivity and remote access.
Key Features:
Industrial 4G / LTE IoT Gateway for mobile & vehicle applications
Freely configurable Debian 12 (Bookworm) operating system
Raspberry Pi compatible – reduces cost of software development
Integrated LTE / 4G modem and GPS / GLONASS receiver
Dual CAN ports, RS485 / RS232, LAN, Digital I/O, M-Bus
WiFi and Bluetooth 5.0 (BLE) – can operate as client and access point
HDMI display port and onboard sensors (acceleration & temperature)
Supports OpenVPN, IPsec, StrongSwan, and Wireguard
Optional TPM chip for enhanced security (cryptographic key storage & authentication)
Compatible with Azure, AWS, Cloud, and private clouds (MQTT, REST)
Wide DC input: 9–34 V with reverse polarity & surge protection
Low-power operation (3–4 W), fanless, extended temperature range
1.5 GHz Quad-Core system with 1 GB RAM (expandable to 8 GB)
Onboard flash memory (16–128 GB)

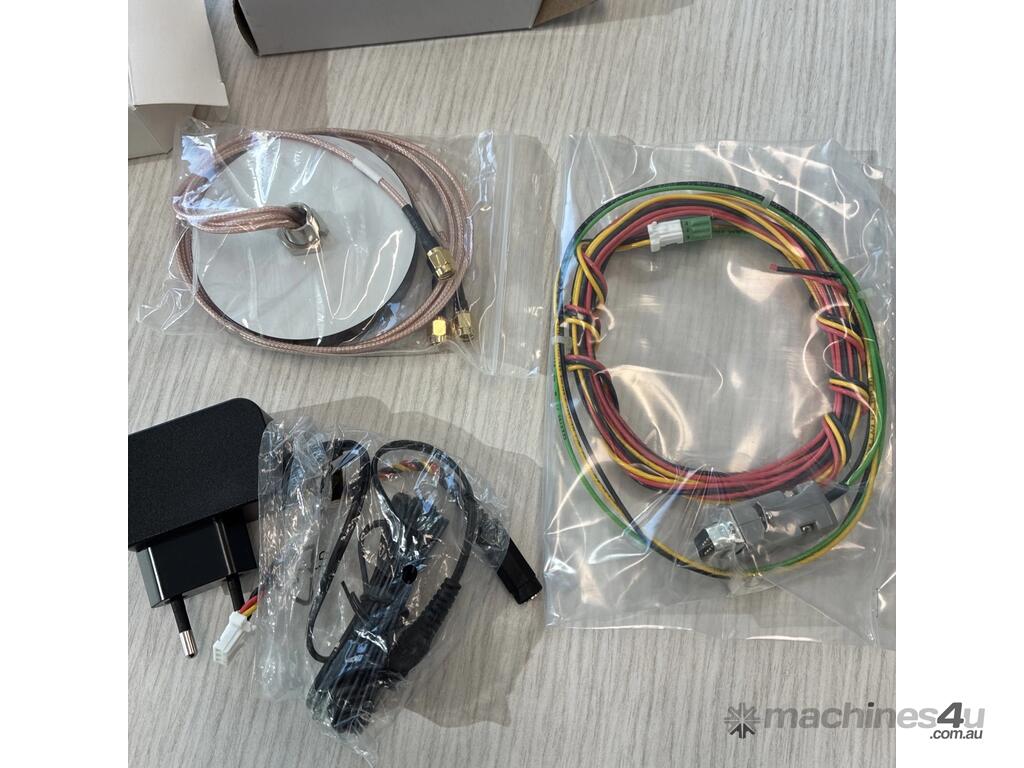

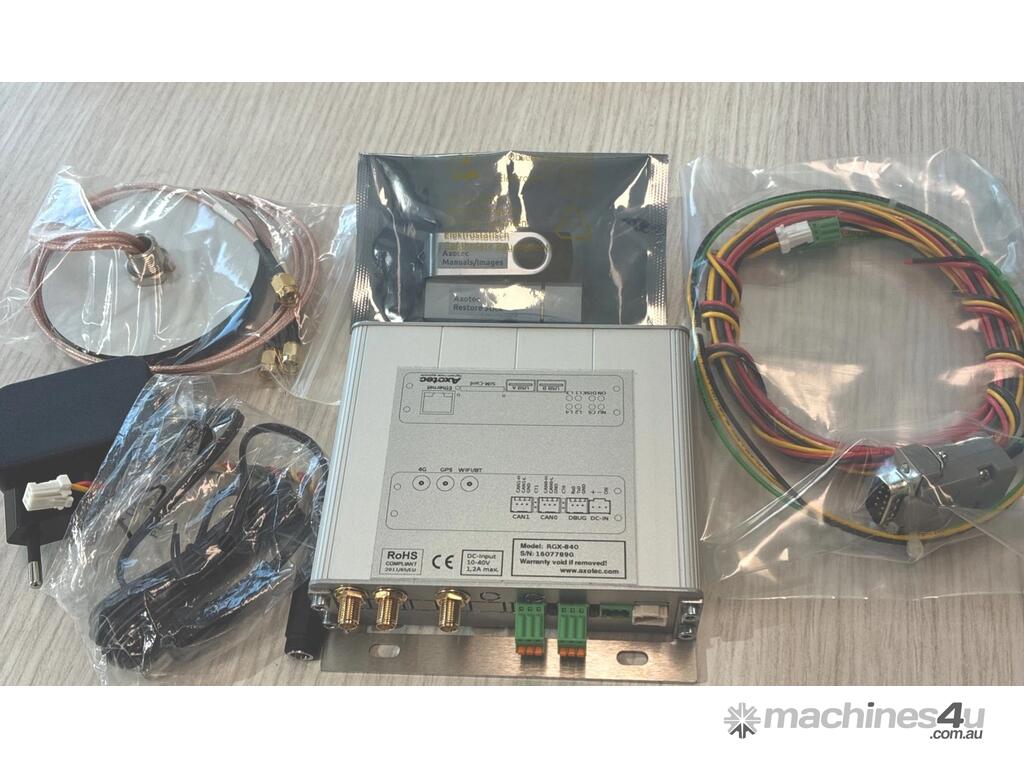

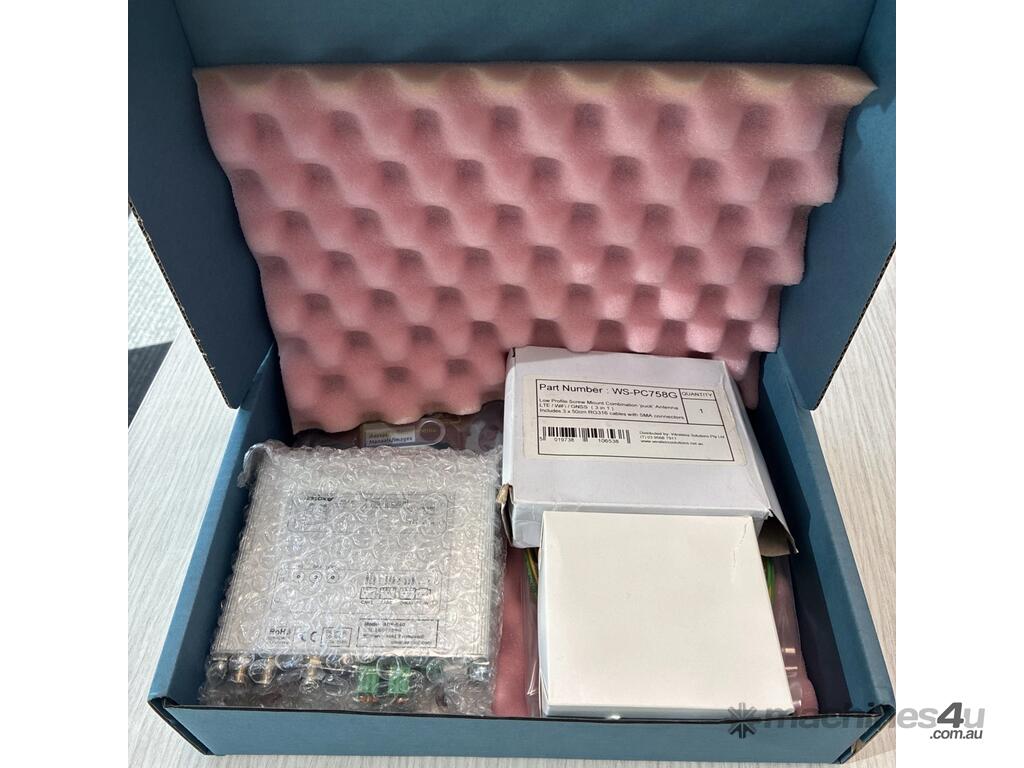

Included:

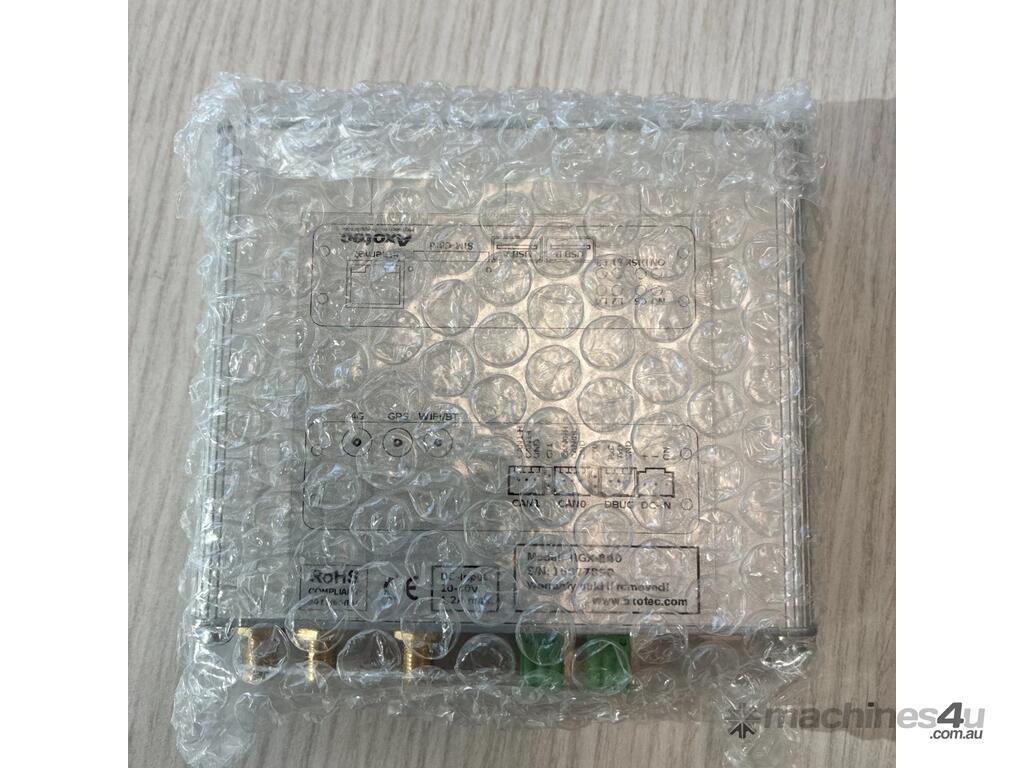

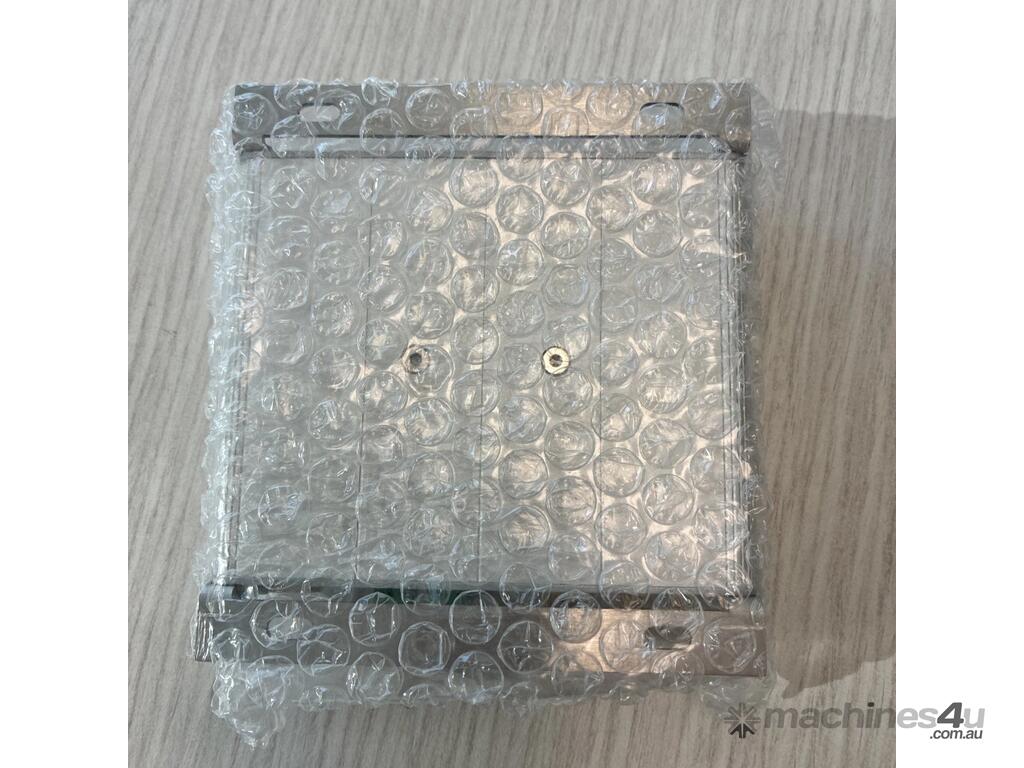

Axotec RGX-840 Gateway Unit

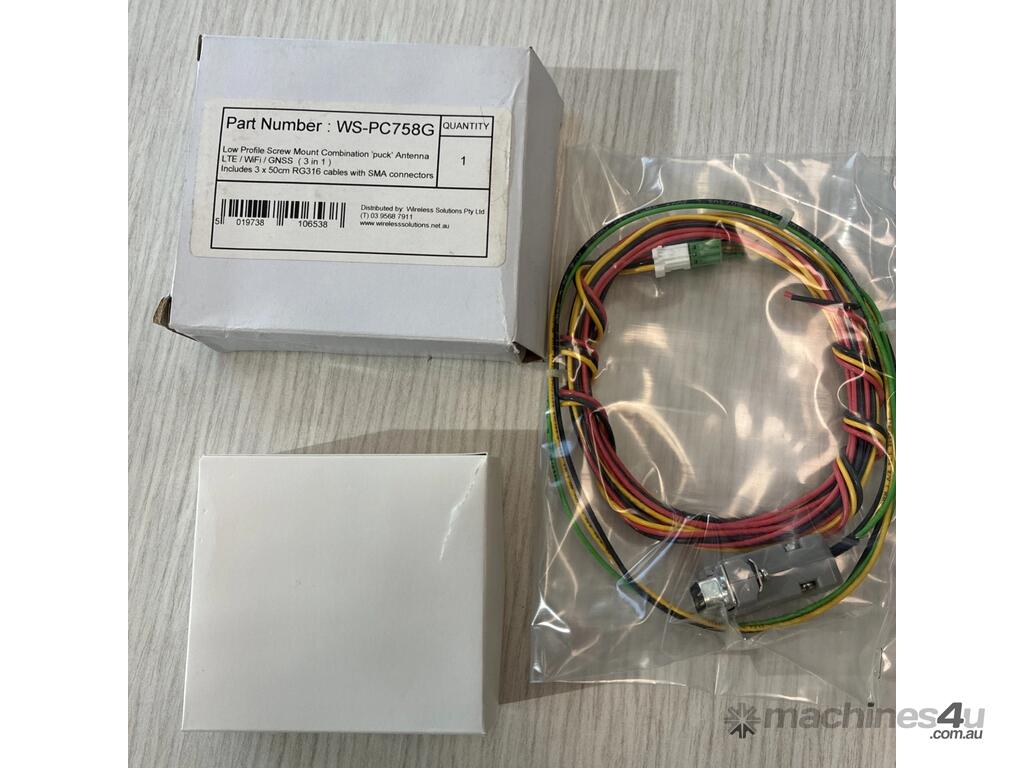

Low-profile screw-mount combination ‘puck’ antenna
Power cable (Australian adaptor required)
Connection cable
Typical Applications:
Vehicle and fleet telematics
Industrial automation and control
R&D test system data collection
Remote asset monitoring and diagnostics
Edge computing and IoT data gateway integration
Specifications Summary:
Processor: 1.5 GHz Quad-Core ARM
Memory: 1 GB (expandable to 8 GB)
Operating System: Debian 12 / Bookworm

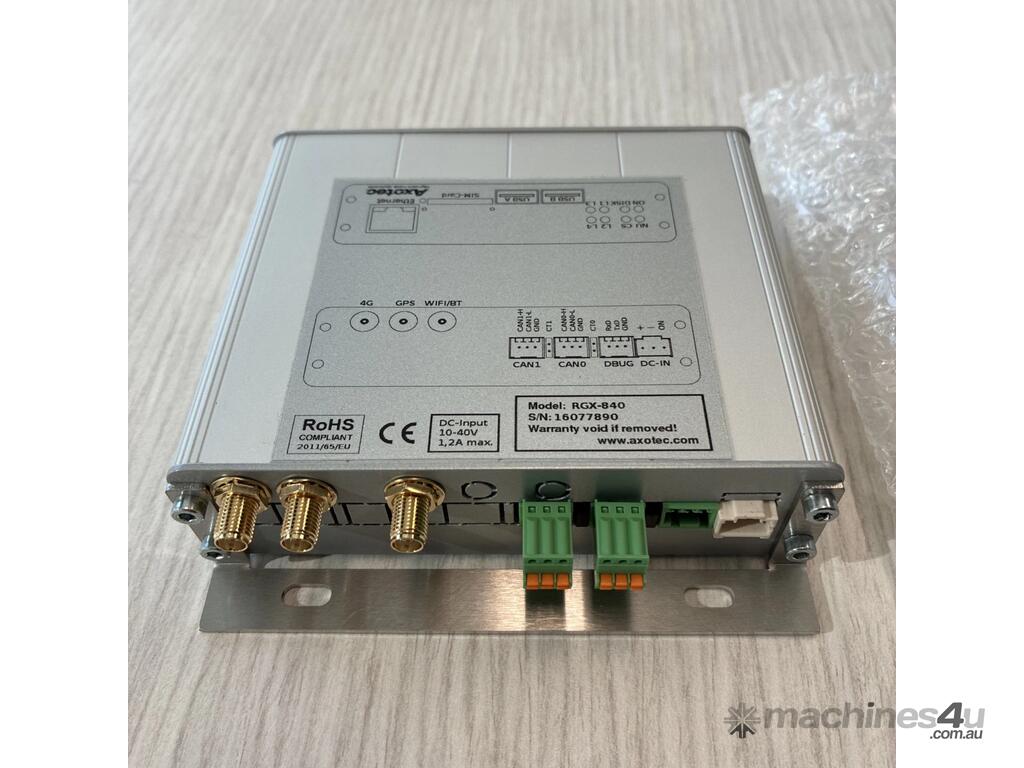

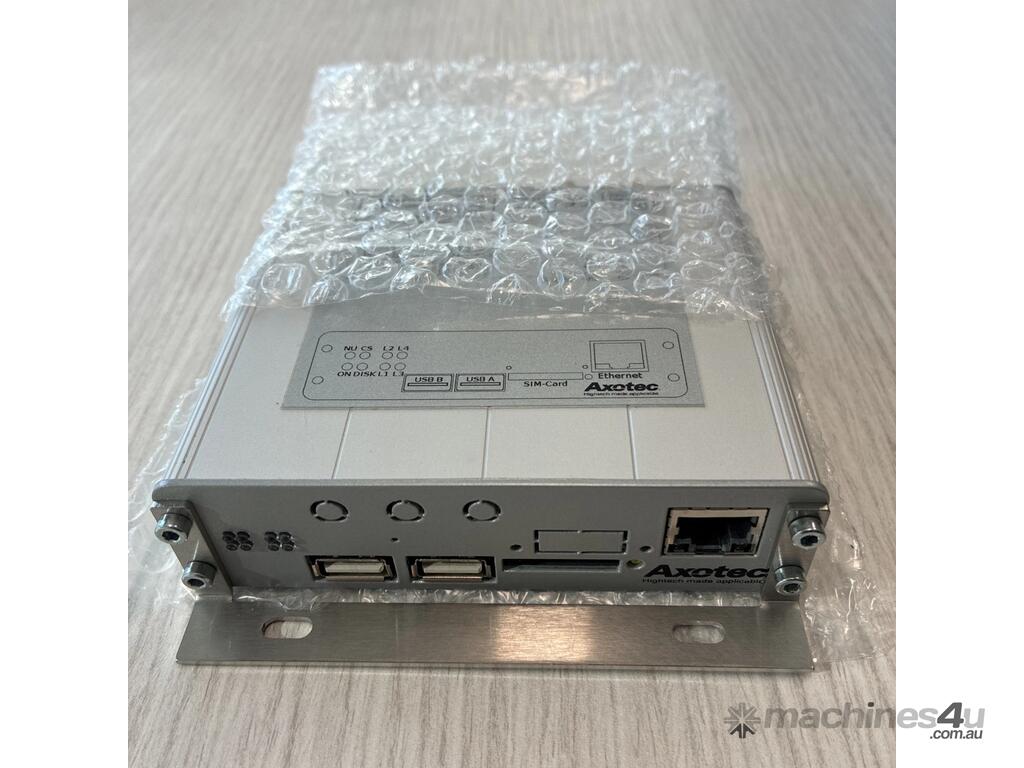

Interfaces: 2 × CAN, 1 × LAN, RS485 / RS232, Digital I/O, HDMI
Power Supply: 9–34 V DC
Connectivity: LTE / 4G, WiFi, Bluetooth 5.0, GPS / GLONASS
Construction: Compact fanless enclosure, industrial design
