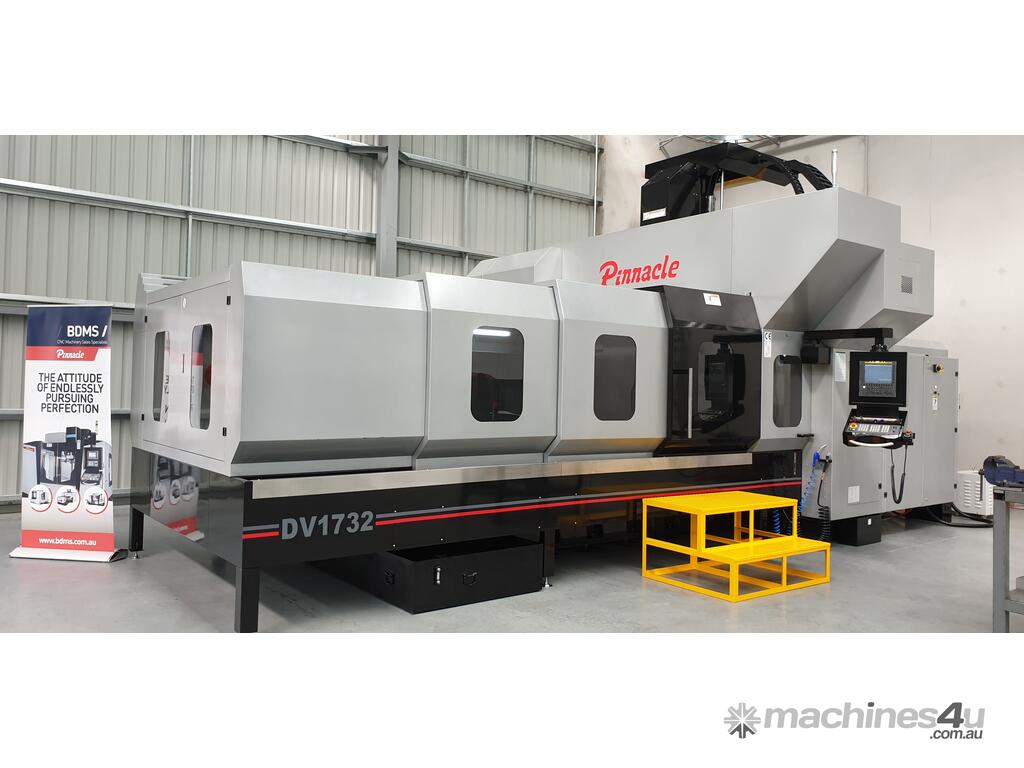

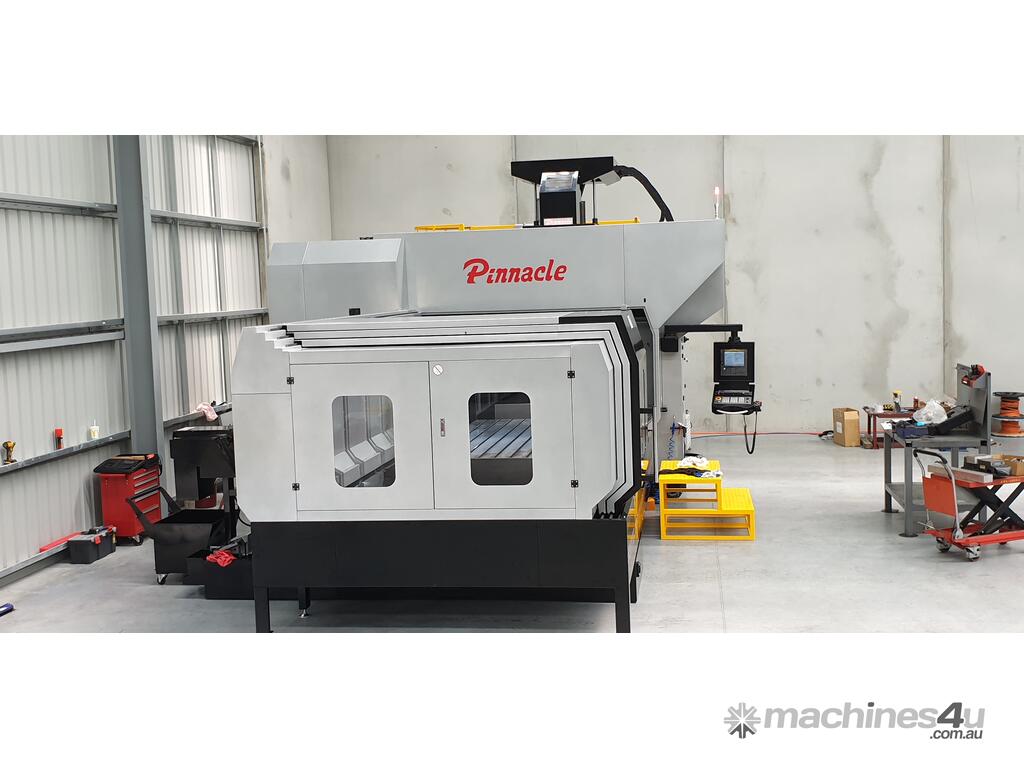

BDMS - PINNACLE - Double Column Machining Center DV SERIES

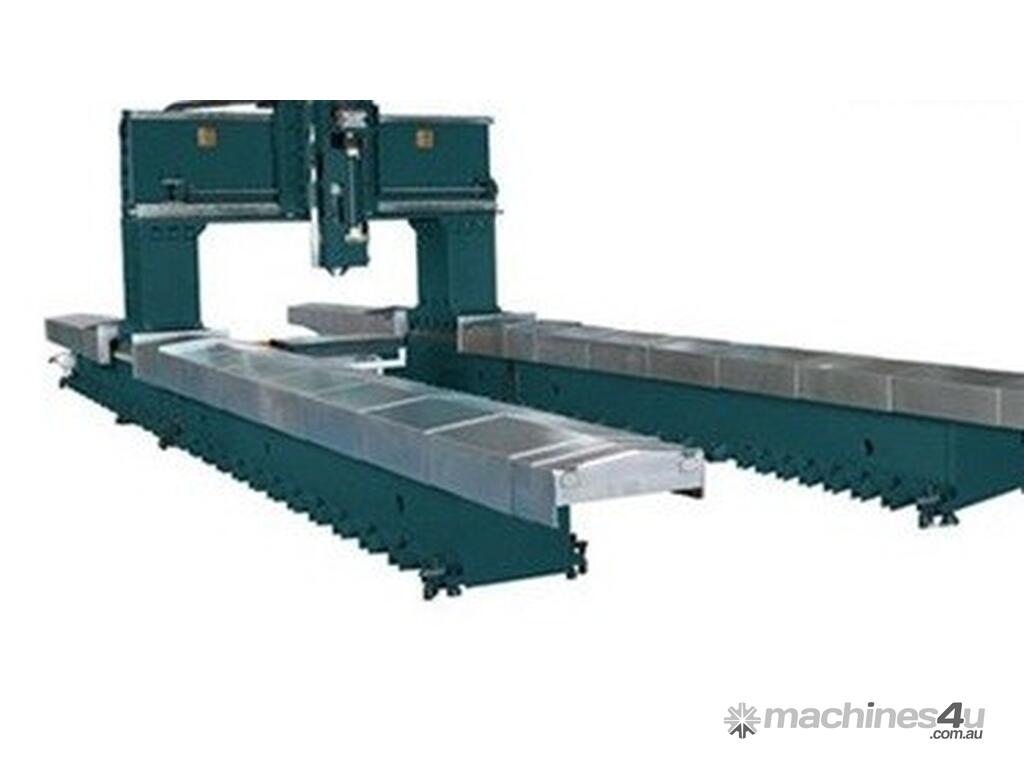

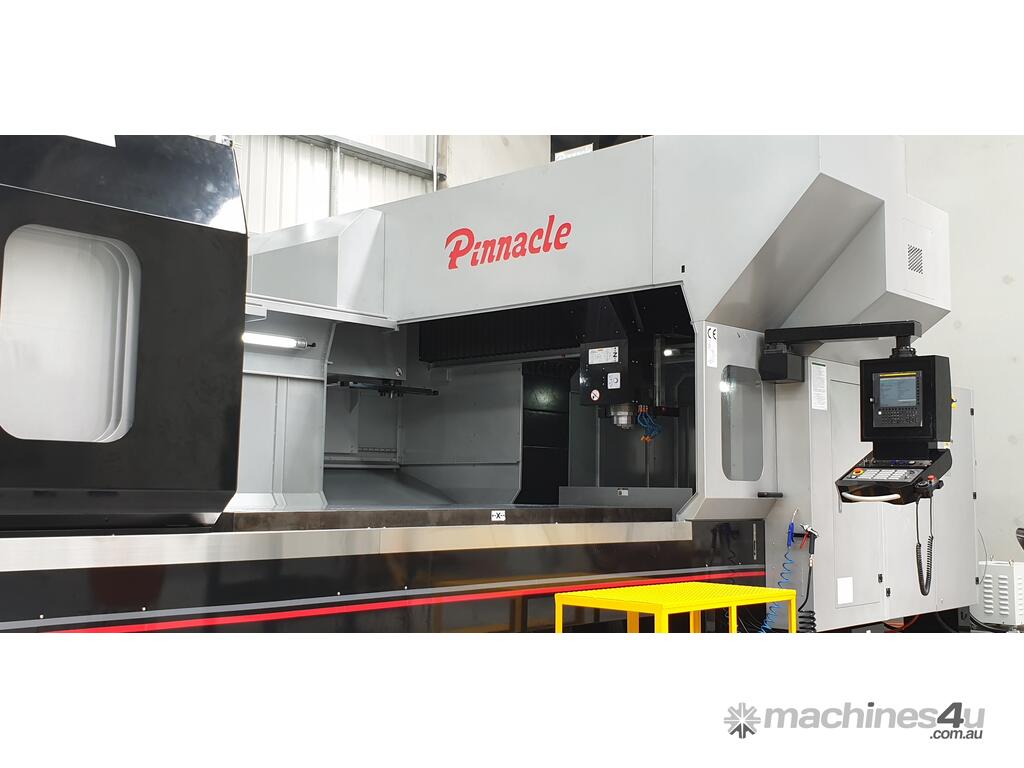

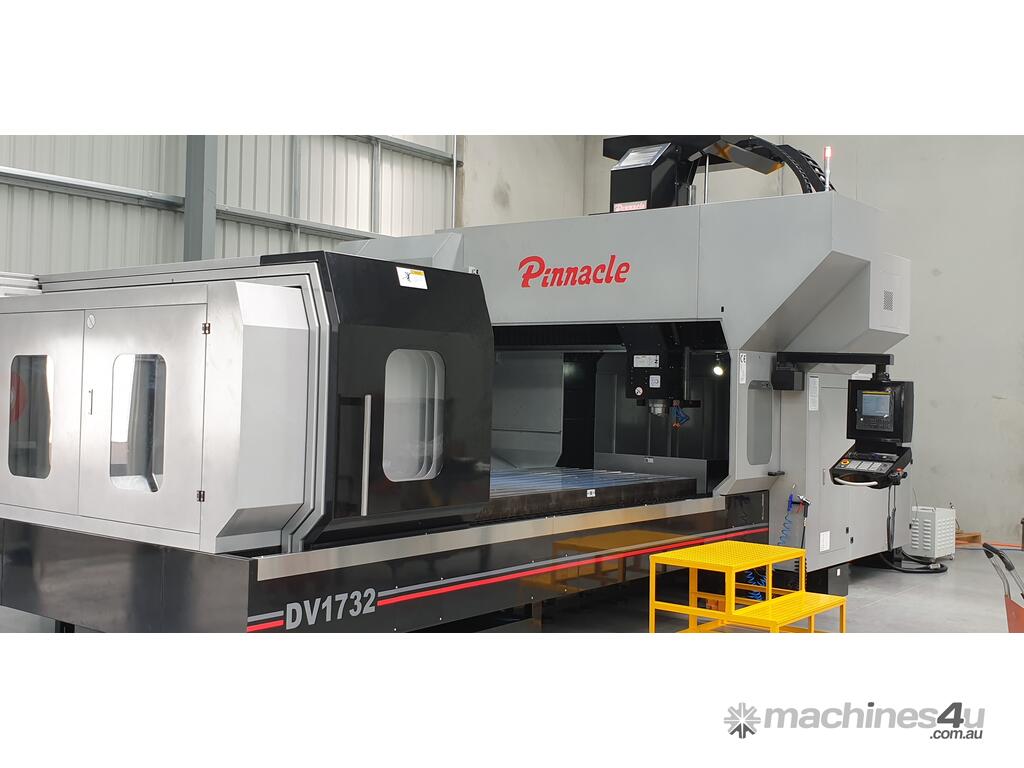

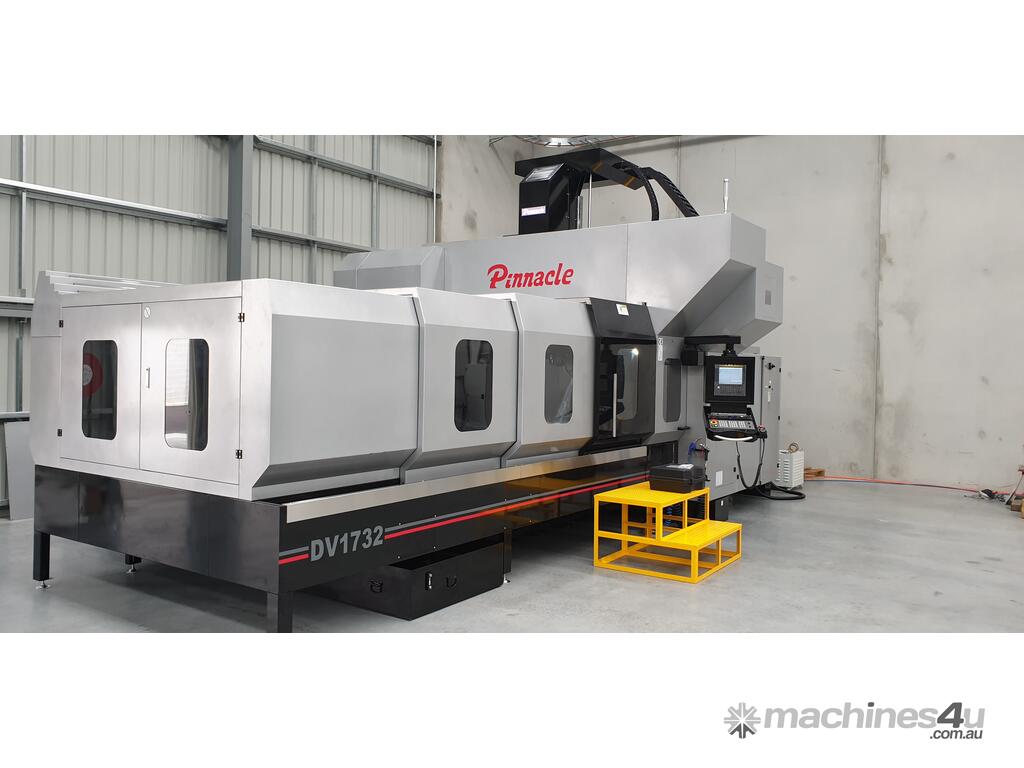

New Pinnacle DV - CNC Double Column Machining Center.

Main Features and Inclusions:

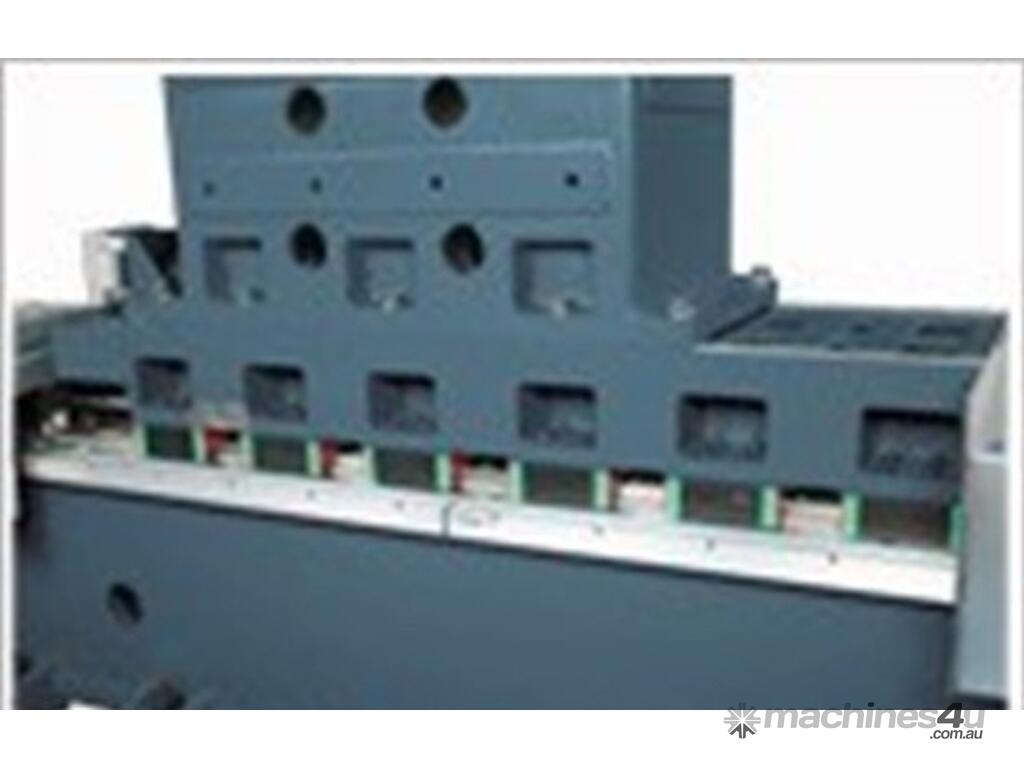

Travel & Table

DV-14 Series
• X axis travel 1700 mm – 4200 mm
• Y axis travel 1400 mm
• Z axis travel 900 mm

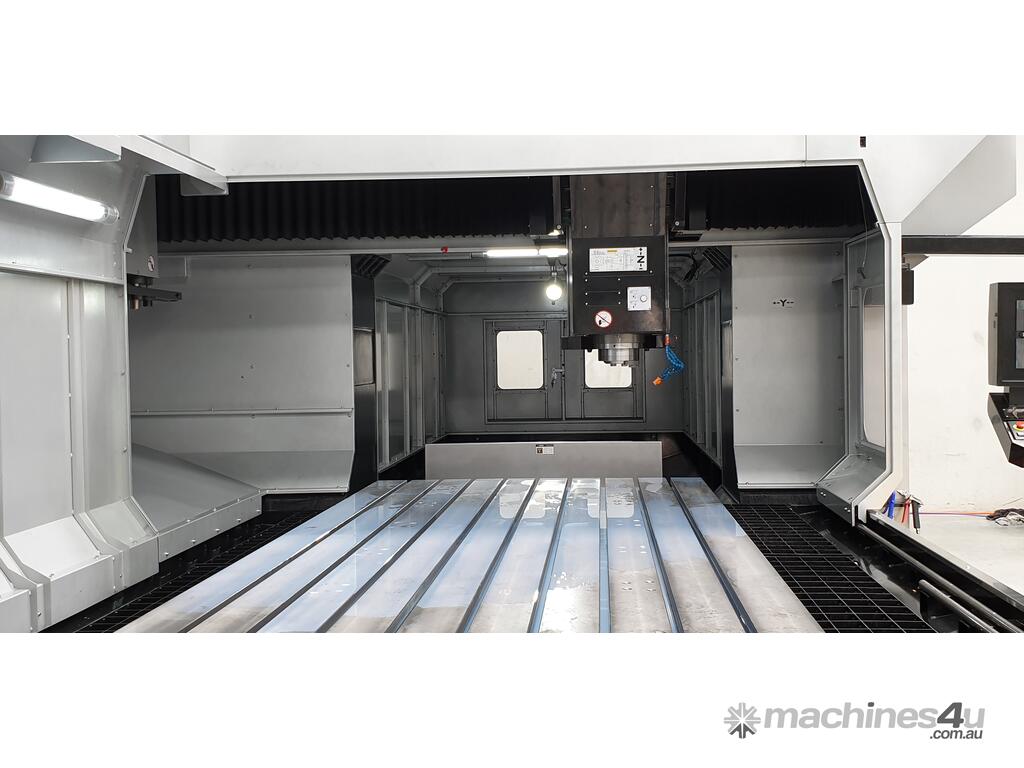

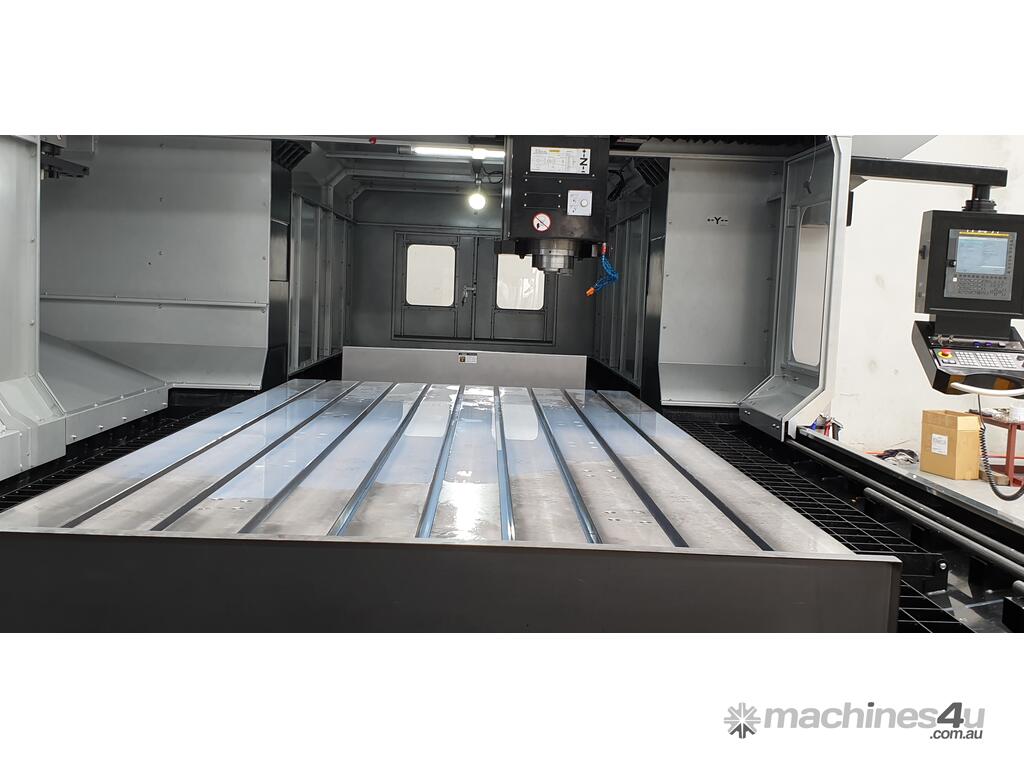

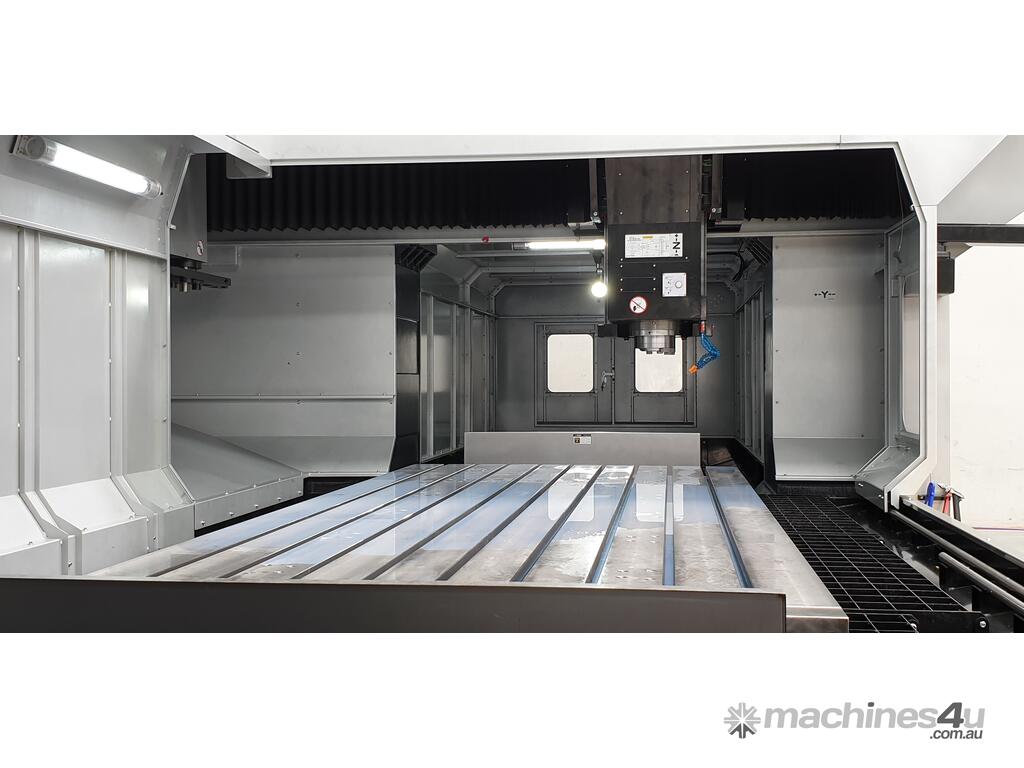

• Table 1700 mm x 1200 mm – 4200 mm x 1200mm

DV-17 Series
• X axis travel 2200 mm – 4200 mm
• Y axis travel 1700 mm
• Z axis travel 900 mm
• Table 2200 mm x 1500 mm – 4200 mm x 1500mm


DV-19 Series
• X axis travel 2200 mm – 4200 mm
• Y axis travel 1900 mm
• Z axis travel 900 mm
• Table 2200 mm x 1700 mm – 4200 mm x 1700mm

DV-21 Series
• X axis travel 2200 mm – 4200 mm
• Y axis travel 2100 mm
• Z axis travel 900 mm
• Table 2200 mm x 1900 mm – 4200 mm x 1900mm

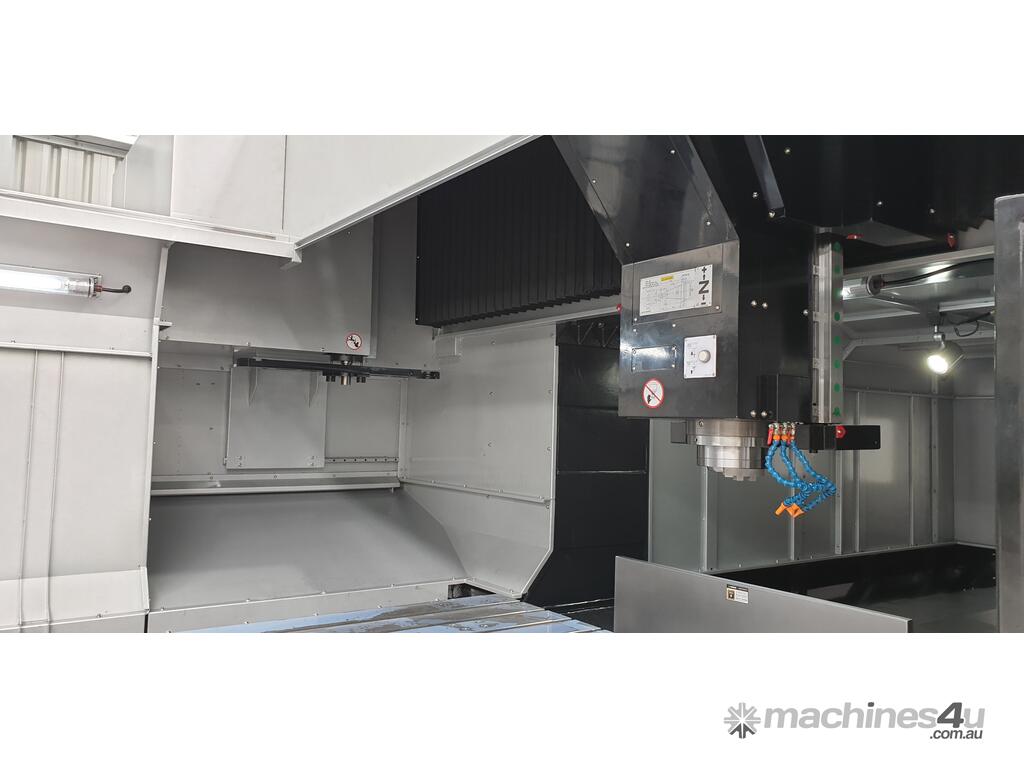

Spindle:
• 8000 rpm spindle speed
• BT50 spindle taper
• 2 speed gear box


Feed rate:
• 20 m/min x-axis rapid traverse
• 20 m/min y-axis rapid traverse
• 20 m/min z-axis rapid traverse
• 10000 mm/min cutting feed rate

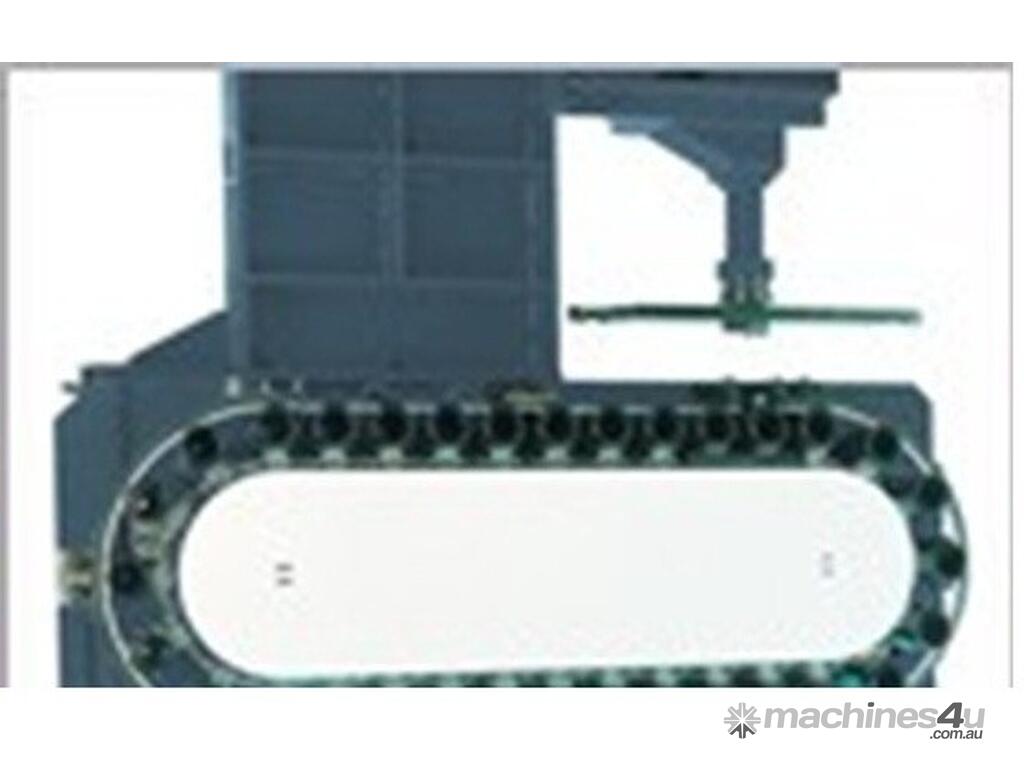

Automatic Tool Changer:
• BT50 tool shank
• 32 Tools ATC Random Selection
• 350 mm Max tool length


Accuracy:
• XYZ Linear axis (mm) 0.005
• Repeatability Linear axis (mm) 0.003


Included:

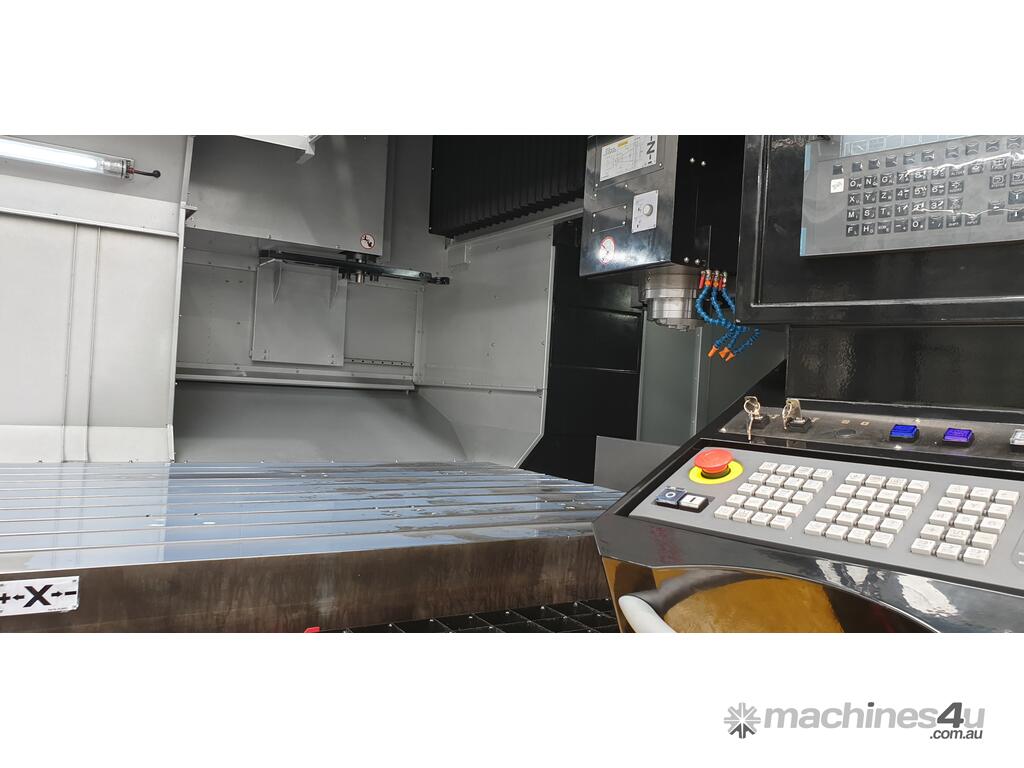

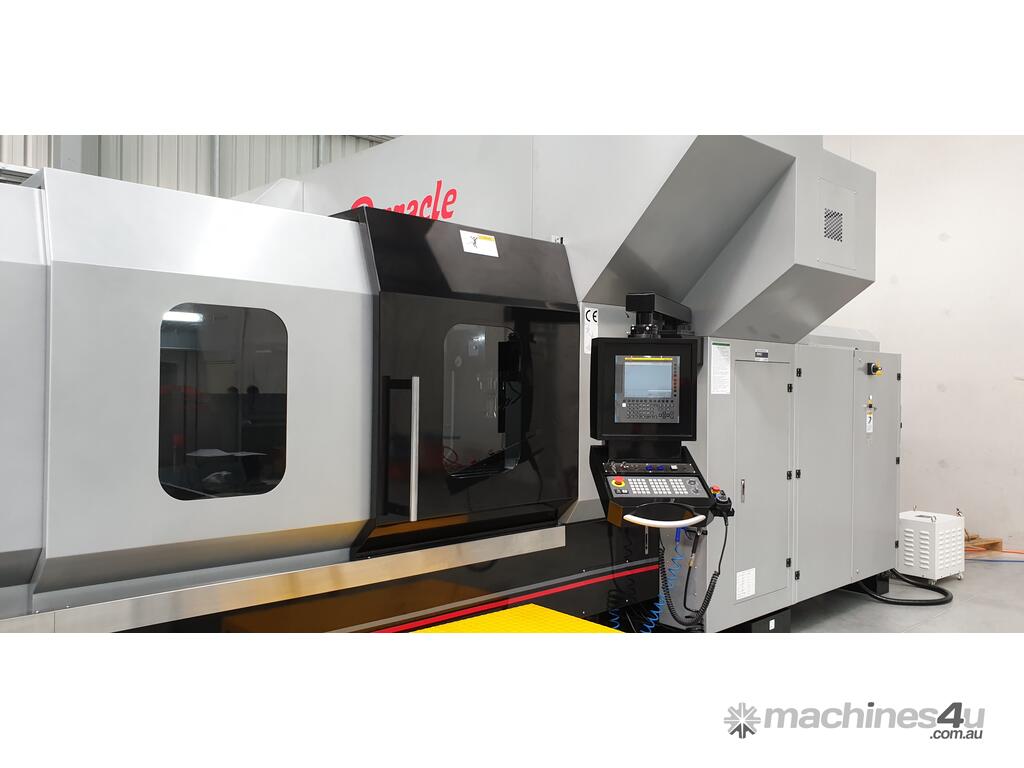

• Fanuc Oi-MF / Mitsubishi M80 – M800 / Heidenhain ITNC640 Controller all with conversational programming
• Rigid tapping

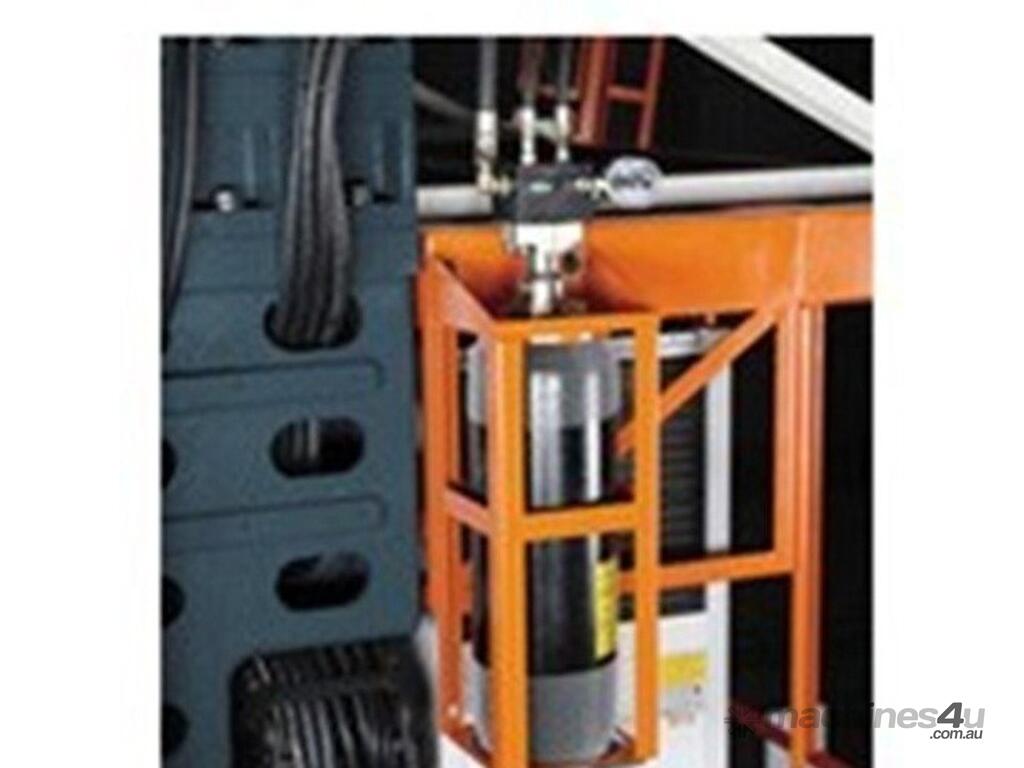

• Z axis pneumatic balance system
• Air blast through spindle
• Auto Lubrication system
• Flush down system
• 20 Bar Spindle through Coolant (option)

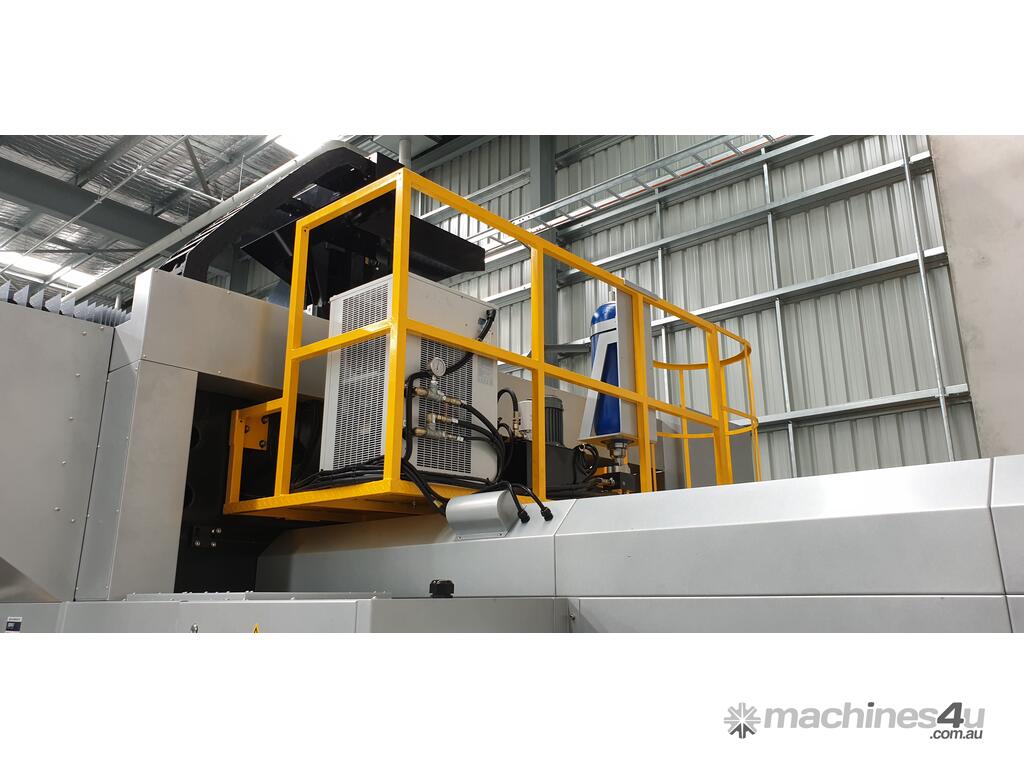

• Spindle Chiller
• Spindle Air Blast
• Air-conditioned electrical cabinet
• 32 tools ATC
• Chip conveyor with trolley
• X, Y, Z axes Linear feedback scales (opt)
• RS 232 & RJ 45 Ports for DNC
• USB Ports
• Transformer
• Automatic B/C axis milling head (opt) with auto tool change (opt)
• Manual 90 Deg milling head (opt)
• Manual universal milling head (opt)
• 4th axis prepared


Please contact Stewart for more information. All prices quoted include Delivery, Installation and Training
