BDMS - PINNACLE - Vertical Machining Center - Linear Guide ways LV8

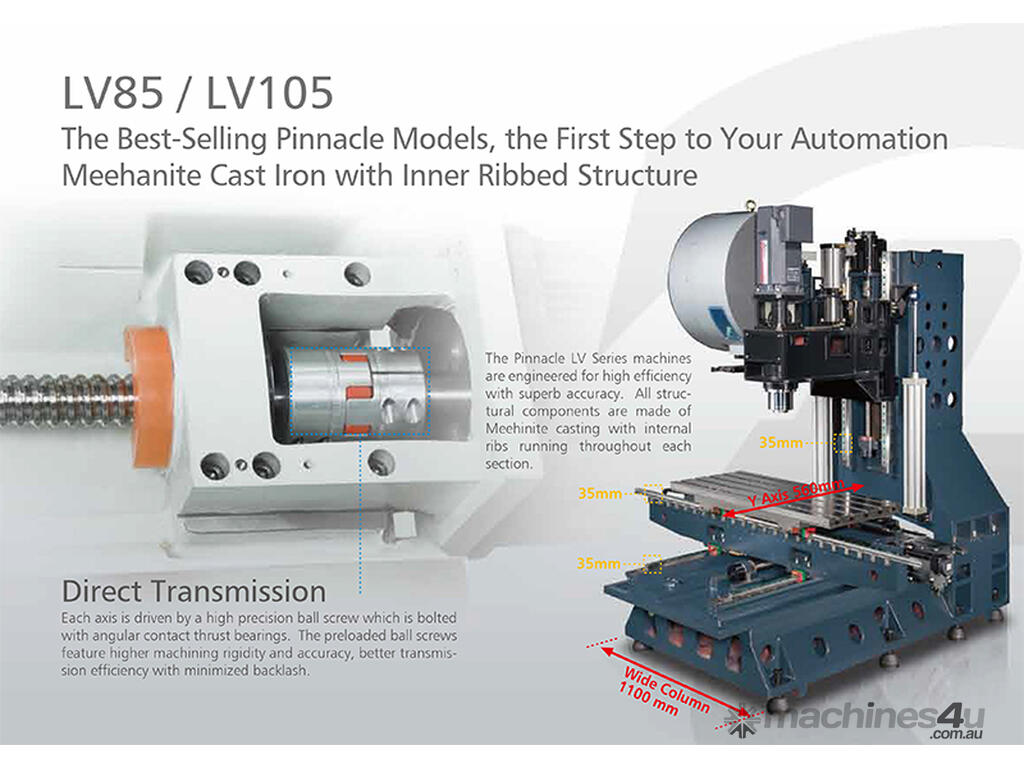

New Pinnacle LV85 / LV105 - CNC Vertical Machining Center. – Linear Guide Ways

Main Features and Inclusions:

Travel:
LV85
• 850 mm x-axis travel
• 560 mm y-axis travel
• 560 mm z-axis travel

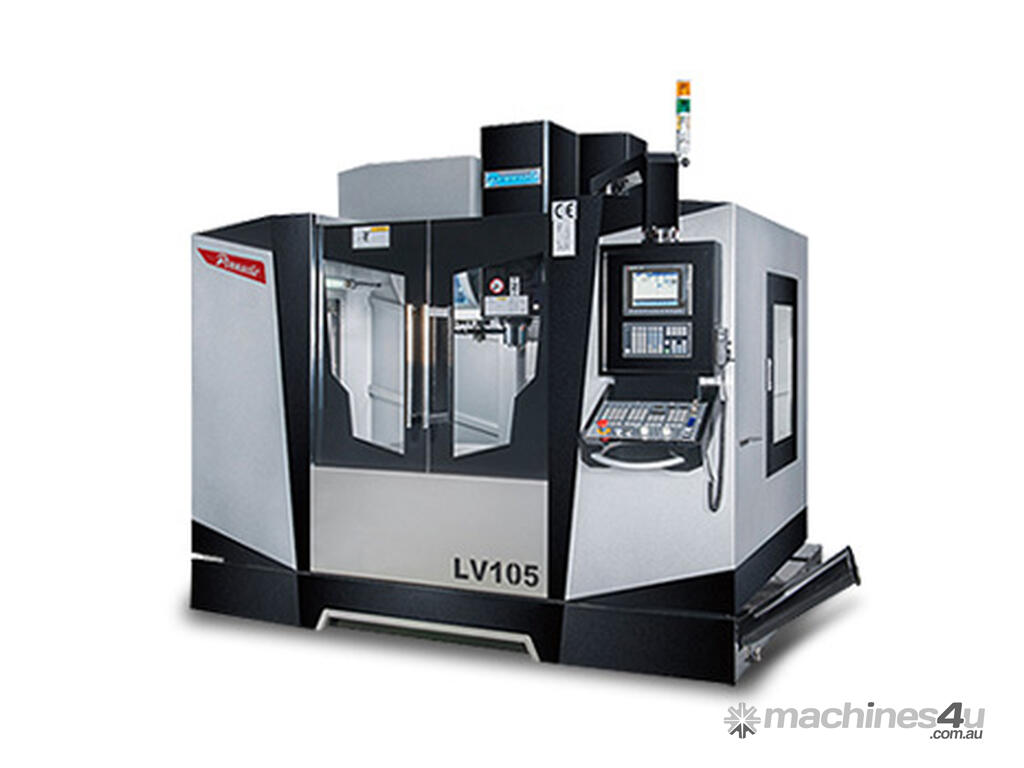

LV105
• 1020 mm x-axis travel
• 560 mm y-axis travel
• 560 mm z-axis travel


Table:
• 1000 mm x 510 mm – LV85
• 1200 mm x 510 mm – LV105


Spindle:
• 10000 rpm (12000/15000) spindle speed Direct Drive
• BT40 spindle taper

Feed rate:
• 36 m/min x-axis rapid traverse
• 36 m/min y-axis rapid traverse
• 24 m/min z-axis rapid traverse
• 10000 mm/min cutting feed rate

Automatic Tool Changer:
• 24 Tools ATC Random Selection
• Arm type
• 250 mm Max tool length

General:
LV85
• Machine Floor Space: 2600 x 2280 x 2750 mm (L x W x H)
• Nett machine weight: 5,500 kg

LV105
• Machine Floor Space: 2820 x 2280 x 2750 mm (L x W x H)
• Nett machine weight: 5,700 kg


Included:

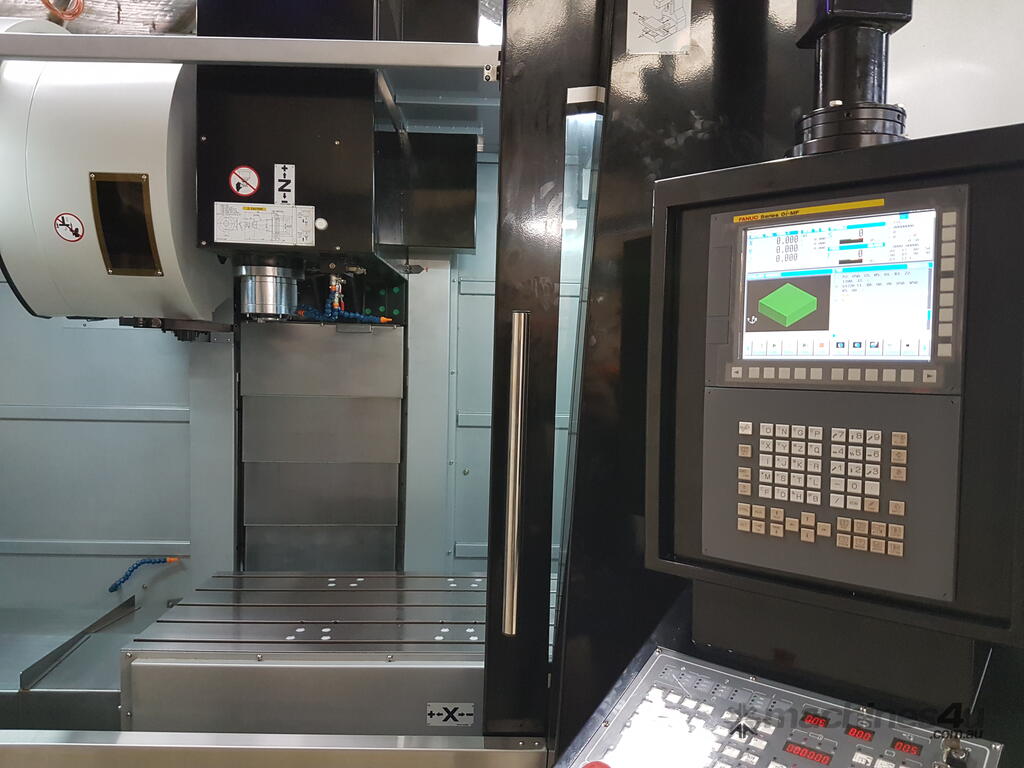

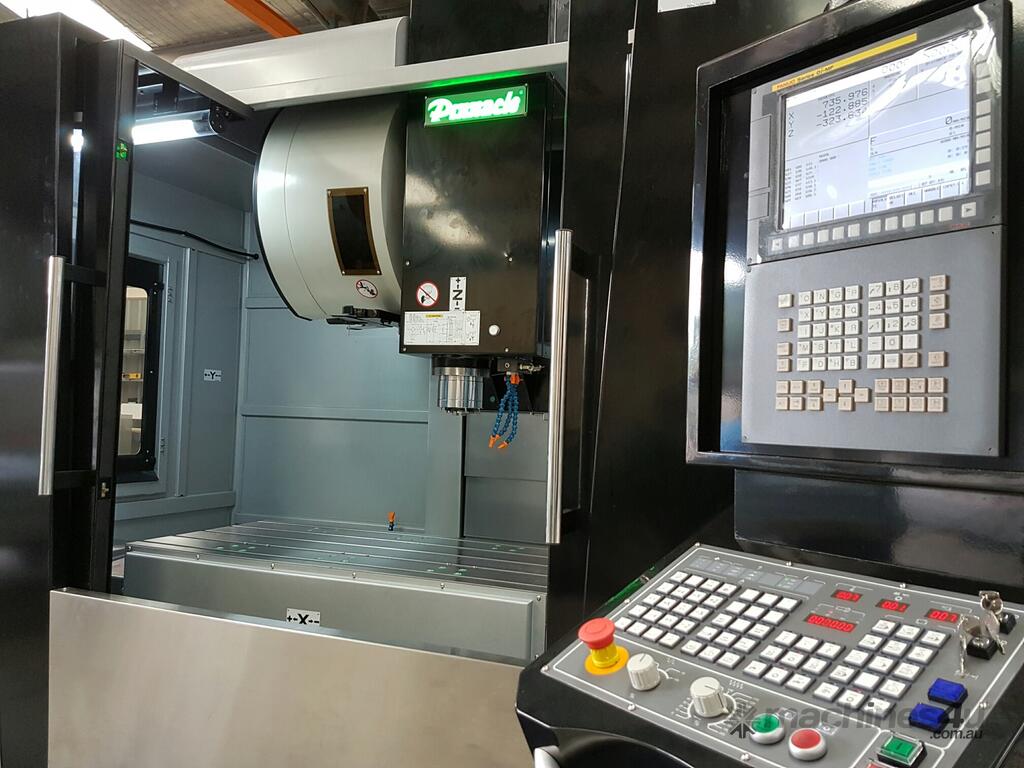

• Mitsubishi M80 / Fanuc Oi-MF / Heidenhain TNC620 Controller
• Air blast through spindle
• Air blast on workpiece
• Auto Lubrication system
• Spindle Chiller
• Spindle Air Blast
• Air-conditioned electrical cabinet
• 10,000 rpm spindle speed standard

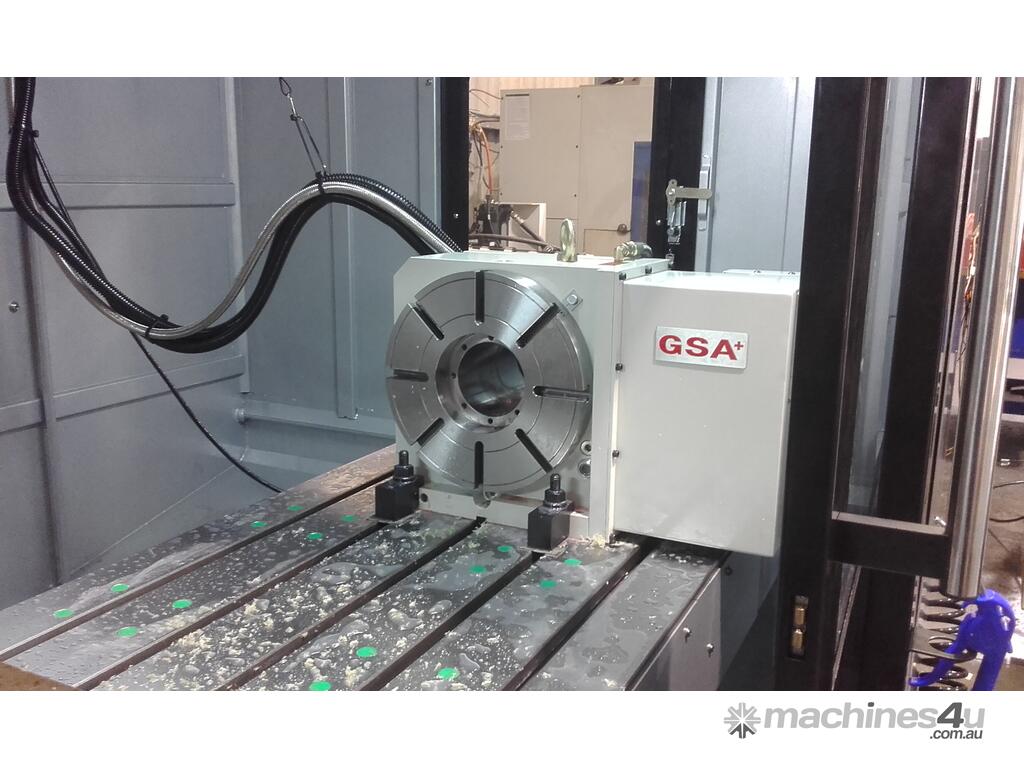

• 4th axis prepared
• Rigid tapping
• 24 tools ATC Arm type
• RS 232 & RJ 45 Ports for DNC
• USB Ports
• Transformer

Please contact Stewart for more information. All prices quoted include Delivery, Installation and Training



Discover excellence in CNC machine tools with BDMS, your premier source for both new and used equipment across Australia. From our base in Lonsdale, South Australia, and our dedicated sales office in Brisbane, Queensland, we cater to a wide spectrum of clientele, from burgeoning startups to established industrial giants. Count on our expertise to guide you through every step, from selection to installation, training, and ongoing support, ensuring maximum ROI for your business. Our premium range of new Machine Tools is manufactured by Pinnacle. From complex 5 and 6 axis machining through to manual milling machines and lathes we have the solution for you.

Go to BDMS showroom on Machines4u to see the available range of machinery, send BDMS a message about the item that you are interested in, or give BDMS a call, we are happy to answer any of your questions and provide professional advice for your business requirements.

*CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION*
