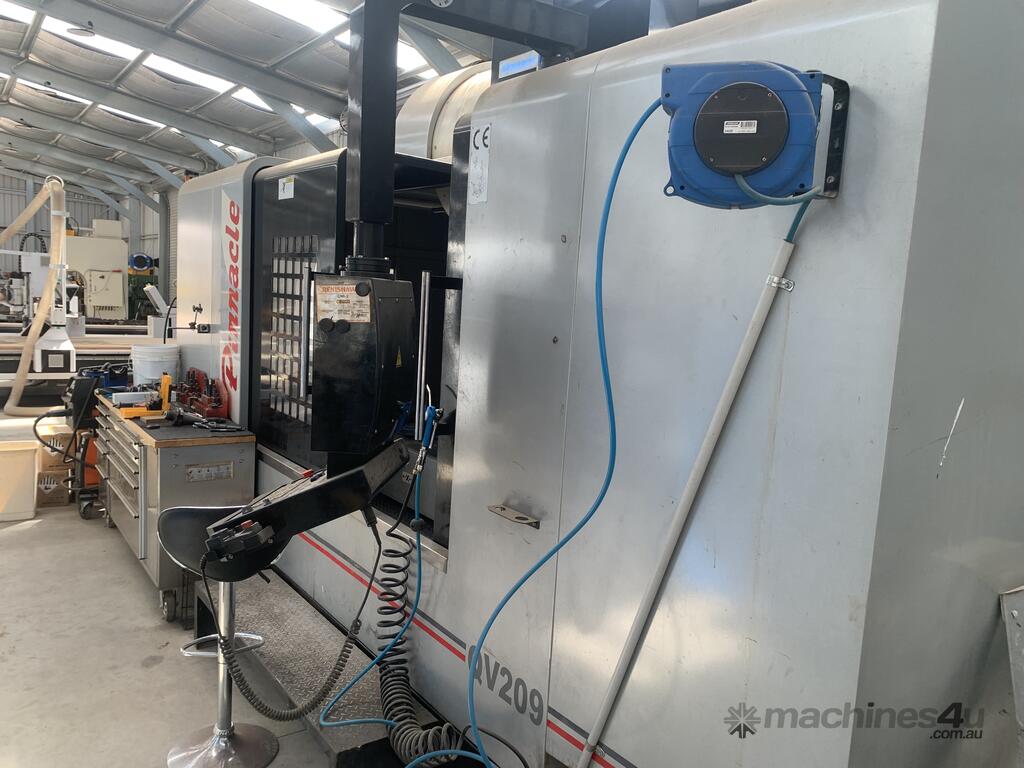

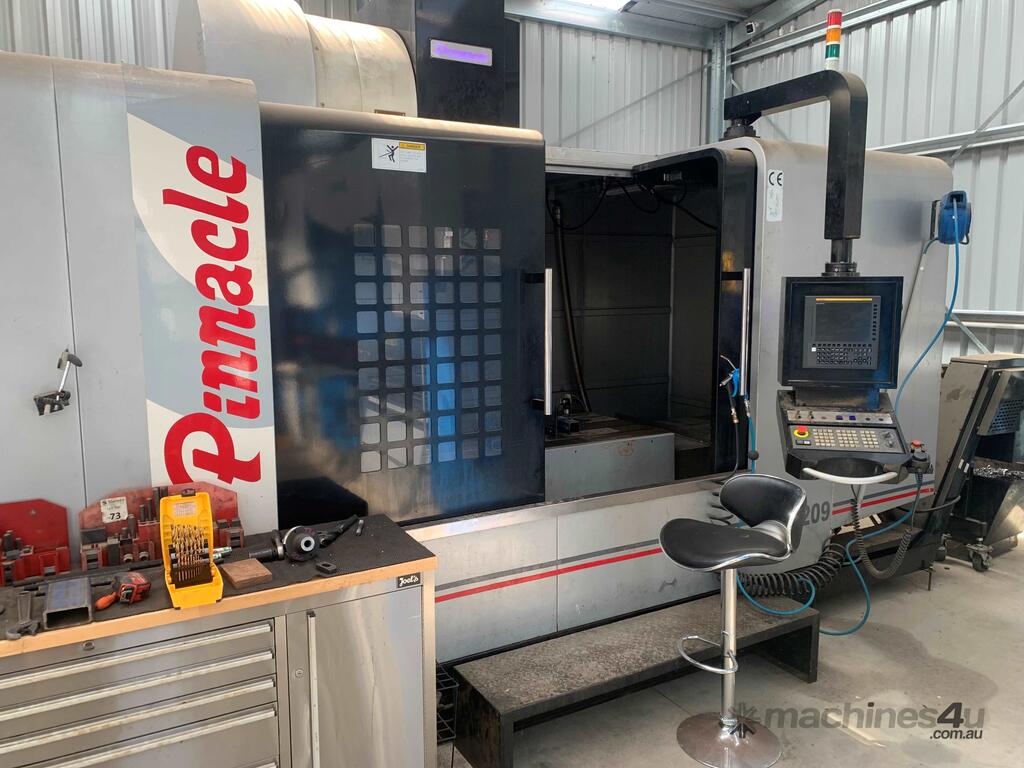

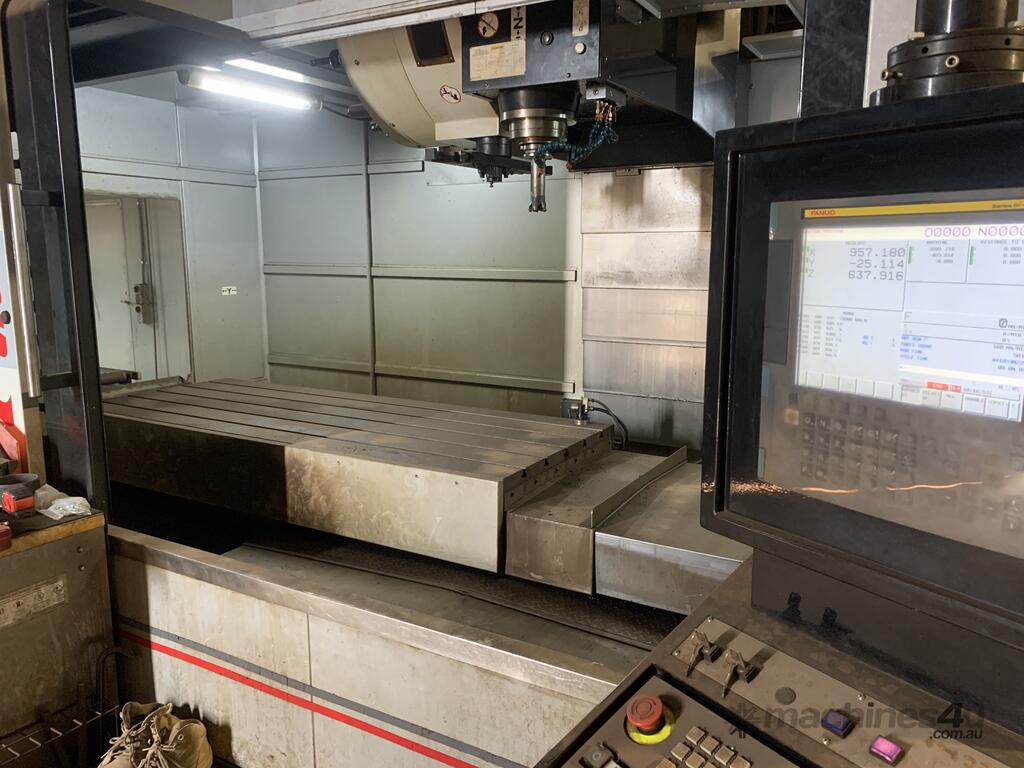

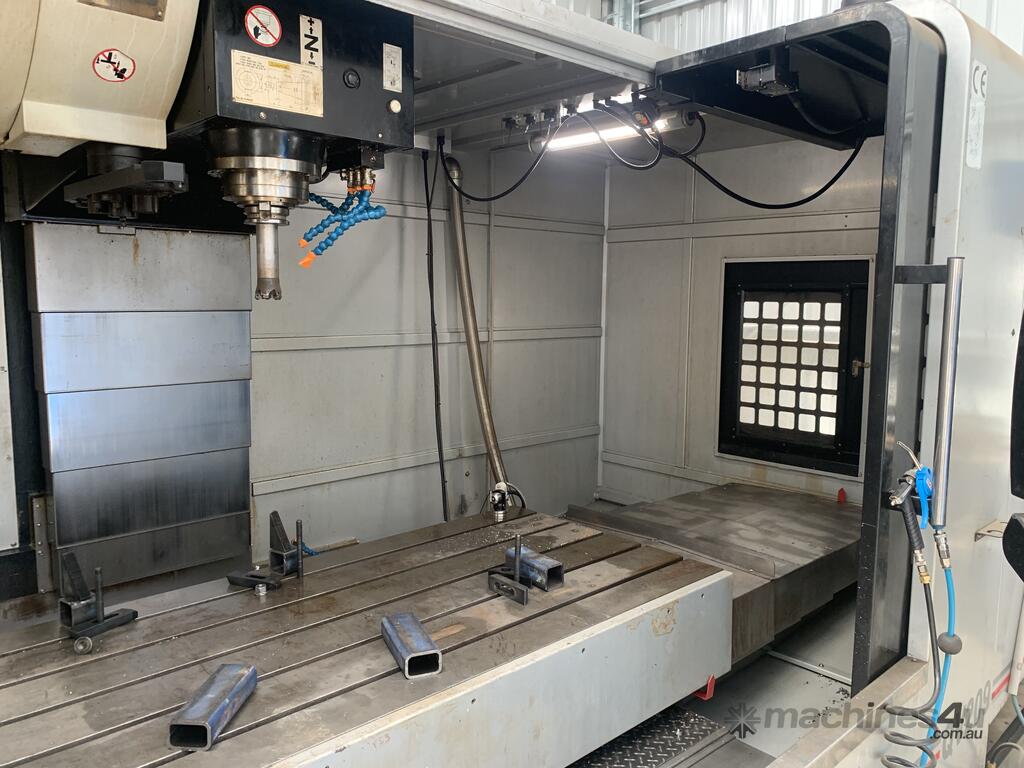

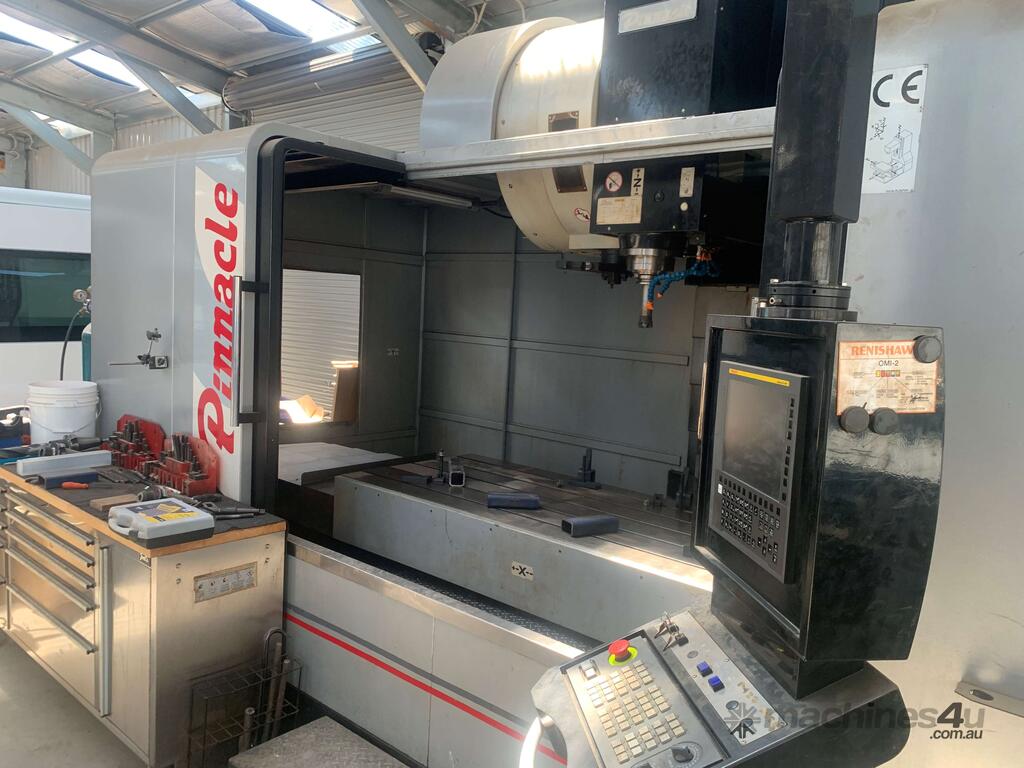

Used Pinnacle QV209 Vertical Machining Centre in excellent condition – 2000mm x 900mm x 850mm Travel - Low Hours with probing, CTS, Fanuc 0i-MF Controller, ready for immediate delivery.
YOM: 2019/09
Serial Number: 1P01394J2

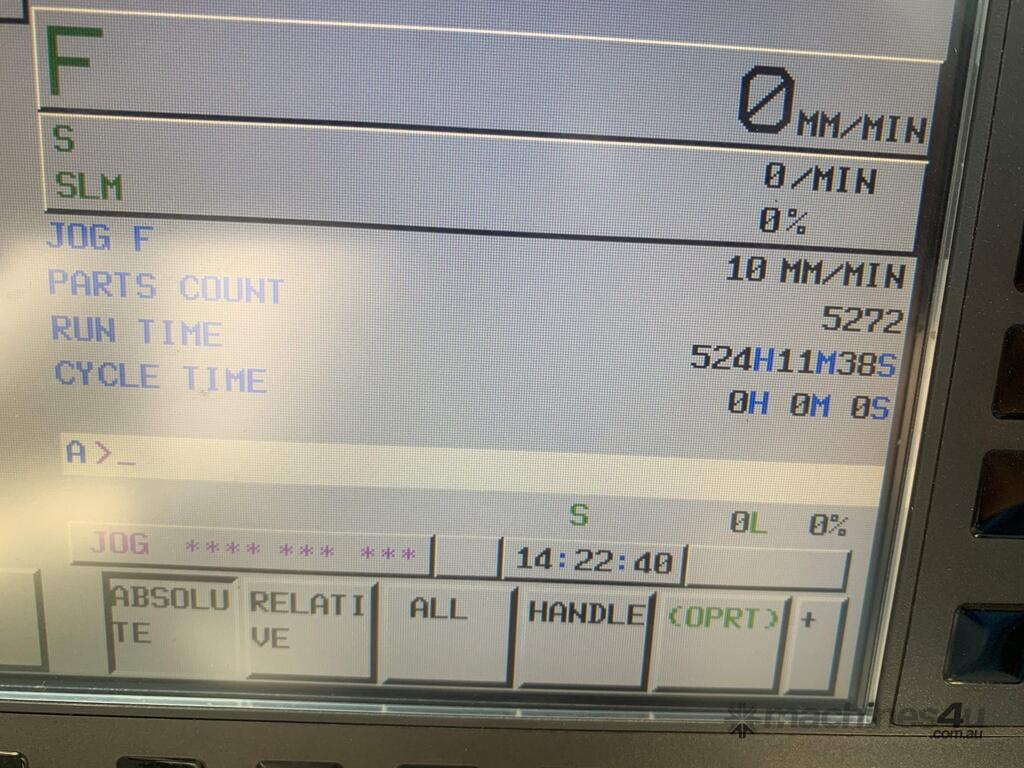

Run Time: 524 Hours
THE PINNACLE QV209 VERTICAL MACHINING CENTRE IS OFFERED WITH THE FOLLOWING: 30HP SPINDLE MOTOR
BT50 8000RPM Geared Head 15/18.5KW
Fanuc 30/3000i SERVOMOTOR FOR 3 AXES 7.0KW

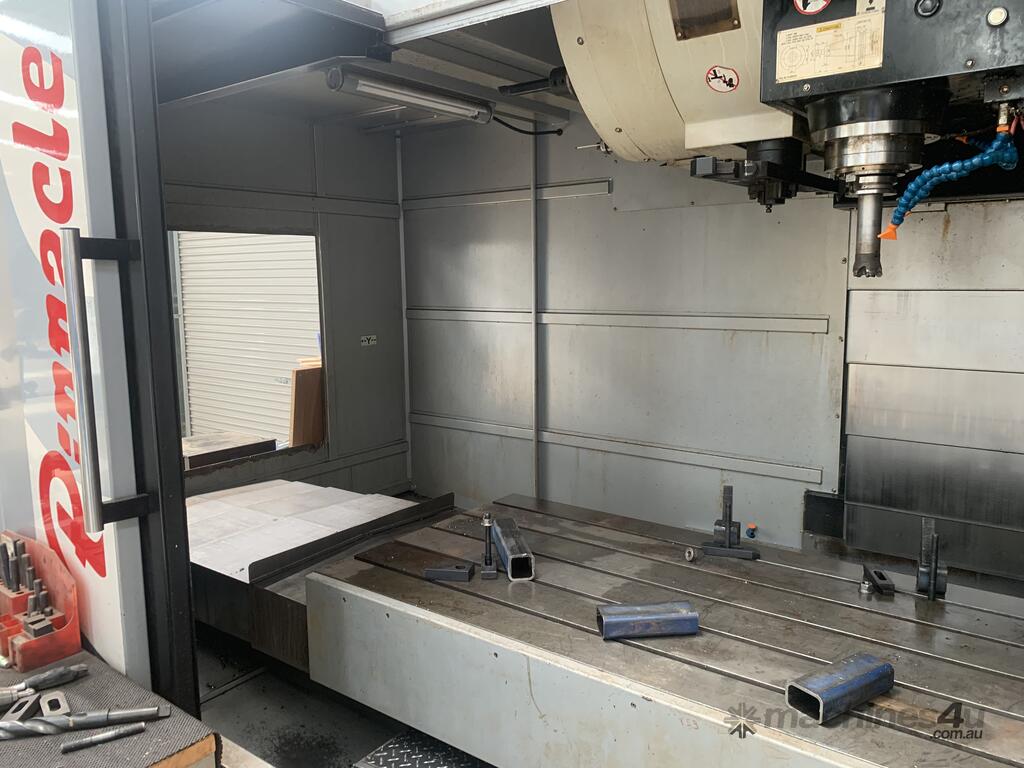

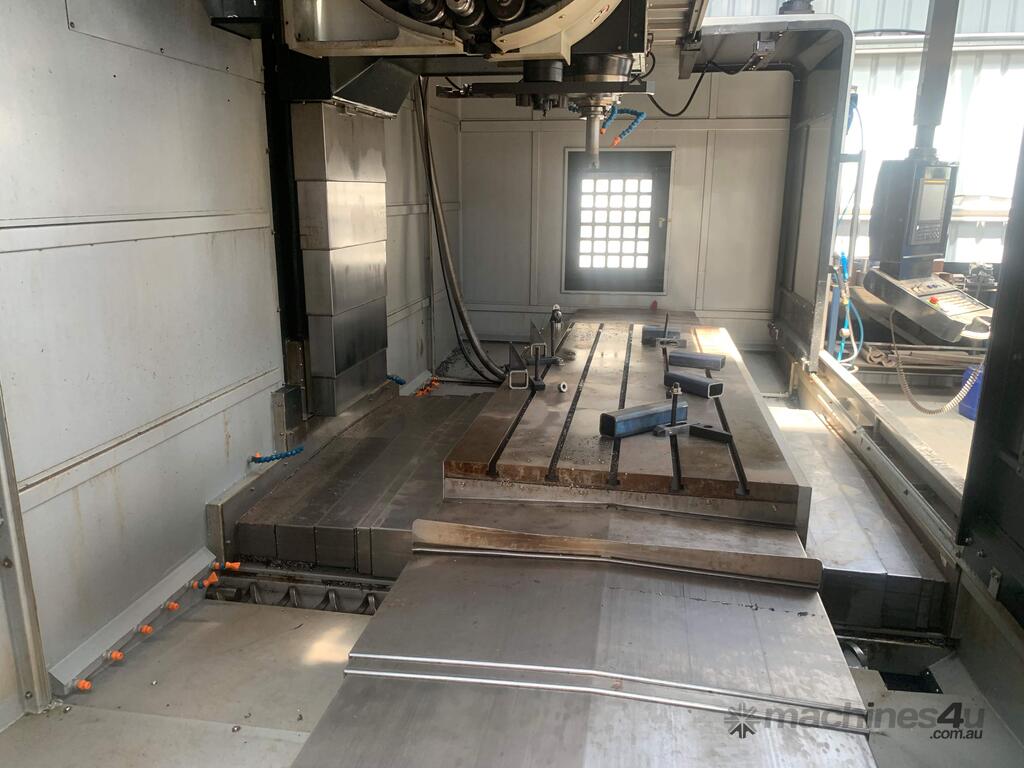

2200MM x 850MM TABLE
2000MM x 900MM x 850MM TRAVEL
SPINDLE NOSE TO TABLE 150 - 1000MM – STANDARD
4 SLIDEWAY ON BASE 150mm x 50mm
HARDENED & GROUND SQUARE HRC50 with over 2 mm depth
SLIDEWAYS ON 3 AXES

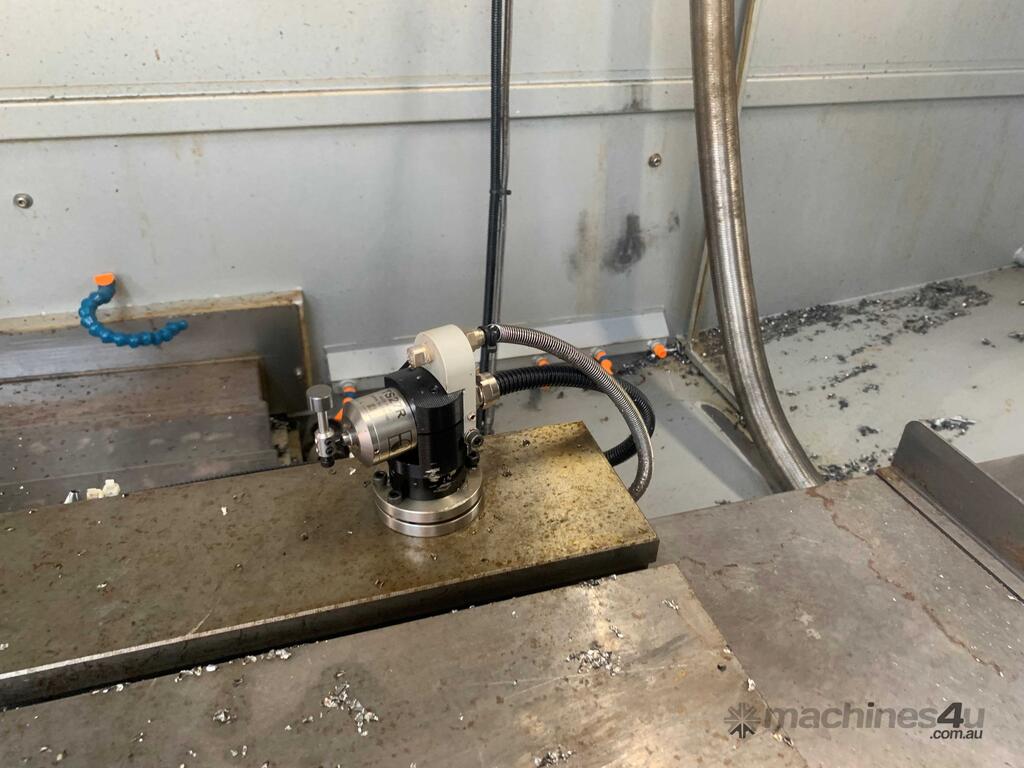

RENISHAW AUTO TOOL SETTER
RENISHAW PROBE
METAL CHIP WAY COVER ON 3 AXES
AUTO LUBIRCATION SYSTEM
SPINDLE AIR BLAST
FULL SPLASH GUARD
WORKING LAMP
COOLING SYSTEM
COOLANT THRUGH SPINDLE 20BAR
CUTTING AIR BLOWER
ARM TYPE TOOL ATC 24
FLUSHING SYSTEM
OPERATION STATUS LIGHT
SPINDLE OIL COOLER

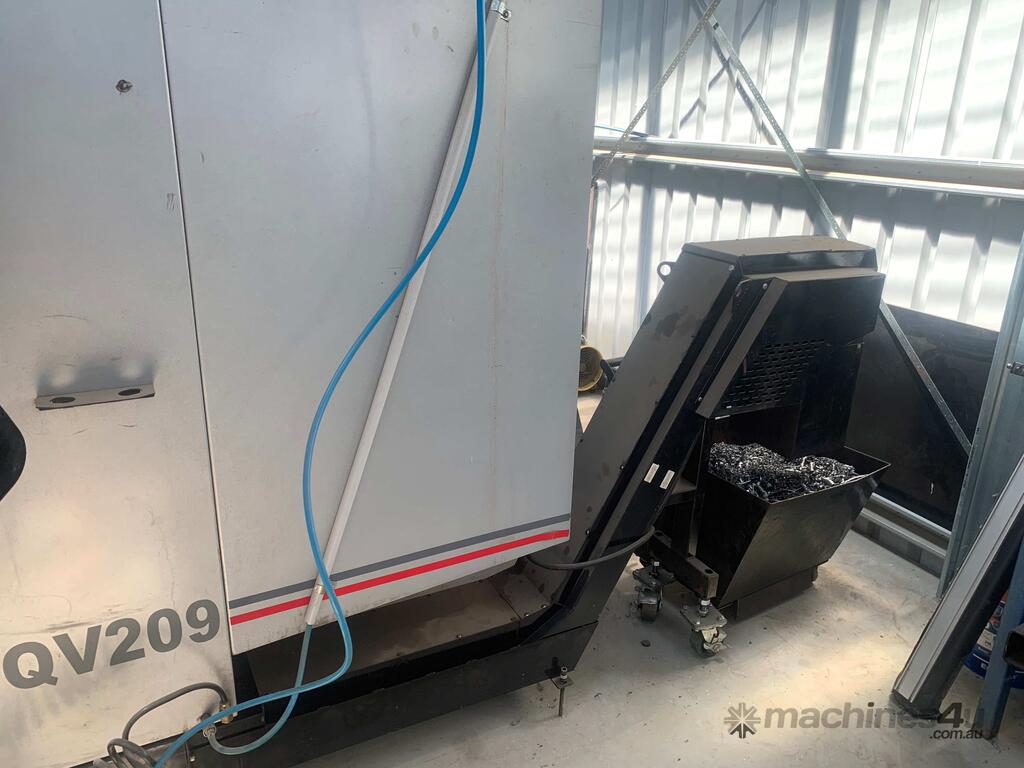

CHIP CONVEYOR x 3 (SCREW TYPE RIGHT & LEFT SIDE + CHAIN CONVEYOR) TRANSFORMER
4th AXES PREPARATION
CONTROL SYSTEM
FANUC Oi-MF with AICC II + Jerk Control Manual Guide i
RIGID TAPPING
RS232C INTERFACE
1 GIG MEM CARD
REMOTE TYPE MANUAL PULSE GENERATOR
HEAT EXCHANGER
Please contact us for more information
