BEACON 12PSBH Mechanical Diesel Fuel Injection Pump Test Bench 18.5 kW Motor Altivar 71

BEACON Diesal
12PSBH Mechanical Diesel Pump Calibration Machine Fuel Injection Pump Test Bench 12PSB with Oil Station and Compressor

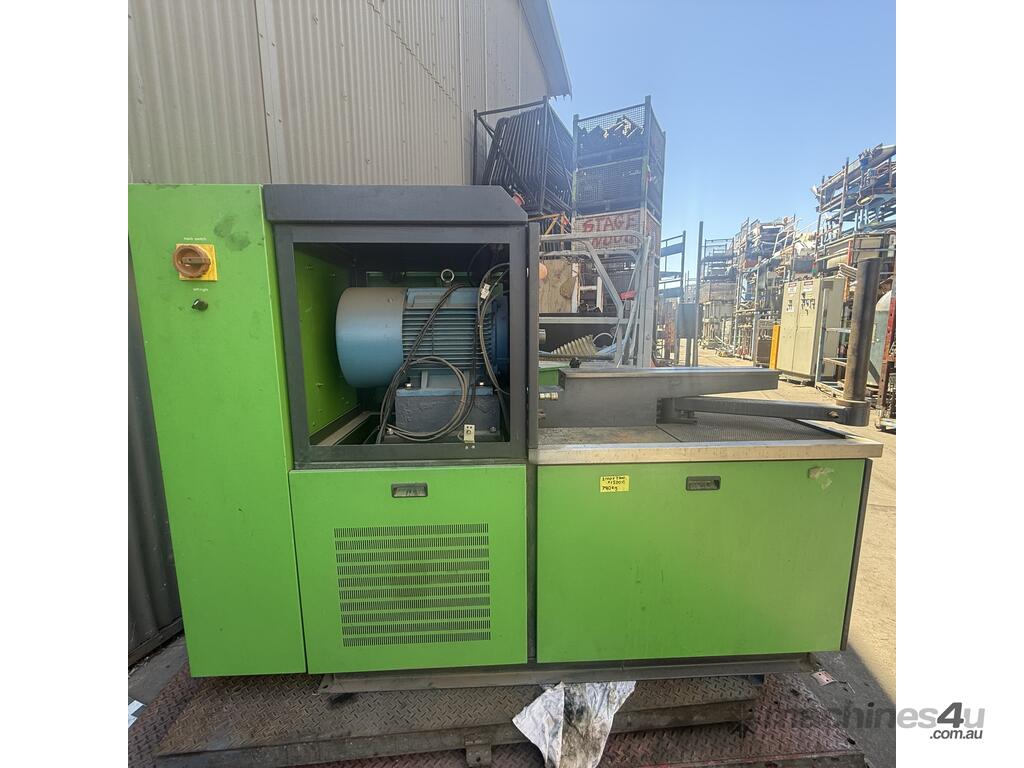

Professional 12PSBH Mechanical Diesel Pump Calibration Machine / Fuel Injection Pump Test Bench, built for mechanical fuel pump calibration, pressure testing, and performance verification.

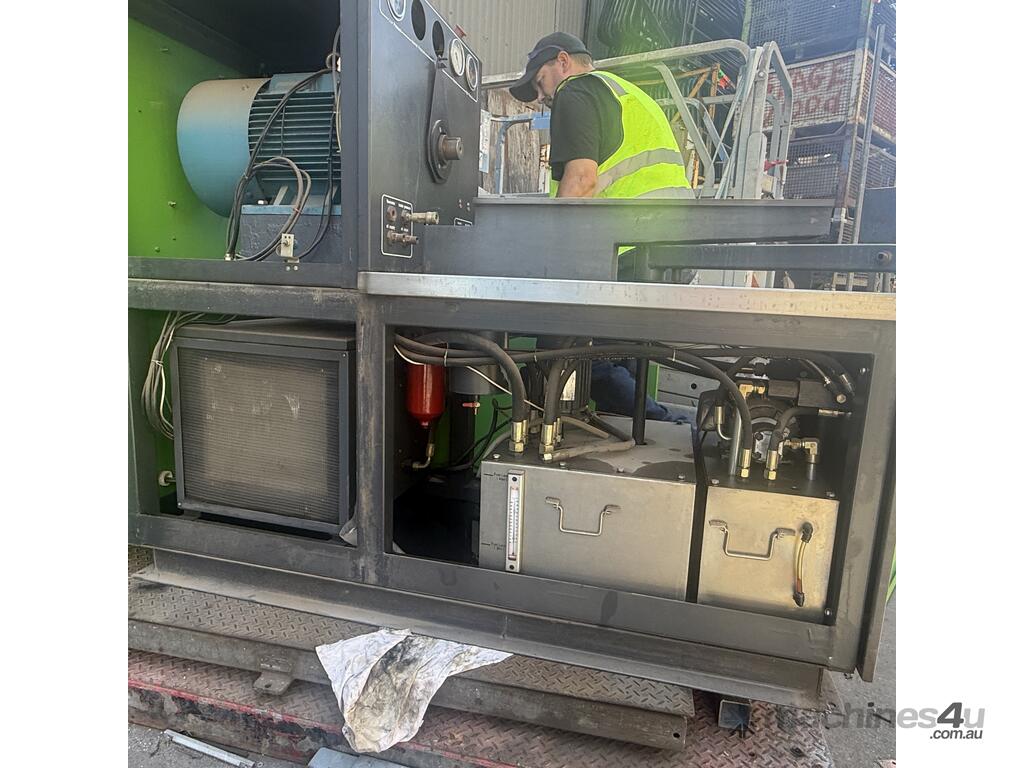

This heavy industrial test stand includes a big three-phase induction motor, hydraulic and pneumatic components, pump fixtures, and an integrated Schneider Altivar VFD variable frequency drive for controlled motor speed. Designed for engine workshop, maintenance depot, agricultural service centre, or heavy equipment calibration use.

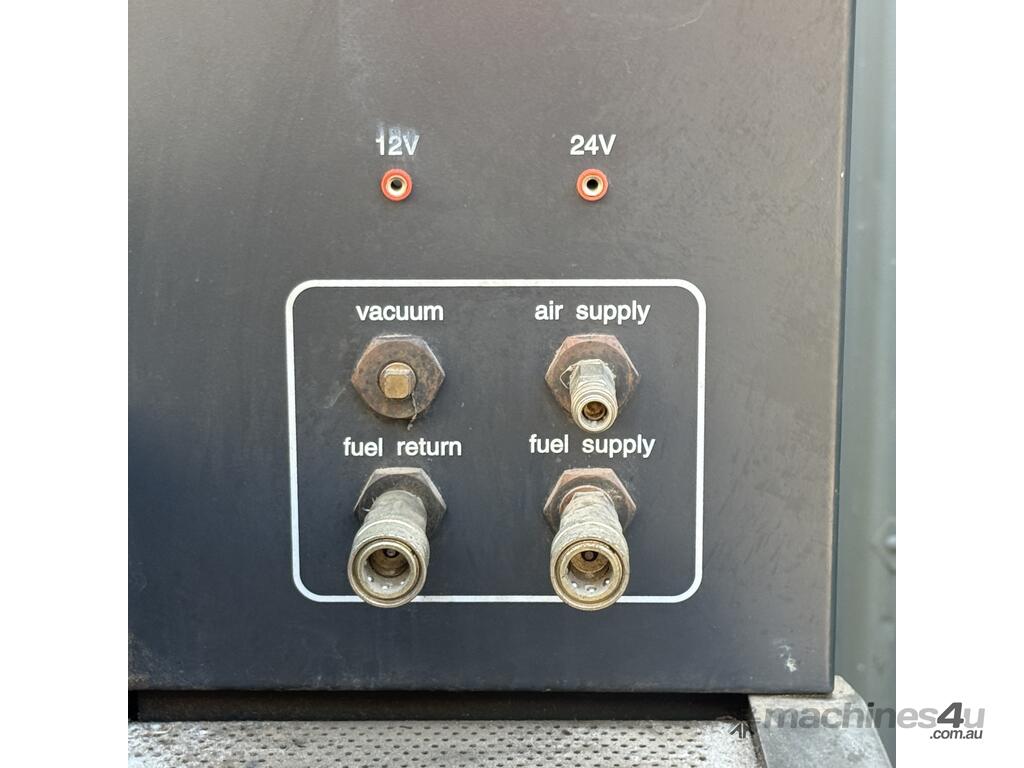

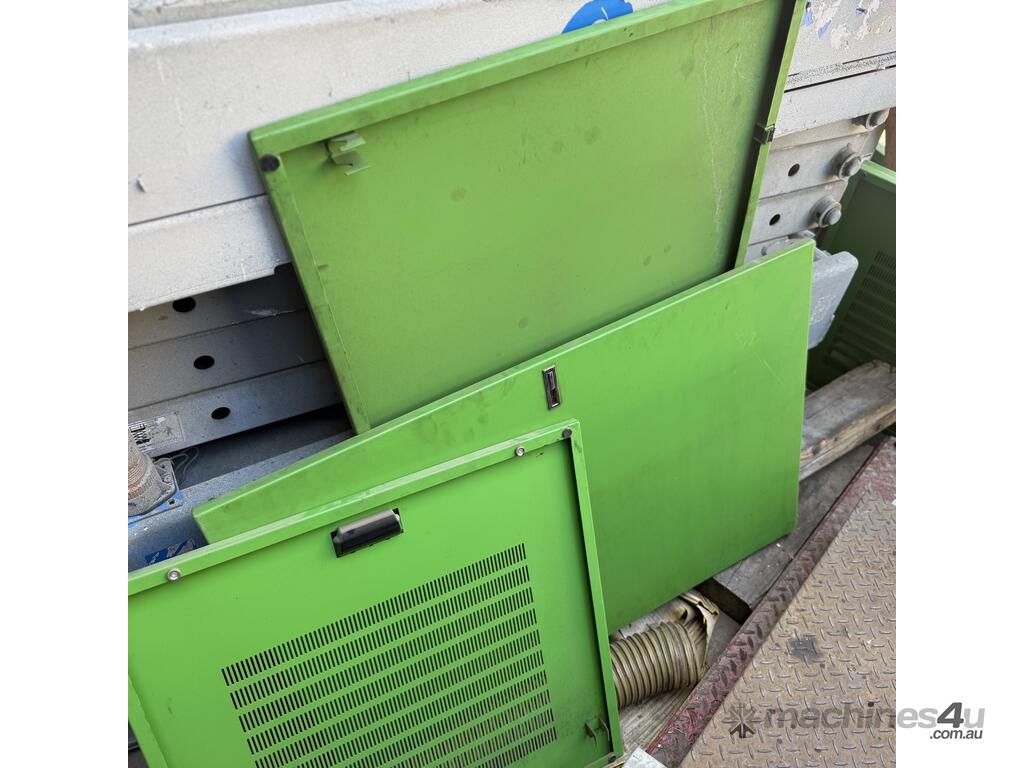

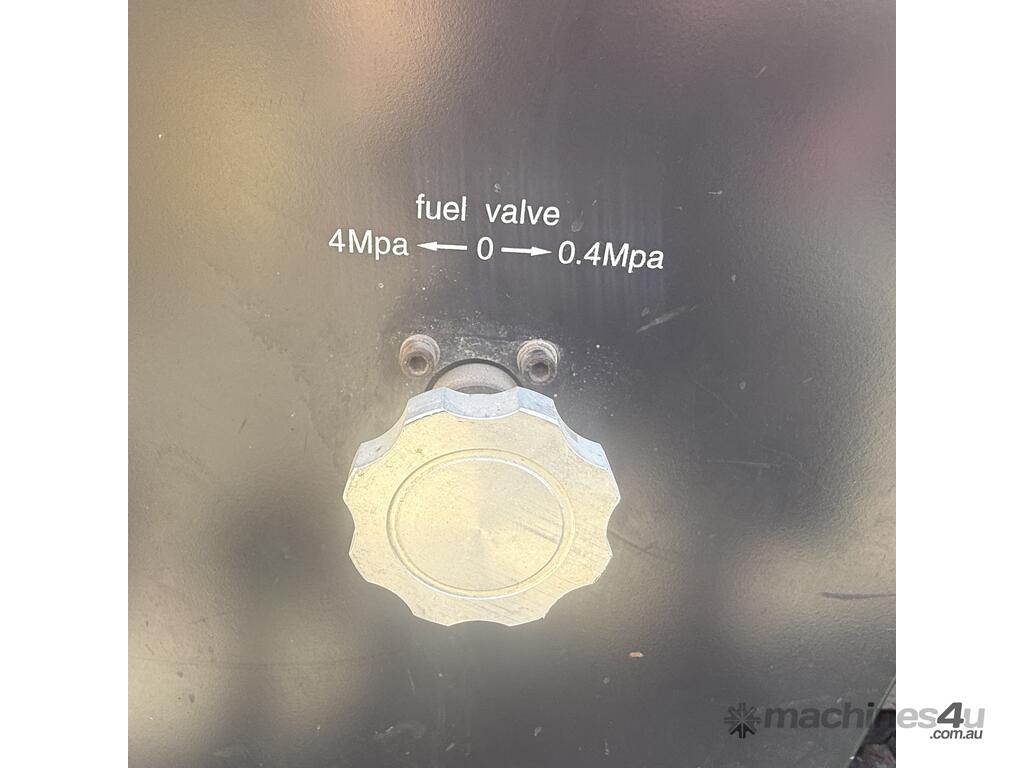

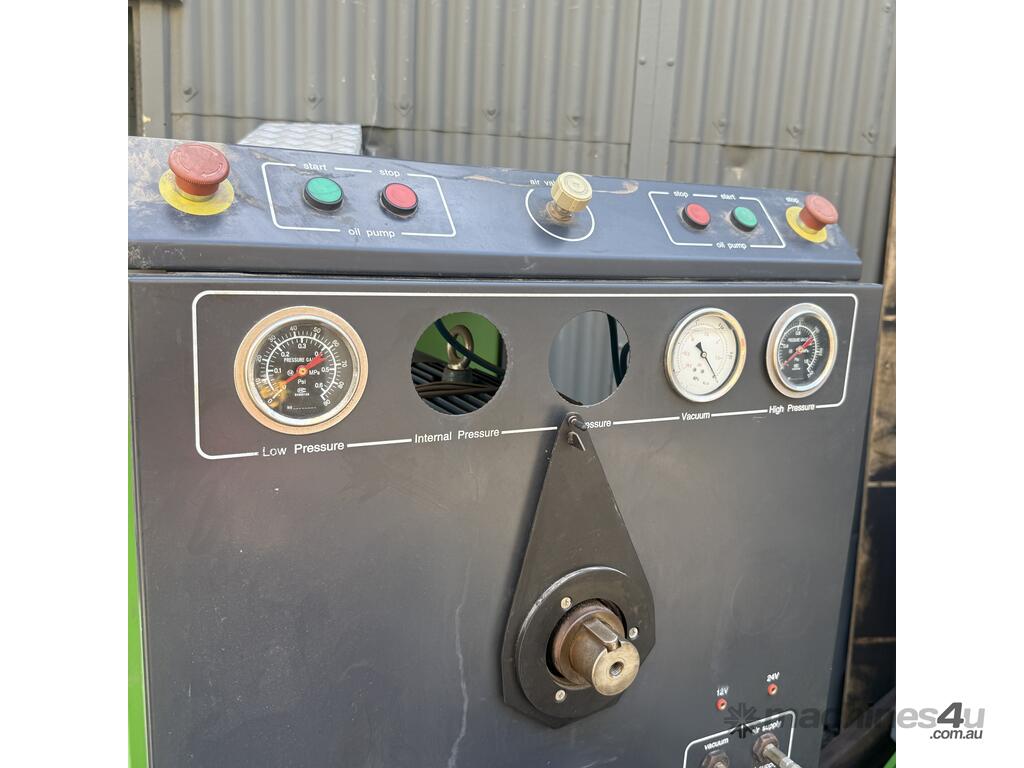

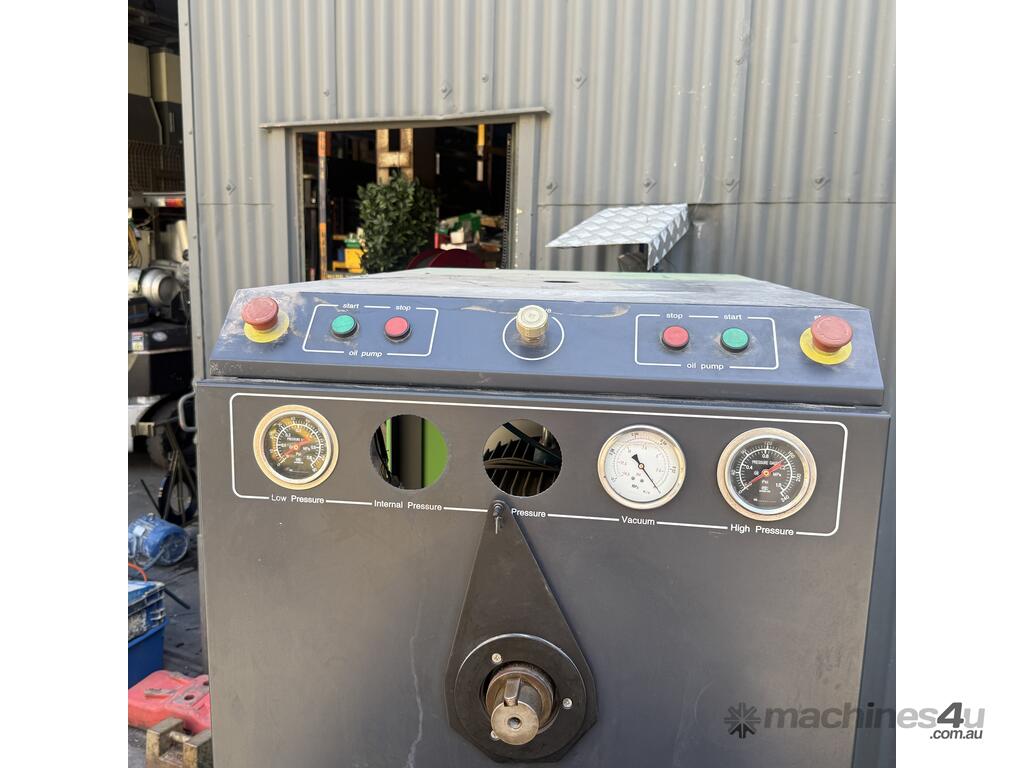

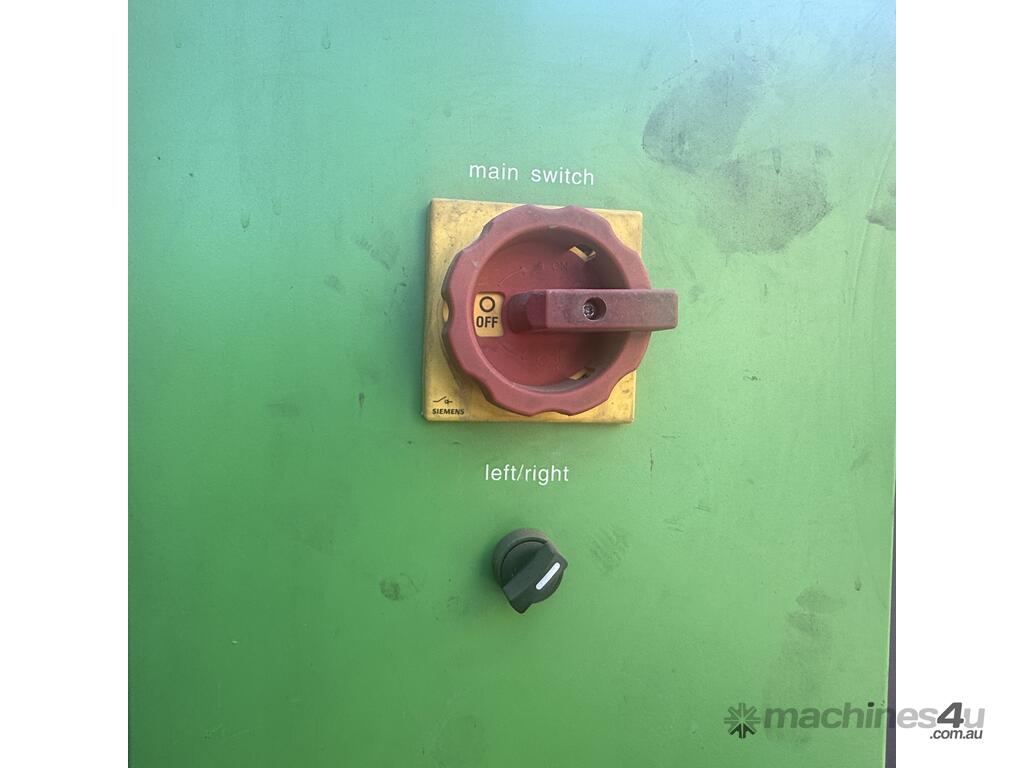

The robust enclosure houses the electrical controls and motor drive, with front-panel gauges and controls for oil pump, pressure, vacuum, and high/low pressure monitoring.

Sold as pictured, with no guaranty of current working condition — ideal for rebuild, retrofit, or industrial use.

12PSB fuel pump test bench main function

1.Measurement of each cylinder delivery at any speed.

2. Test point and interval angle of oil supply of injection pump.

3. Checking and adjust the mechanical governor.

4. Checking and adjusting the distributor pump.

5. .Experiment and adjusting of behavior of supercharging and compensatory device.

6. Measurement of oil return of distributing pump

7. Testing of the electromagnetic valve of distributor pump.(12V/24V)

8. Measurement of the internal pressure of distributor pump.

9. Checking of the advance angle of advance device.(on request)

10. Checking the sealing of injection pump body

11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)

Typically used in diesel engine service centres, automotive workshops, and industrial maintenance facilities.

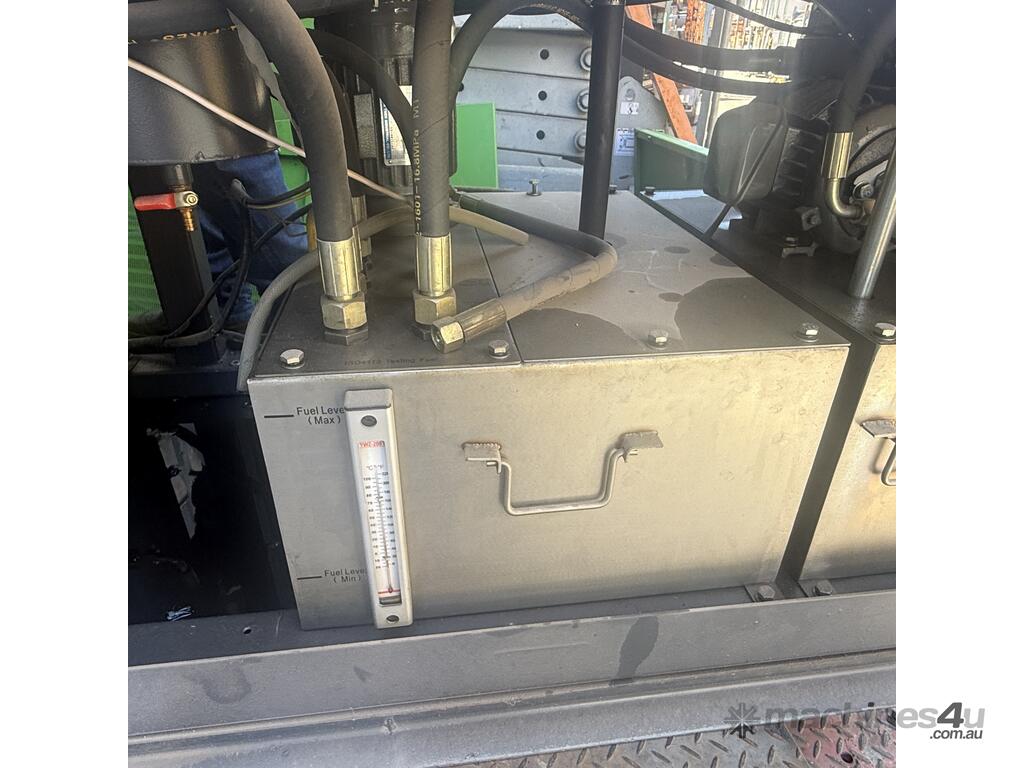

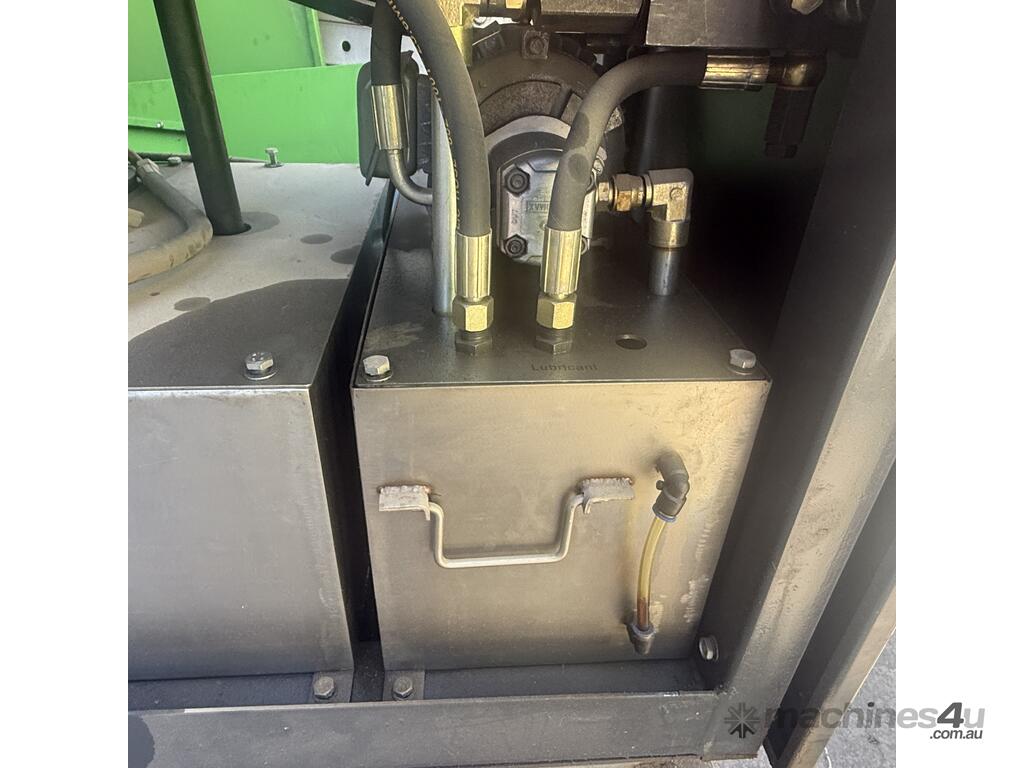

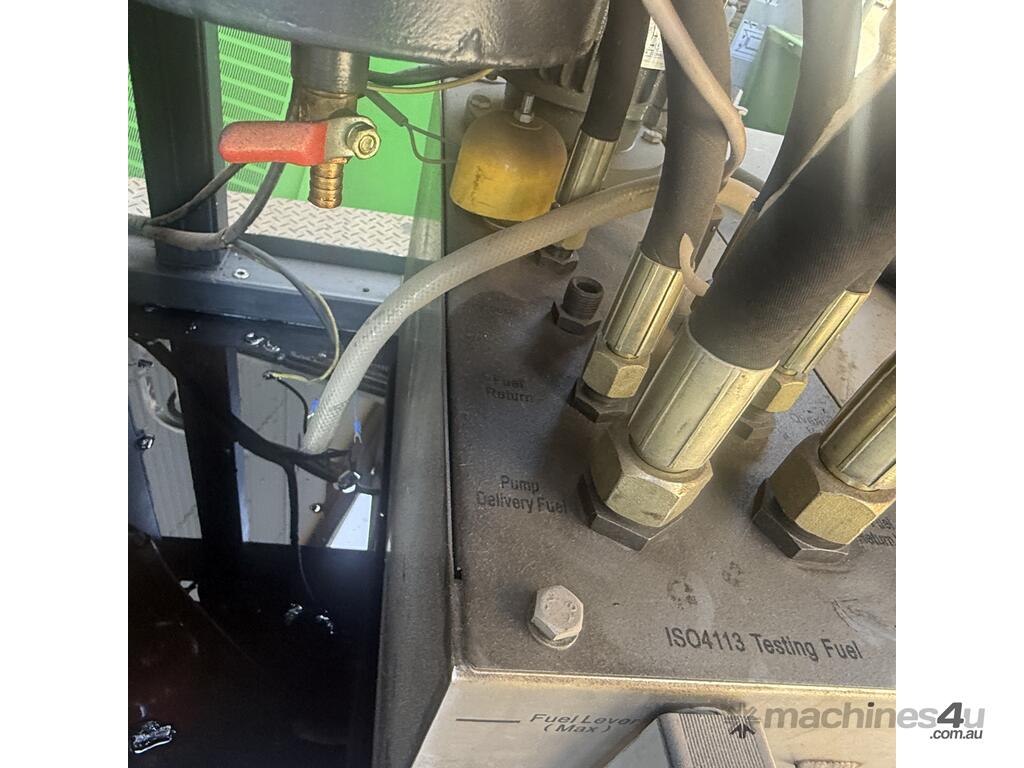

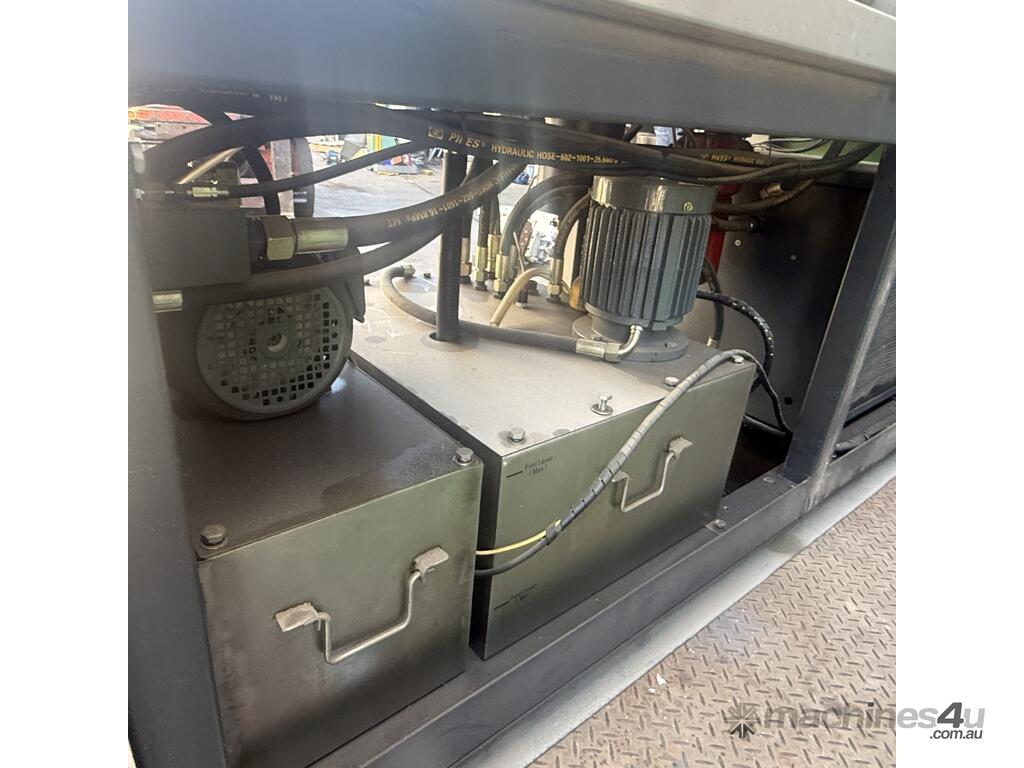

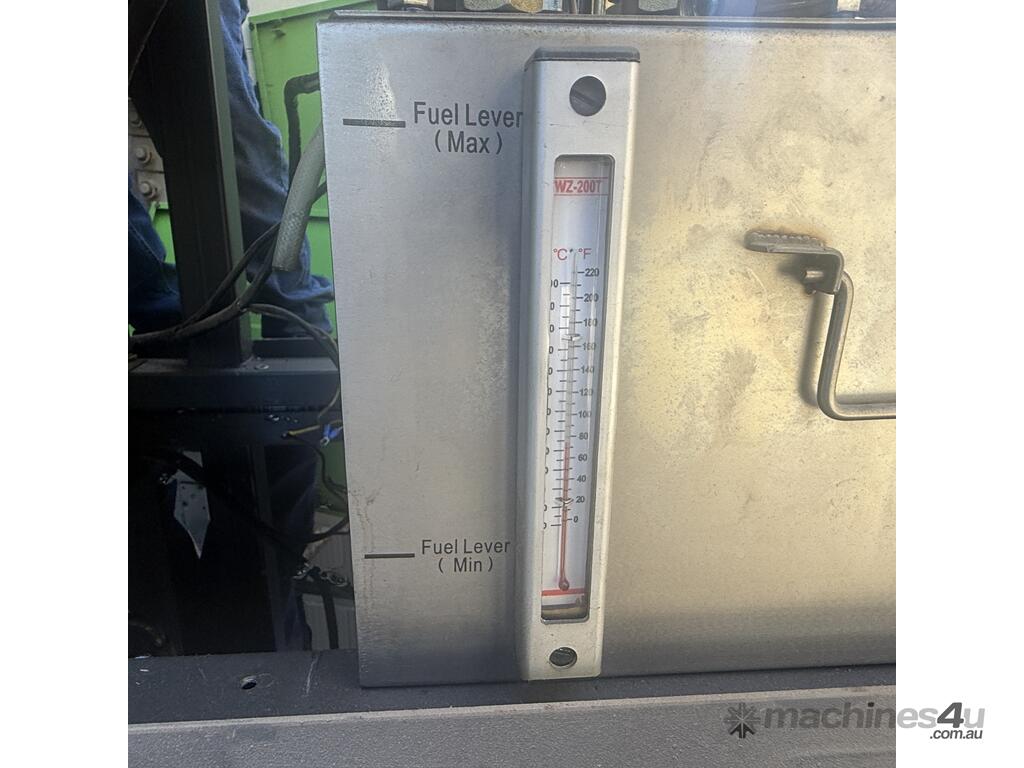

Includes fuel and oil tanks, hydraulic power pack, motor and vsd.

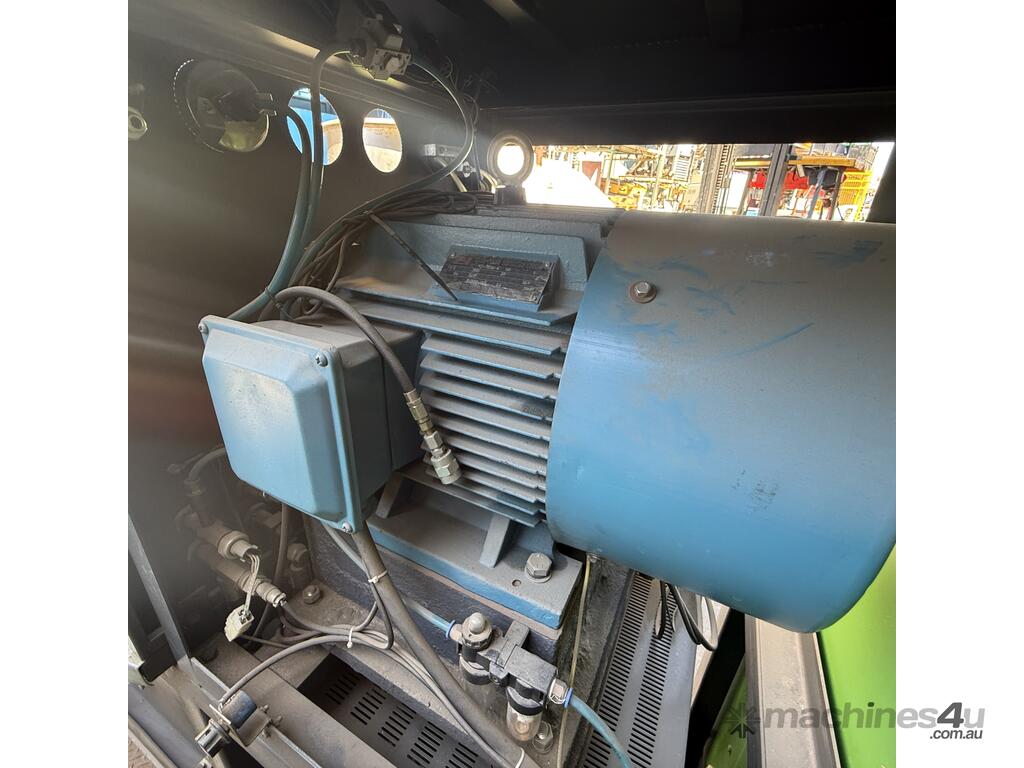

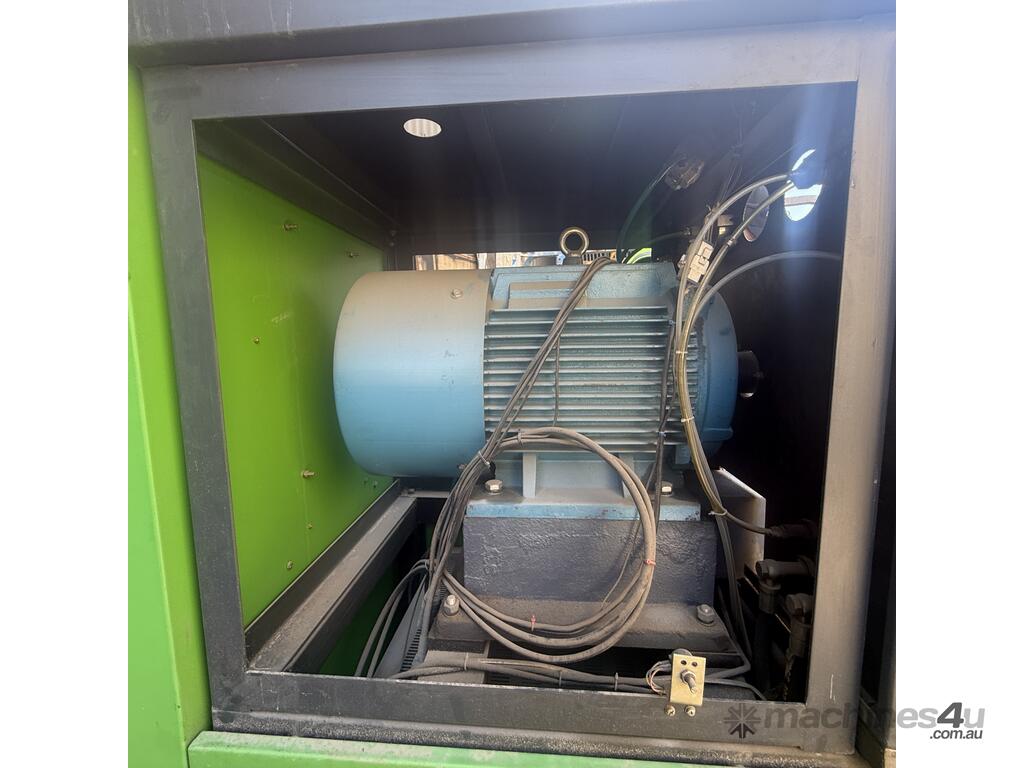

Motor
Brand: Yuefa (Wuxi City Yuefa Electric Motors Co. Ltd.)

Type: Three-Phase Induction Motor

Power: 18.5 kW

Voltage: 380 V

Frequency: 50 Hz

Speed: 1470 rpm (S1 duty)

Insulation Class: F

IP Rating: IP54

Weight: ~167 kg (motor alone)

This is a high-power industrial motor designed to drive the test bench under varying loads.

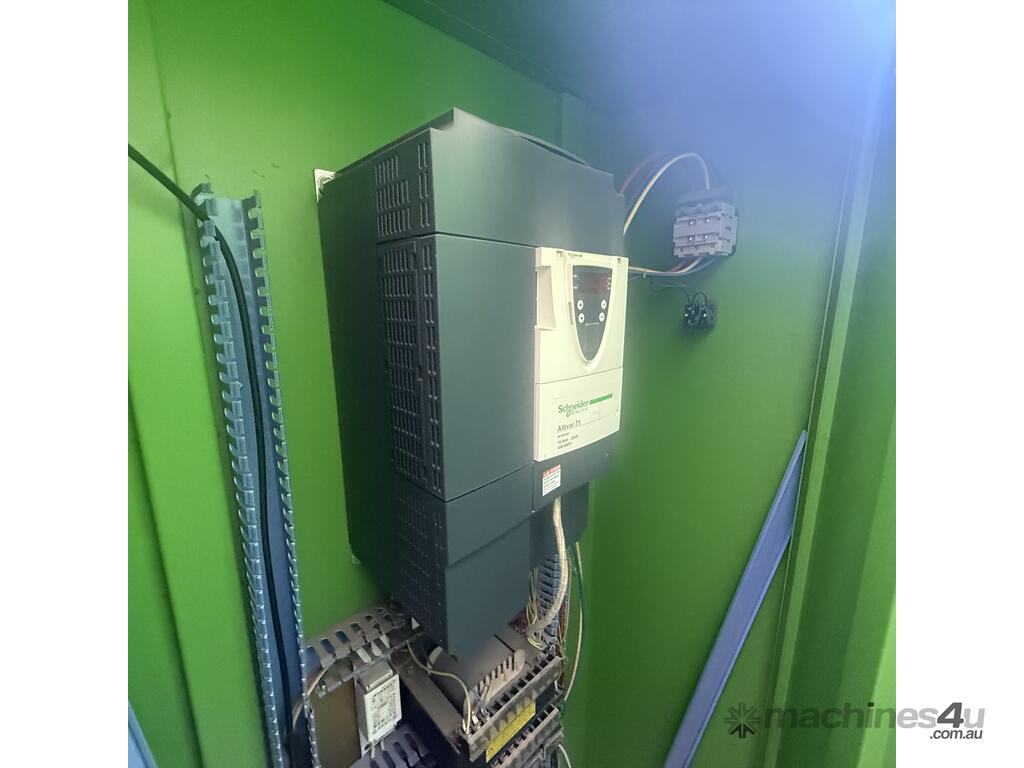

Variable Frequency Drive (VFD)
Variable Speed Drive
Brand: Schneider Electric

Model: Altivar 71 Series

18.5kW 25HP

Size: 2100 mm (L) × 720 mm (W) × 1530 mm (H)
Weight: 790 kg

I have other material testing machines available including: hardness testers, metallurgical microscopes, metalographic sample prep equipment & Avery Charpy Izod Pendulum impact test tester testing machine 300J 300 Joule. These items are all listed in my store.




If you need a freight quote please note that most freight companies will only deliver to a business address with a forklift. We are happy to get quotes for you, we deal with a number of freight companies and get quite good rates. All freight price requests should include a full address and phone number. You are also welcome to organize your own freight.



Contact and inspection of goods
Please contact Tim Marshman with any questions. This item may be inspected by appointment at 9 Vernon Smith Court, Ottoway, South Australia
