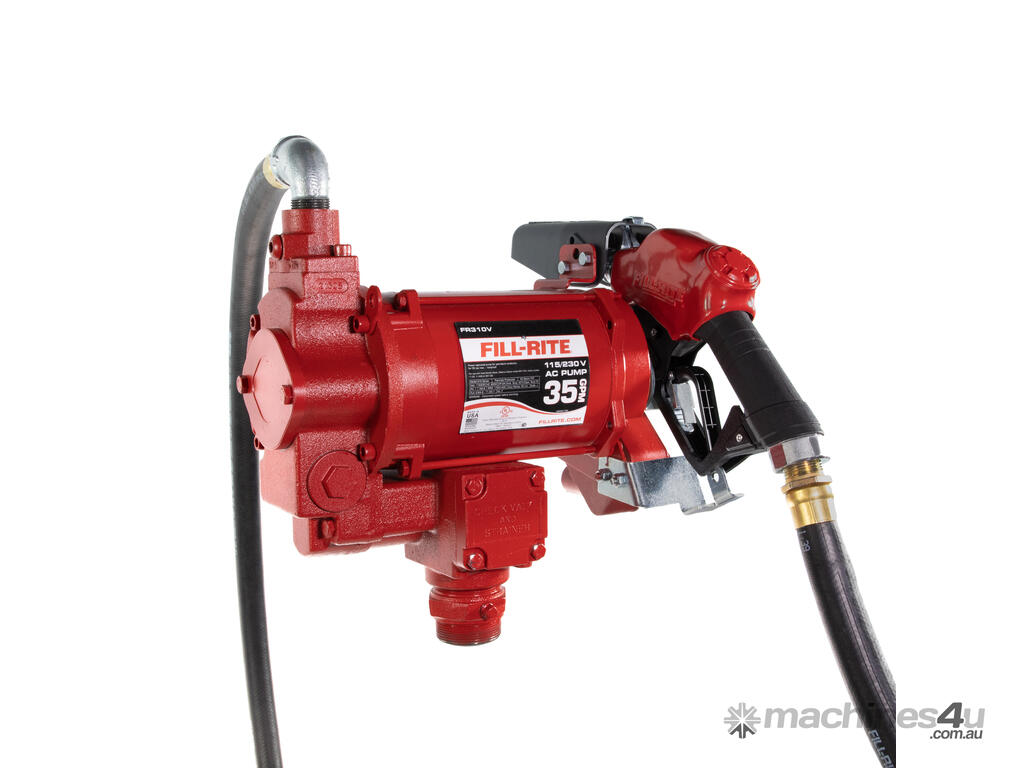

BLACK FRIDAY DEAL – Fill-Rite 240V AC, 132 Lpm FR300 Fuel Transfer Pump Kit - Bung Mount

132Lpm, 240V AC Fuel Transfer Pump Kit – Bung Mount - FR300-Series.

KIT includes: Pump and Auto Nozzle

This model is a 240V AC, 132 Lpm, heavy-duty fuel transfer pump. Fill-Rite's 300 Series of heavy-duty fuel transfer pumps features 240V AC dual voltage power input and are built to last with cast-iron construction.

Recognised for their elite performance in rugged environments, designed to withstand extreme weather, demanding applications, and heavy use.

Cast-Iron Durability – Built with rugged, heavy-duty cast-iron construction, this pump is engineered to endure the toughest conditions on the job site or in the field.

High-Performance Fuel Transfer – Fill-Rite’s trusted rotary vane pump technology delivers an impressive flow rate of 132.5 liters per minute, making it ideal for refueling large equipment with tank capacities ranging from 132.5 to 530+ liters.

Dual Voltage Convenience – Powered by a versatile 115-230V AC motor, the pump features a simple switch for easy voltage selection during installation, ensuring compatibility with your setup.

Designed for Stationary Tanks – Equipped with a 50.8mm bung mount, this pump is perfect for installation on stationary aboveground tanks, providing seamless integration.

Wide Fluid Compatibility – This pump is built for daily use with a range of fuels and solvents, including diesel, kerosene, mineral spirits, Stoddard solvents, heptane, and biodiesel blends up to B20.

Reliable Rotary Vane Technology – The pump’s rotary vane technology maintains consistent performance over time, even as components wear from normal use, ensuring dependable operation throughout its lifespan.

Long-Lasting Performance – A thermally protected motor prevents overheating, allowing the pump to deliver reliable, worry-free operation for years.

Equipment Protection – The built-in mesh strainer safeguards your equipment by filtering out particulates from fuel, reducing the risk of damage.

Industry-Leading Warranty – Protect your investment with a Limited Lifetime Warranty, backed by Fill-Rite’s commitment to quality and reliability.

PERFORMANCE:

Max Flowrate: 132 Lpm
Power Type: 240V AC
Compatible Fluids: Diesel, Kerosene, Biodiesel up to B20
Inlet Size / Connection / Thread: 31.75mm / Female / NPT
Outlet Size / Connection / Thread: 25.4mm / Female / NPT
Mounting Size / Thread / Type: 50.8mm / NPT / Bung Mount
Duty Cycle (min): 30 min on / 30 min off
Motor Power (HP): 0.75
Suction Lift (mm): 5486.4
Dry Vacuum (mm Hg): 355.6mm
Discharge Head (mm): 18288
Strainer Mesh Size (Micron): 1016 x 1016 x 0.20mm
Max Discharge Pressure (PSI): 26 PSI

DIMENSIONS:

Assembled Product Height x Width x Depth (mm): 441.9 x 431.8 x 375.9
Assembled Product Weight (kg): 29.8
Package Height x Width x Depth (mm): 311.1 x 566.6 x 501.6
Gross Weight (kg): 33.8
