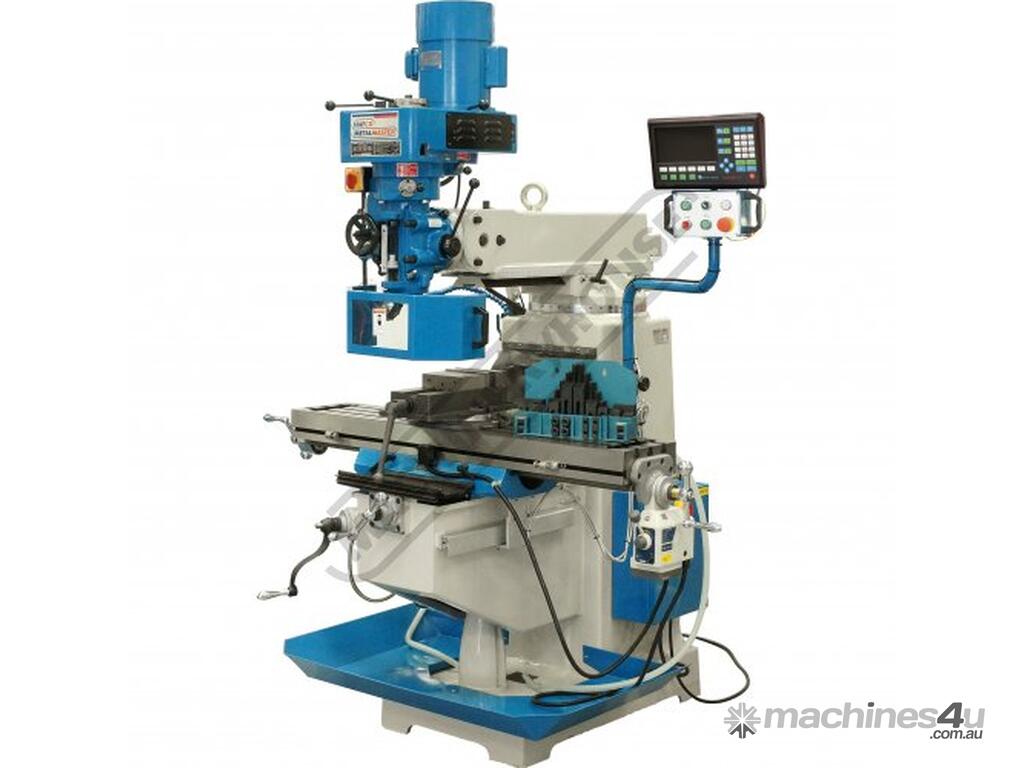

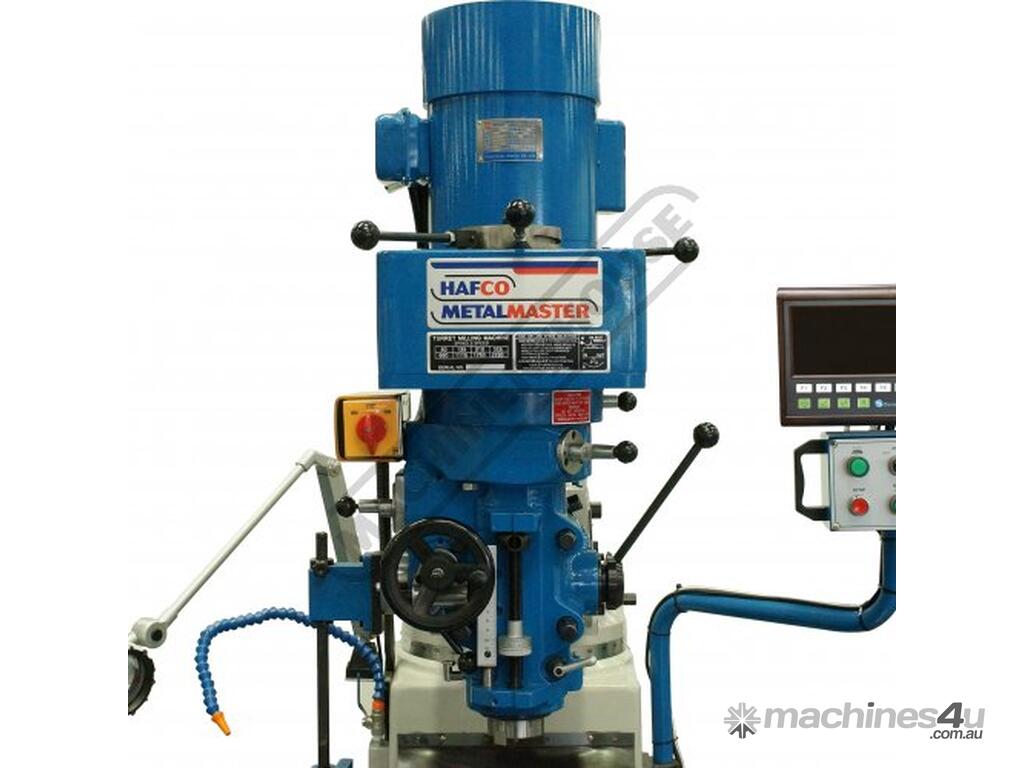

BM-30A Industrial Turret Milling Machine Table Travel: (X) - 760mm (Y) - 360mm (Z) - 430mm Includes

HAFCO-METALMASTER BM-30A Industrial Turret Milling Machine Table Travel: (X) - 760mm (Y) - 360mm (Z) - 430mm Includes Digital Readout System, Vice & Clamp Kit
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M603D

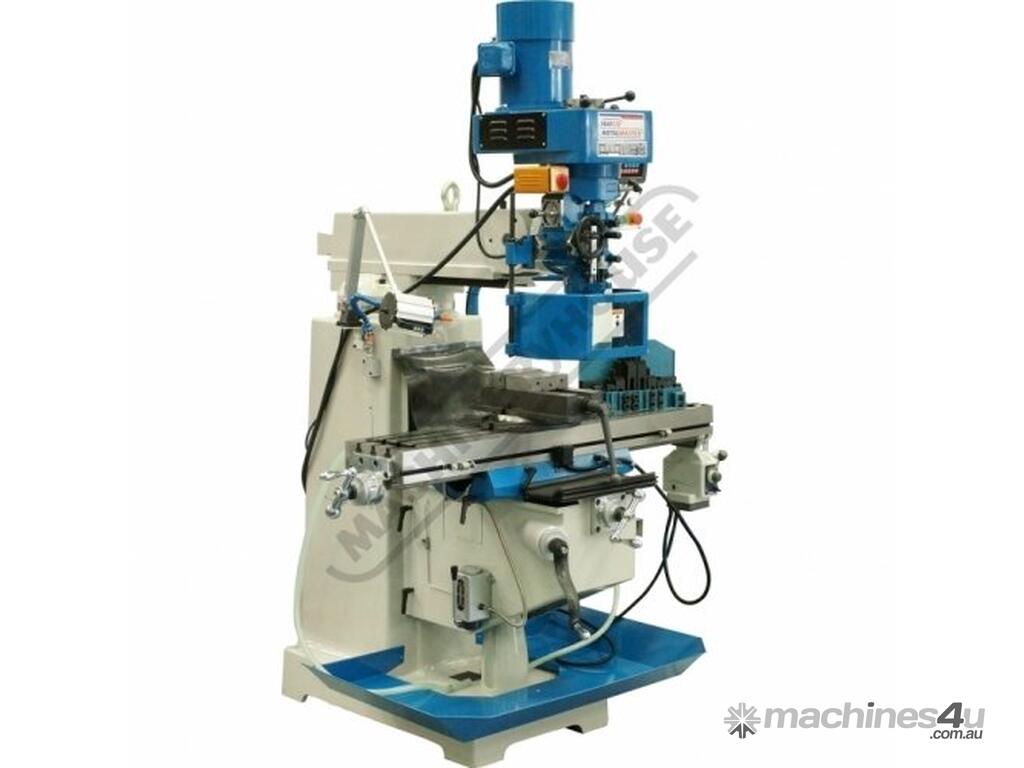

The BM-30A Industrial turret milling machine is manufactured in Taiwan to a strict precision engineering ultra-high tolerance & superior excellence to cope with many jobs set out by the professional machinist and importantly to deliver many years of valuable & reliable service.

This small but robust milling machine package is complete with a few of the most desirable features like, turcite B coated X & Y slide-ways that reduces friction to provide smooth table movement even when loaded up with a heavy job, hardened & ground work table & slide-ways, X-axis auto power-feed with adjustable feed stops, 3-axis digital readout counter plus X & Y scales fitted and also includes a machine vice & clamp kit set to get you started.

Another reliable feature in this range of precision milling machines is the manufacturing process of the main body & supports, it is made up form the highest quality Meehanite® cast iron. The key to the undisputed success of Meehanite® metals is the rigid application of its patented manufacturing process to provide ultimate strength & durability performance.

To conclude this BM-30A turret milling machine may be small in structure but holds its own when put to the test to perform its duties to produce quality precise parts.

Features:

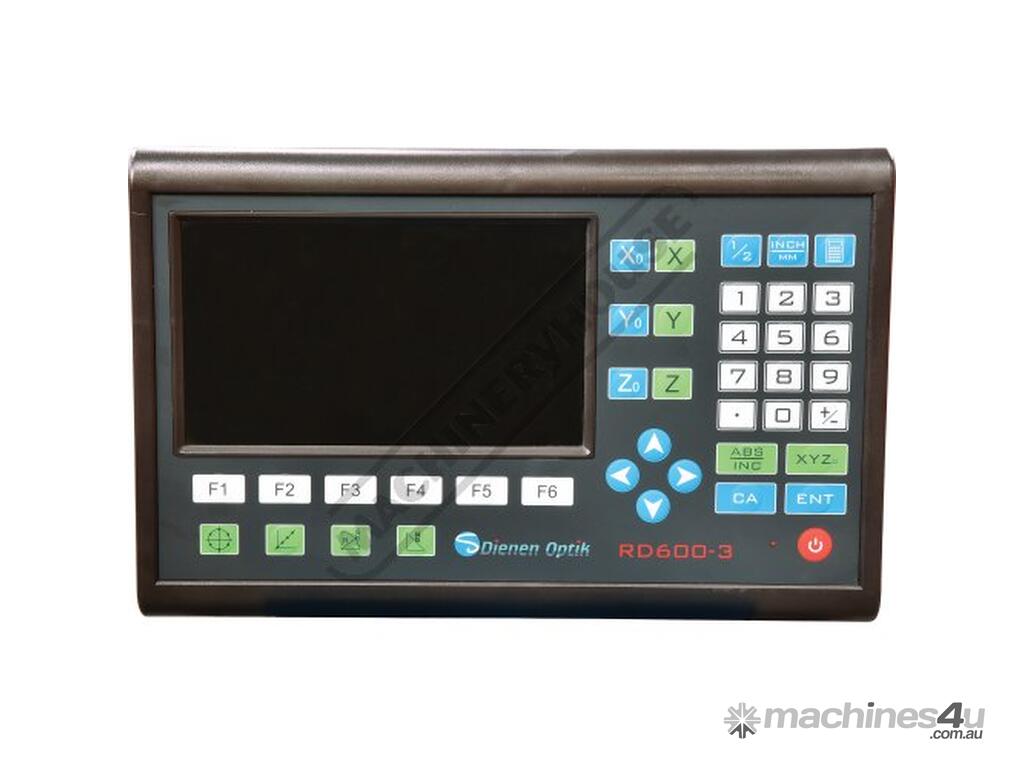

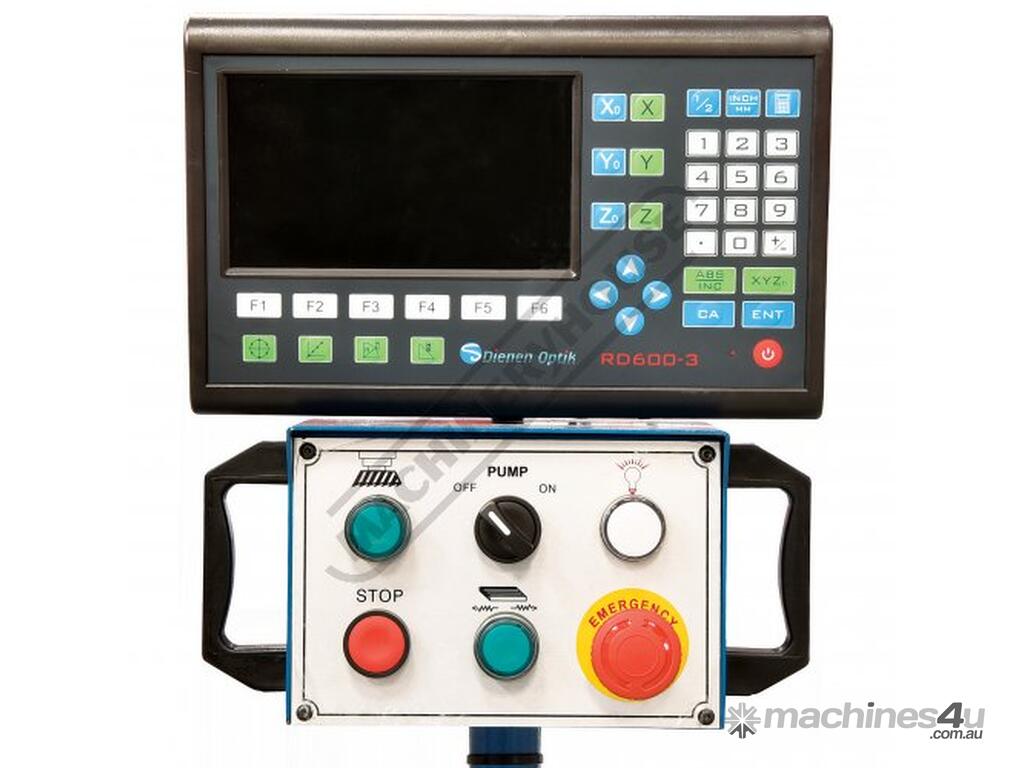

3-Axis digital readout counter fitted with 2-Axis X & Y scales only

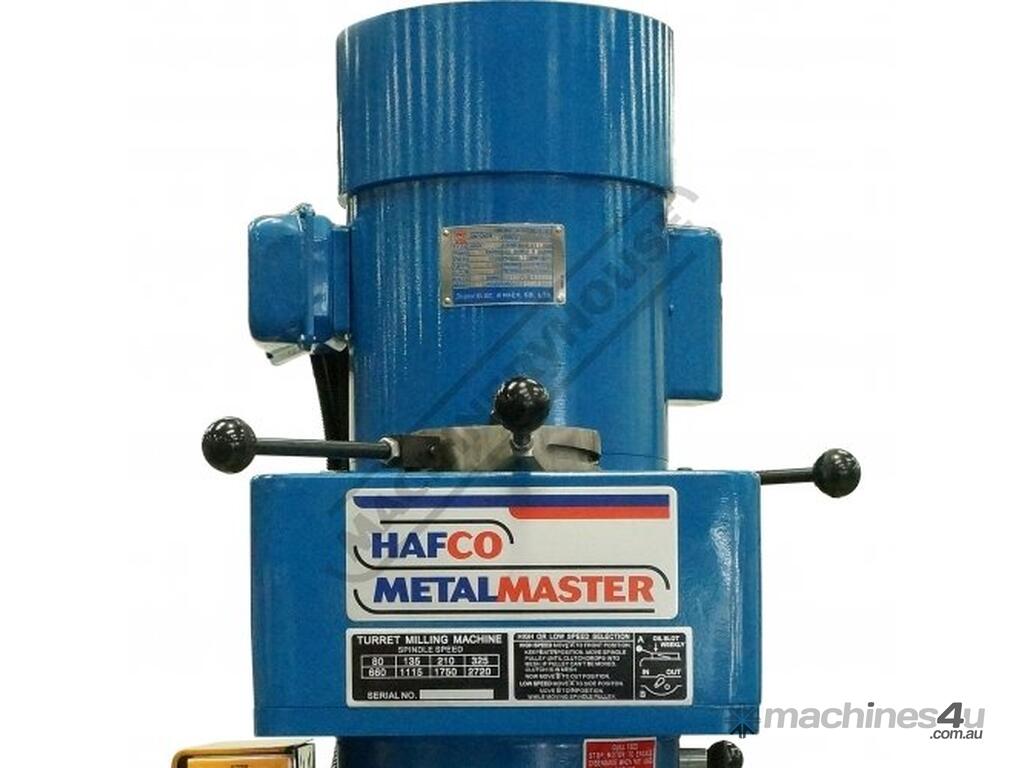

3HP 240V motor 8-speeds V-belt drive system
NT30 Spindle taper with a chrome & ground quill

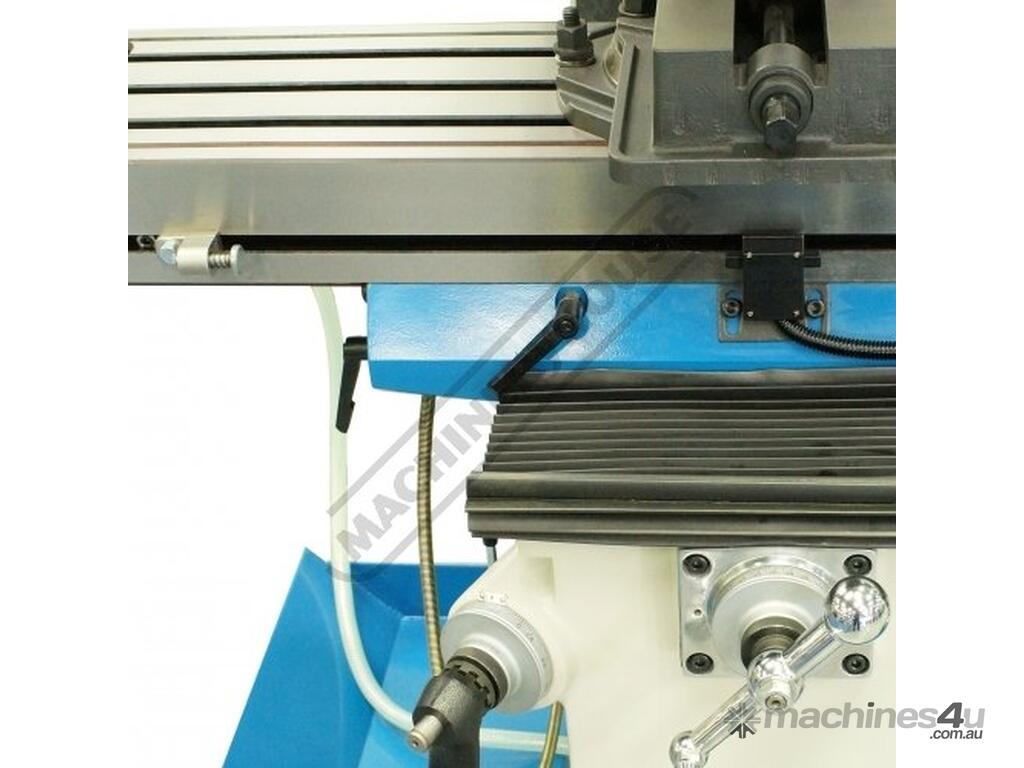

Hardened & ground work table & slide-ways
Turcite B coated X & Y-Axis slide-ways reduces friction for smooth operation
All slides utilise dovetail construction for maximum rigidity
Meehanite casting for high strength & minimal deformation

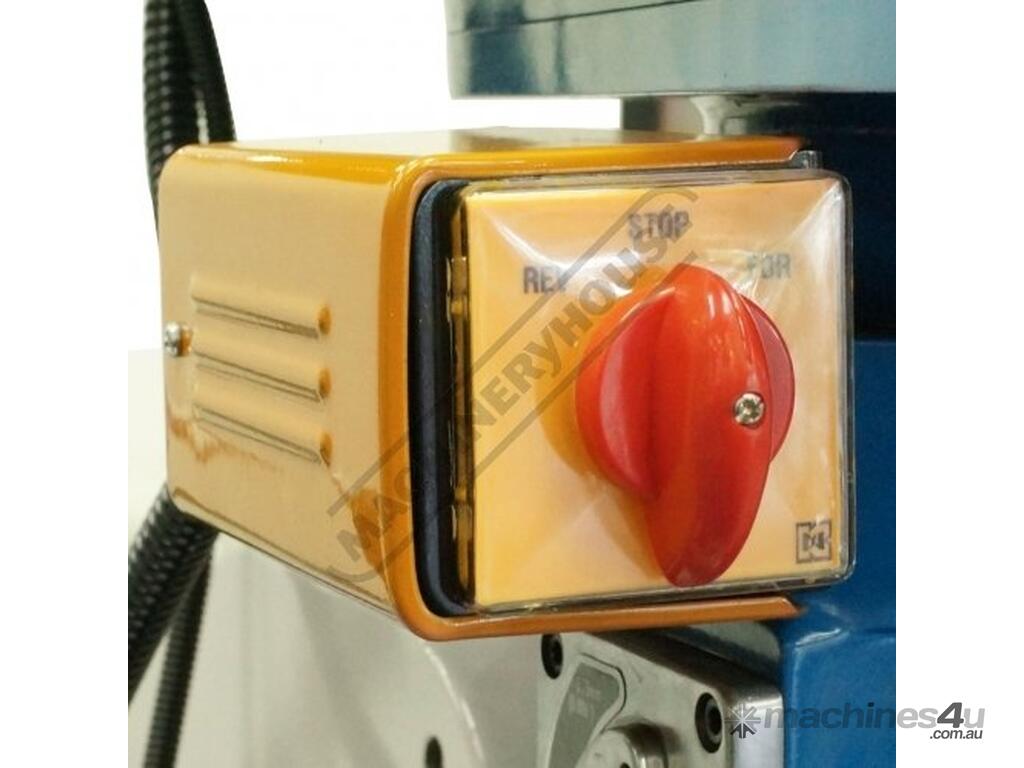

Quality electrics & overload protection in an easy access enclosure
Horizontal travelling ram mounted on a rotating base allowing repositioning of spindle
The ram incorporates a tail lug (spigot) to accept a slotting attachment etc.

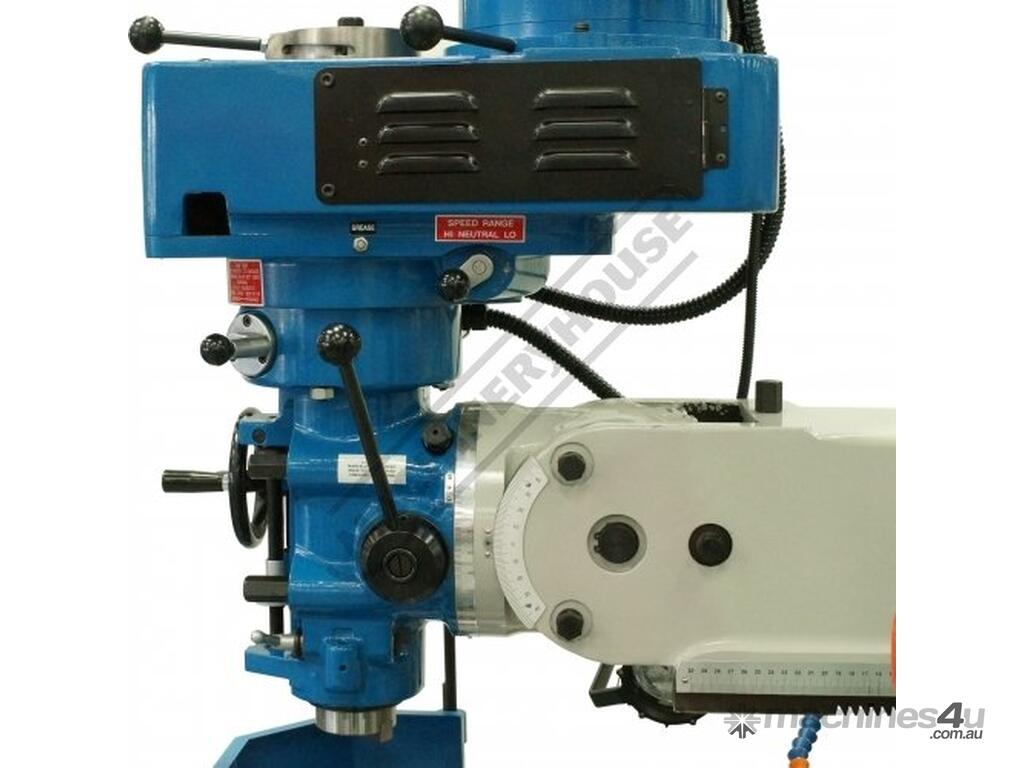

High / neutral and low gear selection lever to maximise torque

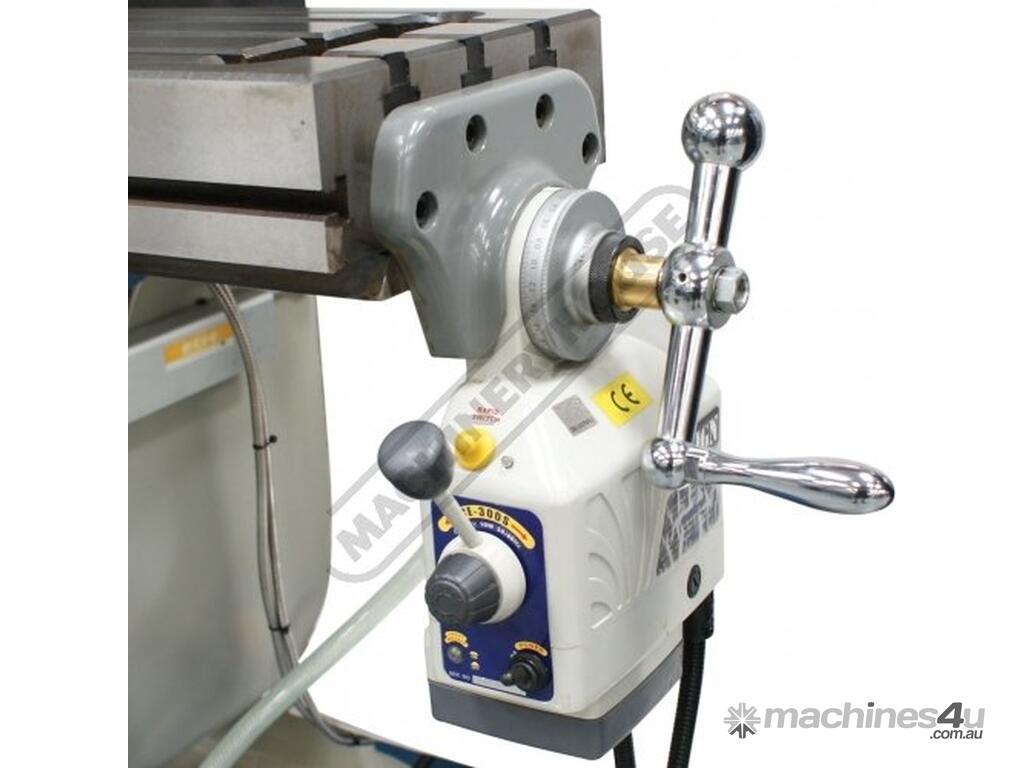

Align CE-300S X-Axis power-feed with adjustable micro switch feed stops

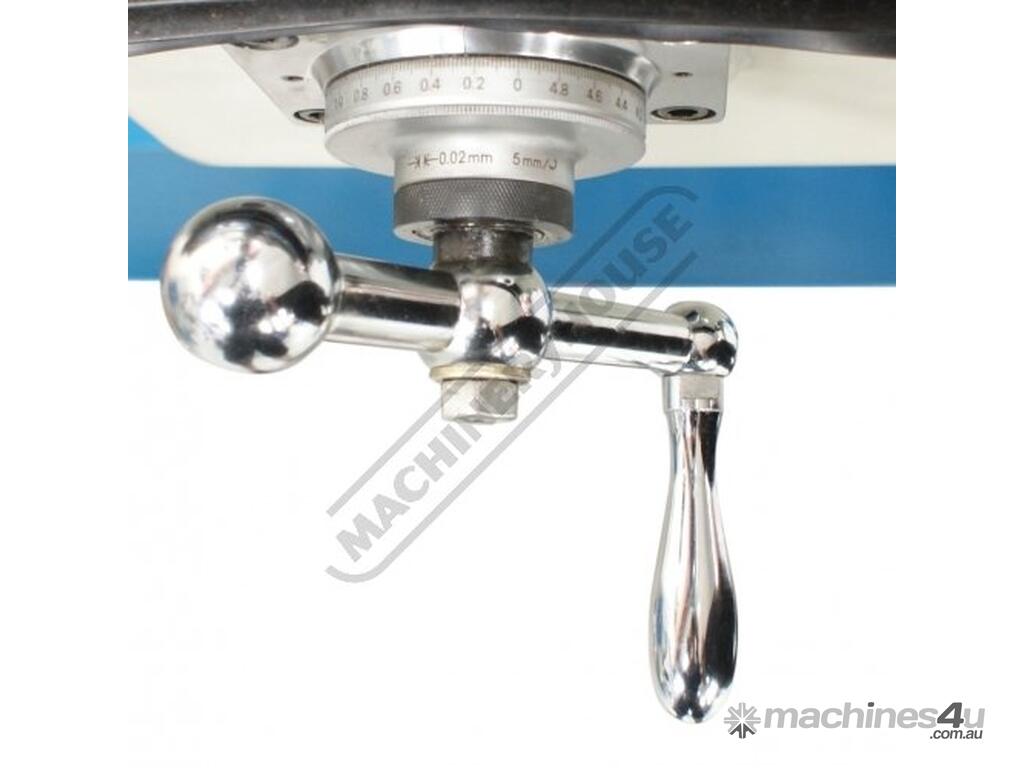

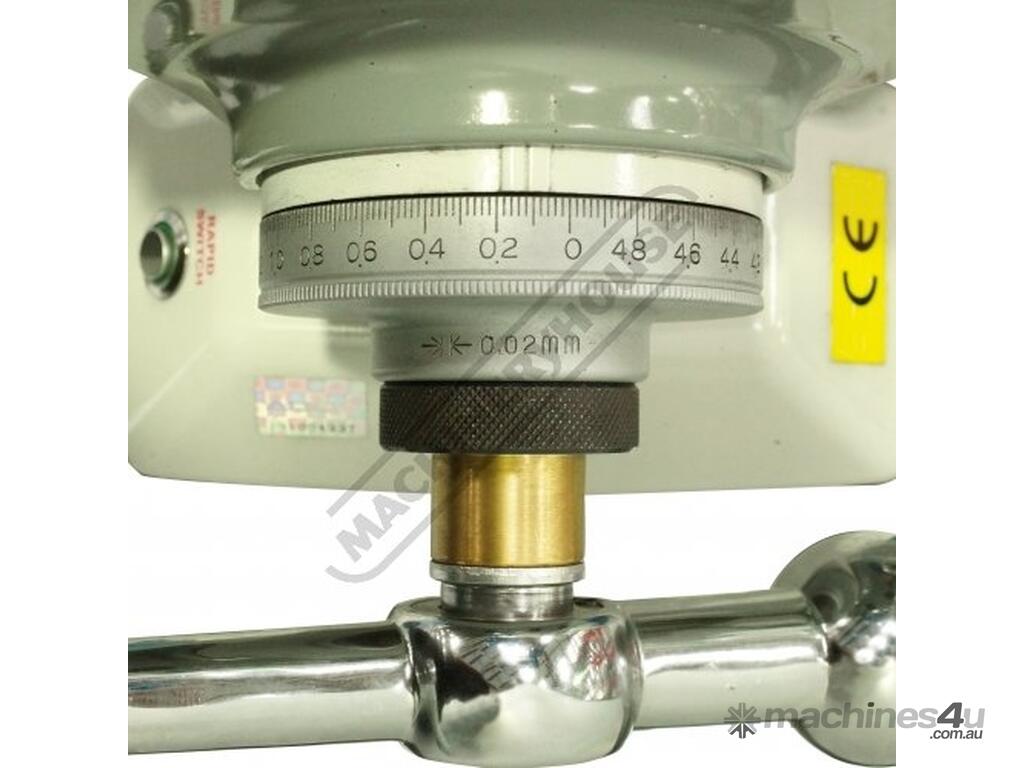

Metric dial graduations 0.02mm for X Y & Z-Axis

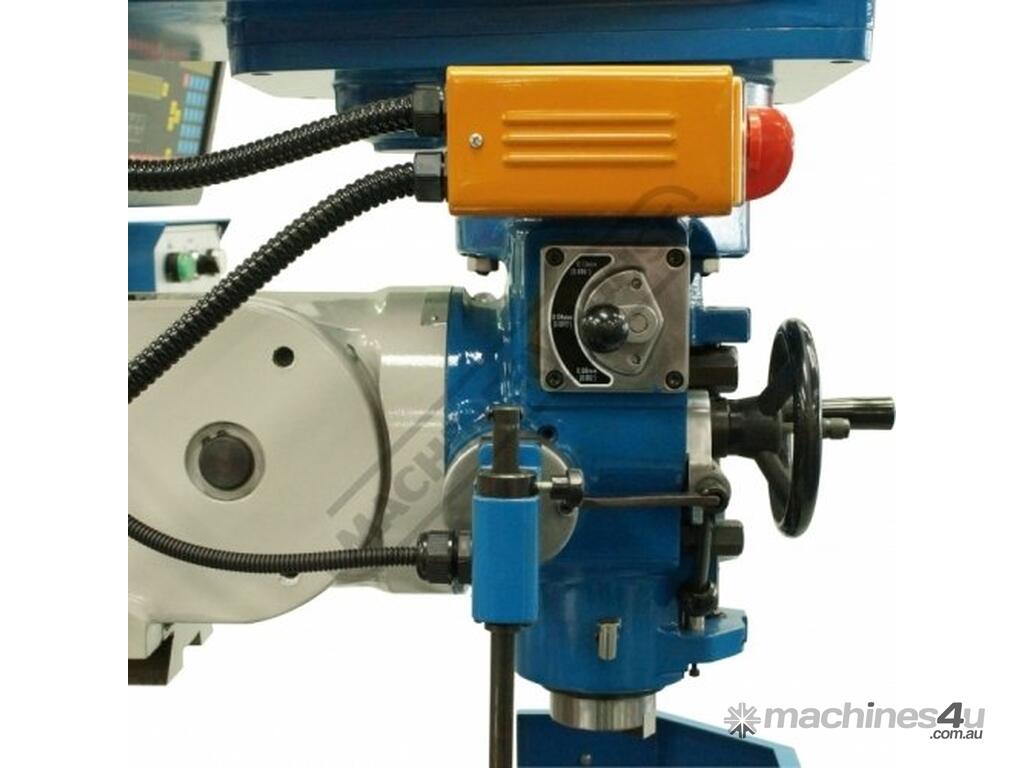

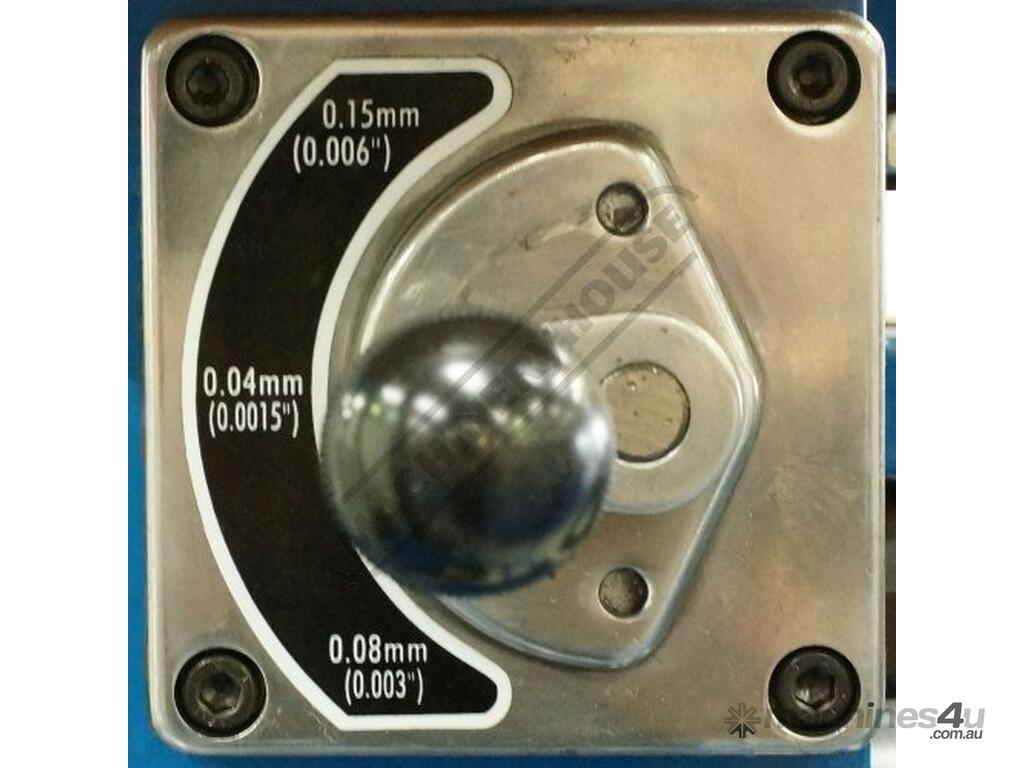

Automatic quill feed 0.015 0.04 0.08mm/rev

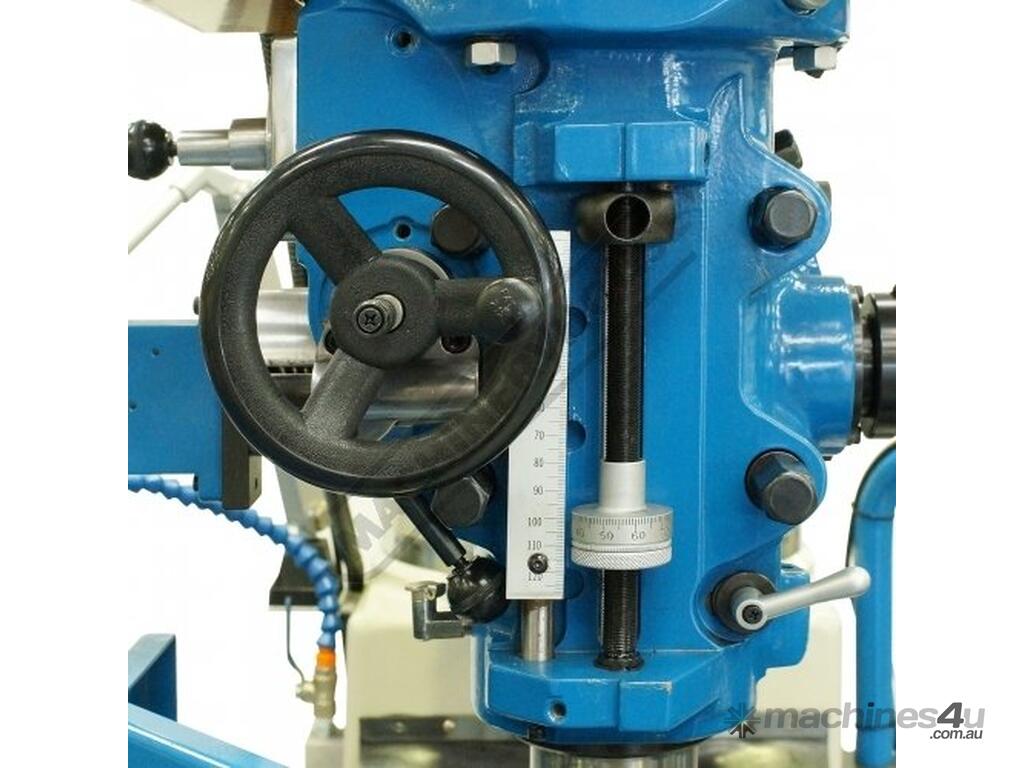

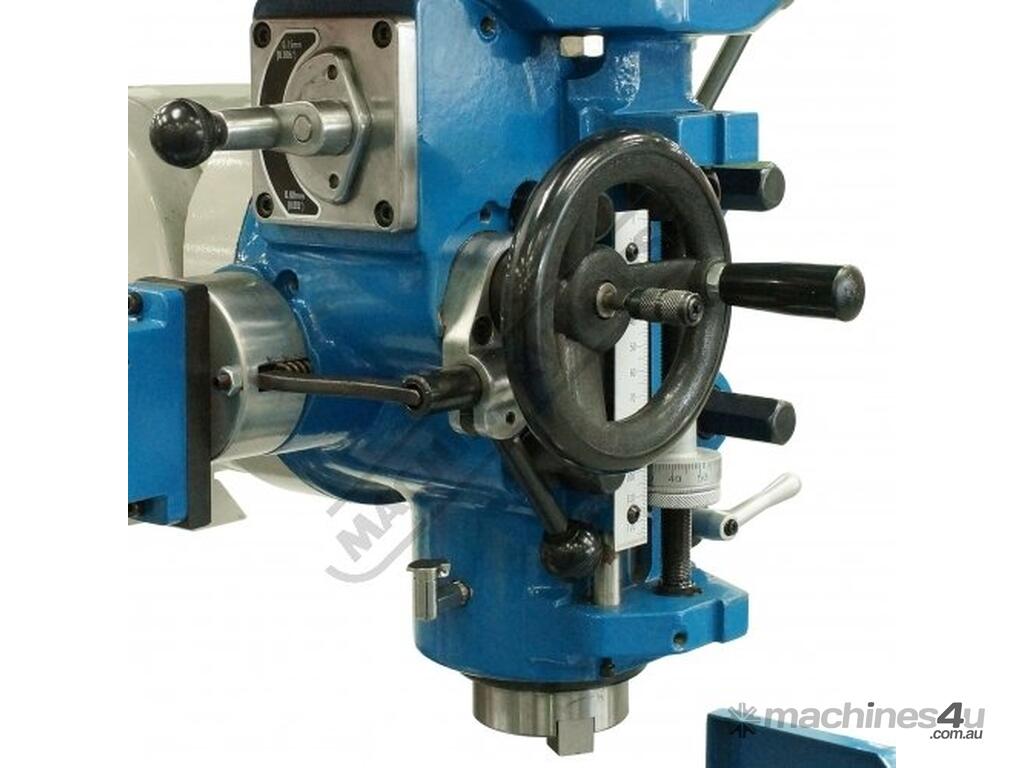

Automatic cut off depth stop on quill
Oil lubrication pump and reservoir
Slideway covers Y & Z-Axis
Mill head tilts to ±45º forward and back
Mill head tilts to ±90º left and right

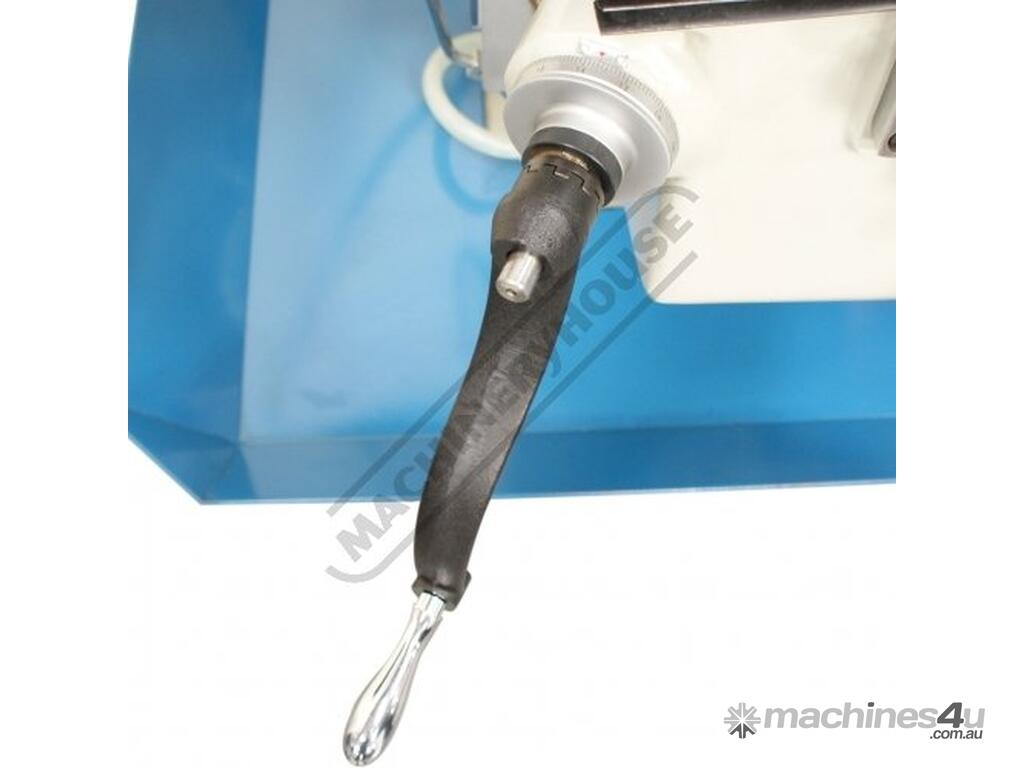

Manual quick action quill lever
Mechanical spindle brake

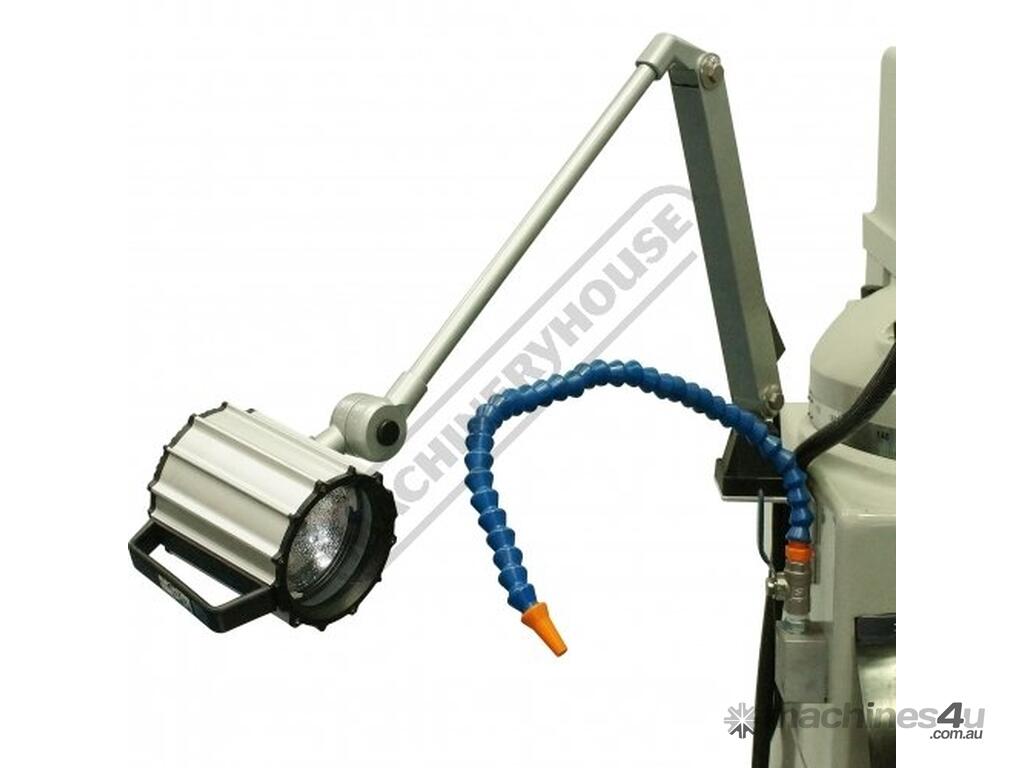

Low voltage LED work light
Tool box and manual

Includes:
- 3-Axis digital readout counter fitted with 2-Axis X & Y scales only
- One-shot oil lubrication pump and reservoir
- Drawbar M12 thread
- Coolant system
- Slideway covers
- X-Axis power-feed
- LED Work light
- Machine vice (150mm)
- Clamp kit

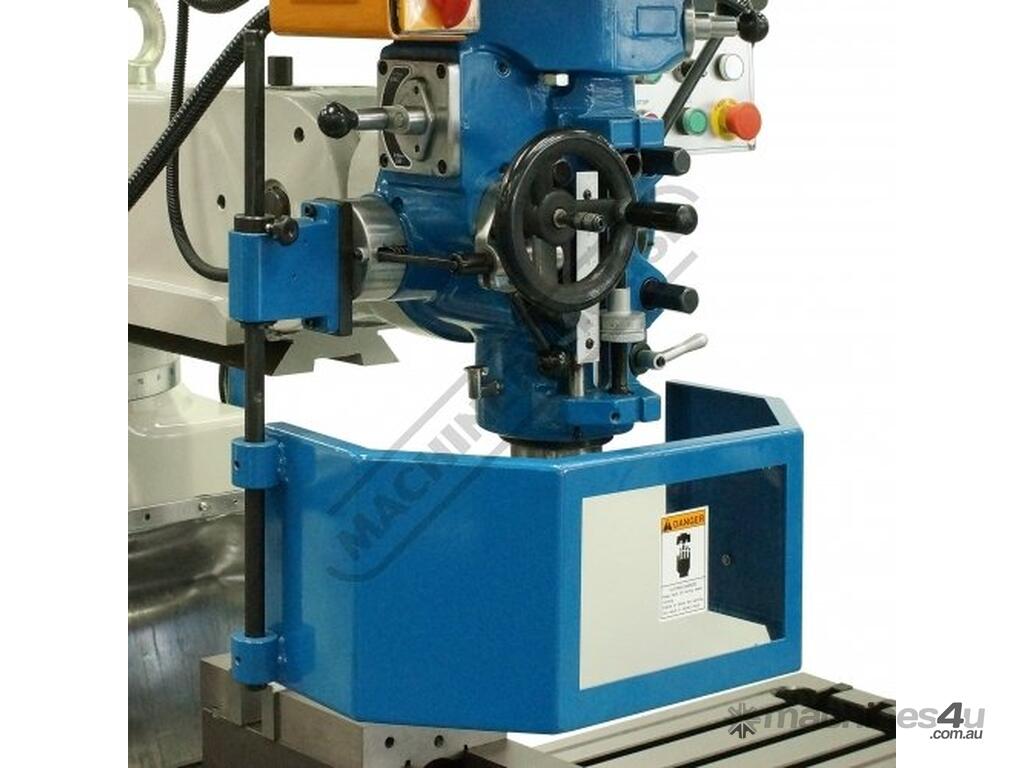

- Safety cutter guard
- Swarf tray



Specifications:
ORDER CODE: M603D
MODEL: BM-30A
Digital Readout: 3-Axis Counter, X, Y Scales
Type: Vertical
Table Size (mm): 1270 x 254
Column Type: ~
Spindle Taper - Vertical: NT30
Spindle Taper - Horizontal: ~
Longitudinal Travel (X-Axis) (mm): 760
Cross Travel (Y-Axis) (mm): 360
Vertical Travel (Z-Axis) (mm): 430
Type of Slides: Dovetail
Ram Travel (mm): 520
Spindle to Table (mm): 505
Spindle to Base: ~
Spindle Travel / Diameter (mm): 127 / 86
Throat Depth (max.) (mm): 740
Tilting Head (Left ~ Right): ±90º
Tilting Head (Forward ~ Back): ±45º
Drilling Capacity (mm): ~
End Milling Capacity (mm): ~
Face Milling Capacity (mm): ~
Power Feed - Quill (mm/rev): 0.015 / 0.04 / 0.08
Power Feed - Longitudinal (X-Axis) (mm/min): 20 - 2000
Power Feed - Cross (Y-Axis) (mm/min): Optional
Power Feed - Vertical (Z-Axis) (mm/min): Optional
Table T-Slot Size (inch / mm): 5/8
Work Table Load Capacity (kg): 250

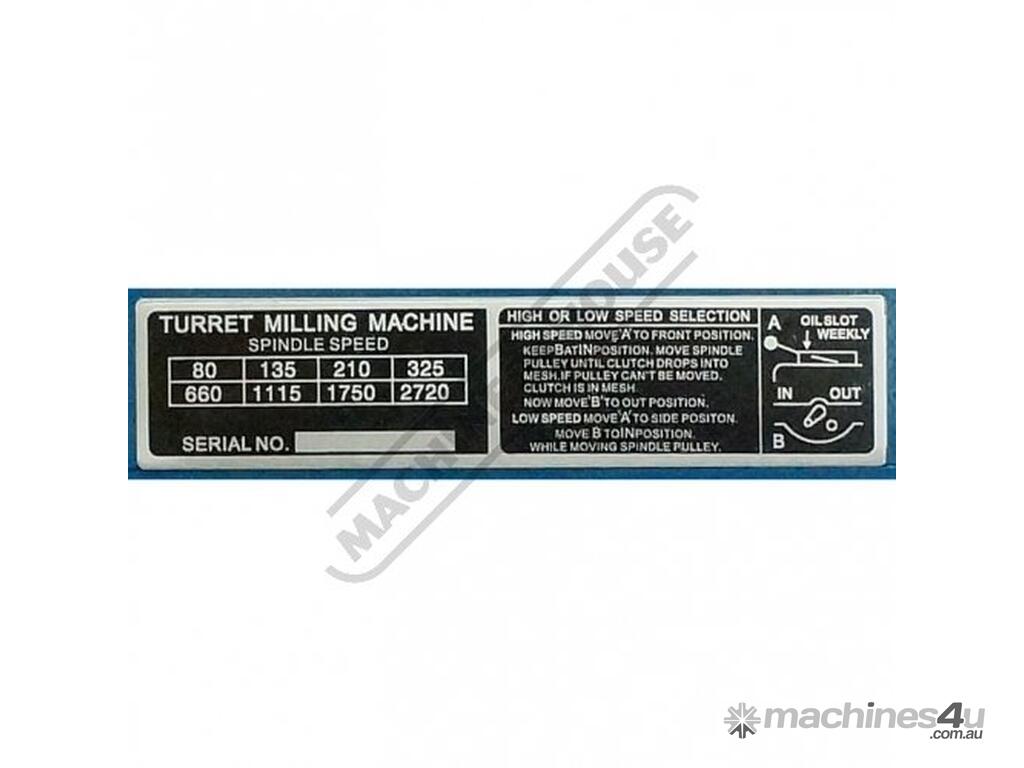

Spindle Speeds Vertical (No./ rpm): 8 (80 - 2720)
Spindle Speeds Horizontal (No./ rpm): ~
Spindle Speeds - Universal Head: ~
Motor Power - Vertical Spindle (kW / hp): 2.2 / 3
Motor Power - Horizontal Spindle (kW / hp): ~
Motor Power - Universal Head: ~
Voltage / Amperage (V / amp): 240 / 20
Nett Weight (kg): 1100
