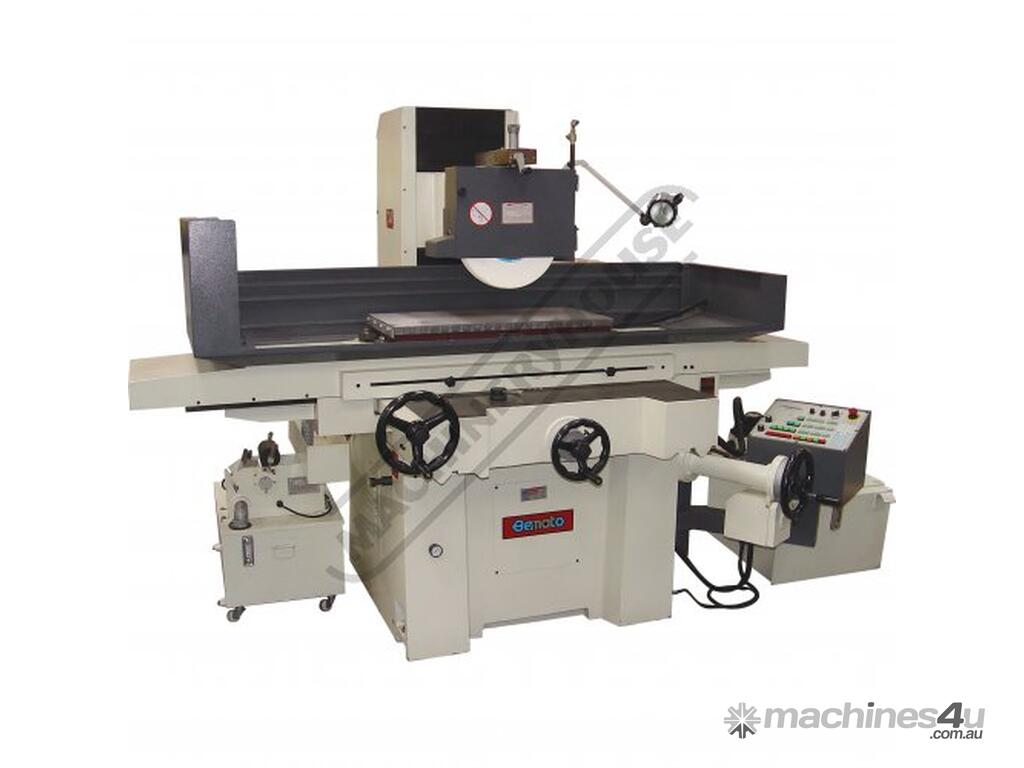

BMT-4080AH Precision Auto Hydraulic Surface Grinder 860 x 450mm Table Travel Includes AD5 Auto Contr

BEMATO BMT-4080AH Precision Auto Hydraulic Surface Grinder 860 x 450mm Table Travel Includes AD5 Auto Control
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: G250

Manufactured in Taiwan

When it comes to surface grinding the Bemato BMT-4080AH Automatic AD5 controlled machine is in a class above the rest in precision, quality, accuracy and functionality, this unique machine is accepted and is recognised in the majority of engineering companies' worldwide.

Special design features to improve the finish of your work piece is the Programmable AD5 control, allowing operator to work on other projects or jobs whilst machine is in automatic mode. This also has additional functions for rough grinding, finish grinding, spark-out and head will rapid return automatically when programme has finished. Also incorporated within the unit is an electromagnetic chuck with electronic demagnetise.

NOTE: Larger models also available on special order request

Features:
Optimized Structure:
The major parts are manufactured from high quality cast iron combined with an outstanding structural design. These parts have been stress relieved to ensure maximum rigidity stability minimize vibration and maintain machining accuracy

Precision Spindle Design:
The spindle runs in a class P4 high precision angular contact bearing assuring run out accuracy in 2?m. The cartridge-type spindle is completely sealed and lubricated for long working lifetime providing high accuracy grinding and a long service life.

Turcite-B on Slideways:
The XZ axis slideways have been specially coated with a durable turcite-B to minimise friction between slides and to provide long life accuracy

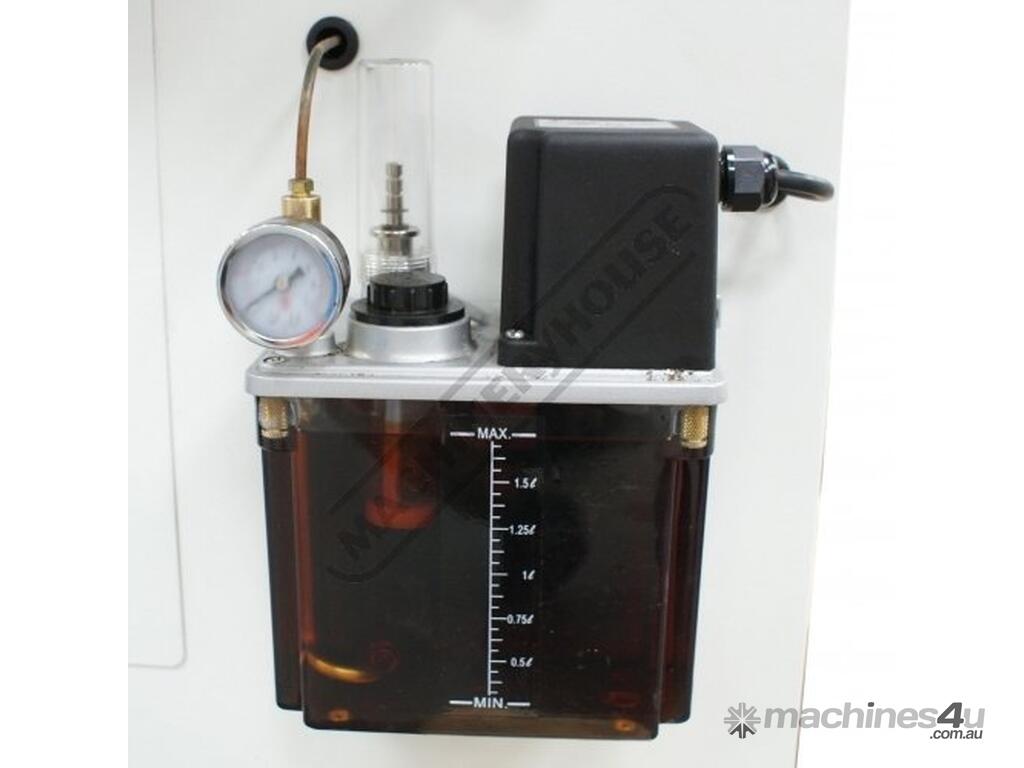

Automatic Pressure Lubrication:
This system lubricates the slide-ways and screws with a timer adjustment providing optimum machine conditions

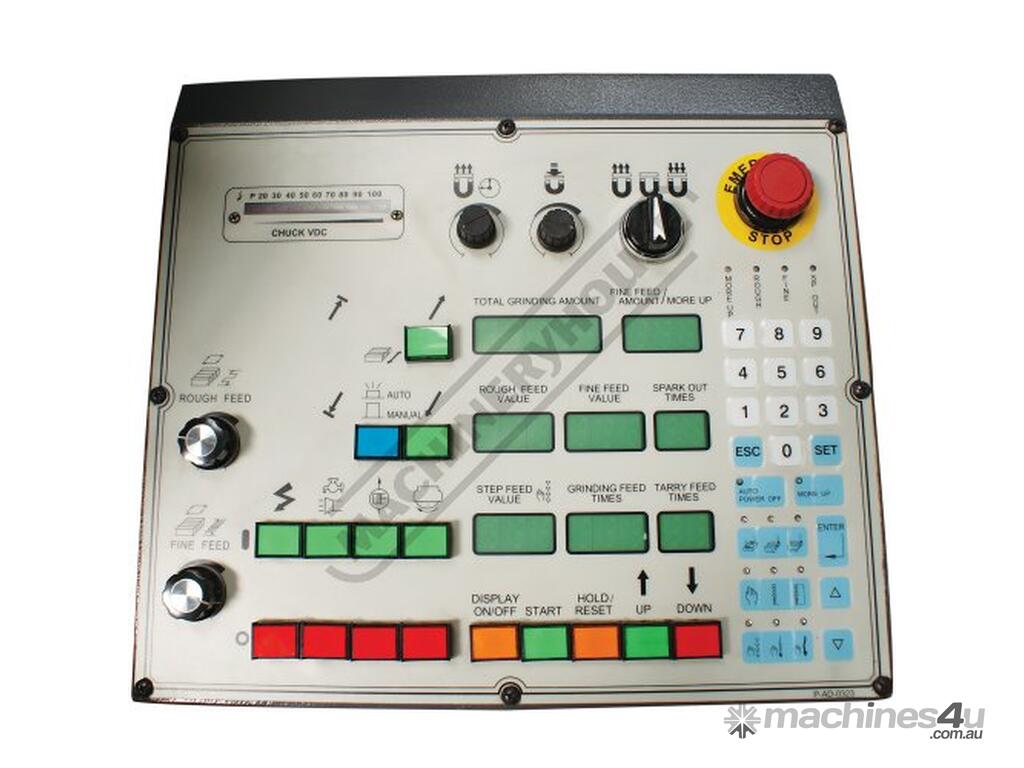

AD5 NC Auto Down Feed:
Automatic down-feed AD5 control and rapid UP/DOWN system standard on Bemato models are a 3 axis fully automated for greatly increasing operational convenience
Plunge and surface grinding
Cross & vertical micro incremental feed 0.001mm
2-step grinding procedure: roughing - finishing
Rapid auto return to home positions
Pre-set spark out

Includes:

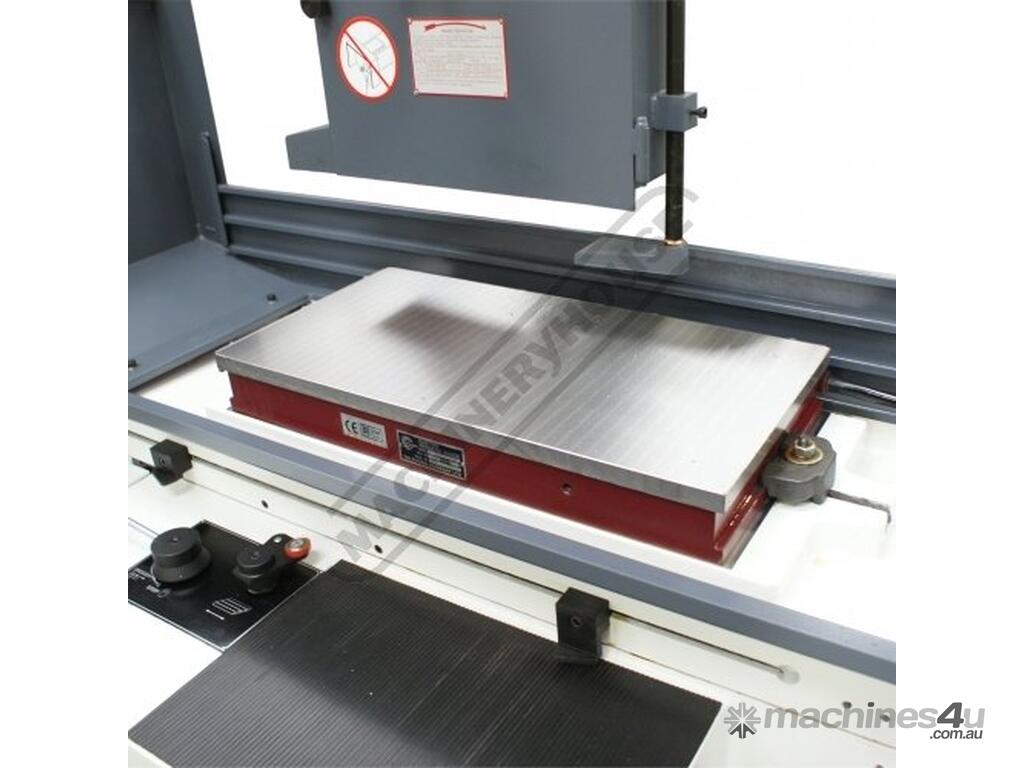

- Electromagnetic chuck with demagnetise
- Balancing arbor
- Balancing stand

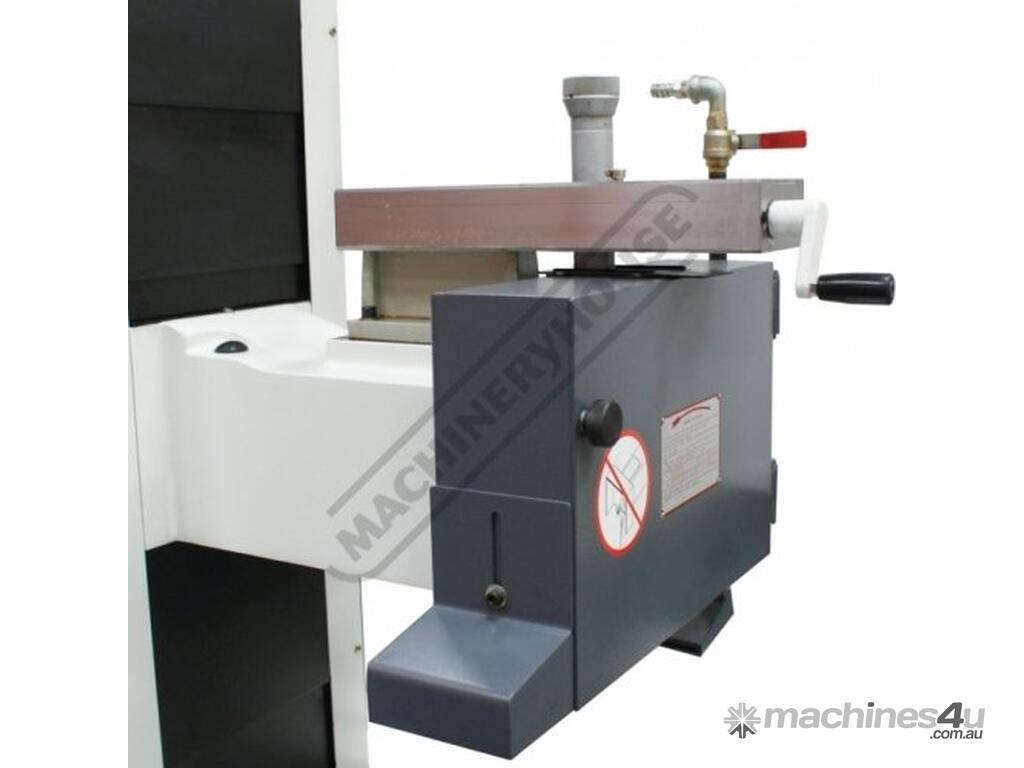

- Parallel dresser

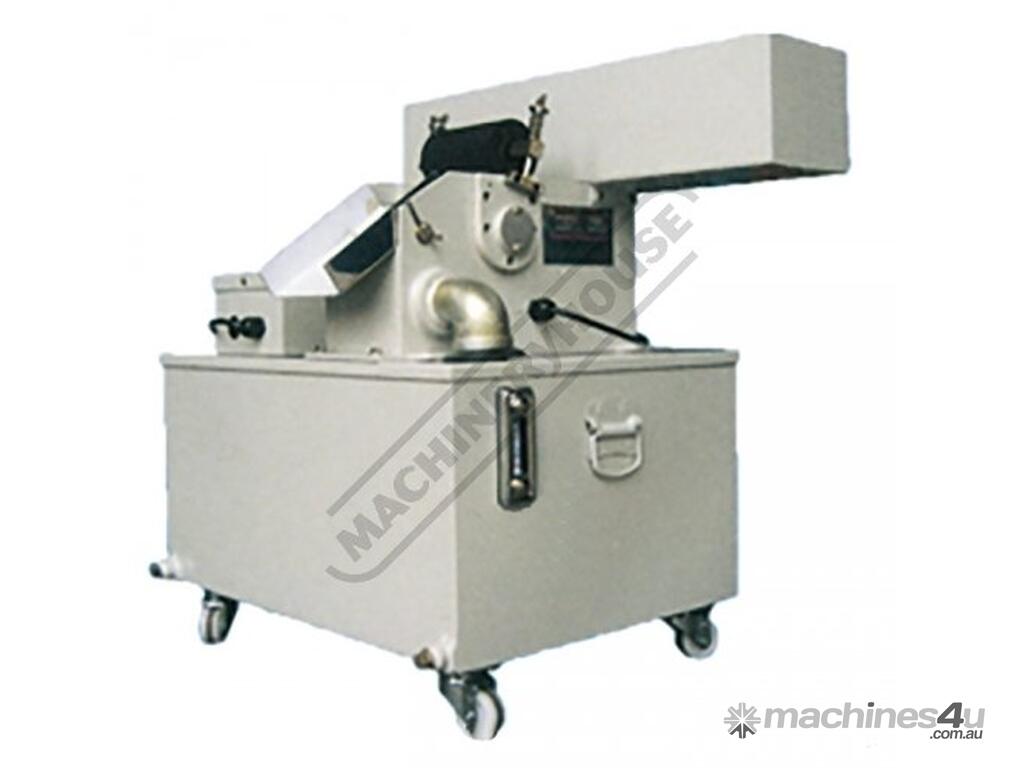

- Coolant system with magnetic separator
- Wheel flange
- LED Work light
- AD5 control



Specifications:
ORDER CODE: G250
MODEL: BMT-4080AH
AD5 Controller: Yes
Magnetic Chuck Size (mm): 800 x 400
Longitudinal Table Traverse - Maximum (mm): 860
Cross Table Traverse - Maximum (mm): 450
Table Bed Size (mm): ~
Spindle To Table - Maximum (mm): 550 (Optional 650)
Wheel Diameter (mm): 405

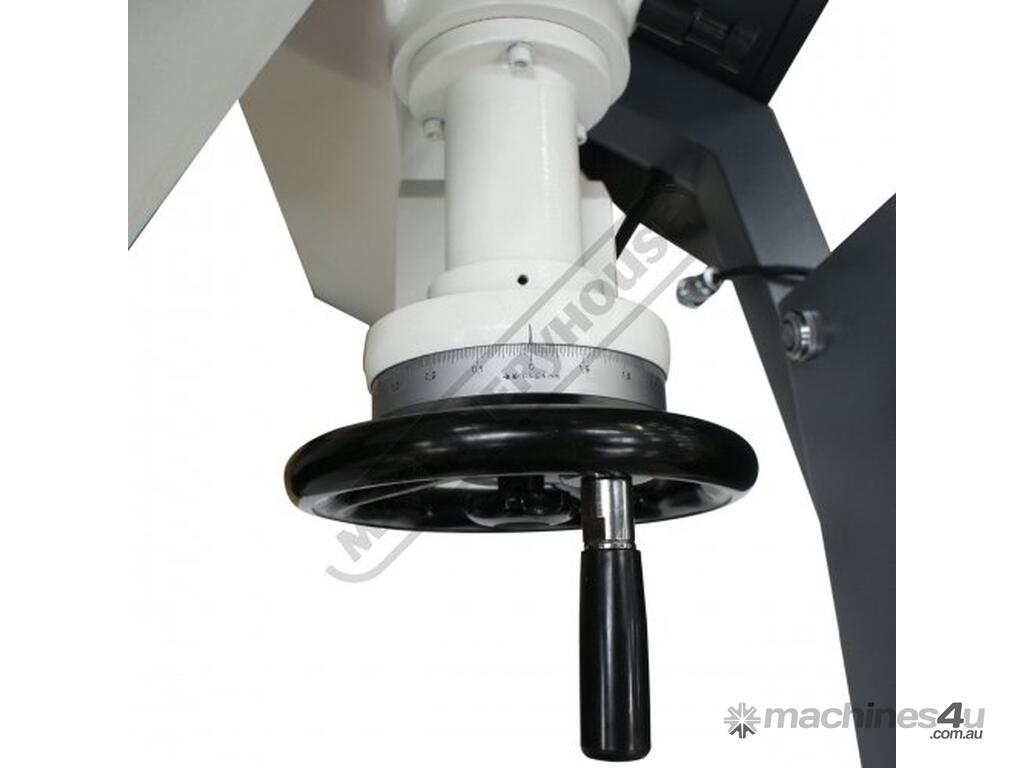

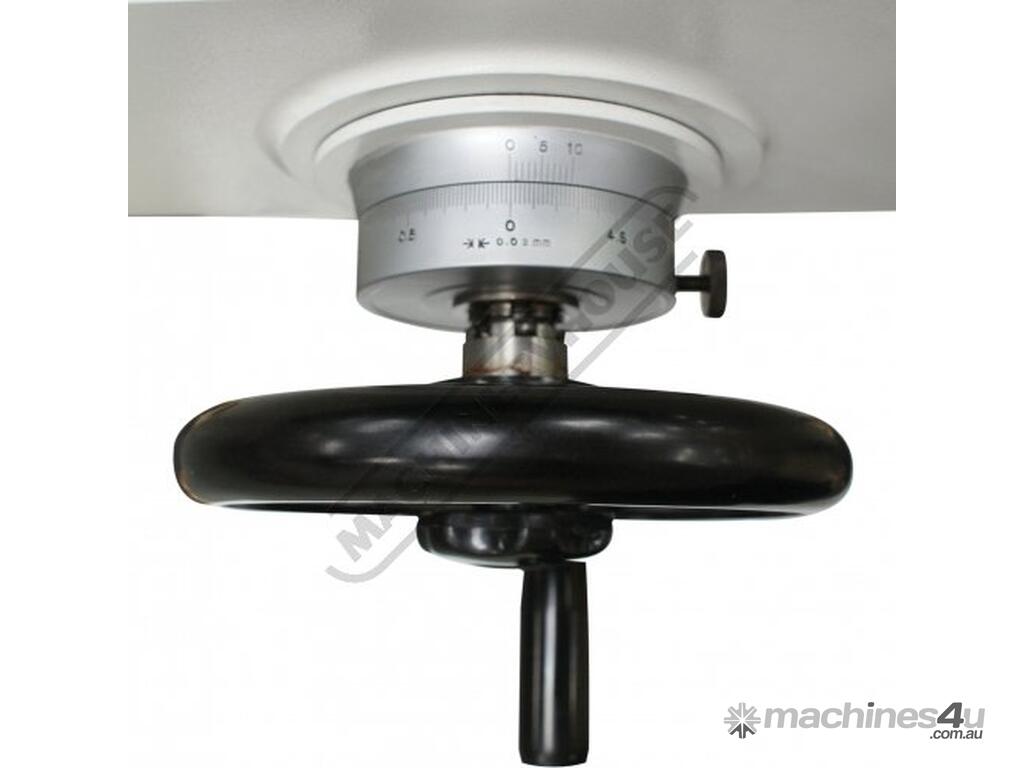

Vertical Increment Graduations (mm): 0.005
Vertical Graduations Per Revolution (mm/rev): 2
Cross Increment Graduations (mm): 0.02
Cross Graduations Per Revolution (mm/rev): 5
Spindle Motor (kW / hp): 3.75 / 5
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 3500
