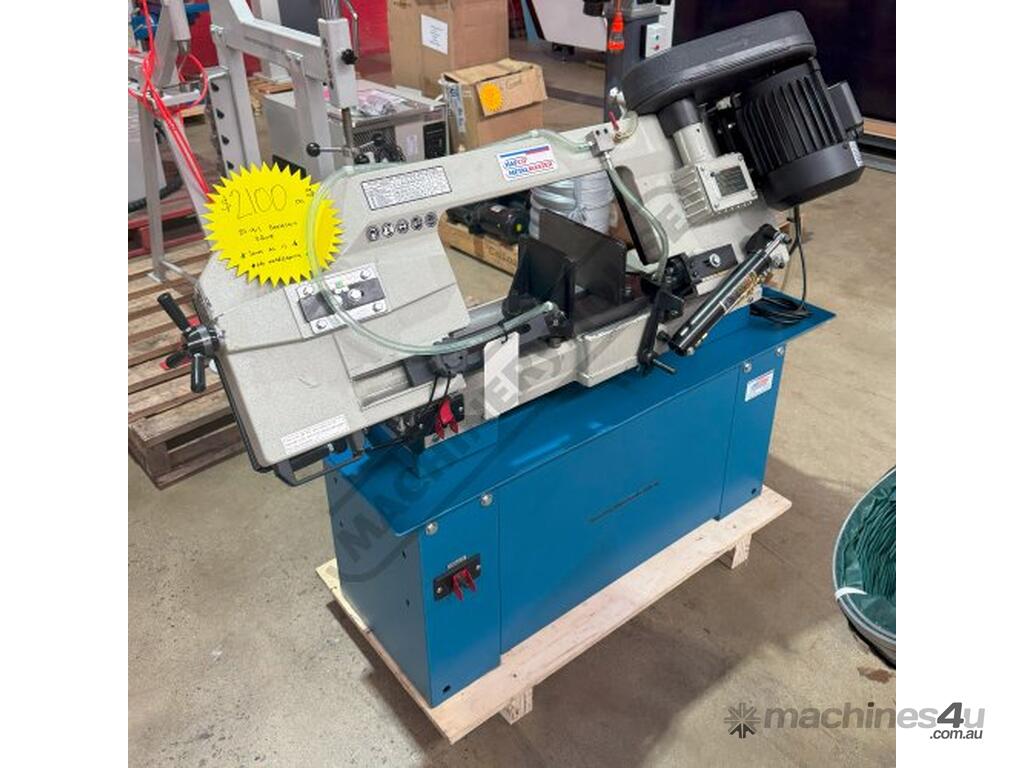

BS-912 Metal Cutting Band Saw - Swivel Vice Mitre Cuts Up To 45º, Quick Action Material Clamp & Incl

HAFCO-METALMASTER BS-912 Metal Cutting Band Saw - Swivel Vice Mitre Cuts Up To 45º, Quick Action Material Clamp & Includes Hydraulic Downfeed Control 305 x 178mm (W x H) Rectangle Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: ZB014

Manufactured in Taiwan

The BS-912 is a larger 240 volt band saw suitable for the medium fabrication and general engineering workshops. It features increased motor power, four blade speeds, double row ball bearing blade guides, a built-in coolant system and greatly increased cutting capacity.

The downward cutting pressure is controlled by a fully adjustable hydraulic damper with an on/off valve and there is an automatic cut-off at the end of the cut. The vice rotates for mitre cutting and there is an adjustable material stop for consistent repeat length cutting.

Features:
305 x 178mm (W x H) rectangular capacity
Adjustable hydraulic feed cutting rate for multiple applications
Mitre cuts to 45º using calibrated vice
Built-in coolant system to both blade guides for maximum cutting efficiency
Limit switch stops machine when cut is complete
Quick action material clamping lever
Adjustable blade roller guides provides accurate cutting
Adjustable 4-speed pulley drive system enabling -95mpm cutting speeds
Adjustable length stop for repetition cutting
Wire wheel brush to clean swarf from blade
Portable - on wheels for ease of use
Automatic electric cut-out switch
Heavy-duty 750W 240V fully enclosed fan-cooled motor

Operation Type - Fixed Head
Round 90º - 230mm
Round 45º - 150mm
Square 90º - 230mm
Square 45º - 127mm
Rectangle (W x H) 90º - 305 x 178mm
Rectangle (W x H) 45º - 150 x 127mm
Coolant System - Yes
Table Working Height - 640mm
Cutting Head Beam Type - Manual
Cutting Head Beam Return - Manual Return
Cutting Head Down Feed Control - Adjustable Hydraulic
Vice Clamping Fixture - Manual
(Blade Steps / Speeds - -95m/min
Blade Size (L x W x T) - 2654 x 27 x 0.9mm
Motor Power - 0.75kW / 1 hp)
Voltage / Amperage - 240V / 10amp
Nett Weight - 185kg
Specifications:
ORDER CODE: ZB014
MODEL: BS-912
Type: Metal Bandsaw
Brand: Hafco Metalmaster
Capacity: 305 x 178mm (W x H) Rectangle Capacity
Speed Range (rpm): ~
Motor Power (kW / hp): 0.75 / 1
Voltage / Amperage (V / amp): 240 / 10
Branch The Item is Located (Available): Sydney
