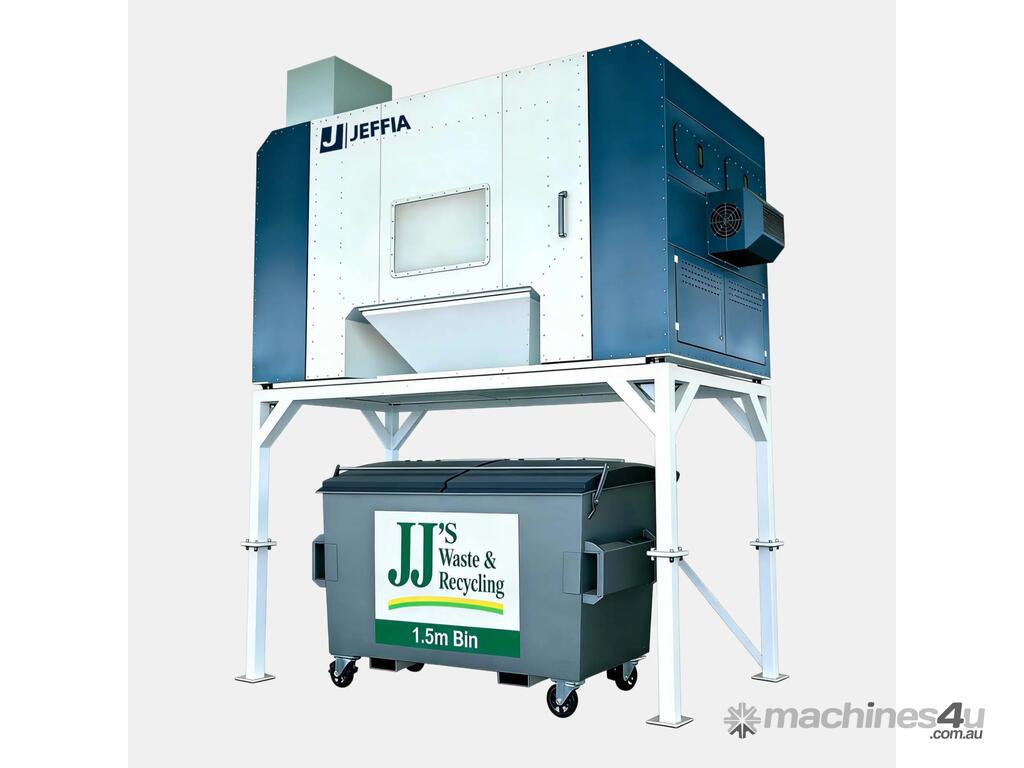

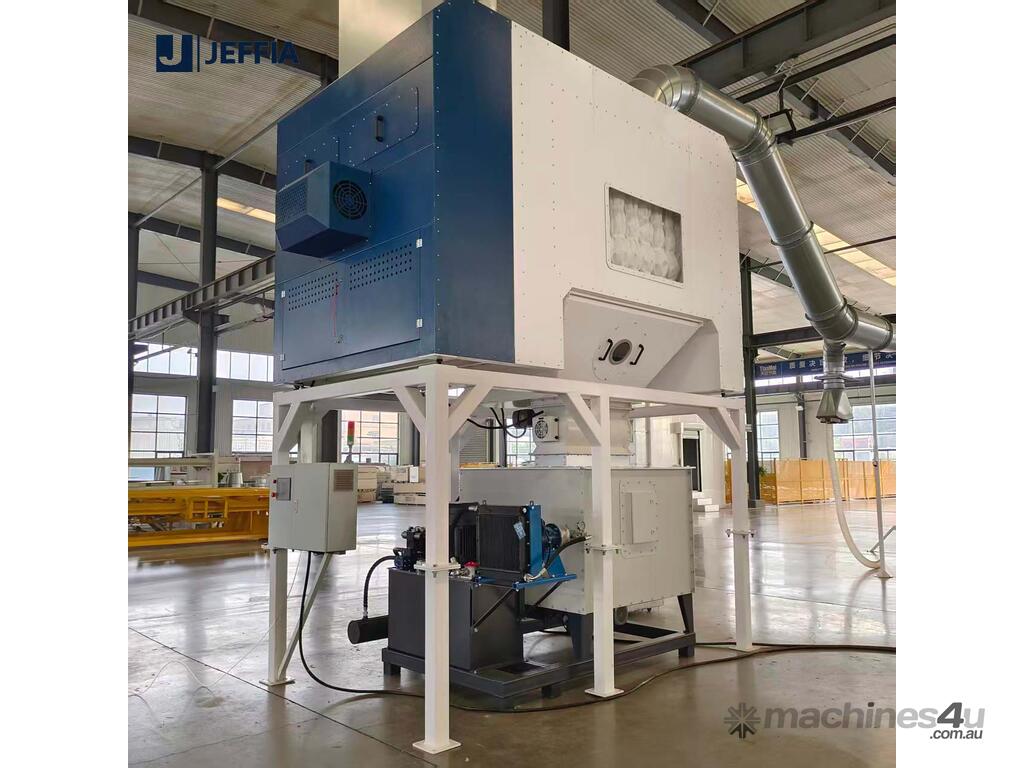

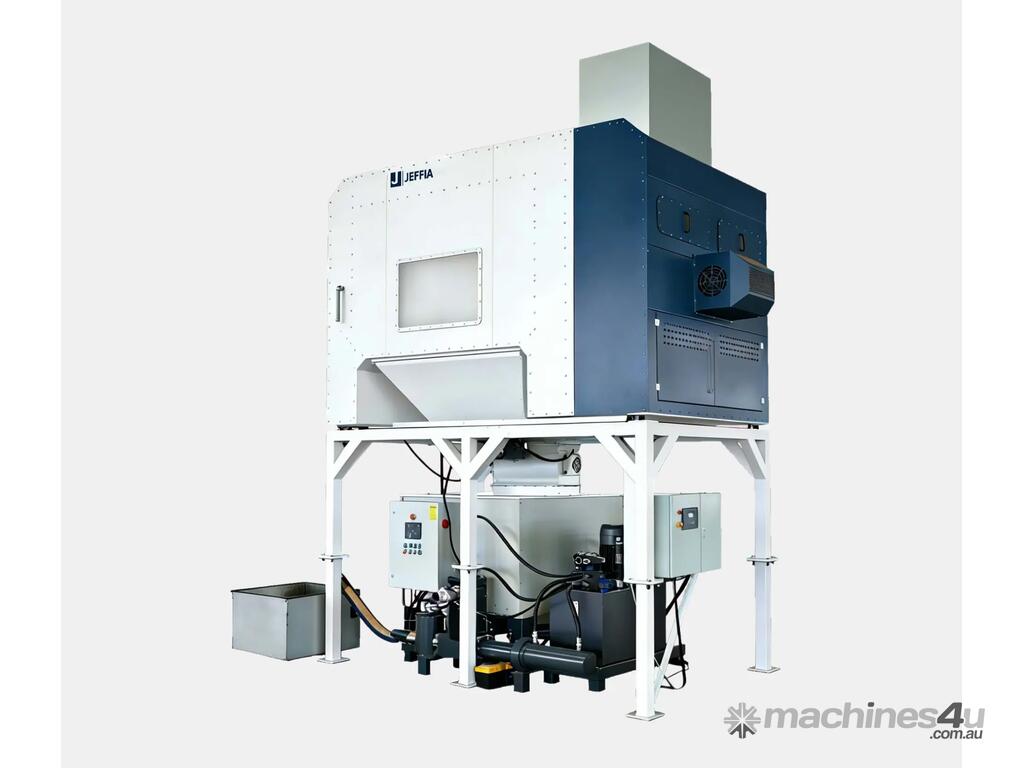

New balanced negative pressure dust collection system with integrated fine filtration and pulse high-pressure Venturi filter cleaning. Designed for industrial dust extraction, workshop air purification and material recovery applications. Suitable for woodworking, machining, furniture production, building materials, ceramics, plastics, food, chemical and general industrial dust control.

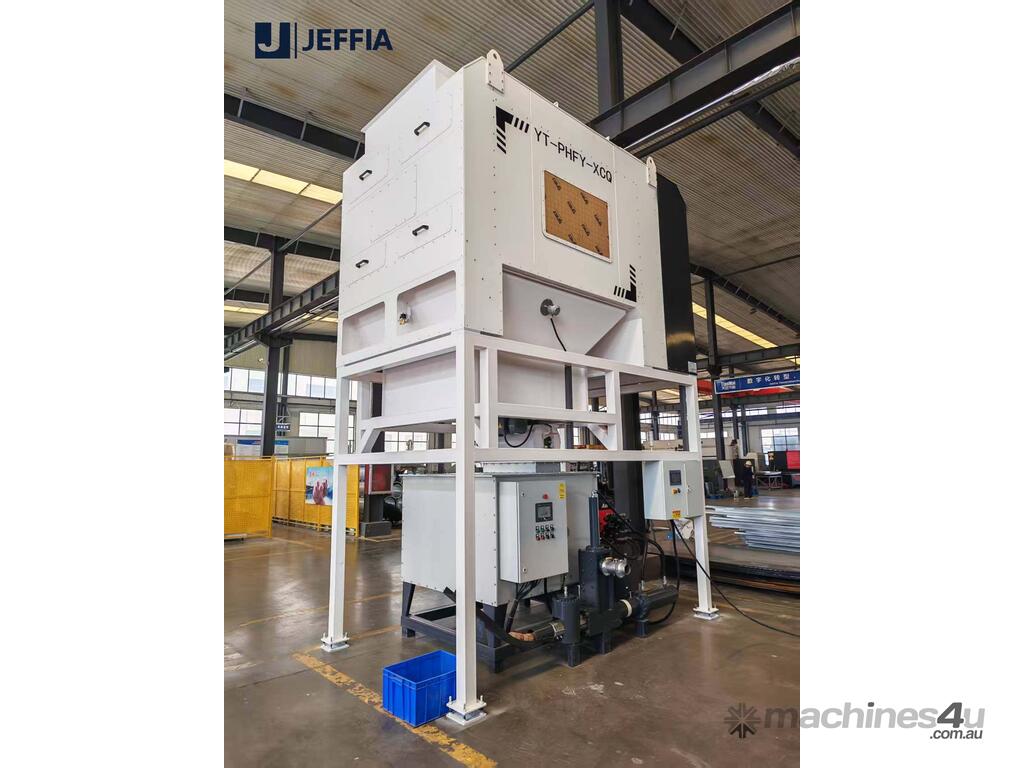

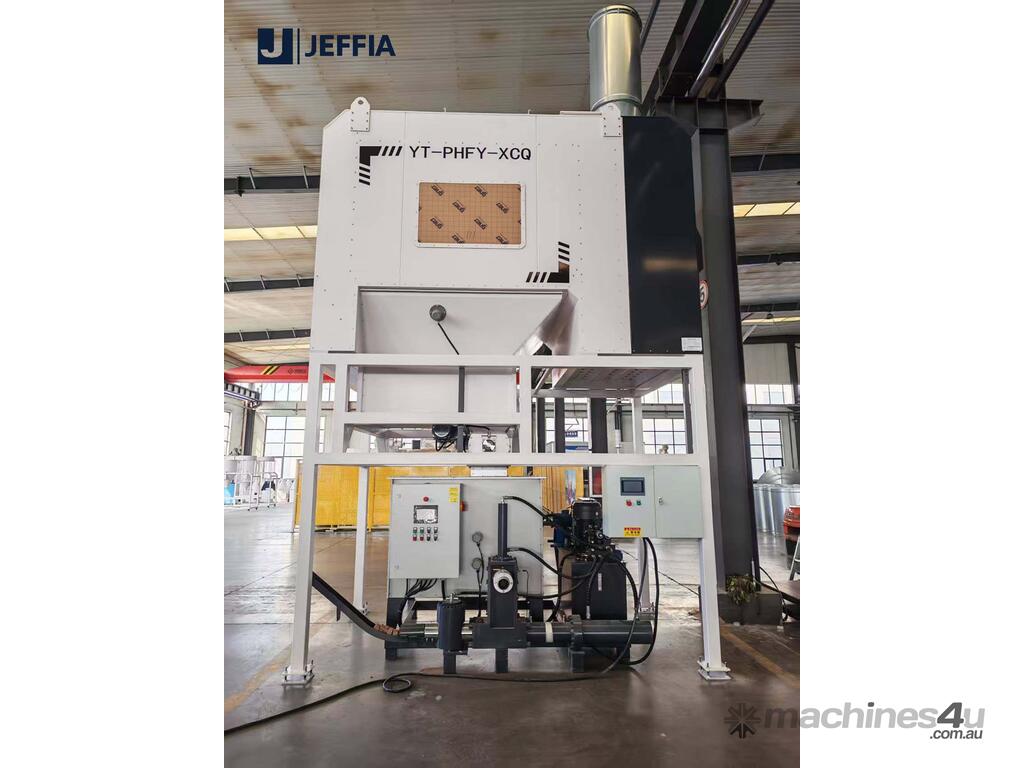

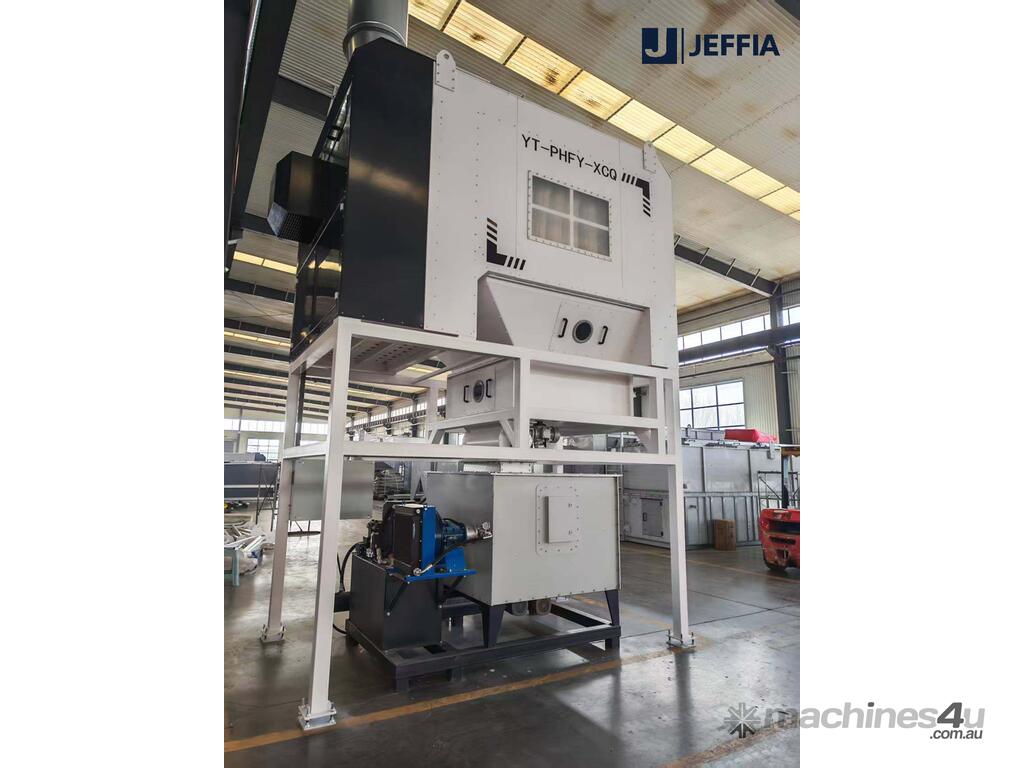

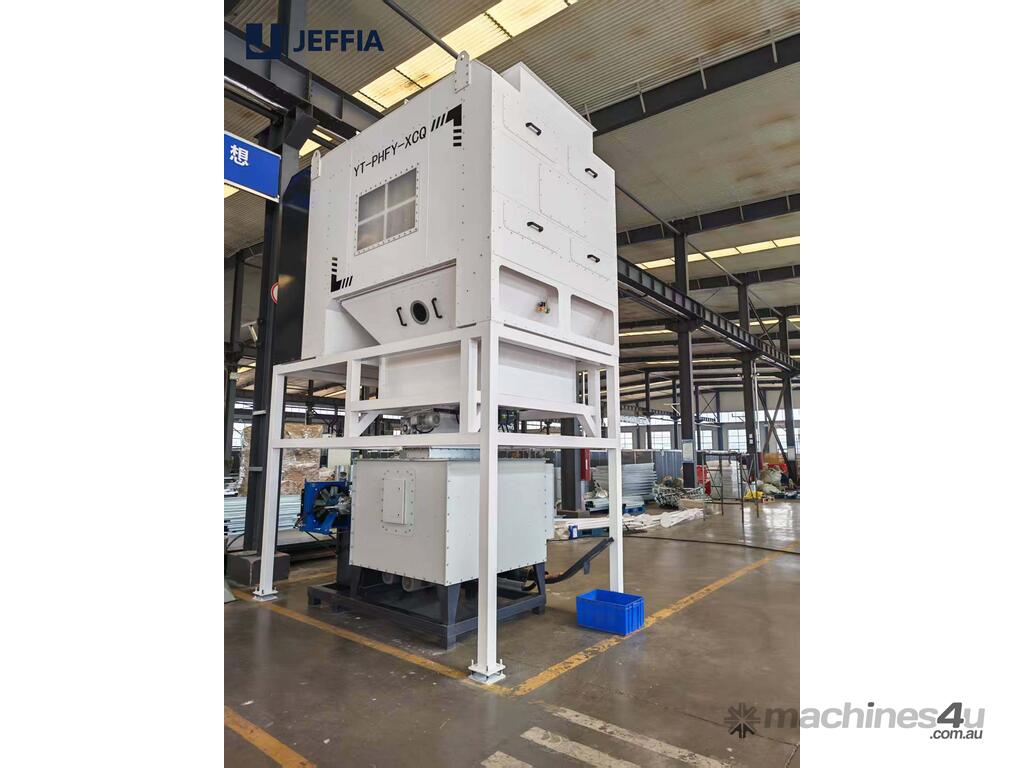

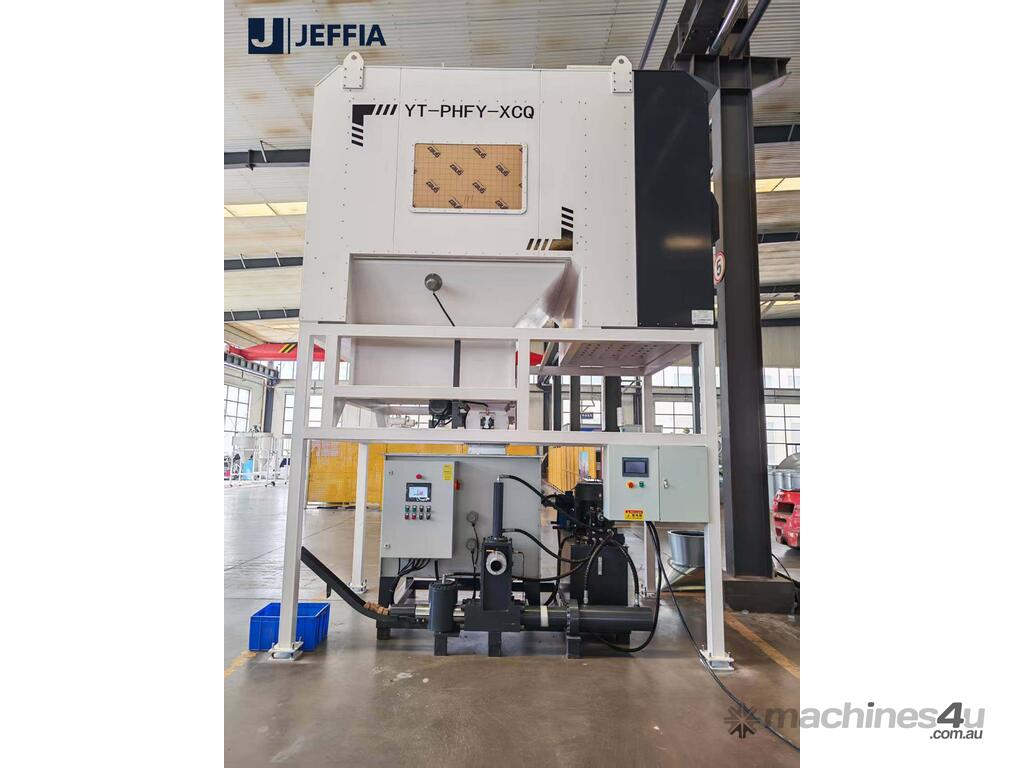

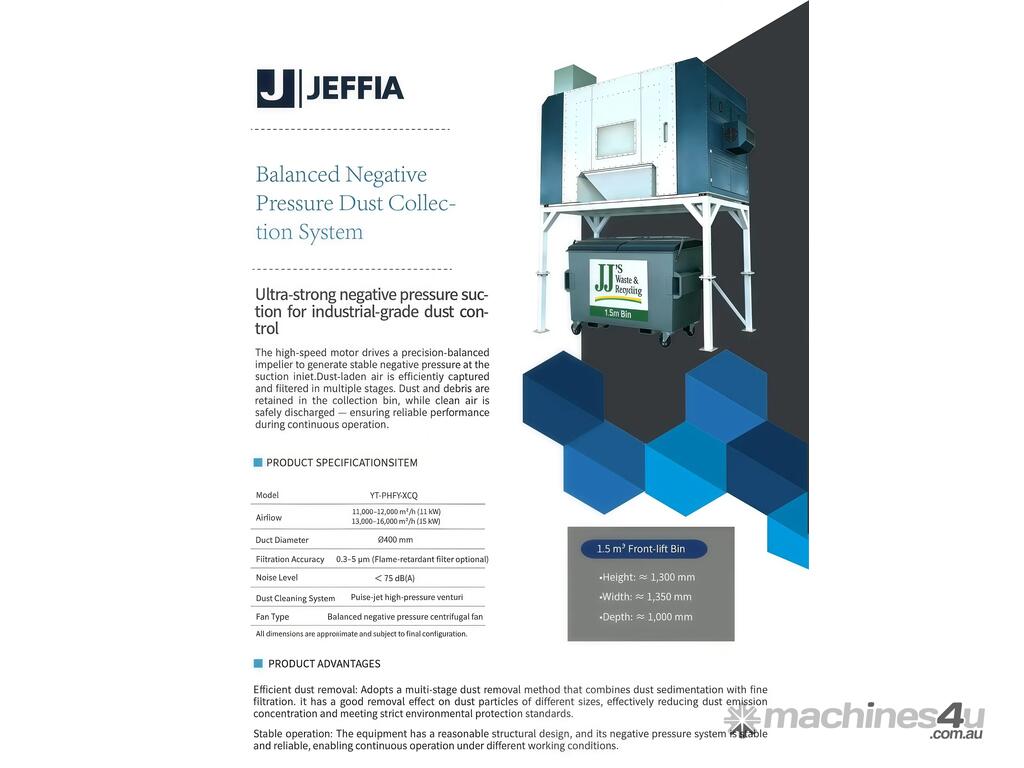

Model YT-PHFY-XCQ. Airflow range from 11,000 to 21,000 m³/h depending on configuration. Motor power options include 11 kW, 15 kW, 18.5 kW and 22 kW. Filtration accuracy 0.3-5 ?m, with optional membrane-coated flame-retardant filter material. Noise level below 75 dB. Main unit size approx. 3.5 m L x 2.1 m W x 2.5 m H. Round 400 mm inlet. Suction inlet size and quantity can be customised to suit site requirements.

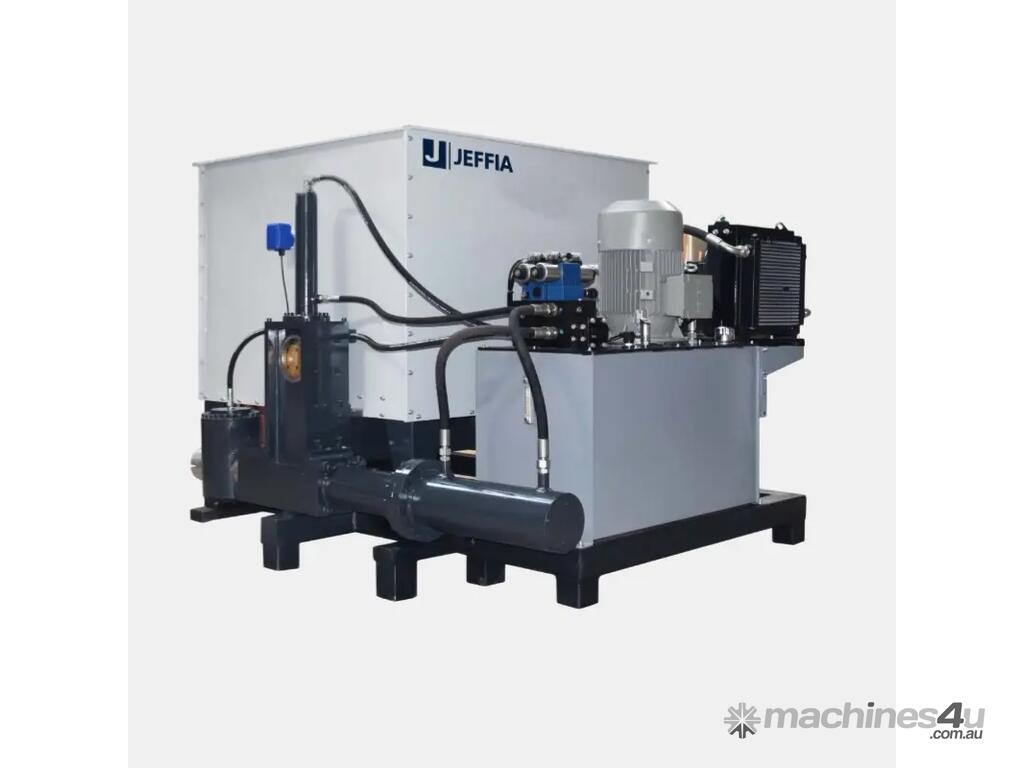

Can be paired with a briquetting or compacting unit to support closed-loop dust handling and reduce workshop dust levels. Final specifications may vary depending on selected configuration.
