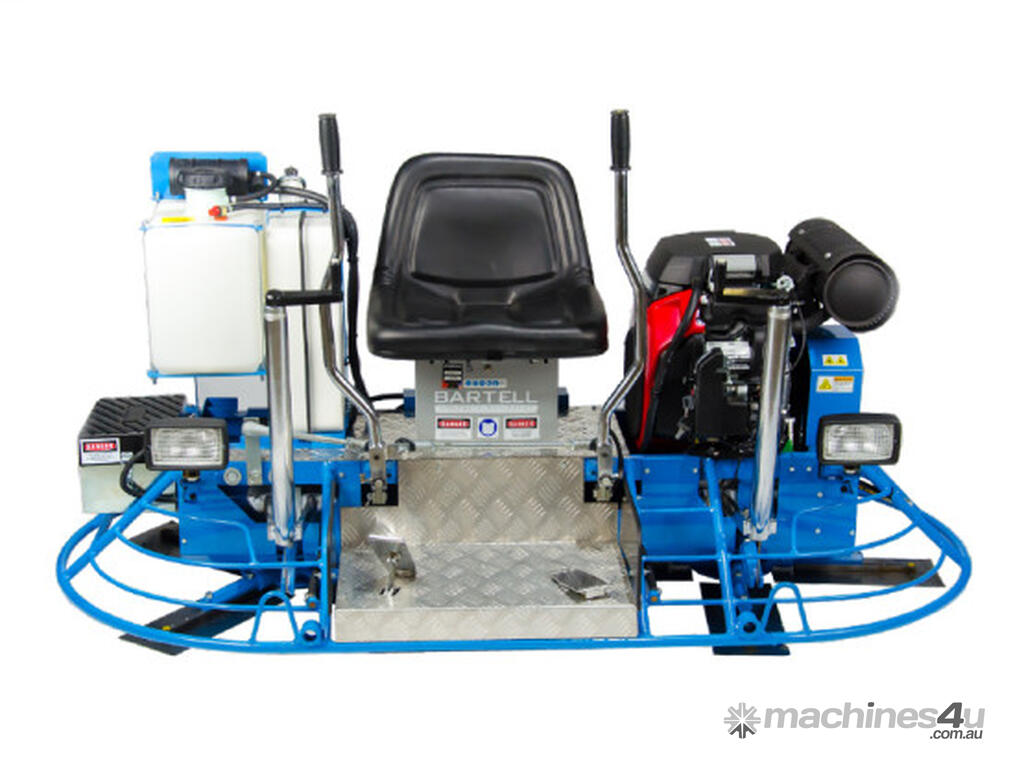

At just 330 kg , and very compact dimensions, this unit can be transported with ease and placed on a slab very early in the process. Great for getting into tight areas and for use where stickups are present. The BXR 836 is also great for multi-story applications due to its ease of hoisting. With its low profile, this unit gives the best sight-line of the slab and you can feel the concrete as it progresses in its finish transition. Also, a perfect jump to riding, for those currently only walking.
Features:
-> Heavy-duty gearbox provides a longer life and less maintenance.
-> Twin stick, multi-directional levers deliver immediate, responsive steering.
-> Low rider version.
-> Non-overlapping design for floating/panning.
-> Dual 4 blade trowel standard.
Specifications:
Type: Panning & Finishing
Power Source: Petrol – Honda GX690
Power Output: Petrol – 22hp (16kw)
RPMs: 140
Float Blade Size: 25cm x 36cm (10” x 14”)
Finish Trowel Size: 15cm X 36cm (6“ X 14”)
Combination Blade Size: 20cm x 36cm (8” x 14”)
Float Pan: 36.5” (93cm)
Operating Weight: 350 kg
Length: 1920 mm
Width: 980 mm
Height: 1040 mm
Weight: 330 kg
