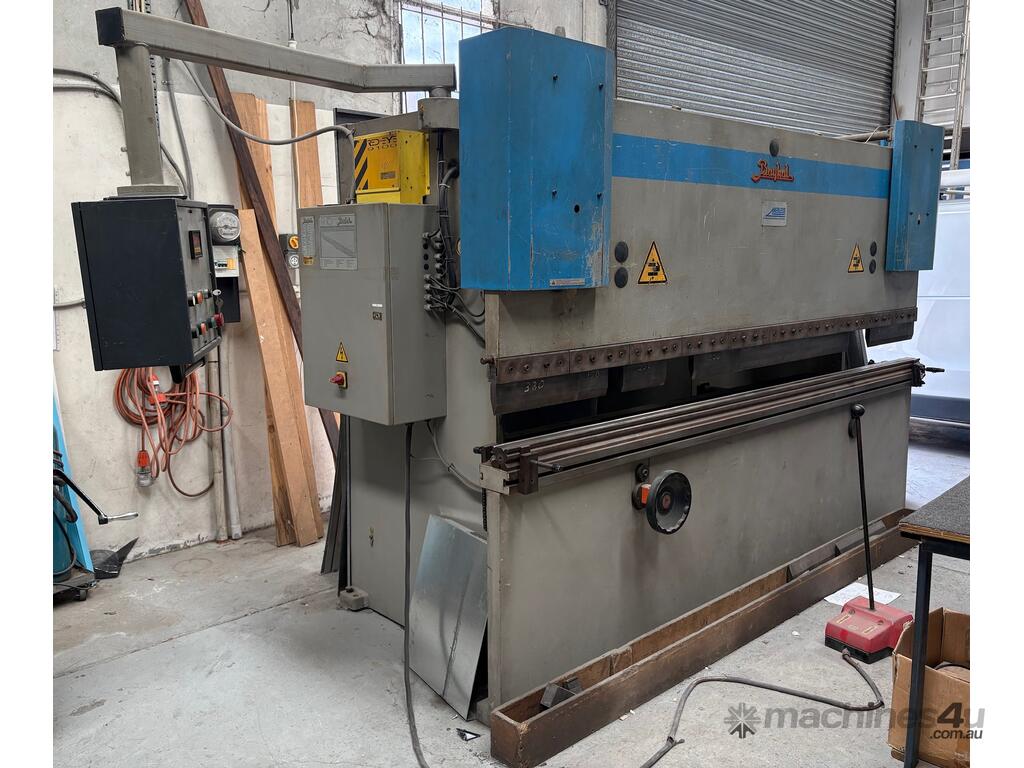

Baykal 90T x 3200mm Hydraulic Press Brake – Workshop Closing

Baykal hydraulic press brake available due to workshop closure.

Machine is currently installed, powered and operational in Padstow NSW. Inspection welcome by appointment.

This is an industrial 6-tonne machine — not a hobby press — suited to fabrication shops, trailer manufacturers, HVAC ductwork, general engineering and light to medium structural work.

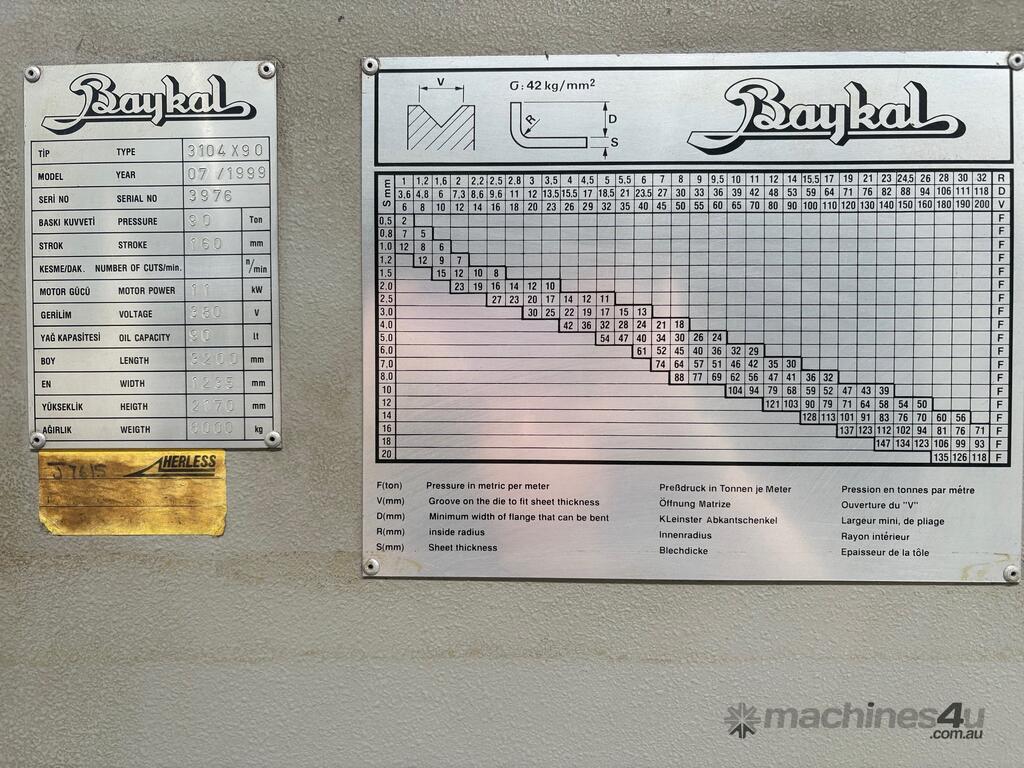

Specifications:

Make: Baykal
Model: APH 3104 x 90
Year: 1999
Capacity: 90 Ton
Bending Length: 3200mm
Stroke: 160mm
Motor Power: 11kW
Voltage: 380V
Oil Capacity: 90L
Machine Weight: Approx. 6000kg
Dimensions: 3200mm (L) x 1235mm (W) x 2170mm (H)

Tooling Included:

Standard top punch
V-dies currently in use for sheet metal work
(Buyer inspection encouraged to confirm tooling suitability)

Machine presents well for its age and has been used primarily for HVAC and light-gauge fabrication.

???? Also Available (Same Workshop)

Due to full workshop closure, the following equipment is also available:

Pacific Hydraulic Guillotine – 3200mm, 3mm capacity
Pacific Manual Folder
Pittsburgh Lock Seamer
Sheet Metal Roller
TECNA Spot Welder
MIG Welder
Bench Grinder
Work benches, racks & tooling
Duct stock & fittings
Would consider package deal for multiple items.

Location:

Padstow, NSW

Machines must be cleared early March. The purchaser is responsible for the safe and suitable lifting, loading and transport of this asset at their own cost.

Serious enquiries only. Inspection available.
