Suit New Buyer
New Price; $26,450 + gst
Made In Turkey

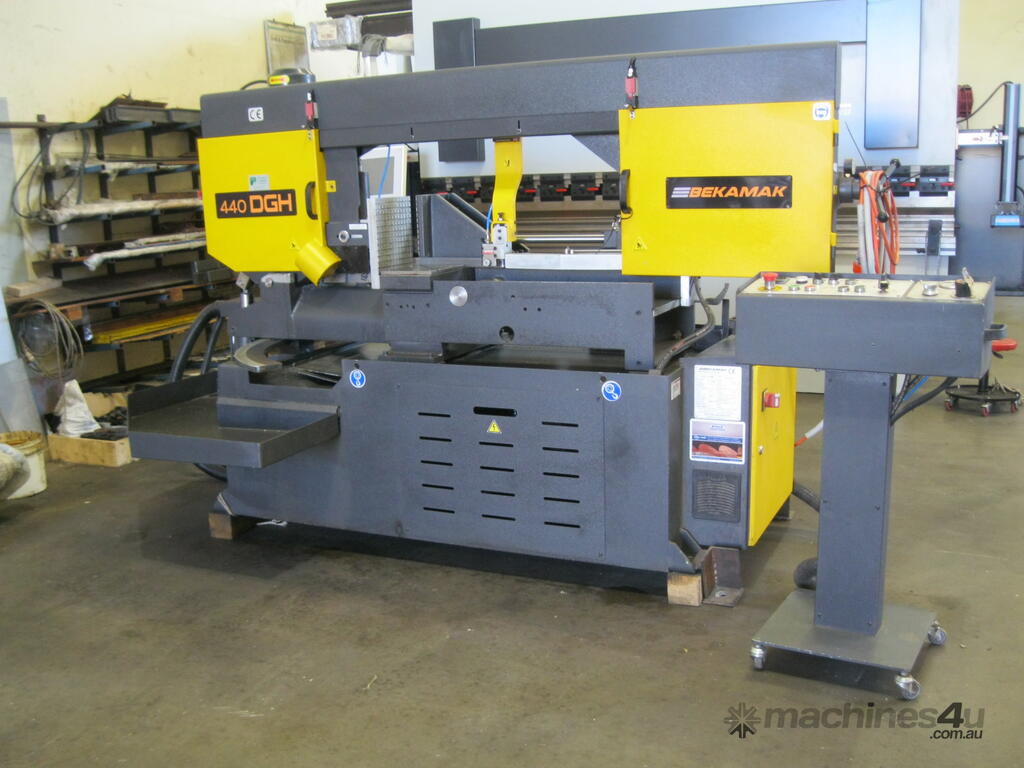

BMSY 440 DGH
Swivel Head
Dual Mitre, Semi Automatic Bandsaw
Inverter Variable Cutting Speeds,
Dual Mitre Cuts Up To 60º, Hydraulic Vice Clamping & Hydraulic Mitre Clamping
600 x 440mm (W x H) Rectangle Capacity
440 Round 90 deg, 410 Round 45 deg
Small one person workshop.
Bought in 2024. Still on first Bandsaw Blade.
As New
Hardly used.
Features
Large 440mm round & 600 x 440mm (W x H) rectangular capacity
Swivel head dual mitre between +60° and -60° for easy angle cutting without moving material
Digital readout display mounted on pendant to measure angles for accurate mitre cutting
Manual swivel saw frame with hydraulic clamping system
Inverter controlled infinitely variable blade speed 20-100mpm
Semi-automatic operation, saw head returns to open height position after finishing the cutting process
Hydraulic operated system for raising and lowering the cutting beam
Full stroke hydraulic clamping vice provides quicker set-up of jobs
Hydraulic vice is adjustable to slide left & right side of the blade to suit multiple applications
Adjustable hydraulic feed cutting rate for multiple applications
Sensitivity cutting pressure dial
Manual hydraulic blade tension device with gauge
Blade breakage sensor fitted that automatically shuts machine off
Built-in coolant system for maximum cutting efficiency
Roving control panel with Emergency Stop
Heavy duty steel fabricated frame, swivel centre & base
Heavy duty cast-iron blade wheels
Rigid cast-iron guide arms
Roller bearing with carbide blade guide system provide additional blade support for accurate cutting
Wire wheel brush to clean swarf from blade
Quality Hydro-pack hydraulic system
Industrial duty gearbox driven by a 3kW / 4hp 415V motor
All electrical components are of European quality supplied by Schneider Electric, Omron & Relpol
Facebook
Twitter
Email a Friend
CLONTARF, QLD - Delivers Nationally
