Belt Linisher BG-6, Belt Grinder for Metal Polishing, Dual Speed Linisher Grinder

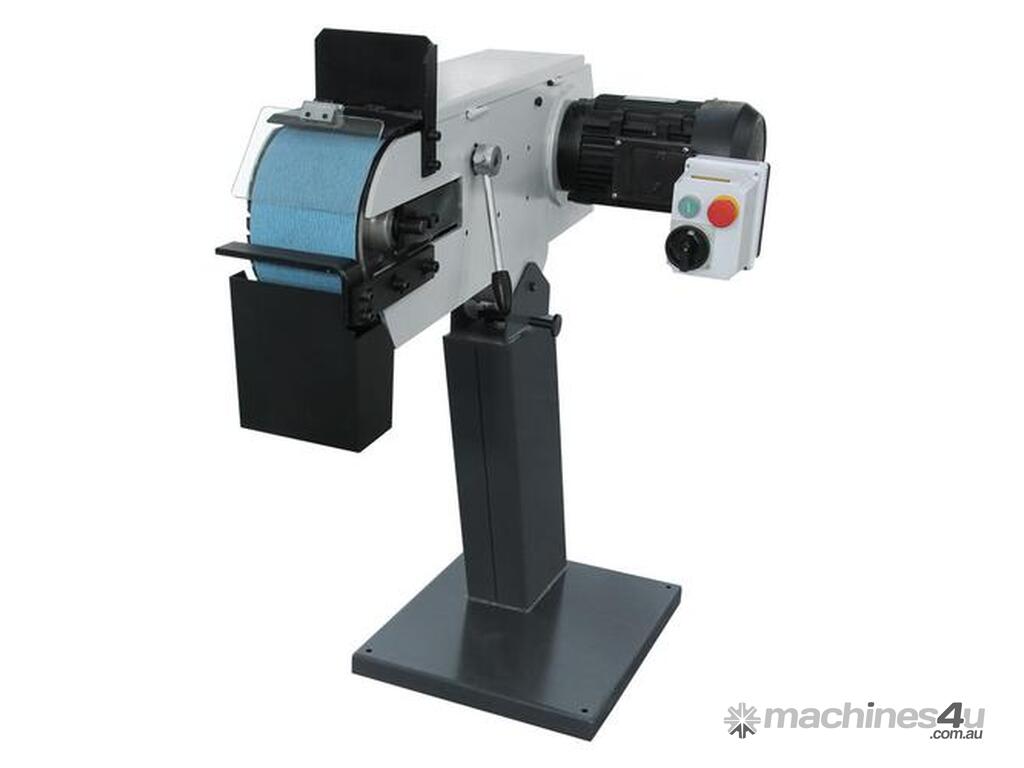

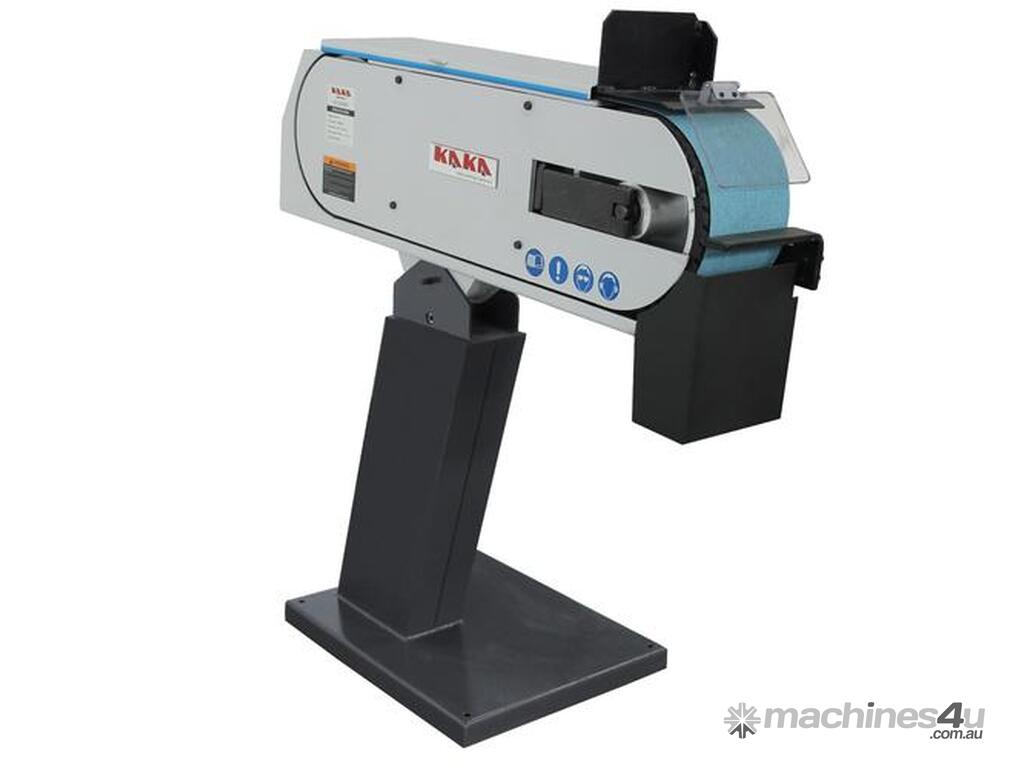

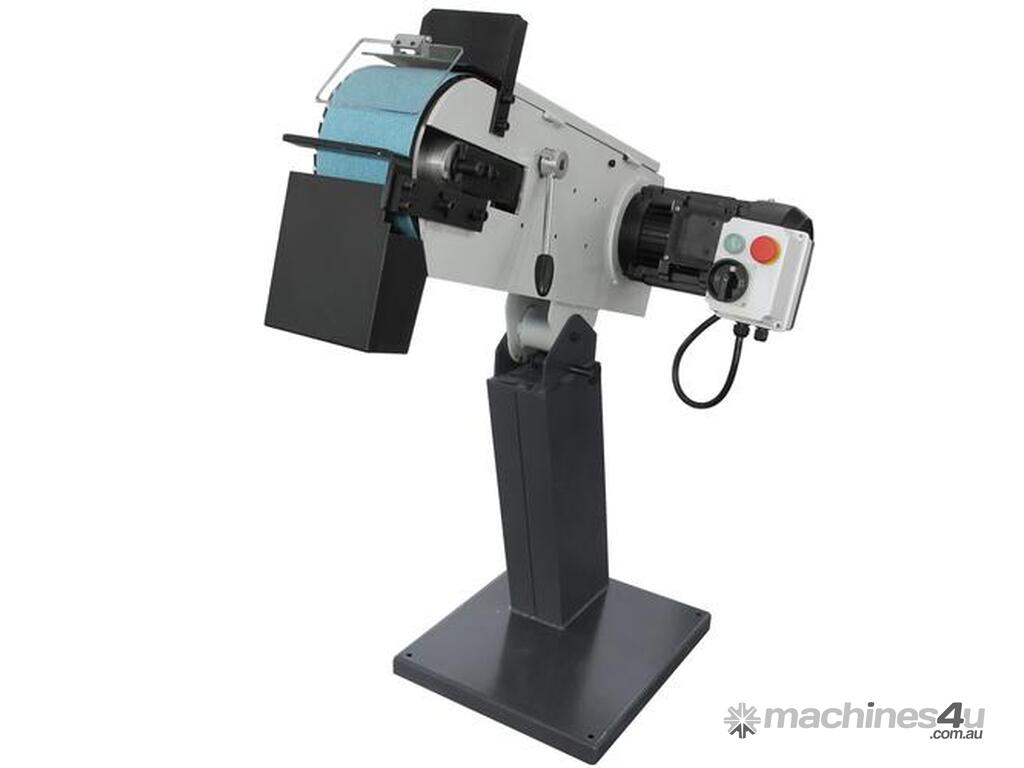

KANG Industrial BG-6 Linisher Belt Grinder

The KANG Heavy Duty Linisher 2000mm x 150mm 3 Phase (Model: BG-6) is a robust, industrial-grade belt grinder designed for high-volume professional workshops, fabrication shops, and manufacturing environments. Powered by a powerful 2.2/2.8 kW 3-phase motor on 415V, it features switchable belt speeds (17m/sec, 34m/sec.) for versatile materials removal, low speed for cool linishing on heat-sensitive materials,  fast speed for aggressive material removal on metals, making it ideal for grinding, deburring, beveling, and finishing large workpieces. The machine uses extra-long 2000 x 150 mm belts for extended run time between changes and a wide contact area for flat grinding. A fully guarded design with hinged platen access flap, adjustable and swivelling tool rests, front spark catcher and dust chute, rear 100mm dust extraction port, quick-release belt tension for fast changes, simple tracking adjustment, front eye shield, and a heavy-duty delta pedestal stand for stable floor mounting.

Two-Speed Versatility for Precision Polishing Work. Switchable speeds (17m/sec, 34m/sec) allow cool, burn-free grinding on stainless steel and heat-sensitive alloys at low speed, or fast removal on mild steel at high speed—essential for high-quality finishes in demanding welding and railing industries.

Industrial Durability and Efficiency Belt Linisher. Powerful 3-phase motor maintains constant RPM under load for continuous production; long 2000 mm belts reduce changeovers and costs, while low vibration minimises operator fatigue during long shifts in hot workshop conditions.

User-Friendly and Safe Design Belt Grinder. Patented quick-tension system, adjustable height for ergonomic setup, integrated swarf collection, and dust port connection promote a cleaner.



Features

Runs on the 415V-3PH motor, 2.2/2.8 kW

Belt size: 75 x 2,000 mm

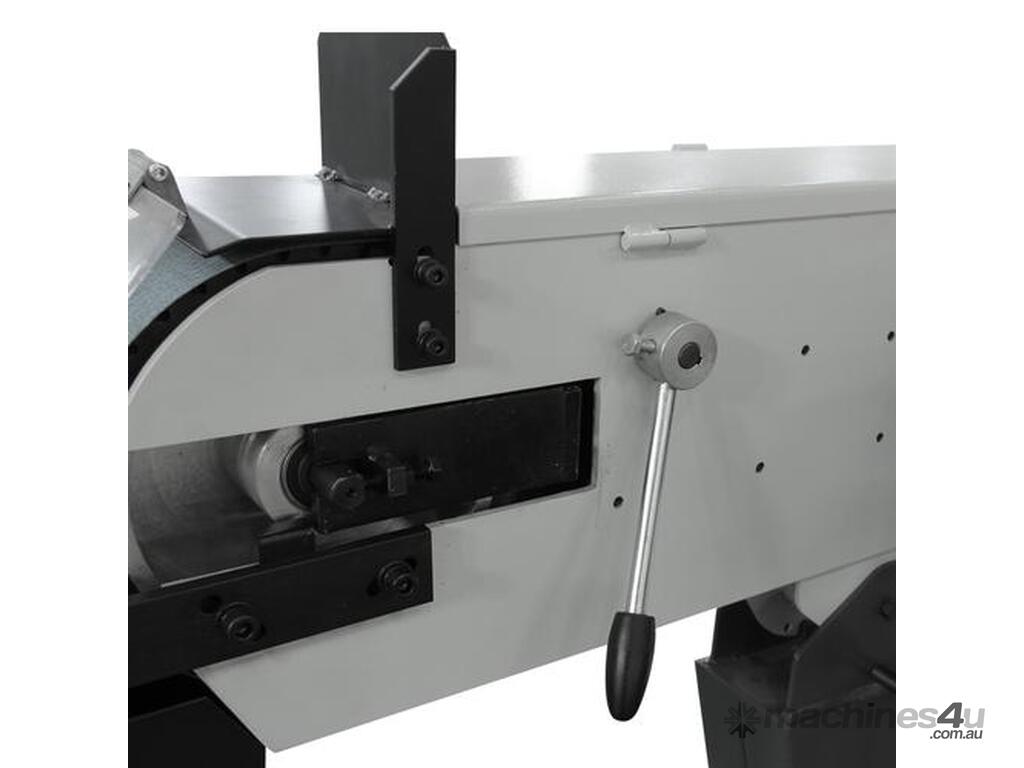

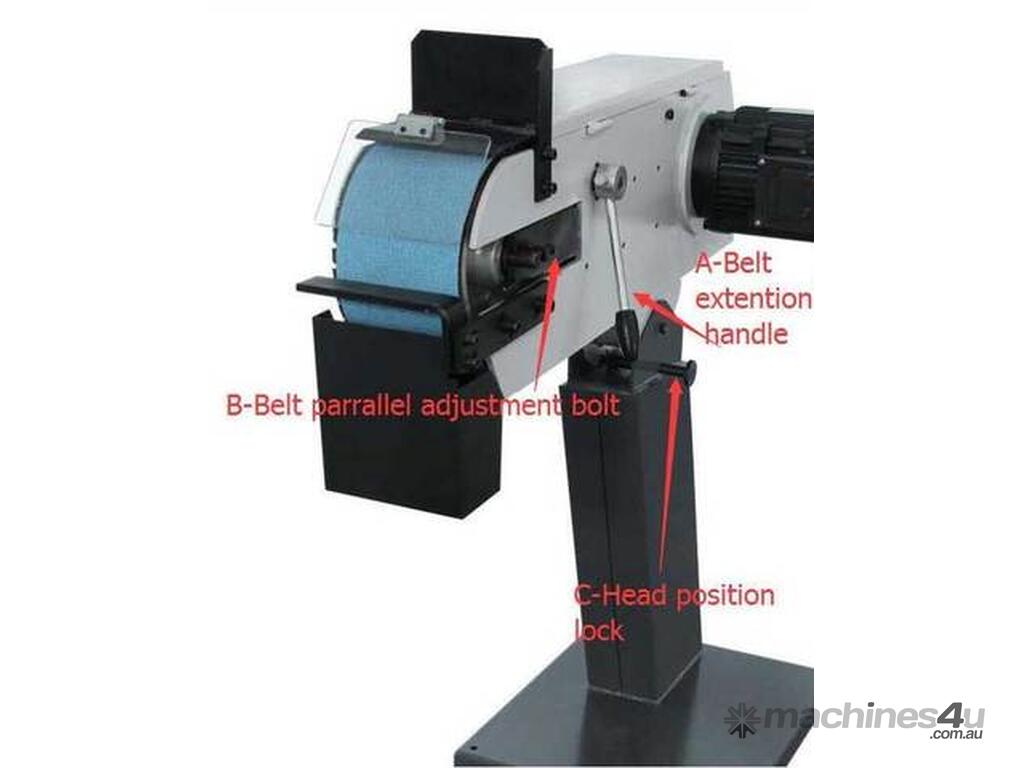

Patented belt tensioning system for quick, tool-free changes and precise tracking

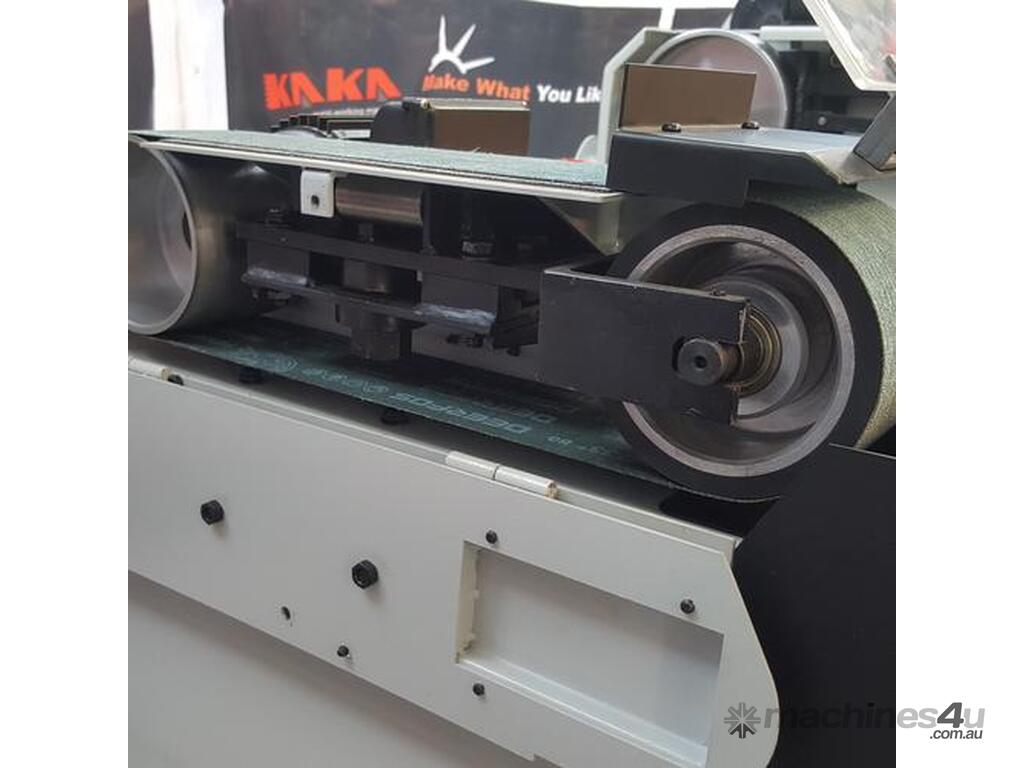

Polyurethane-coated drive wheel for superior belt grip

Independently adjustable working height for ergonomic setup

Detachable swarf collector and connection for external dust extraction

Low-vibration design for reduced operator fatigue

Robust construction with constant RPM maintenance under load

Specifications
SKU 189002
Mode BG-6
Motor power 2.2/2.8 kW
Contact wheel 250x150 mm
Belt size 150x2000 mm
Belt speed 17m/sec, 34m/sec
Packing size 114x63x65 cm
N.W./G.W. 107/135 kg
