Belt and Disc Linisher BTM250, 240V Linisher Grinder, Disc Sander

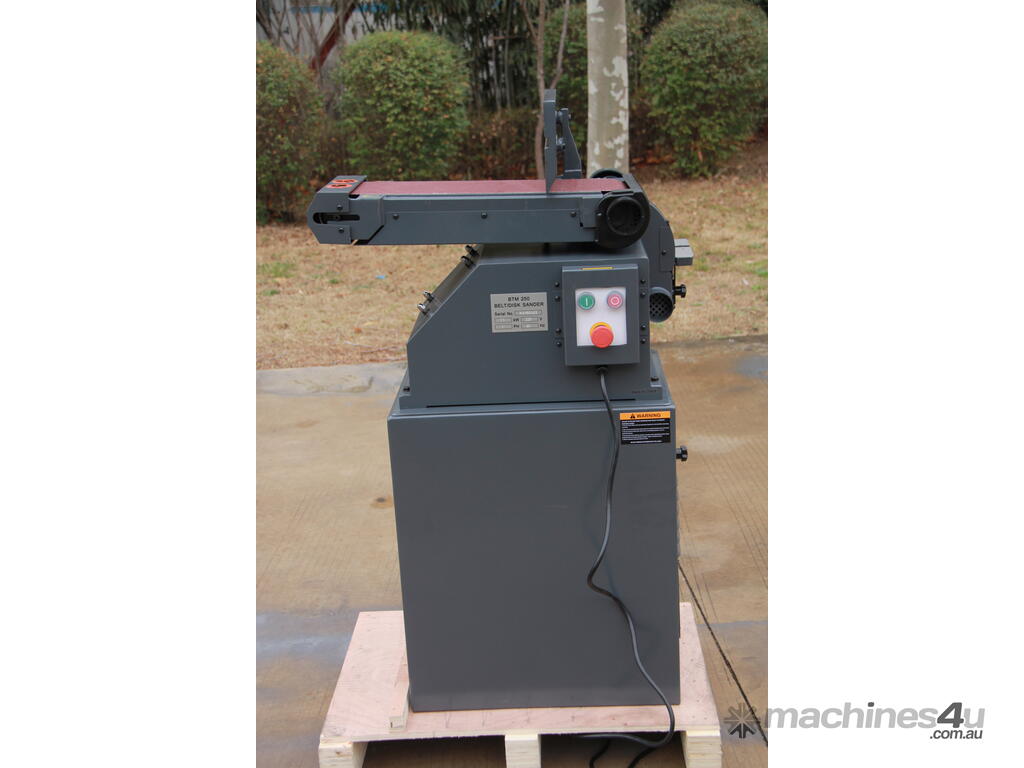

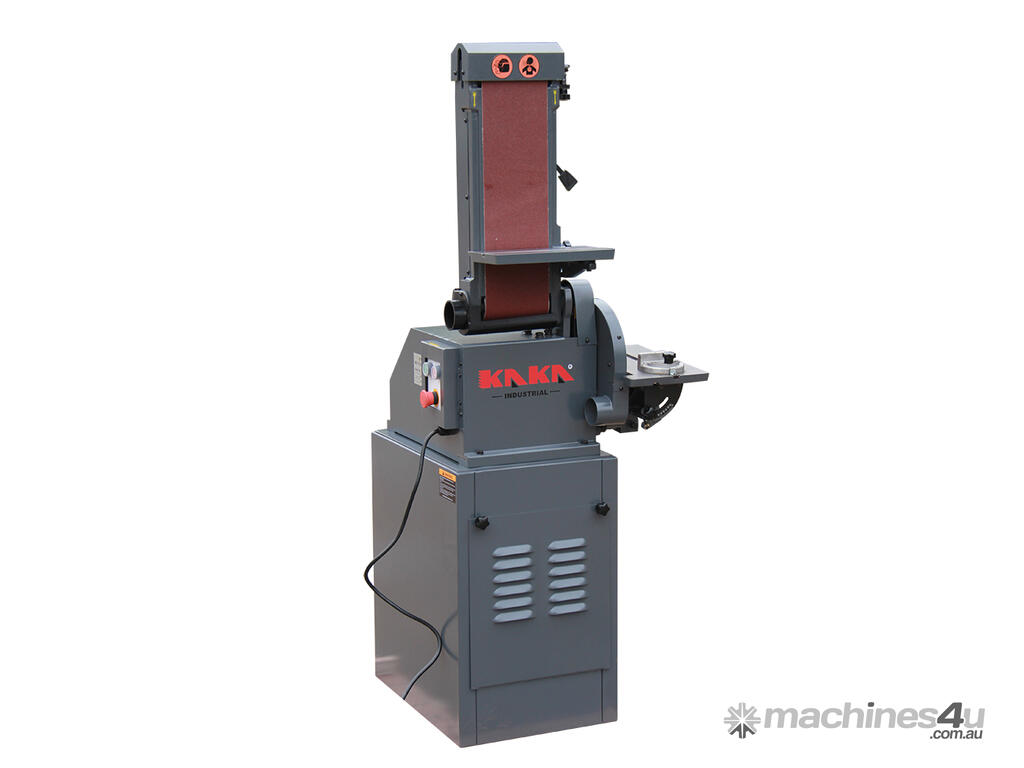

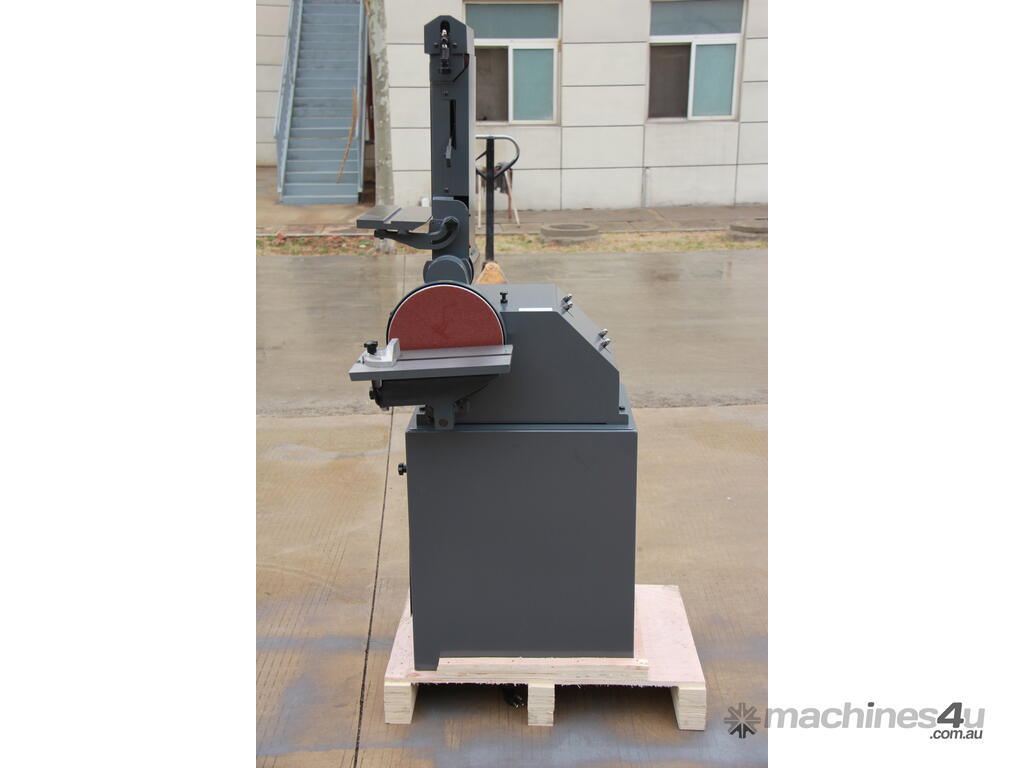

Belt & Disc Linisher BTM-250

The KANG Belt Disc Linisher BTM-250 is a premium, space-saving combination abrasive belt and disc grinder designed for professional metalworking, fabrication, and workshop use. This 2-in-1 machine combines a 150x1220 mm vertical belt grinder with a 250mm dia. disc grinder, making it ideal for deburring, chamfering edges, removing weld slag, smoothing surfaces, sharpening tools, and finishing metal parts. It features a robust cast-iron base and work tables for minimal vibration and long-term durability, along with a powerful 1.1 kW fan-cooled motor running on 240V single-phase power.

Space-Saving 2-in-1 Design Linisher. Combines belt and disc functions into one compact unit, ideal for smaller workshops, garages, or mobile setups where floor space is at a premium.

Versatile Metalworking Performance. Handles everything from deburring sharp edges on steel/aluminium, chamfering for welding prep, to surface finishing and tool sharpening—perfect for fabrication, mining equipment repair, automotive, and agricultural sectors.

High Build Quality & Durability Polishing Machine. Construction with cast-iron components ensures it withstands heavy daily use and variable workshop conditions, offering better longevity.

User-Friendly Linishing Machine.Tiltable tables for easy bevel grinding, built-in vacuum port for dust control, and standard tension/tracking adjustments make it straightforward to operate while keeping dust levels low.

Single-Phase Power Convenience Belt Grinder. Runs on standard 240V, suitable for home, small business, or remote sites without needing expensive 3-phase upgrades.

Features

Powerful 1.1kW motor, 240V single-phase power, and will work in almost any fabrication shop

The abrasive disc grinder rotates at 1750 rpm, and the abrasive grinder rotates at 1380 fpm

A large support table can be tilted up to 45 degrees for a mitre edge

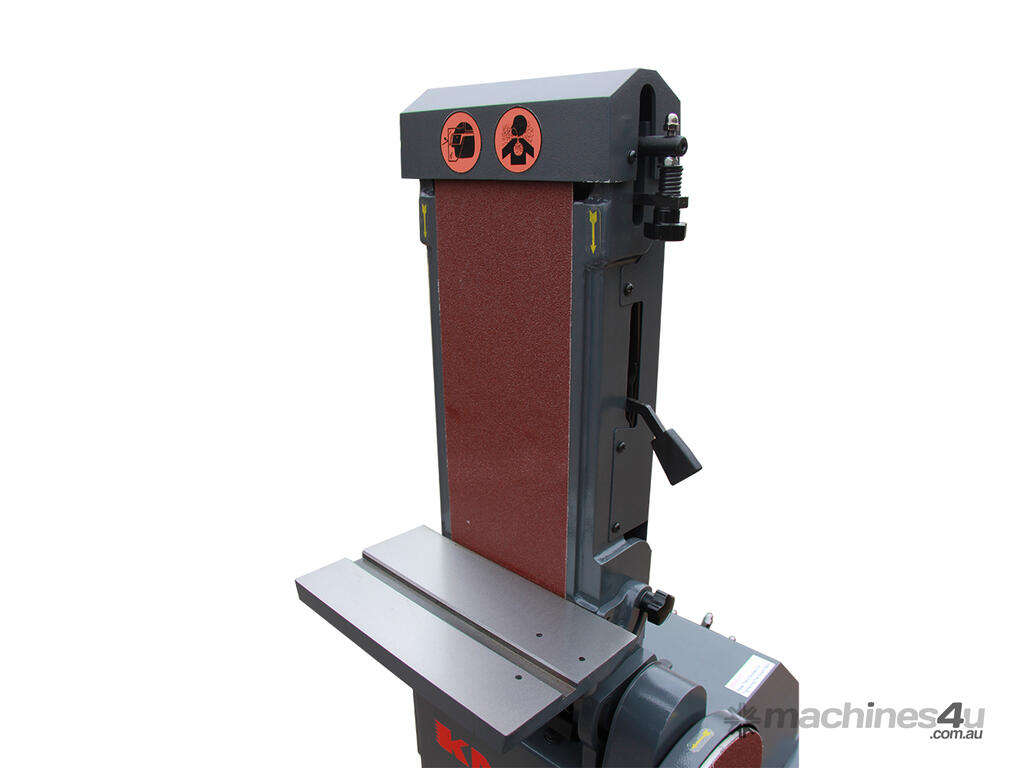

The Belt grinder includes tension control and tracking adjustment.

The belt linished can be used on horizontal and vertical



Specifications
SKU 189007
Model BTM-250
Belt size 150x1220 mm
Blet speed 7m/sec
Table dimension 152x267 mm
Table tilt 45 degrees
Disk diameter 250 mm
Table dimension 190x330 mm
Disk speed 1750 rpm
Chamfer angle 15 degrees
Motor power 1.1kW
Packing size 79x51x114 cm
N.W./G.W. 90/120 kg
