Bench Top Mortise Machine MS-3816, With 4 Sizes Chisel Bit Sets

KANG Industrial MS-3816 Wood Mortising Machine

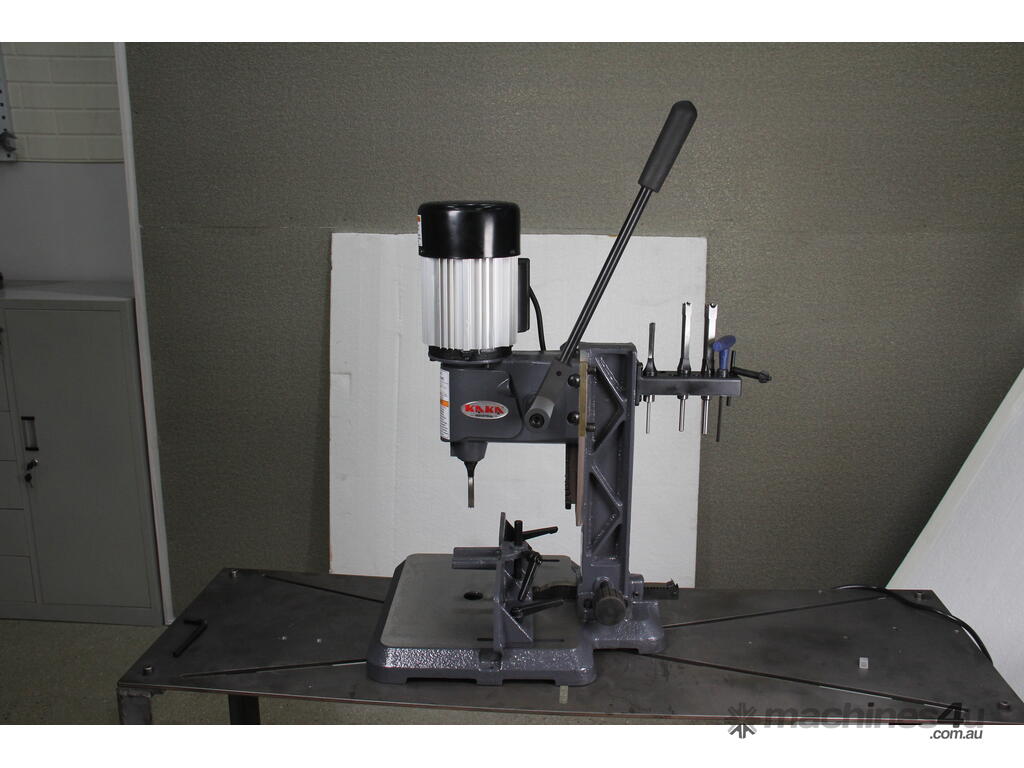

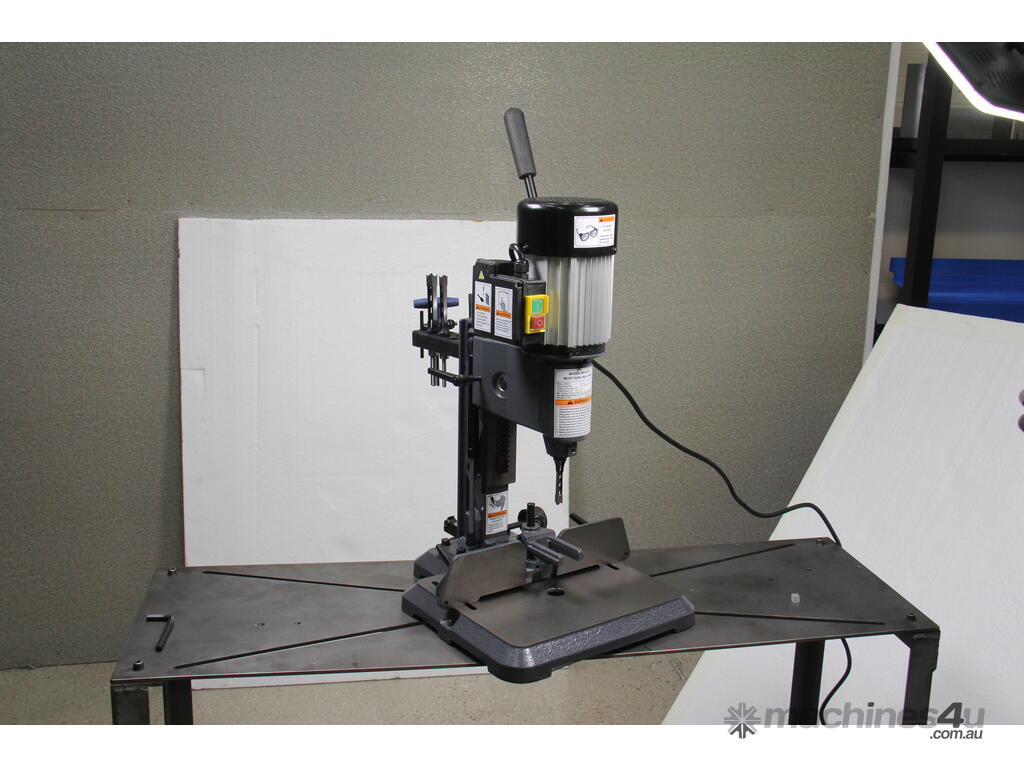

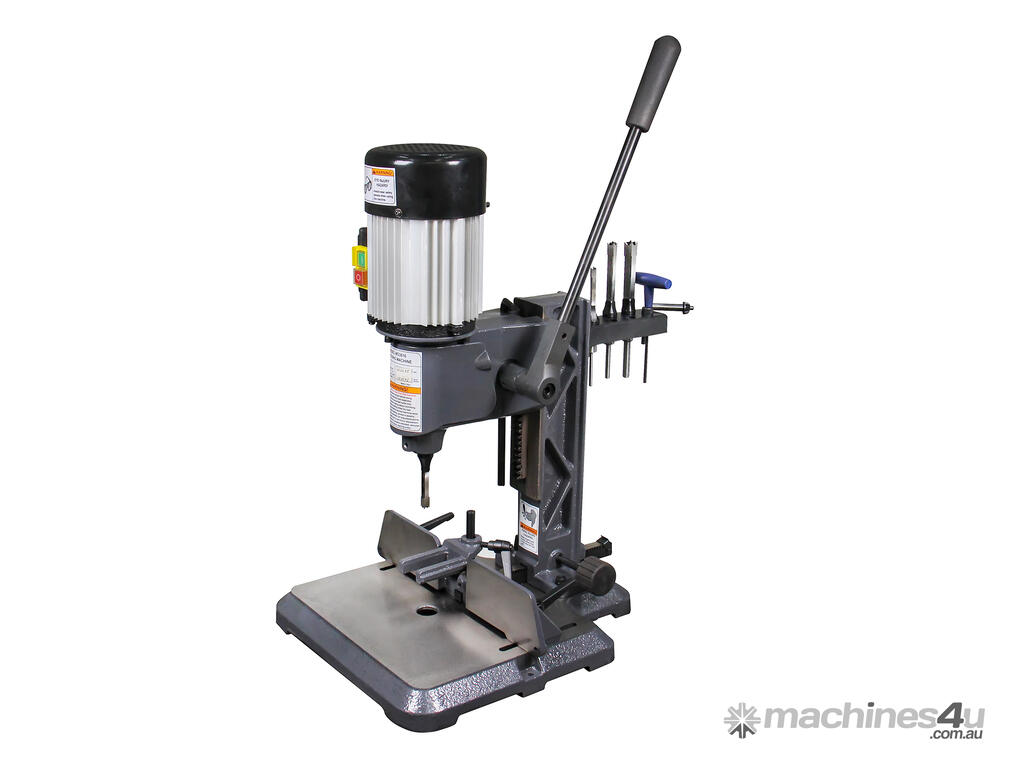

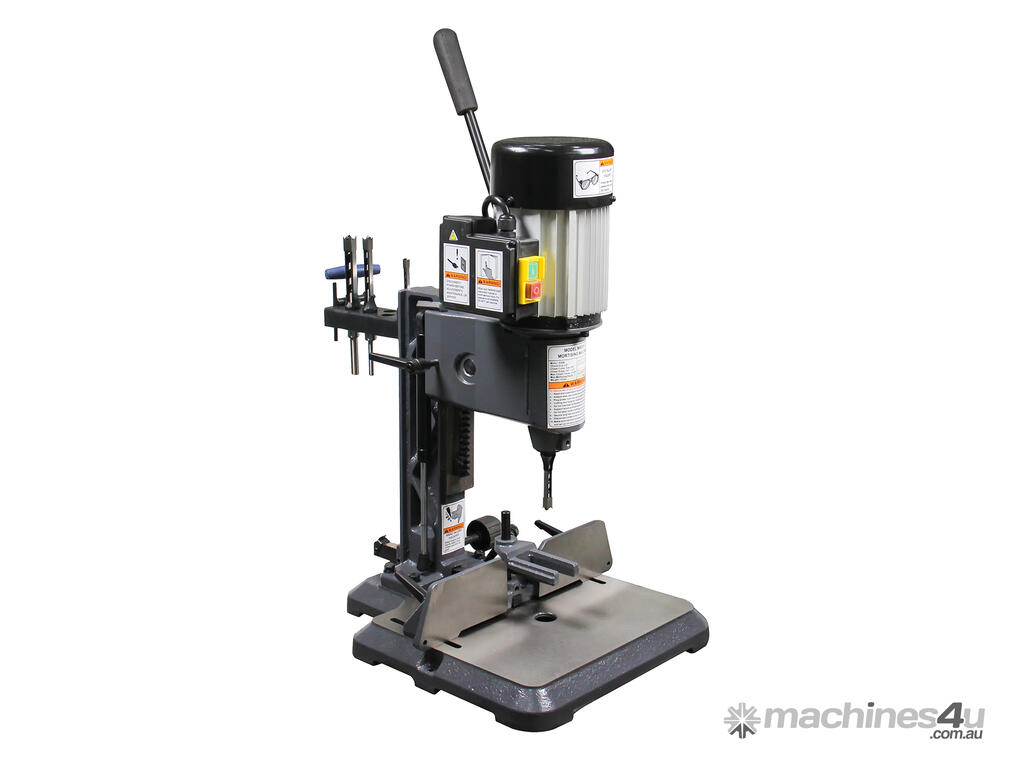

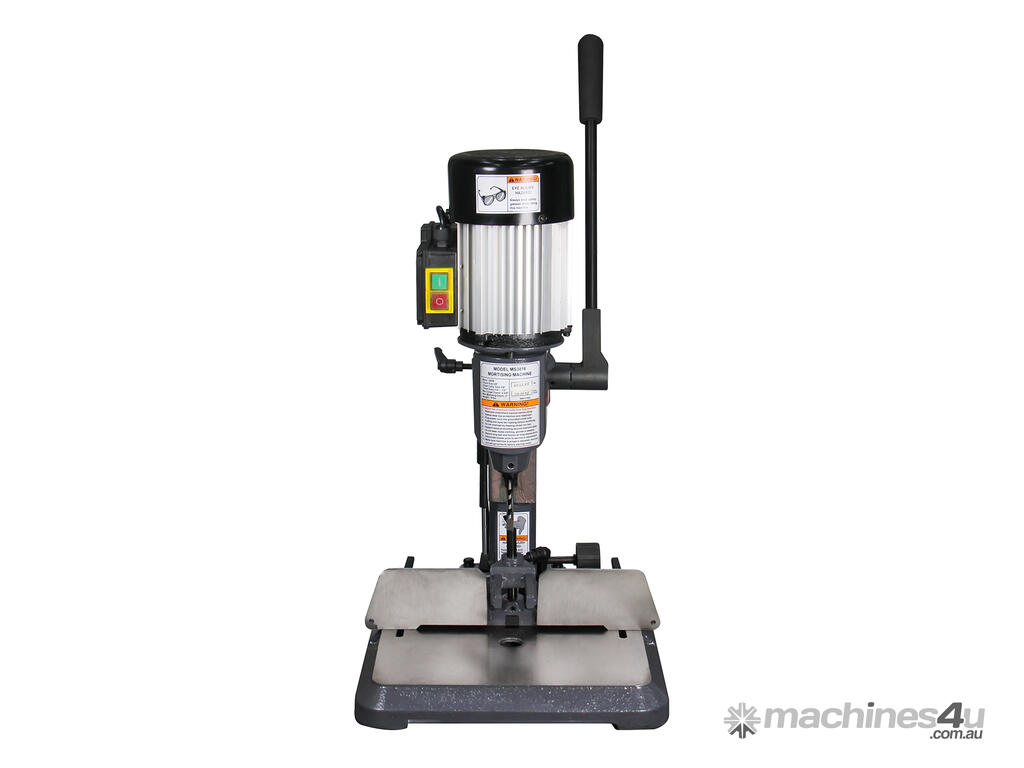

The KANG MS-3816 is a compact yet powerful benchtop hollow-chisel mortising machine designed for precise mortise-and-tenon joinery in any home workshop or small professional setup. Built with rigid cast-iron construction and a dovetailed column, it delivers clean, square mortises up to 12.7mm wide with excellent repeatability.

Precision & Clean Mortises. Rigid cast-iron construction and dovetailed column with adjustable ways ensure rock-solid stability and square, tear-out-free mortises. The rack-and-pinion controls allow smooth, accurate adjustments to the fence and head.

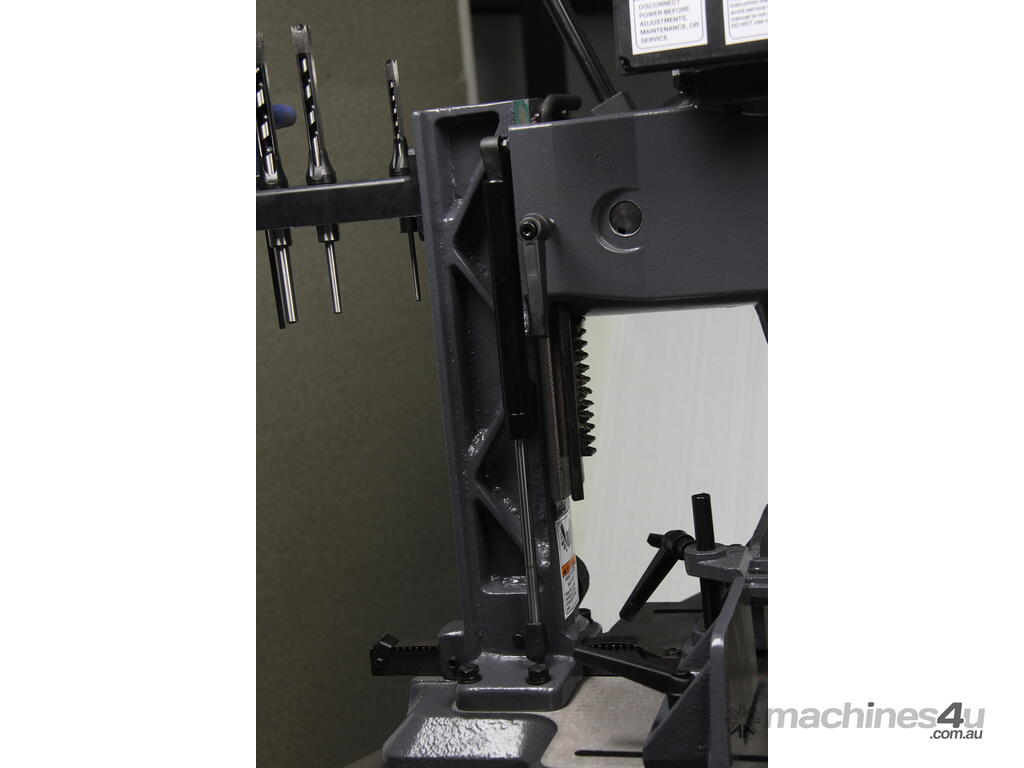

Faster Workflow with Pneumatic Return. The built-in pneumatic strut automatically returns the head after each cut, making repetitive mortising much quicker and less fatiguing, perfect for production work or multiple identical pieces.

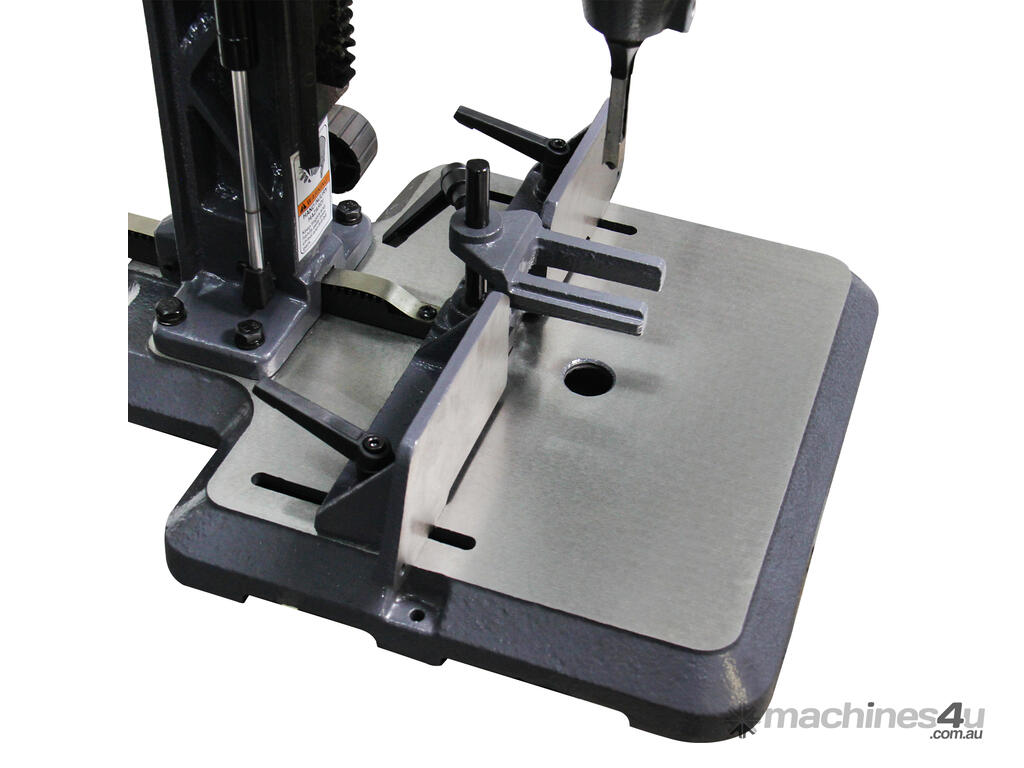

Versatile Capacity. Handles stock up to 150mm thick with the included riser block and 216mm wide. The large table provides excellent support, and the multi-position handle gives comfortable leverage from either side.

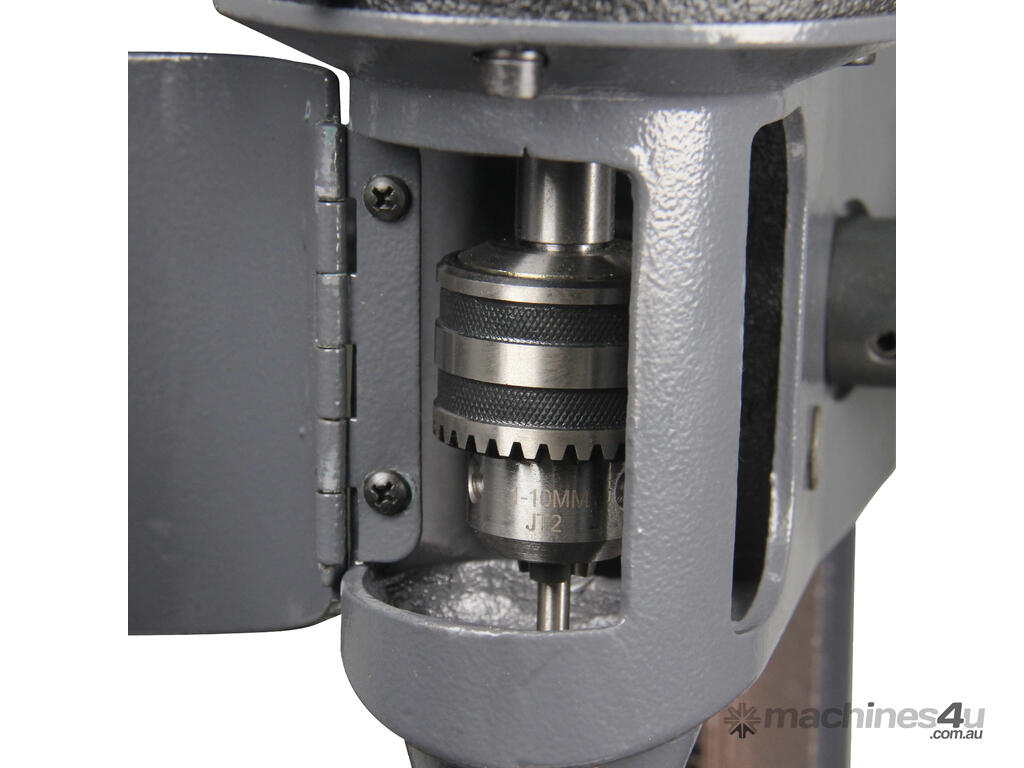

Ready to Use Out of the Box. Comes with four popular-size chisels (1/4", 5/16", 3/8", 1/2") already sharpened and a convenient tool storage rack on the column. Easy-access chuck makes chisel changes fast.

Powerful & Reliable Woodworking Machine. The 1/2 HP motor powers through hardwoods and softwoods without bogging down.

Compact Benchtop Design Mortiser. Takes up minimal space on your workbench while offering features usually found on larger floor models. Great for sheds, garages, or space-limited workshops.

Features

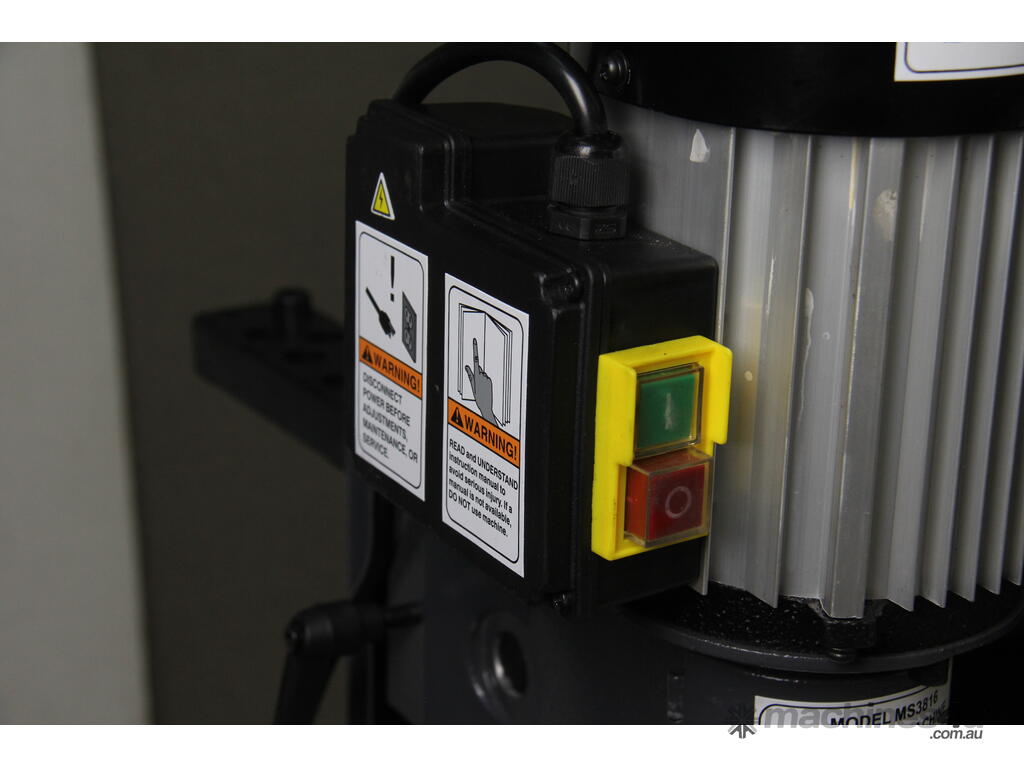

1/2HP powerful motor runs on 240V power, suitable for home use

Quick-action material clamp

Tool storage rack on the back of the column to put the standard chisels

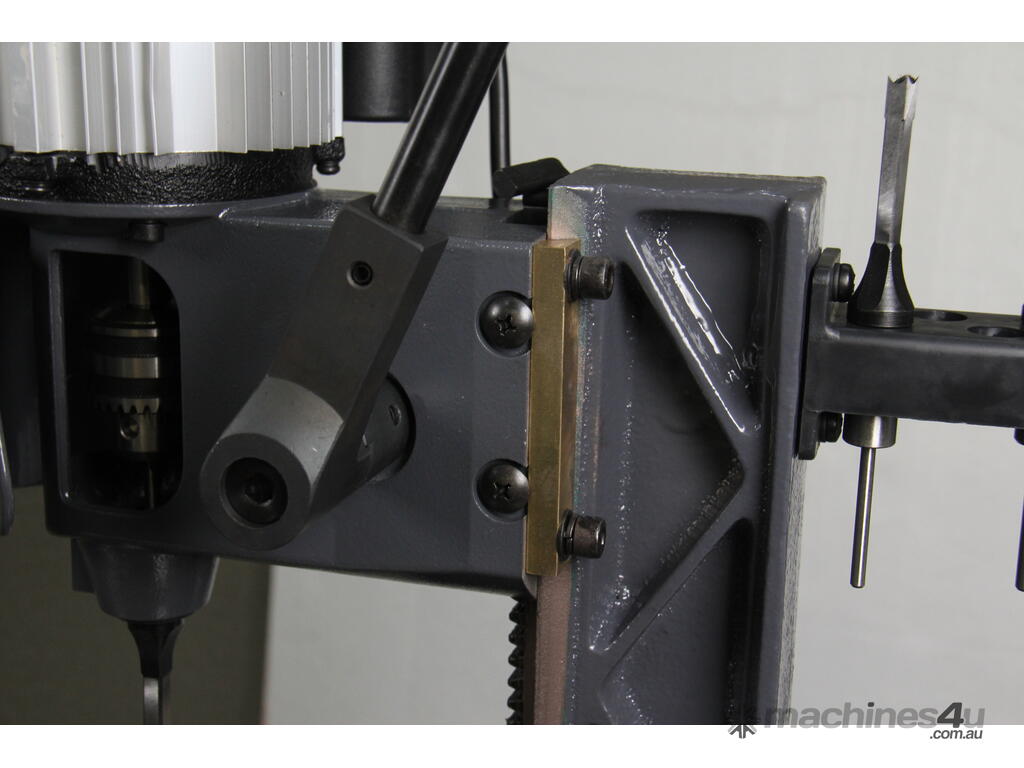

The dovetailed column and head move smoothly

With a riser block for increasing the capacity,  44.5mm height

Adjustable depth stop to get the same mortising depth

Standard with four chisels : 1/4", 5/16", 3/8" and 1/2"

Specifications
SKU 462201
Model MS3816
Motor 1/2HP,  0.375 kW
Spindle speed 1440 rpm
Spindel taler JT #2
Spindel travel 83 mm
Chuck size 10 mm
Collar size 16 mm
Max. stock width 216 mm
Max. stock thickness 153 mm
Max. mortising depth 76 mm
Max. chisel travel 118 mm
Packing size 67x25x34 cm
N.W./G.W. 35/41 kg
