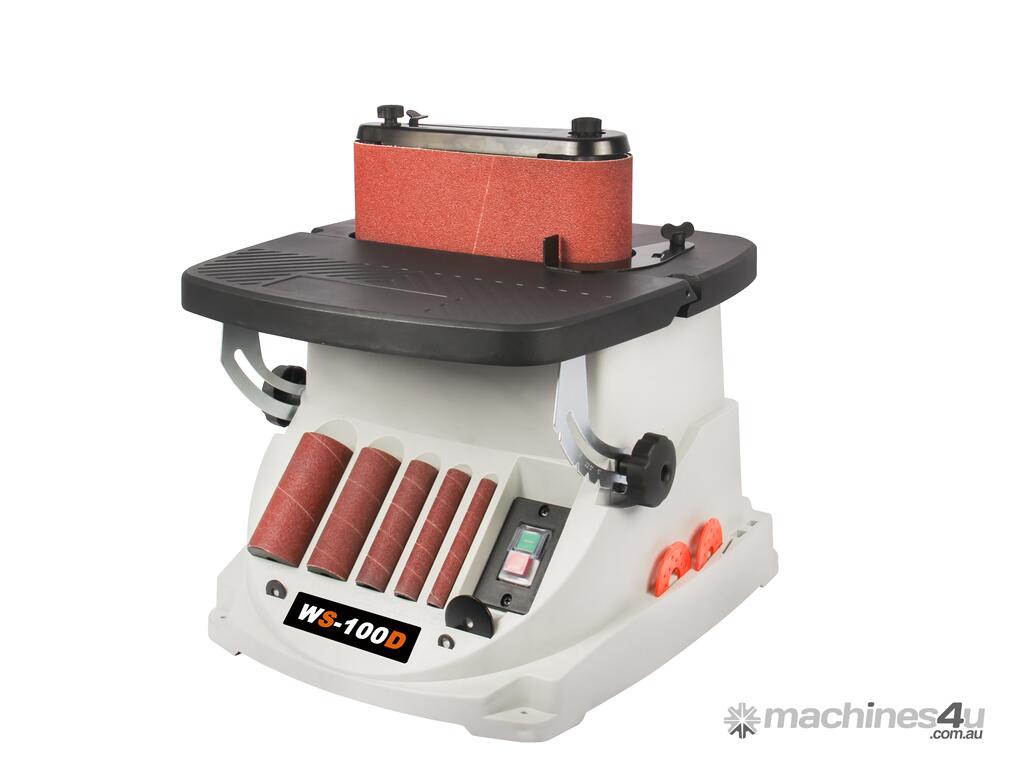

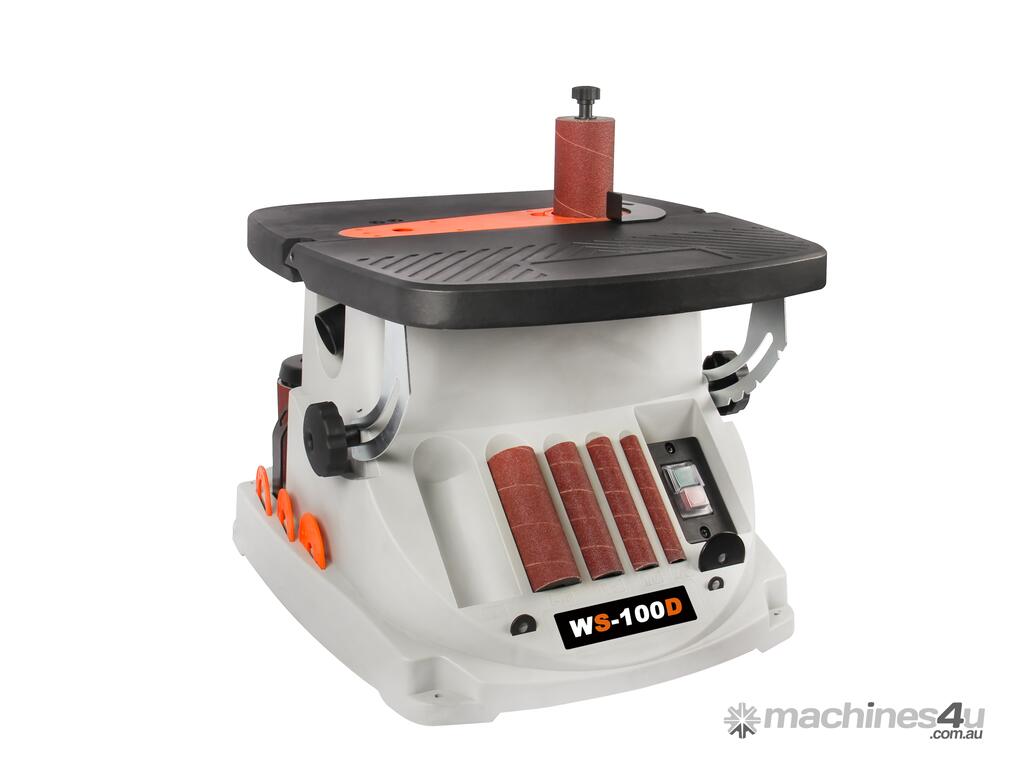

Benchtop Oscillating Belt Spindle Sander WS-100D

2-IN-1 Benchtop Oscillating Belt Spindle Sander WS-100D

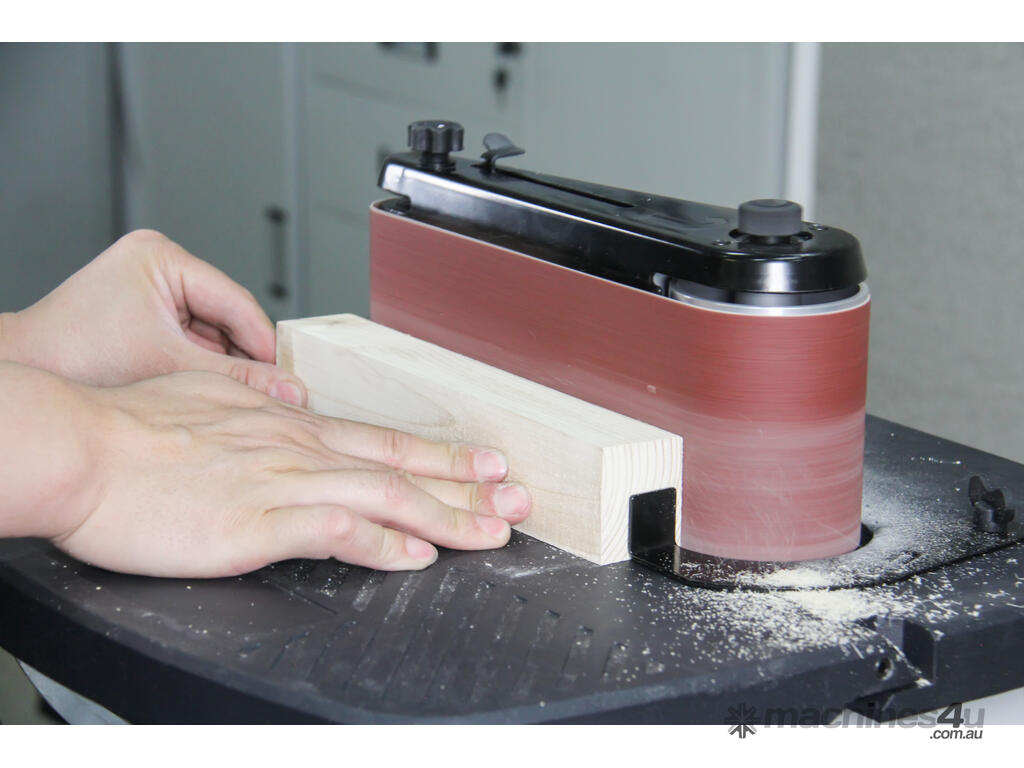

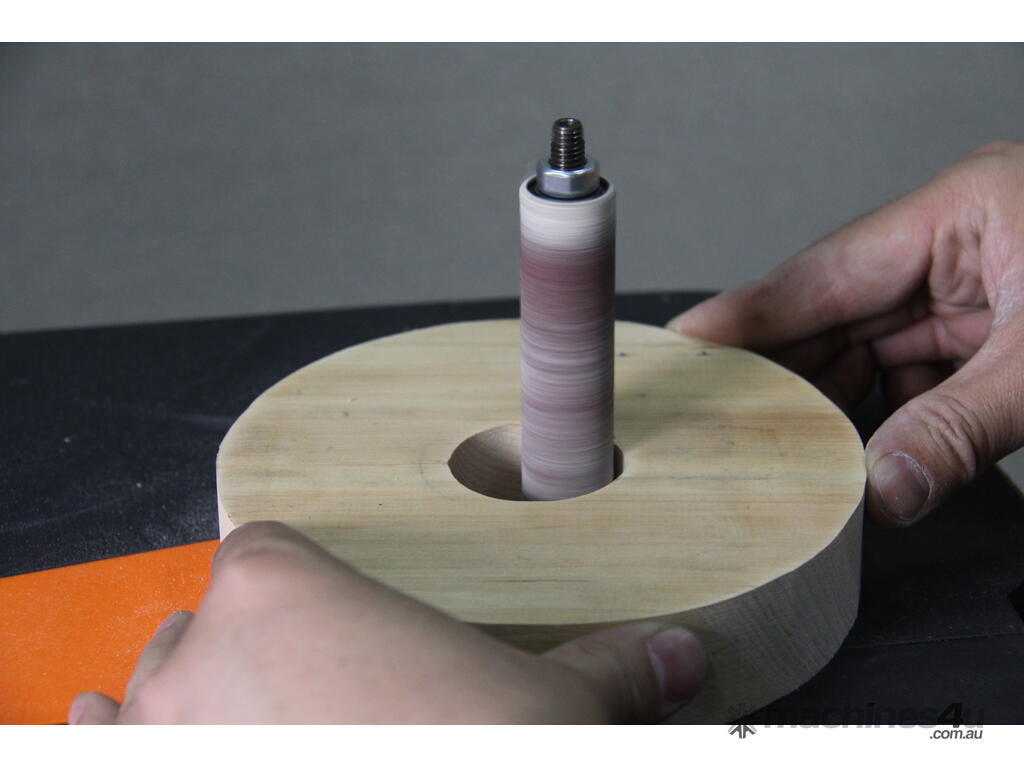

The 450W Oscillating Belt & Spindle Sander WS-100D is a dual-purpose woodworking tool that combines belt and spindle sanding capabilities in a compact, benchtop design. Powered by a robust 450W motor, it operates at spindle speeds up to 1900 RPM and belt speeds up to 480 m/min, with an oscillating action of 58 oscillations per minute and a 16mm stroke for smooth, scratch-free finishes and extended abrasive life. It features five spindle sanding sizes (13mm, 19mm, 26mm, 38mm, 51mm) with corresponding sleeves, and a 100mm x 610mm sanding belt for versatile applications on curves, edges, and flat surfaces. The large work table tilts from 0° to 45° for chamfering and bevel work, with vented throat plates and an under-table dust extraction channel for efficient dust collection via a 38mm port.

Dual Functionality. Seamlessly switches between a spindle for curved sanding and a belt for straight edges, reducing the need for multiple tools and saving space in compact Australian home workshops or garages.

Oscillating Action. Provides a superior, scratch-free finish while preventing abrasive clogging, ideal for woodworking projects like furniture making or metal finishing in hobbyist or professional settings.

Precision and Versatility Sanding. Tilting table and multiple spindle sizes allow for accurate bevels, contours, and edges, enhancing efficiency for diverse materials and tasks common in Australian DIY and trade applications.

Efficient Dust Management. Built-in extraction features keep workspaces clean, complying with Australian safety standards and reducing health risks from dust in enclosed sheds or shops.

User-Friendly Design.  Quick tool-free conversions, on-board storage, and a safety switch minimize setup time and operator fatigue, making it accessible for beginners and pros alike.

Compact and Durable. Lightweight yet sturdy construction suits mobile use or small spaces, with 240V compatibility for standard Australian power outlets



Features

Runs on 240V 1PH power, with a  450W motor

The spindle & belt sander combo machine can be easily converted

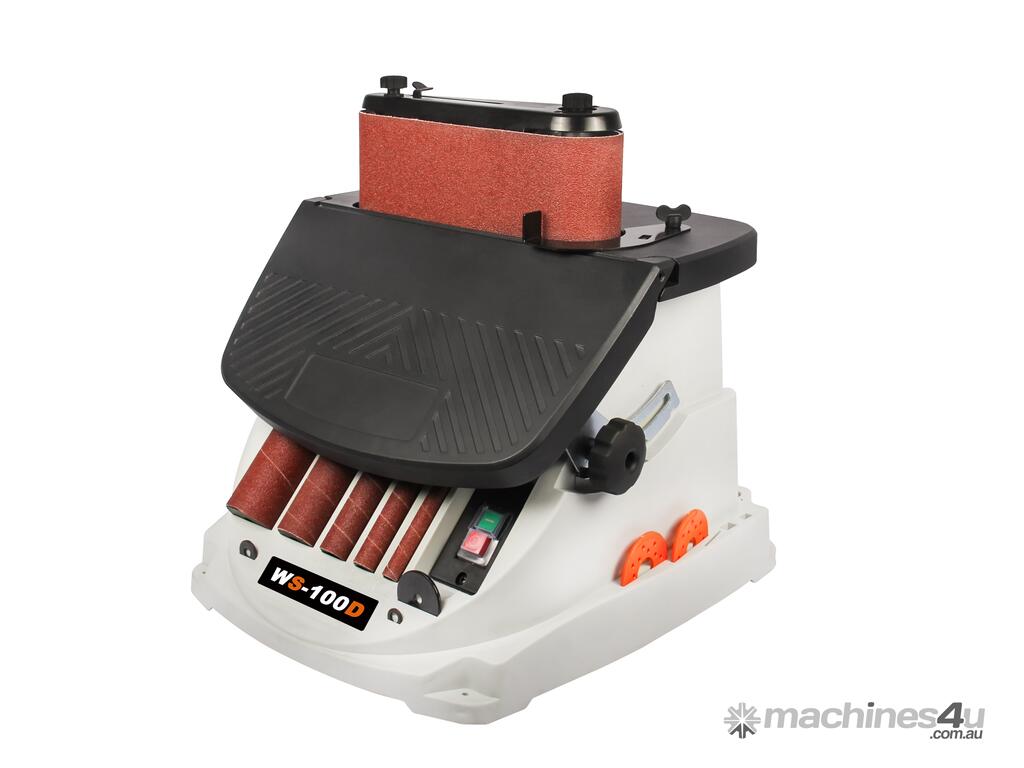

Cast aluminum table, the front section could tilt from 0 to 45 degrees

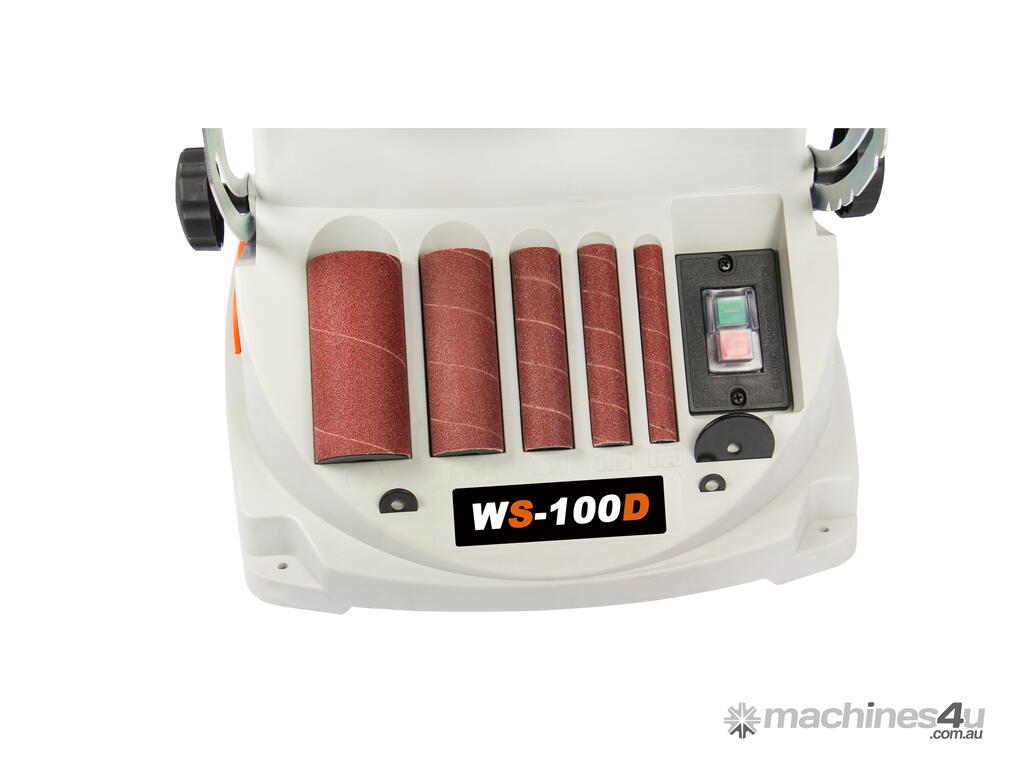

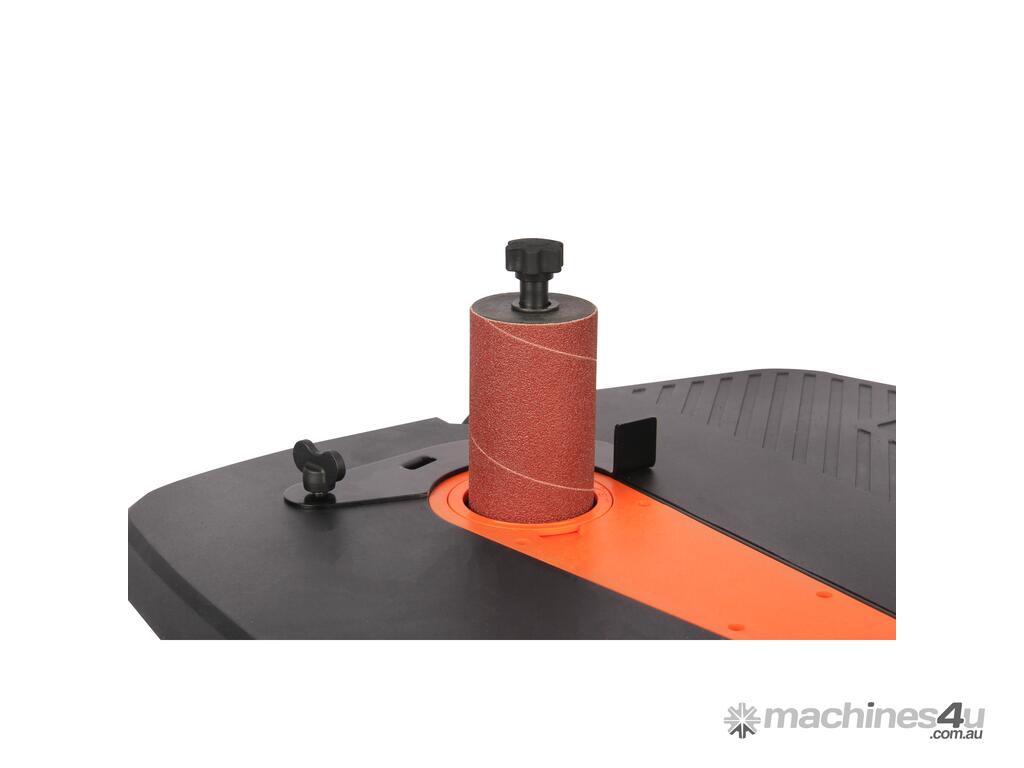

Comes with 5 sanding drums, ranging from 13 to 51mm in diameter.

Vented throat plates and an under-table dust channel improve dust and chip extraction

EXTRA LINISHER BELT

EXTRA SAND SLEEVES

Specifications
SKU 162415
Model WS-100D
Motor 450W
No load speed Spindle 1925 rpm / Belt 180 m/min
Oscillations 58 opm/min
Stroke length 15 mm
Sanding sleeve sizes 13mm, 19mm, 25mm, 38mm, 51 mm

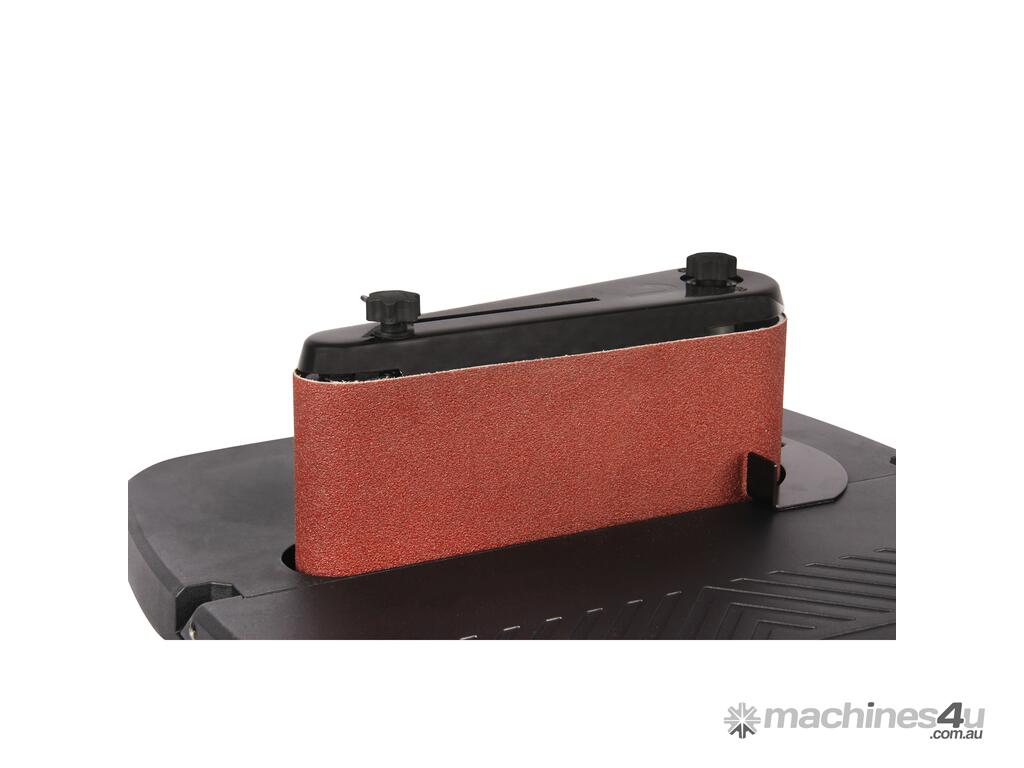

Belt size 100x610 mm
Table size 410x430 mm
Table tilt notches 0°, 15°, 22.5°, 30°, 45°,
Dust port dimension 38mm OD
Packing size 53x45x47 cm
N.W./G.W. 10/12 kg
