Best Featured 51mm Spindle Bore - 240Volt Machine In Australia

On Special. List Price is $9,190.00 + GST

NEW FEATURED MODEL OUT NOW - 4 x TYPES THREAD CUTTING (NOT 2) IMPERIAL, METRIC, DP & MODULAR, FREE 9 PIECE TOOLING KIT & 4MT LIVE CENTRE

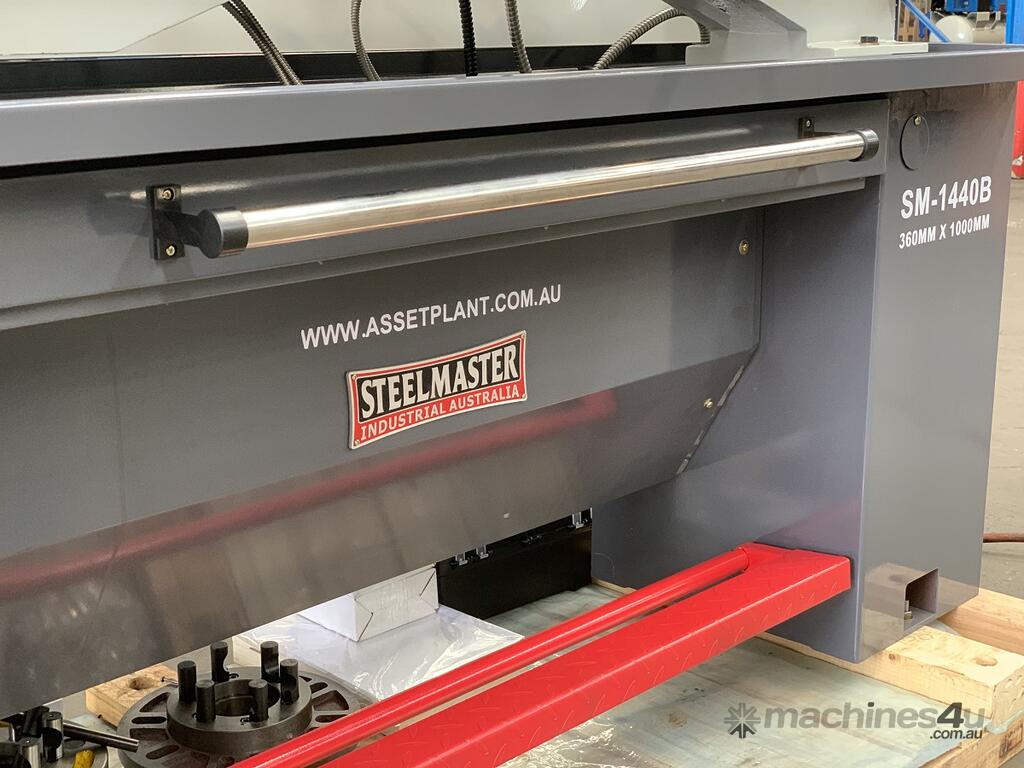

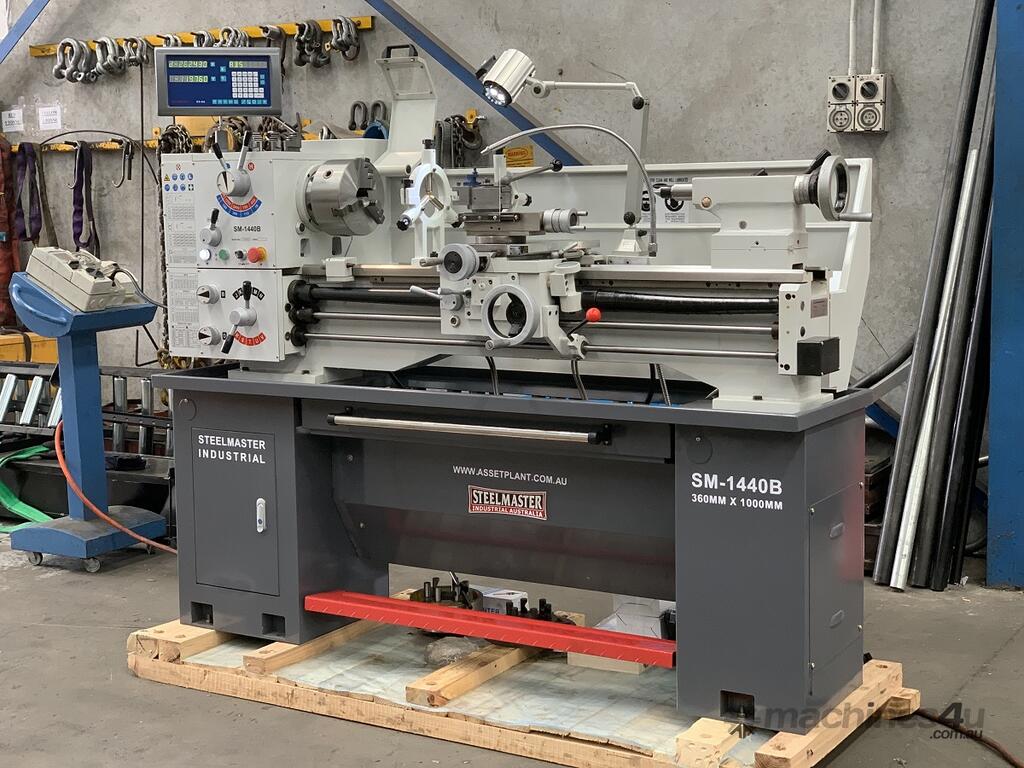

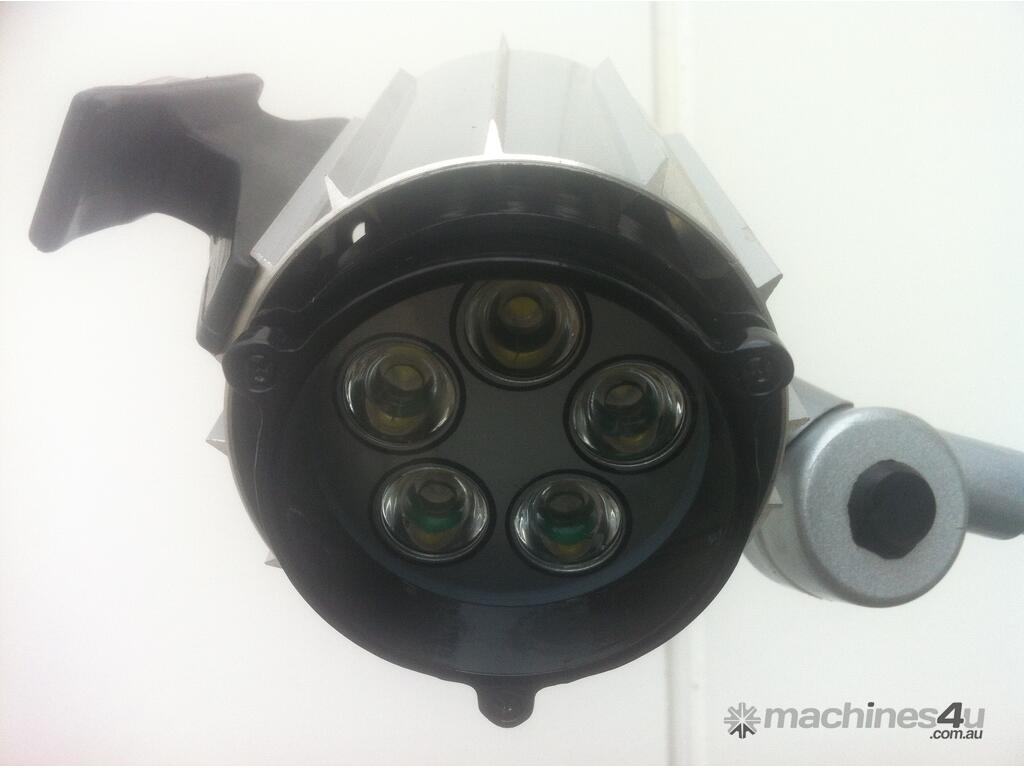

SM-1440B - 240V HAAS TYPE EURO CHANGE POST & NEW LED LAMP

## BONUS 9 PIECE TURNING TOOL KIT & LIVE CENTRE - EURO QUICK CHANGE TOOL POST & 4 X THREAD TYPES - IMP, METRIC, DP & MODULAR ##

Description

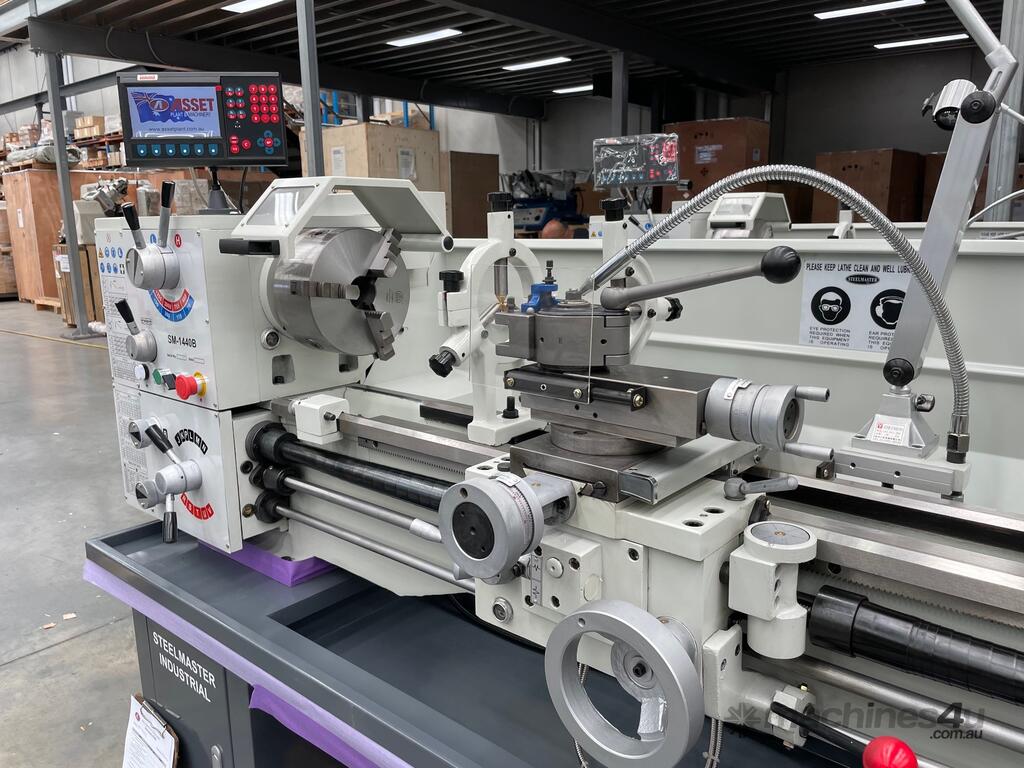

Safety, reliability and convenience - not to mention and absolute ripper! the SM-1440B Workshop Lathe has heaps of heavyweight features for a reasonable price including a 51mm spindle bore. Driven by a powerful 2HP x 15Amp, 240V motor, this metal monster will tackle the toughest machining jobs with ease. D1-5 cam-lock spindle is the most reliable and accurate chuck and plate mounting system for lathes. Add an extra long foot brake and apron mounted switch control and you have precise, safe control when threading or working up close to those difficult shoulders. Hardened gear-head gears make speed and feed changes fast and a pleasure to perform. Features like these will save you time and provide a wider margin of safety. - Not to mention feature packed.

Features
- induction-hardened and ground cast iron bed and slide ways
- spindle holding camlock system

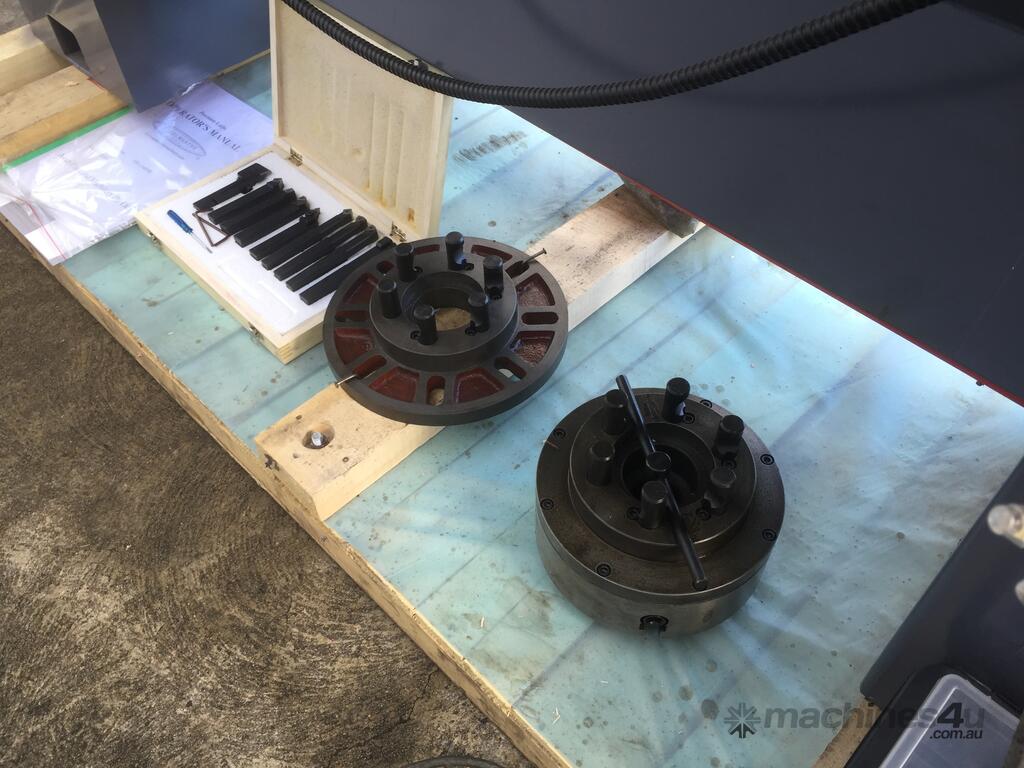

- 200mm 3 & 4 jaw chucks, faceplate, fixed & travelling steadies standard
- main spindle running in oil bath, hardened and ground with two adjustable precision taper roller bearings ensures accuracy

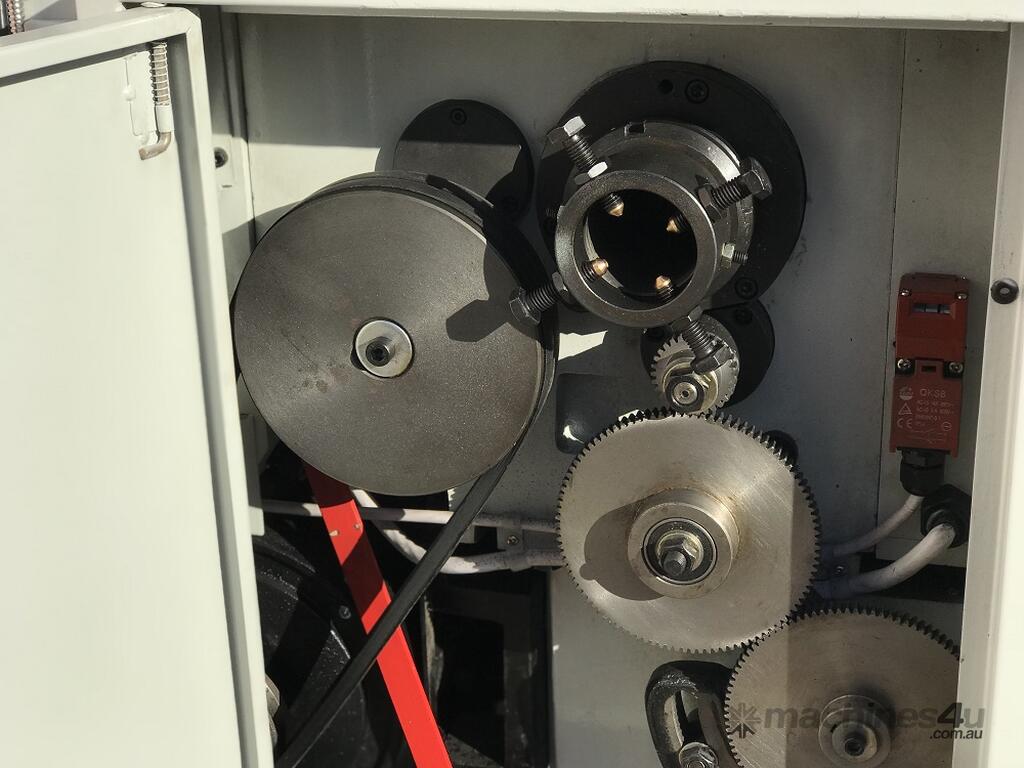

- huge thread cutting ranges - metric / imperial / DP & modular
- transversal adjustment of tailstock for taper cutting applications

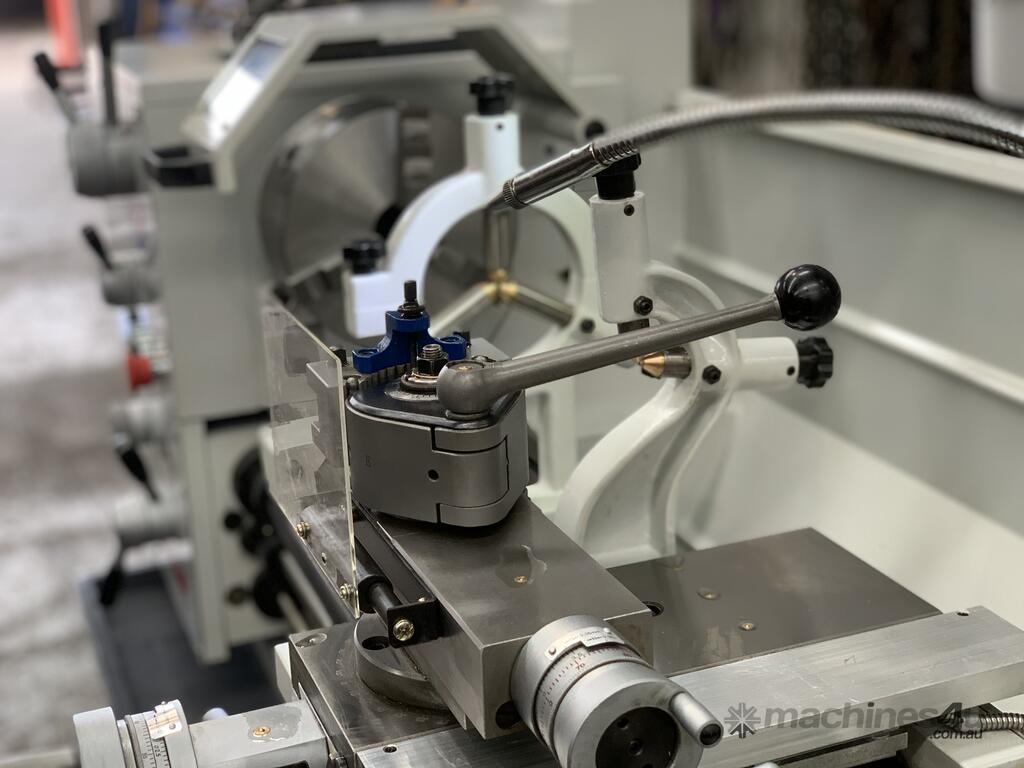

- quick change tool post standard

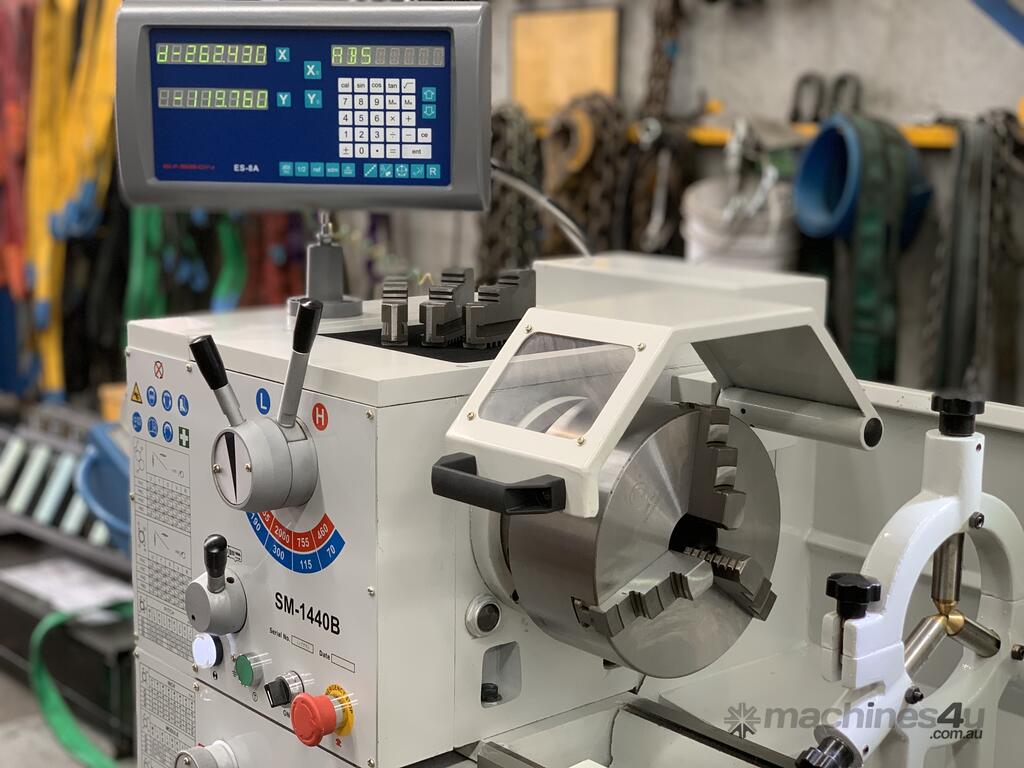

- 2 axis DRO fitted as standard
- safety covered lead screw
- safety interlocks on chuck guard, gear box and foot brake

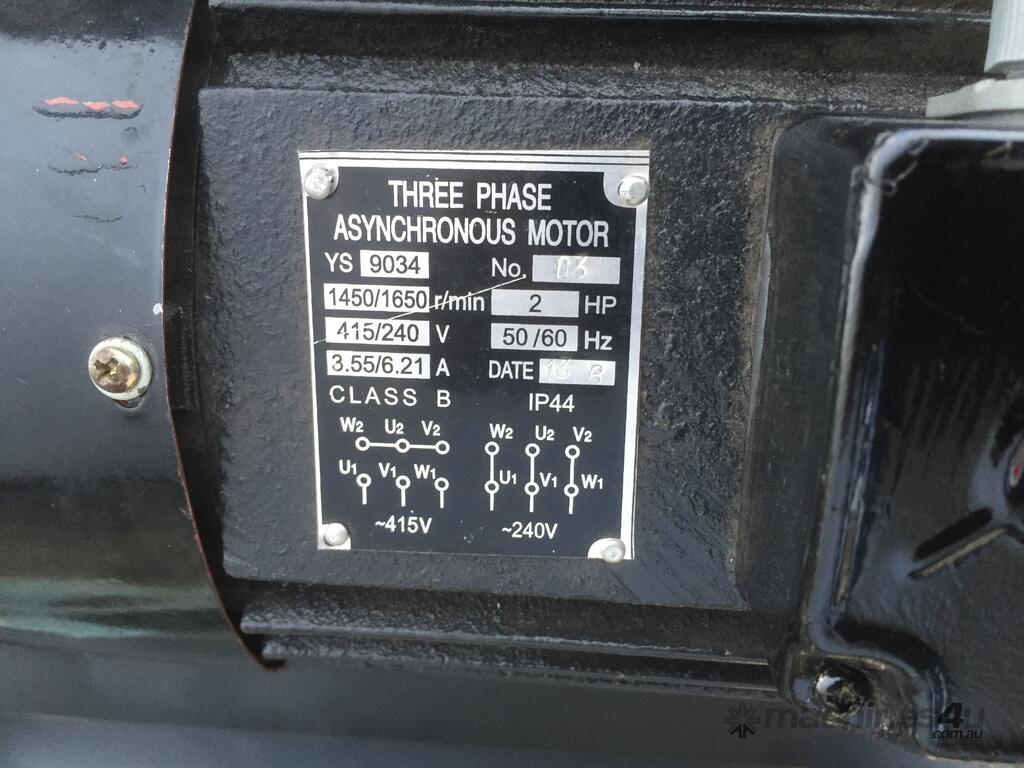

- 240V / 15Amp - 2HP
- CE compliant

Technical Data Snap-Shot
- 364mm swing over bed
- 476mm swing in gap
- 230mm gap width
- 1000mm between centres
- 51mm spindle bore
- speeds(8)-70/115/190/300/460/775/1255/2000
- 160mm - cross slide travel
- 88mm - top slide travel
- 100mm - tailstock travel
- 40mm - tailstock diameter
- 187mm - bed width
- MT4 tailstock taper
- 4 x thread cutting, metric, imperial, DP & modular
- metric leadscrew fitted
- 200mm 3 jaw chuck
- 200mm 4 jaw chuck
- faceplate supplied
- fixed & travelling steadies

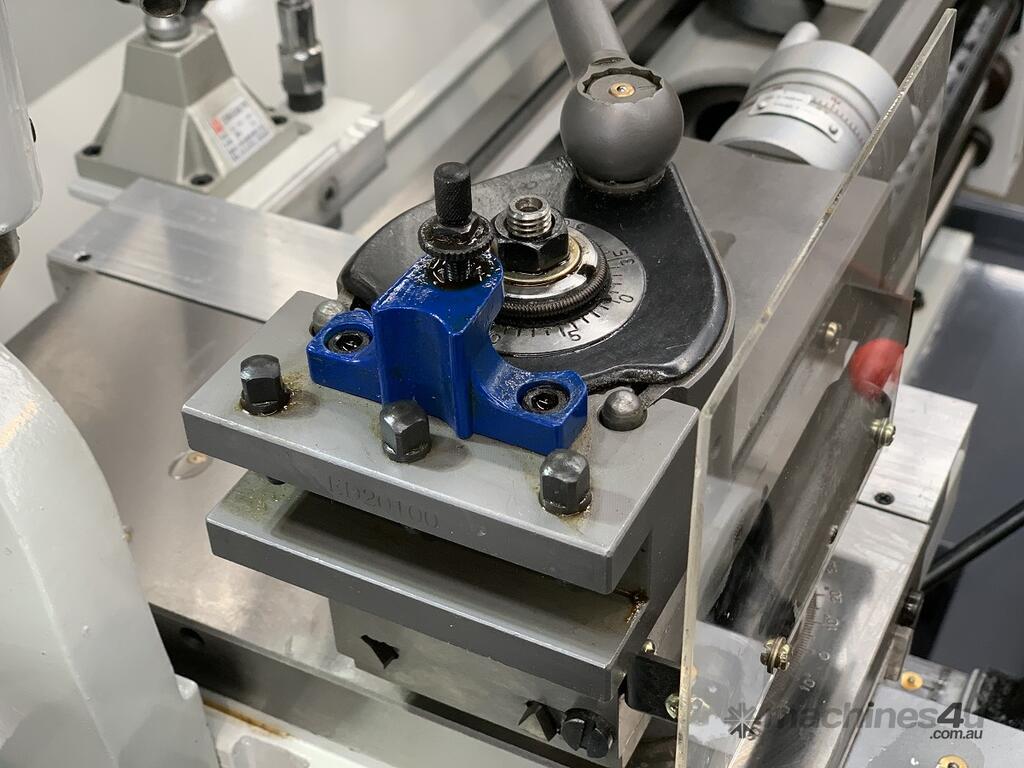

- euro Haas type quick change post with 3 x holders

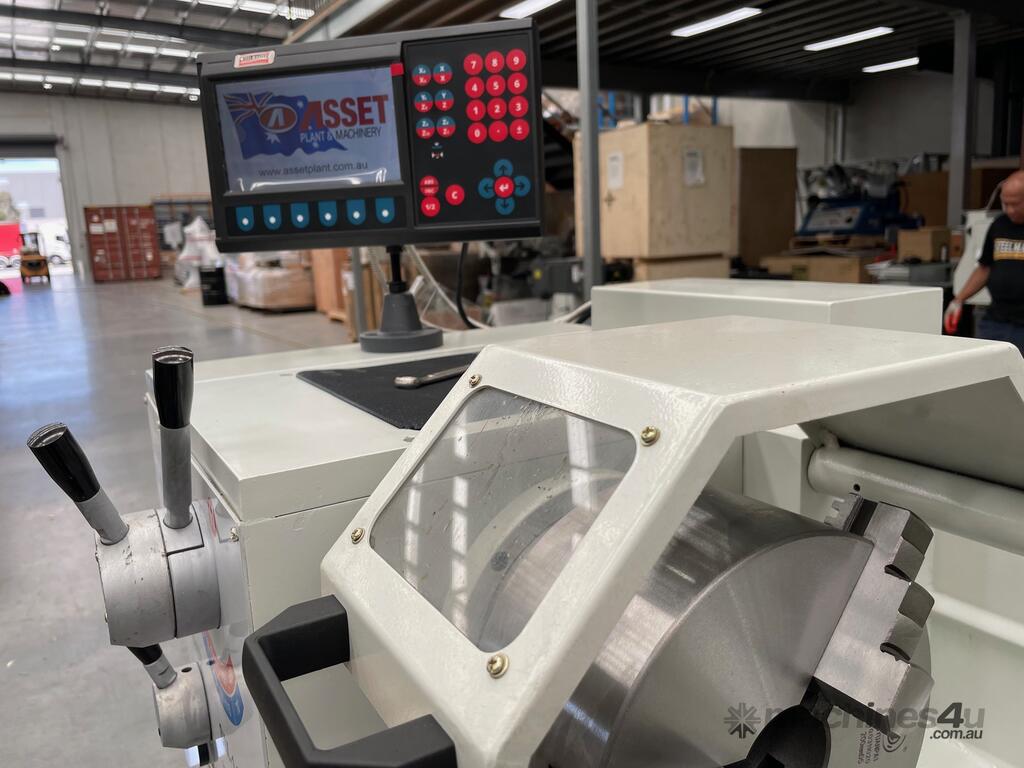

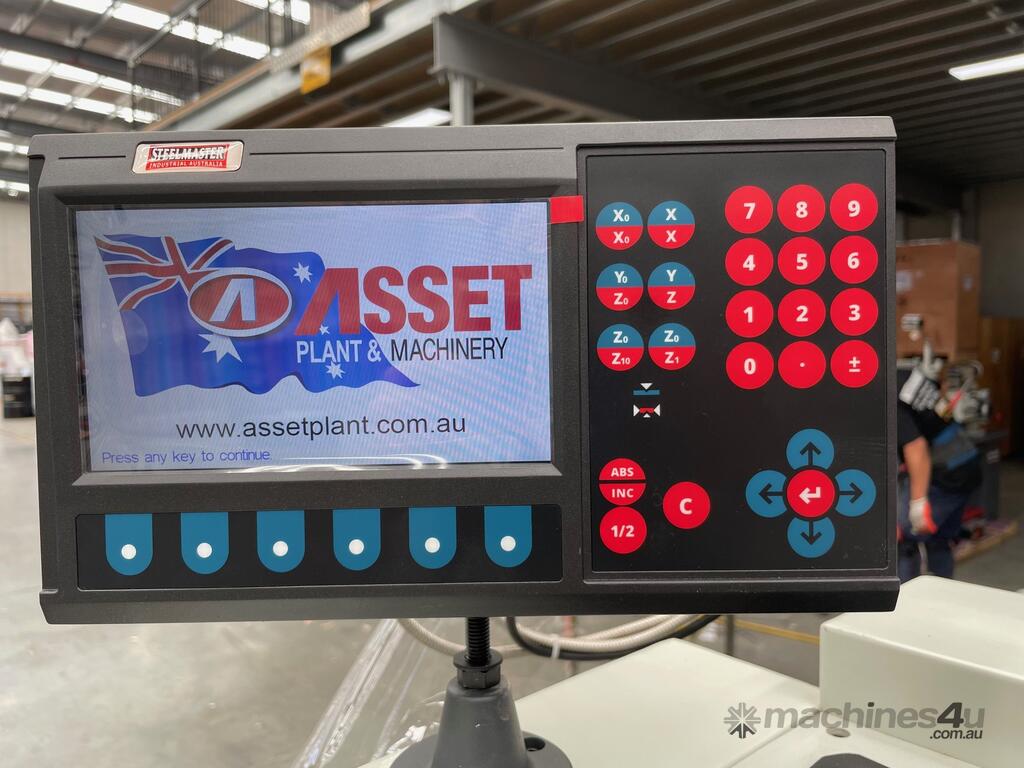

- 2 axis digital read out fitted
- shipping dimensions - 1900mm x 1100mm x 1145mm
- power - 240V 1.8Kw - 15 amp
- approx weight: 720kg

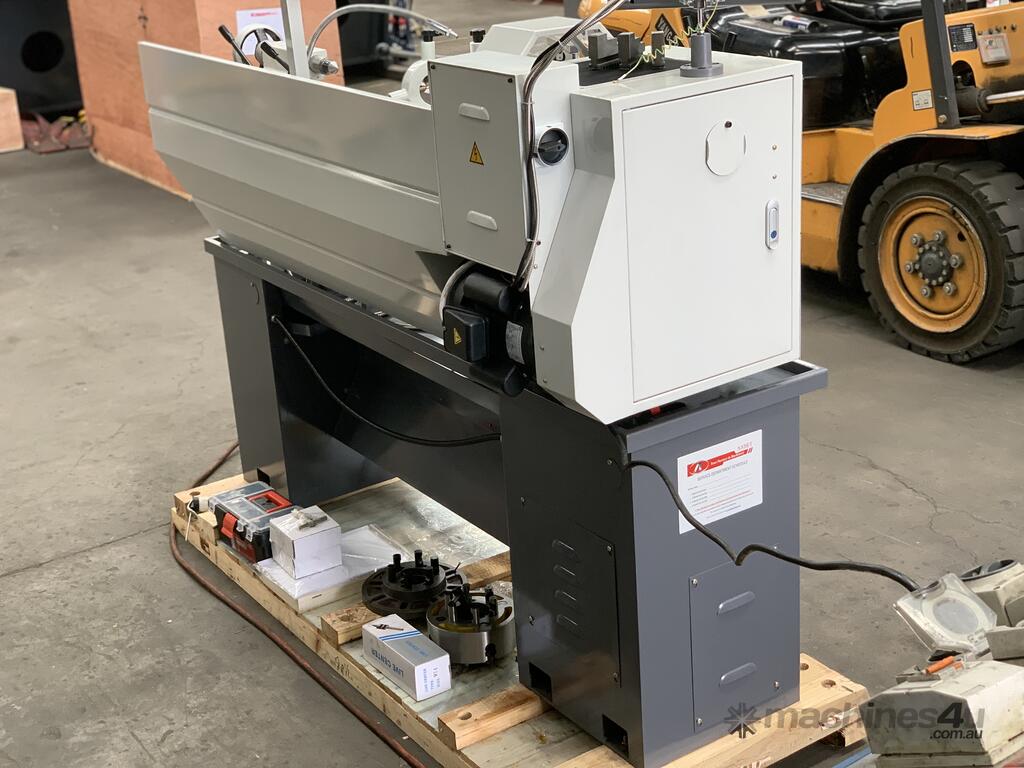

EQUIPMENT & ACCESSORIES SUPPLIED

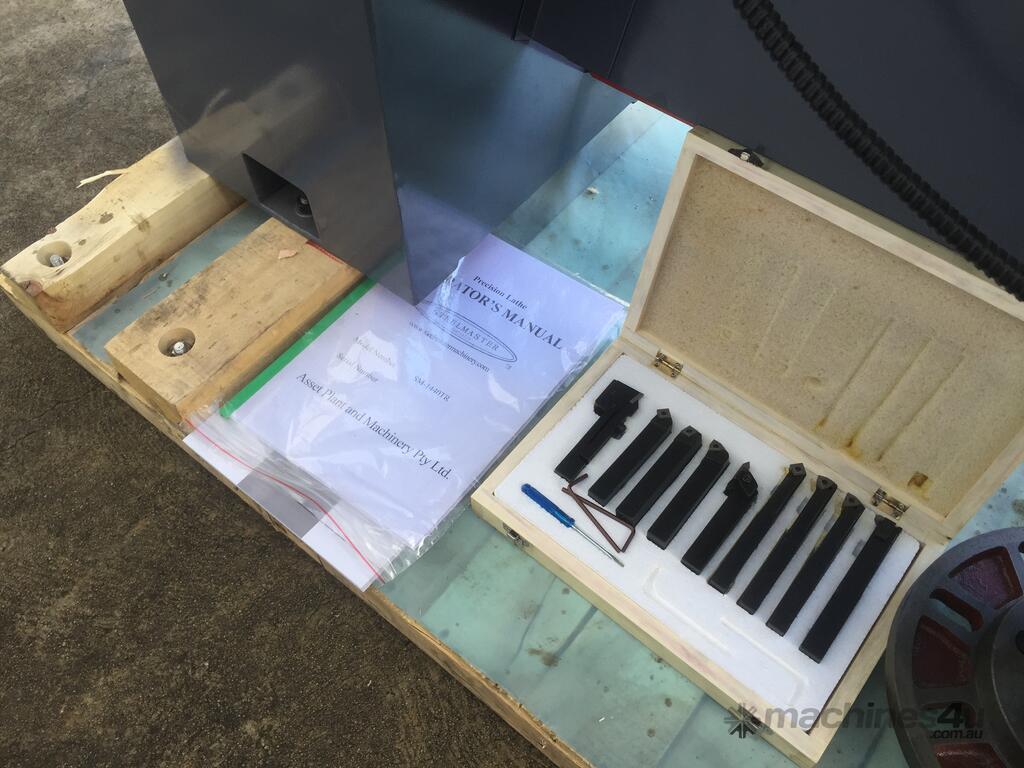

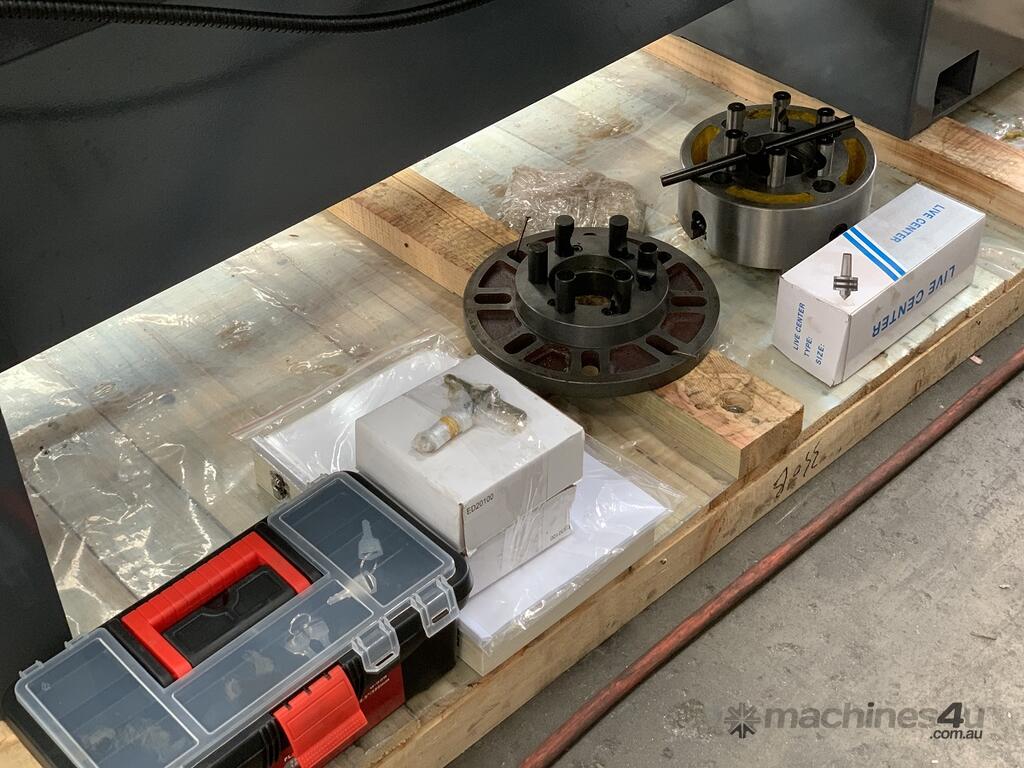

## FREE 9 Piece Tool Kit & MT Live Centre
Easson 2 axis DRO, 3 & 4 jaw chuck, quick change tool
post with 3 holders, face plate & centres, fixed steadies &
1 x travelling steady, full length splash guard up to 1000mm,
covered leadscrew, interlocked chuck guard, headstock cover.
