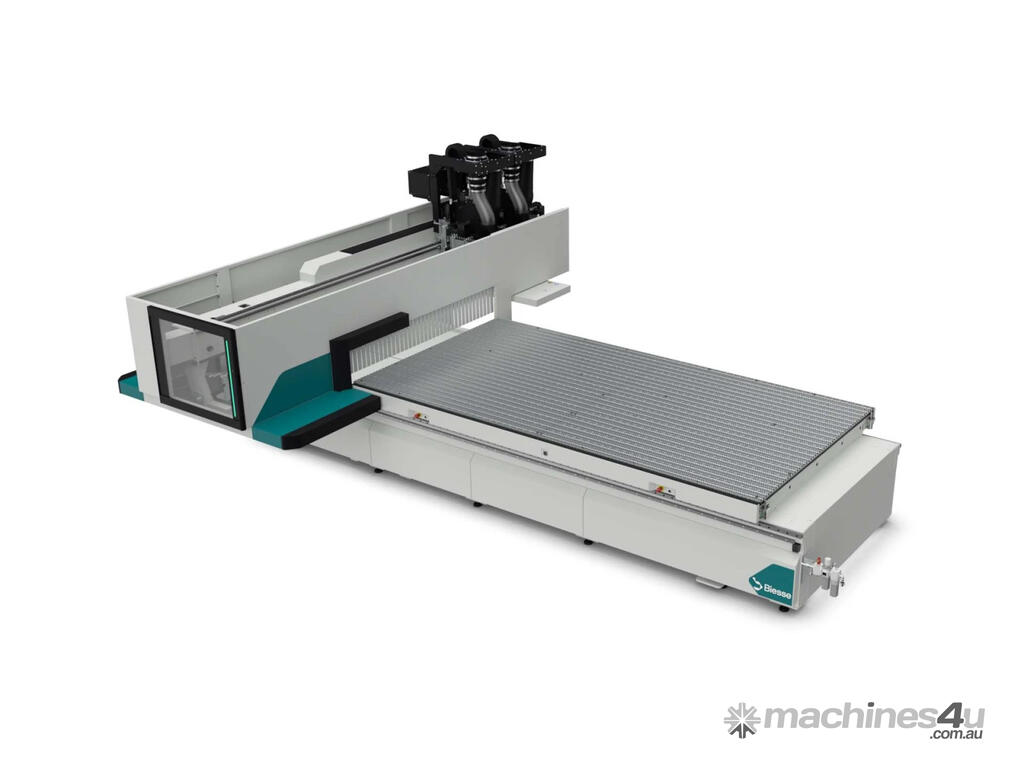

Biesse Explora Multi Up N B Machining centre for milling, boring and nesting

It is the 5-axis flat table machining centre ideated for medium and big companies that want to empower their production by always keeping the highest level of versatility in processing plastics and composites materials.
Explora Multi Up N B is designed for processing epoxy resin, glass fibers, laminate fibers? plastics, composite materials and gaskets.
It's the suitable solution for a company that wants to turn every challenge into an opportunity for innovation and success: it fits seamlessly into production spaces, allowing operators to move freely and access with ease from all sides.
Safety and versatile, Explora Multi Up N B represents the ideal choice to process component addressing markets such as wind energy components, industrial and technical components, packaging and gasket.?
Modelling technical elements has never been easier!

Hit the dust towards your path
The Tracker Jet (Biesse patent), better known as T-Jet, consists of a double nozzle that delivers compressed air,
that follows the milling path by the C-axis rotation.

Working table multizone
The multizone vacuum system is designed to hold, in an efficient way, the various components processed on the table.
The FT Plus version worktable is divided into different zones activated independently by the NC, ensuring the best vacuum optimization depending on the slabs being used.
The zones location and the sizes allow the most common slab formats to be clamped while minimizing vacuum dispersion without any operator intervention.
The activation of each zone is automatic and done on base of the coverage percentage.

Gear up the components finishing
Yaskawa new generation axis drives allow to reach higher speeds and accelerations without losing high machining precision and finishing quality.

Robust structure
The frame of the Explora Multi Up N B gives the machines a high standard of precision and reliability thanks FEM analysis, electro welded steel with a closed ring structure and high precision during machining operations.

Speed up the production
Explora Multi Up N B can be provided in standalone version or completed with automatic loading/unloading system.
This machine winkles the eye to the PRO segment thanks the double carriage.
The double carriage provides unparallel flexibility:
in case of production of a single component, it can be done by using two heads minimizing the tool changing or in other words guaranteeing higher production
in case of a nesting process or identical components must be shaped (a mirroring process) this can be quickly done by using a single head to shape each part at the same time.

Effective tools magazine for time saving
Tools and aggregates always available on machine to reduce setup time, for all type of machining operations.
No operator intervention for tool changing.
The machine can be equipped with two different tool changers: one fixed on the left side of the machine basement and one movable with the axis carriage.

Safety first
Biesse applies all needed safety devices to ensure high safety standard.
Explora Multi Up N B can be provided both in CE certified (according UNI EN ISO19085*) version and non-CE.
A dedicated safety control unit manages high reliability safety sensors to ensure the highest safety standard.

Versatile & Ergonomic
An extremely versatile machining centre designed to adapt to the production space in which it is installed.
Enables the operator to safely access all sides of the machine at all times, with no obstacles on the ground.
Convenient front openable door
Intuitive remote-control console
Versatile moveable UPI
Efficient contact presetter
