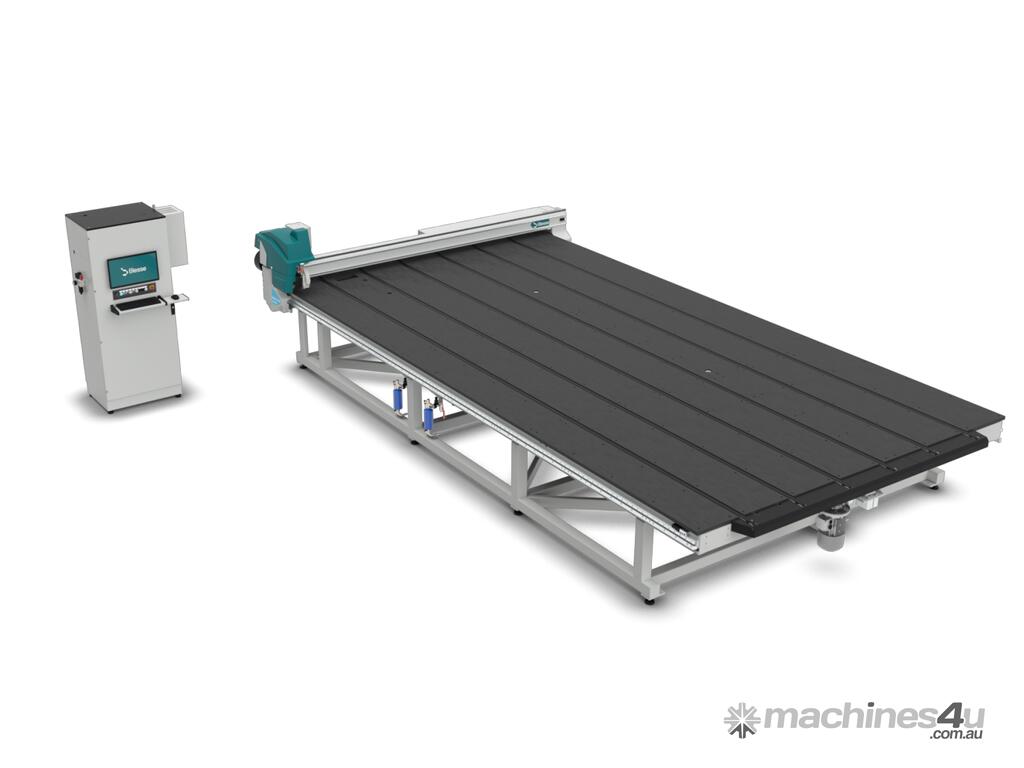

Biesse Intermac Cut Go M T Cutting bench for float glass

Biesse Intermac Cut Go M T Cutting bench for float glass

All-automatic cutting table for monolithic and low-E glass processing, equipped with loading and offloading capabilities and designed for seamless in-line integration.
Cutting table that can load, process and offload monolithic and low-E glass sheets without any manual intervention of the operator.
The machine has been designed with all the automations and sensors in order to be easily integrated in a new or existing line with minimum effort.
The ERP integration allows to connect to the available factory ecosystem and generate extensive production report.

Quick coat removal
A tangential wheel is equipped on the machine for Low-e coating removal.
The wheel is installed on a rotative axis to allow the removal of straight and shaped paths.
This solution allows a faster coating removal compared to the vertical brush system and thanks to the dedicated dust collection system with hood optimization, it allows a perfectly clean result, ready for the scoring operation.

Best in class
Built with a sturdy frame to maximize rigidity, this machine delivers peak performance in speed and acceleration.
Its double linear guide ensures consistent precision during heavy and extended workloads, while the high-performance cutting unit, found in top-tier models, achieves outstanding finishing quality.
All electrical components and the CNC are housed in a pressurized, climate-controlled cabinet, extending component lifespan, even in the most challenging environments.

Total protection
Operator safety is our top priority when designing our machines.
That's why we've enclosed it within metal fences to prevent operator access to moving parts.
The automatic loading and unloading functions, secured by photocell guarded safety gates, enable autonomous processing without manual intervention while microswitch-controlled access doors provide easy, ergonomic access to the operating unit for maintenance tasks.

Flexible processing
Different kind of glass needs the proper cutting wheel to be processed.
Equipped with a 6-positions tool changer, the machine allows the processing of various glass types with the appropriate cutting wheel, automatically recalling the proper cutting parameters for each material
This enables continuous cutting of straight and curved shapes across different glass thicknesses, eliminating the need for manual intervention and ensuring seamless operation.

You want it? You got it!
Intermac Cut Go M T is an "off the shelf" machine that can be delivered to your door in just few weeks.
The fast installation and integration time and the quick leaning curve makes Intermac this machine the perfect candidate to quickly replace old and unproductive equipment in your production line.

Easy-peasy
With its intuitive design, this machine is easy to operate, minimizing the learning curve and accelerating the training process, ideal for reducing production hiccups in environments with high operator turnover.
It also enables a swift transition to full production when replacing outdated, inefficient equipment.

Consistent Cut
Automatic cutting wheel pressure control through a digital proportional valve, to increase the cutting precision and a consequent higher quality of the cut.
A pre-loaded parameter recipe, linked to each cutting wheel, can be adjusted "on the fly" with the push of a button to better adapt the pressure to a different kind of glass for an easier opening.

Monolithic glass processing
The machine’s core process begins with scoring using tungsten carbide wheels, followed by an automatic transfer of the sheet to perform glass breakout on a separate table.
Its onboard toolchanger automatically selects and adjusts the cutting wheel to match the glass type and thickness, ensuring optimal performance for each cut.

Low-e processing
The machine can score Low-E glass as standard, and for edge deletion, the state-of-art TCR unit with tangential wheel, mounted on the main machine head and driven by an independent motor, removes the Low-E coating in straight or shaped geometries, while a vacuum system ensures dust removal before scoring.

Other applications
With its toolchange feature, the machine can swiftly switch to specialized tool inserts for mirror and patterned glass cutting, ideal for artistic or custom applications, broadening its range of potential uses.
