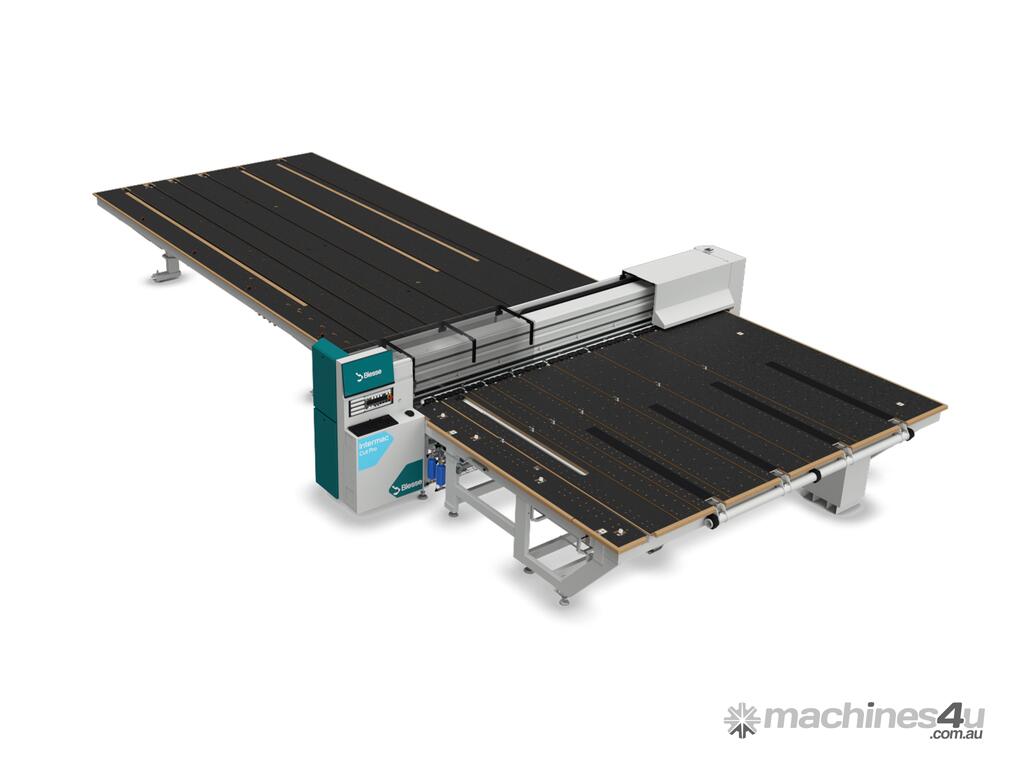

Biesse Intermac Cut Pro L B Cutting bench for laminated glass

Biesse Intermac Cut Pro L B Cutting bench for laminated glass

Automatic cutting system for laminated glass with an integrated loading table and advanced handling functions, designed to cut, break, and separate jumbo sheets quickly and efficiently.
High-performance, automatic cutting system designed for large laminated glass processing, efficiently handling scoring, breaking, separation, PVB heating, and cutting with full automation.
Its integrated transport system, buffer zone, and strip rotation capabilities ensure rapid processing and consistent output, regardless of job complexity or operator skill.

Maximize Efficiency, Minimize Footprint
After each X cut, sheet remnants traditionally need repositioning to allow Y cuts, a process that is both time-consuming and cumbersome, particularly with large sheets.
Intermac Cut Pro L B’s innovative vertical buffer raises remnants for immediate Y cuts, then lowers them back for the next X cuts, eliminating delays and enhancing productivity.
This intelligent solution not only increases productivity but also minimizes the machine’s overall footprint for a more space-efficient design.

Glass Flows, Production Grows
Featuring a robust transport belt system and air cushion support, the machine automatically handles sheet positioning and remnant movement effortlessly, even for oversized glass sheets.
The smart interpolating suction cup mechanism rotates strips for orthogonal cuts, allowing for smooth, fully automated production while removing the need for time-consuming manual adjustments like pushing remnants or rotating strips.

Two Pressures, One Perfect Outcome
Gravity affects the upper and lower cutting heads differently and applying equal pressure can cause scoring imbalances that affect cut quality.
Intermac Cut Pro L B addresses this with dual independent proportional valves, ensuring precise scoring control and consistently superior cuts.

Get in shape!
The machine delivers advanced precision in cutting curvilinear shapes through the seamless interpolation of vacuum cups and the cutting head.
Its specialized suction cup with a rotational encoder ensures accurate diagonal cuts, facilitating the assisted processing of parallelogram and trapezoid glass parts.

Cutting time, cutting waste
Manual trim cut opening demands valuable time and a skilled operator.
This machine automates the cutting, breaking, and opening of trim cuts as narrow as 20mm, streamlining production.
The combination of smaller trim cuts and jumbo sheet processing boosts the cutting layout optimization, enhancing yield and reducing waste.

Effortless Low-E Glass Processing
The tangential wheel, powered by an independent motor, efficiently removes Low-E coating, aided by a dedicated vacuum system.
An integrated automatic grinding station maintains wheel planarity, ensuring consistent coating removal and perfectly clean glass, ready for the next production steps.

No glass is too thick
Designed with precision in mind, the machine’s reinforced breaking bar, complete with linear guides and a torque shaft, applies uniform pressure on the glass for consistent, reliable breaking.
Intermac Cut Pro L B enables processing of laminated glass from 22.1 to 1212.4, without the need for special equipment or highly skilled operators.

Laminated Glass
The machine’s primary process starts with scoring using tungsten carbide wheels, followed by glass breakout with integrated breakout bars.
Heating lamps then soften the PVB layer, allowing for automatic separation and precise PVB cutting to complete the process.

Low-E laminated glass
With the TCR unit, the coating layer is automatically removed before the scoring, breaking, and separation phases, enabling fast and efficient processing of low-E glass.

Monolithic, patterned, mirror
Capable of handling monolithic, patterned, and mirrored glass, Intermac Cut Pro L B automates the scoring and breakout phases for seamless processing.

Please contact us for more information.
