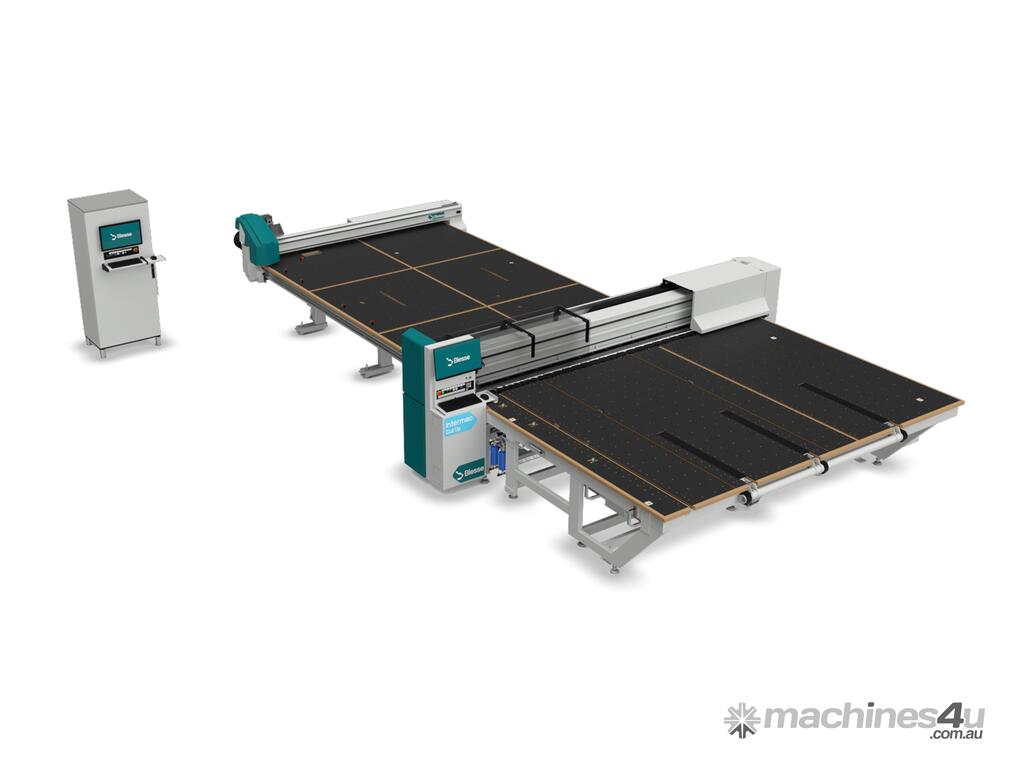

Biesse Intermac Cut Up C cutting bench for float and laminated glass

Biesse Intermac Cut Up C cutting bench for float and laminated glass

A comprehensive system that unites monolithic glass cutting and laminated glass processing, streamlining production and enhancing flexibility for any glass application.
The system combines monolithic and laminated glass cutting machines for high production flexibility and seamless integration.
Monolithic glass benefits from the precision and speed of a dedicated cutting table, with automatic X cuts breaking performed by the laminated glass machine.
For laminated glass, scoring, breaking, and separation are fully automated on a dedicated machine, supported by the transport and buffer systems of the monolithic glass machine for a streamlined workflow.

Productivity and Flexibility in Perfect Harmony
The system integrates a monolithic glass cutting table and a laminated glass processing center, delivering optimized functionality for both materials.
The monolithic glass machine offers exceptional productivity and precision aided by the laminated glass processing center for efficient breaking.
The laminated glass machine grants flexible production capabilities, supported by automatic sheet transport from the first machine for seamless workflow integration.

Optimize Your Process, Maximize Your Efficiency
For monolithic glass, the first machine ensures flexibility and precision for cutting straight or shaped geometries, while the laminated glass machine automates X cuts breaking and supports manual Y cuts for a smoother workflow.
In laminated glass operations, the monolithic table becomes a service station with integrated transport and buffer systems, boosting productivity.

Space-saving design
Small size, minimal space required.
The great advantage of a combi system is its compact footprint, especially when compared to two independent machines.
The innovative glass buffer system further reduces the space needed, making it the ideal solution for any install location.

Controlled pressure for perfect cuts every time
With automatic cutting wheel pressure control through a digital proportional valve, the system improves cutting precision and quality on monolithic table.
Pre-loaded parameter recipes for each cutting wheel can be swiftly adjusted to different glass types, simplifying breakout.
For laminated glass, dual independent valves handle the gravity impact on both top and bottom cutting heads, delivering superior and consistent results.

Labeling Made Easy
Say goodbye to manual tracking of cut glass with Intermac Cut Up C.
It automatically applies labels before scoring, ensuring accurate part identification and eliminating operator errors.
This feature works for both monolithic and laminated glass, with customizable labels that include part details and barcodes, enabling seamless program loading for the next production steps.

No matter the thickness, always the perfect cut
Engineered for high performance, the system processes monolithic glass from 3 to 19mm and automatically breaks X cuts with the reinforced breakout bar of the laminated glass machine up to 10mm.
The design with linear guides and torque shaft ensure even pressure and reliable breaking, allowing processing of laminated glass from 33.1 to 1010.4mm without specialized tools or expert operators.

Precise low-e removal on any glass type
A tangential wheel unit with an independent motor, installed on the monolithic glass cutting machine, ensures efficient Low-E coating removal on both straight and shaped geometries, enabling seamless scoring and breaking.
A high-efficiency dust collection system, paired with optimized hood positioning, guarantees perfect coating removal, even on EasyPro or TPF glass, delivering clean results without manual intervention.
On the laminated glass machine, the BCR unit employs a brush for rapid edge deletion, offering the flexibility to process Low-E glass across different material types.

Monolithic, patterned, mirror
The first machine is dedicated to processing monolithic, patterned, and mirrored glass, capable of handling both straight and shaped geometries.
The second machine increases productivity by automatically performing the X-cut breaking operations.

Laminated Glass
On the second machine, laminated glass cutting begins with tungsten carbide wheel scoring, followed by breakout with integrated bars.
A dedicated heating lamp softens the PVB layer for automatic separation and precise cutting.
The first machine functions as a service table to streamline sheet handling and automation.

Low-E glass
Before scoring, breaking, and separation, dedicated units automatically remove the coating layer, enabling efficient processing of low-E glass.

Please contact us for more information.
