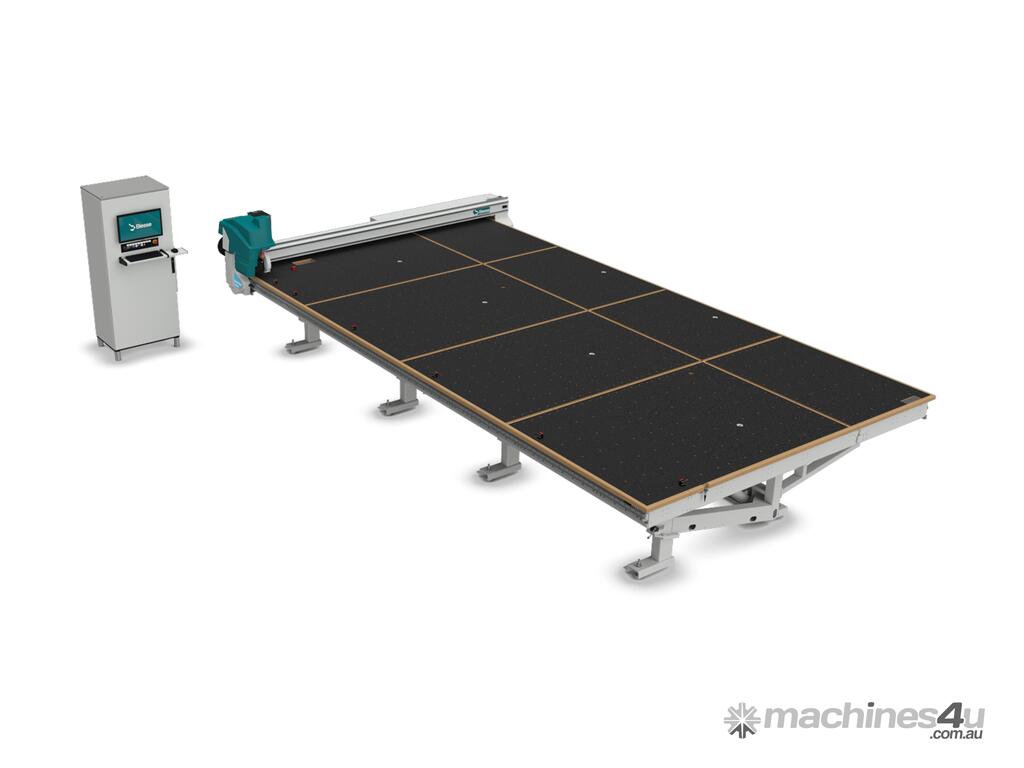

Biesse Intermac Cut Up M 0 Cutting bench for float glass

Biesse Intermac Cut Up M 0 Cutting bench for float glass

The versatile cutting table for both small batches and high volume production
in a single machine.
Designed for monolithic, low-E glass, and specialized applications,
Intermac Cut Up M 0 offers exceptional flexibility and configurability to create a machine that meets unique customer requirements.
With advanced features like TCR coating removal, a tool changer, and labeling functionality, it’s perfectly suited for both flexible, custom production and high-efficiency series production.

Smarter, organized workflow
Manual tracking of cut glass through the production line is now a thing of the past.
Intermac Cut Up M 0 can automatically apply labels before scoring to identify each cut part, eliminating the risk of operator errors associated with manual labeling.
These customizable labels can include information such as part size, shape, and even barcodes, which allow machines in subsequent production stages to automatically load the correct program.
The automatic labeling system can also be used alongside the TCR unit, a combination typically reserved for high-end machines.

Coating Cleared, Scoring Ready
The machine is equipped with a tangential wheel for Low-E coating removal, mounted on a rotating axis to handle both straight and shaped paths.
A high-efficiency dust collection system and optimized hood positioning enable fast, thorough coating removal, even on EasyPro or TPF glass, where finer dust and higher material volumes can be challenging to manage.
This setup delivers a perfectly clean result without manual intervention, leaving the glass ready for scoring.

Fast and reliable
Unprecedented processing speed and precision are achieved through a robust frame and a reliable movement system, engineered to maximize machine performance.
With double linear guides, a rack-and-pinion system, and a powerful rotational axis, the cutting head offers maximum dynamics and reliability, even under heavy workloads, making it ideal for flexible, high-demand production.

The right tool for the best quality
Equipped with a 6-position tool changer, the machine allows the processing of various glass types with the appropriate cutting wheel, automatically recalling the proper cutting parameters for each material.
This enables continuous cutting of straight and curved shapes across different glass thicknesses, eliminating the need for manual intervention and ensuring seamless operation.

One & multi
This model provides extensive processing capabilities, including various types of glass like low-e, laminated glass, vinyl scoring and ceramic slabs.
This versatility is enhanced by specialized features, unlocking a wide range of applications and making it an all-in-one solution for diverse manufacturing needs.

Computer vision
The optical reading system offers multiple functions to assist operators in utilizing the machine effectively:
With the squaring function, the machine automatically conducts a reading cycle and adjusts the programmed toolpath to the actual glass position, eliminating the need for operators to align the glass against mechanical stops, thus reducing manual tasks.
The template reading function enables operators to place a physical template on the machine and digitize its shape using three different methods, including holes detection. Additionally, the optical reading system enables the processing of laminated glass by accurately reading the position from the same side after the glass has been processed and flipped, ensuring maximum precision.

Safe by design
Incorporating preventive safety measures, this machine offers a dedicated safety zone protected by a photocells and mirrors system, safeguarding operators from collisions while maintaining unobstructed access from all sides.
This solution facilitates ergonomic execution of daily tasks in the vicinity of the machine.

Monolithic glass processing
The machine’s primary process involves scoring with tungsten carbide wheels, followed by glass breakout using integrated breakout bars, with an onboard toolchanger that automatically adjusts the cutting wheel based on glass type and thickness.

Low-e processing
The machine comes standard with the ability to score Low-E glass, while the advanced TCR unit, featuring a tangential wheel driven by an independent motor, efficiently removes Low-E coating along straight or shaped paths.
A dedicated vacuum system ensures complete dust extraction before scoring.

Other applications
The machine can process laminated glass through a dedicated cycle, switch to a specialized tool insert for vinyl cutting in artistic or special applications, and cut ceramic materials, expanding its range of possible uses.

Please contact us for more information.
