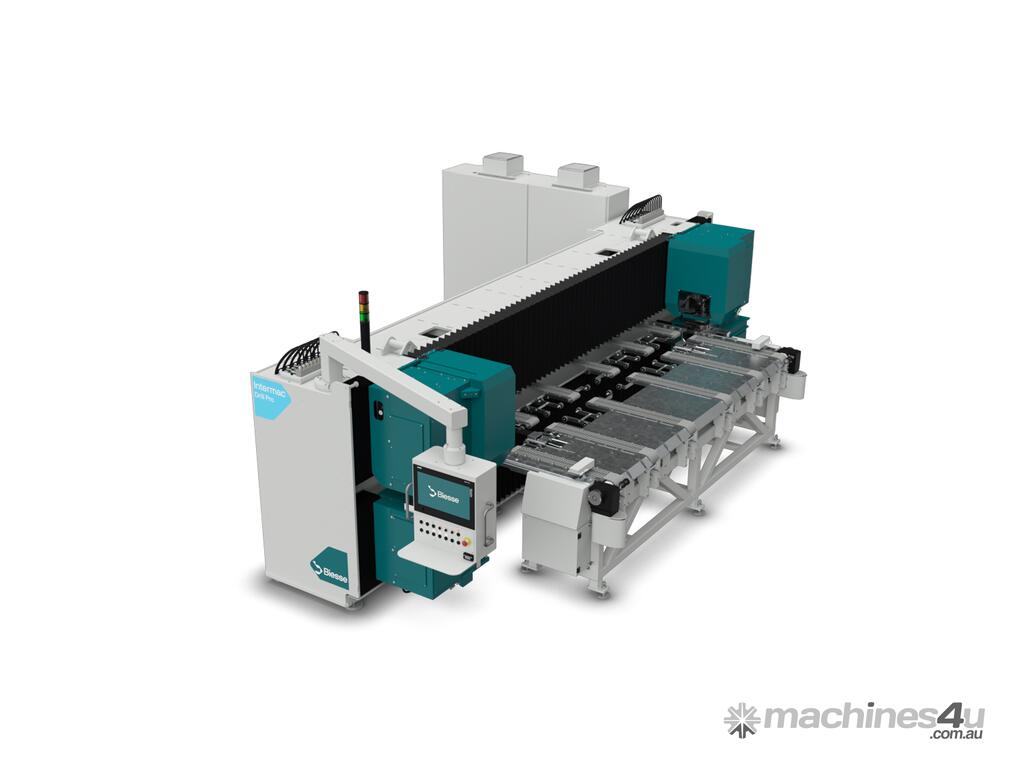

Biesse Intermac Drill Pro B H Boring units and milling units

Biesse Intermac Drill Pro B H Boring and milling units

A high-performance processing center for drilling, milling, countersinking, featuring a dual station that allows simultaneous processing of two glass pieces, setting new standards in flexibility and efficiency.
High-performance NC drilling center, designed for flat glass sheets, including irregularly shaped pieces.
It handles drilling, countersinking and milling with precision and flexibility.
With two pairs of heads and a double working station, it can process two glass pieces simultaneously, dramatically increasing production capacity while maintaining exceptional quality.

Spin faster, finish better.
Featuring four opposed multi-spindle heads with eight spindles each, the machine ensures fully automated processing, eliminating the need for manual adjustments or rework.
The high-rotation Super Spindles, optimized for speeds of up to 12,000 RPM, deliver faster cycle times, extended spindle life, and high finishing quality.
A dedicated water system provides clean cooling to spindles and tools, while the rapid tool-change mechanism guarantees seamless, precise production.

Zero setup, infinite potential
The machine’s automated glass handling optimization guarantees steady productivity, regardless of variations in size, thickness, or machining positions.
It can handle any glass shape with at least one straight edge, processing both small and large formats.
Designed as a batch-one system, it offers zero setup time, seamlessly adapting to unique glass pieces to sustain a continuous production flow.

No geometry too complex
Designed for speed and adaptability, the machine performs a comprehensive range of operations, including drilling, milling and countersinking. Its multi-spindle system ensures rapid tool changes, while optimized cutting cycles enhance efficiency, even on intricate shapes. With its extensive onboard tool selection, the machine delivers seamless glass processing without manual intervention or reworking.

Vibrations-free finishing
This machine is built for high performance drilling and milling, with a rigid structure that minimizes vibrations for top-tier output. Thanks to its integrated transport system and full-width glass support, the machine maintains perfect work surface alignment, ensuring unmatched processing quality shift after shift.

Hold Tight, move right
The patented advanced dynamic vacuum belt system securely holds and moves glass with precise, repeatable positioning during transport and processing.
By holding the glass from one side, the system enables seamless processing of low-E and coated glass.
The belts are divided into sectors to enhance vacuum efficiency and are automatically activated based on the glass shape and machining position, maximizing holding power and ensuring superior finishing.
The double processing station, paired with two sets of opposed heads, allows for simultaneous machining of two parts or effectively distributes the workload when processing oversized components.

Integrated, safe, productive
With its flexible design and automation, the Intermac Drill Pro B H is perfectly suited for integration into a production line.
Its batch-one nature ensures automatic, error-free drilling and hardware processing with a steady, reliable output.
The machine incorporates advanced safety features, including a microswitch-controlled metal fence, laser scanners, and intelligent glass processing controls, to prevent collisions and create a safe and ergonomic environment for operators during setup and maintenance.

Intuitive programming, advanced control
Designed for ease of use, the advanced Human Machine Interface software for flat glass processing offers a seamless experience for operators.
Programming can be done in three modes:
Manual: Operators load data into the Human Machine Interface.
Sequential: Data is passed from the preceding machine in the line.
Online: Data is transmitted from the supervisor software.
The included CAD-CAM software simplifies the programming process and provides a comprehensive catalogue of common geometries for easy application to glass programs.
A built-in statistics and configuration function enables operators to track machine performance efficiently.

Drilling and countersinking
Drilling is performed by two opposed, multi-spindle drilling heads.
The hole is drilled for ? of the depth with the lower spindle, and for ? of the depth by the upper spindle, granting a cleaner job and a faster execution time.
Countersinking operations, if requested by the program, are executed in fully automatic cycle without manual operation and performed with both machine's heads.

Milling
The machine can process various shapes of glass in thicknesses from 3 to 25mm at speeds up to 12.000 rpm thanks to the Super Spindle, while maintaining vibration-free operation to ensure a flawless finish quality.

Finishing
After rough milling, finishing operation is performed with a trapezoidal tool which removes any sharp cutting edges.

Please contact us for more information.
