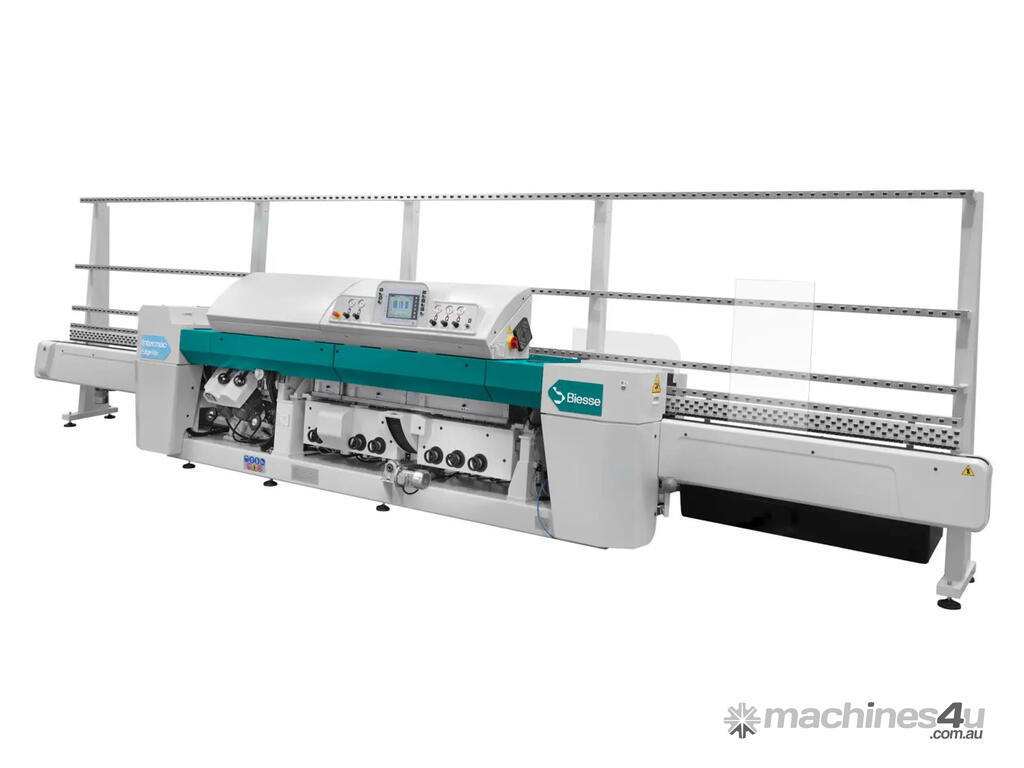

Biesse Intermac Edge Up S F50 Single sided Edger

Biesse Intermac Edge Up S F50 Single sided Edger

The most versatile straight edger around
Its versatility and reliability answers to contemporary architecture demand for large glass sheet processing

Heavy duty tasks are not a challenge
Unique in the market, our innovative glass conveying system is driven by two motors for greater mechanical efficiency, which combined with the solid structure of the machine enables the handling of large thicknesses and large glass up to 350Kg per meter of belt.
This results in a significant increase in machine performance.

Smooth and vibration free
The flat edge processing spindles are isolated from the electric motor, with power transmission handled by belt and pulley to minimize any potential vibrations.

Jumbo mode
The operator can:
pause the inlet arm via the foot pedal while the machine is running
safely load a new sheet of glass even a large one, which would not have been possible with the load in motion
then restart the conveyor effortlessly with a simple action on the foot pedal.

Performance at low running costs
With more than 25 years of experience, this technology offers reliability, precision and exceptionally low operating costs.
The glass conveyor features two of our reliable solutions:
anti-friction and wear pads, which run on ground steel guides
the conveyor system itself without ball bearings.
The goal is a system that is less prone to wear and produces very little vibration.

Digitally adjusted
The glass removal height can be precisely adjusted from the Human Machine Interface.
This allows a flawless accuracy without the need for any manual adjustments.

Wide screen control panel
10,4" touch screen control panel improves data display.
It stands for user-friendliness, flexibility and functionality: bright colors, very intuitive icons, easily understandable drawings.

Glass in, glass out
The glass transportation on inlet and outlet arms is by means of chains with rubber pads.
Chain links and rubber pads can be rapidly replaced, ensuring low maintenance cost and fast change.

Monolithic glass
Interiors, showcases

Laminated glass
Architectural, balustrades

Please contact us for more information.
