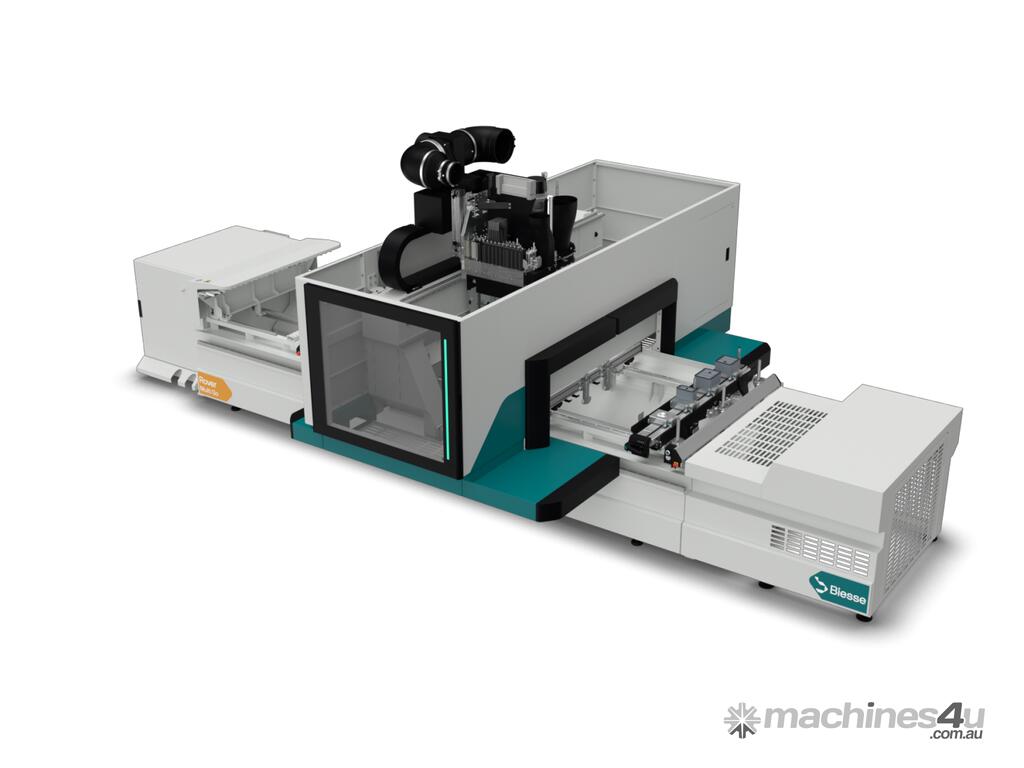

Biesse Rover Multi Go M G P Machining centre for milling & boring operations on panels & solid wood

Biesse Rover Multi Go M G P Machining centre for milling & boring operations on panels & solid wood

Woodworking center designed for craftsmen
Elevate your daily manufacturing with automation, quality and reliability.
5 axis to match any market trend, an advanced solution for solid wood and furniture.

More flexibility on processing
Rover Multi Go M G P is always equipped with a 5 axes operating unit.
Full range of machining operations at operator's serve, wit this multi functional spindle.
Together with 3D simulator (bSolid) provides the operator the perfect solution for his daily manufacturing.

Dedicated boring heads
Performant and reliable boring head always equipped.
Depending on the application selected the machine will be equipped with a dedicated boring head:
BH17 L for multi purpose applications, provided with 10 vertical spindles (5 in Y and 5 in X), 3 double-outlet spindles (2 in Y, 1 in X) and a blade along the X axis.
BH29 2L to focus more on boring, with 17 vertical spindles (6 Y, 11 X), 5 double-outlet spindles (2 Y, 3 X) and 2 blades along X and Y axes.

Smart table positioning
SA positioning system to facilitate the operator during working table set-up.
Lights located on the carriage to indicate the required movement of the carriages.
Reduce positioning errors and speed up manual working table set-up.

Full accessibility
Compact and ergonomic solution with a full bumper safety set-up.
Provide 360° accessibility to the operator, to ease up machining tasks, combining safety and user-friendliness.

Piece secured to place
Rover Multi Go M G P works with a 6 carriages working table, with 3 or 4 pods on each carriage, depending on the application.
Pieces are then held to position with two different systems:
360° tiltable (15° steps) vacuum pods
Uniclamp (horizontal and vertical as optionals)

bSolid CAD-CAM
This software allows to create any program, which is then translated into precise instructions for the CNC: minimize human errors and perform accurate machining of parts.

Manage multiple pieces on the working area
Easy Zone lets the machine work with two different levels of vacuum:
Low level for piece positioning
High level for piece holding, once they're properly positioned by the operator. Automatically activated when the program starts.

Panel furniture
Efficiently manage panel machining.

Solid Wood
Capable of processing minor machining cycles on solid wood.

Please contact us for more information.
