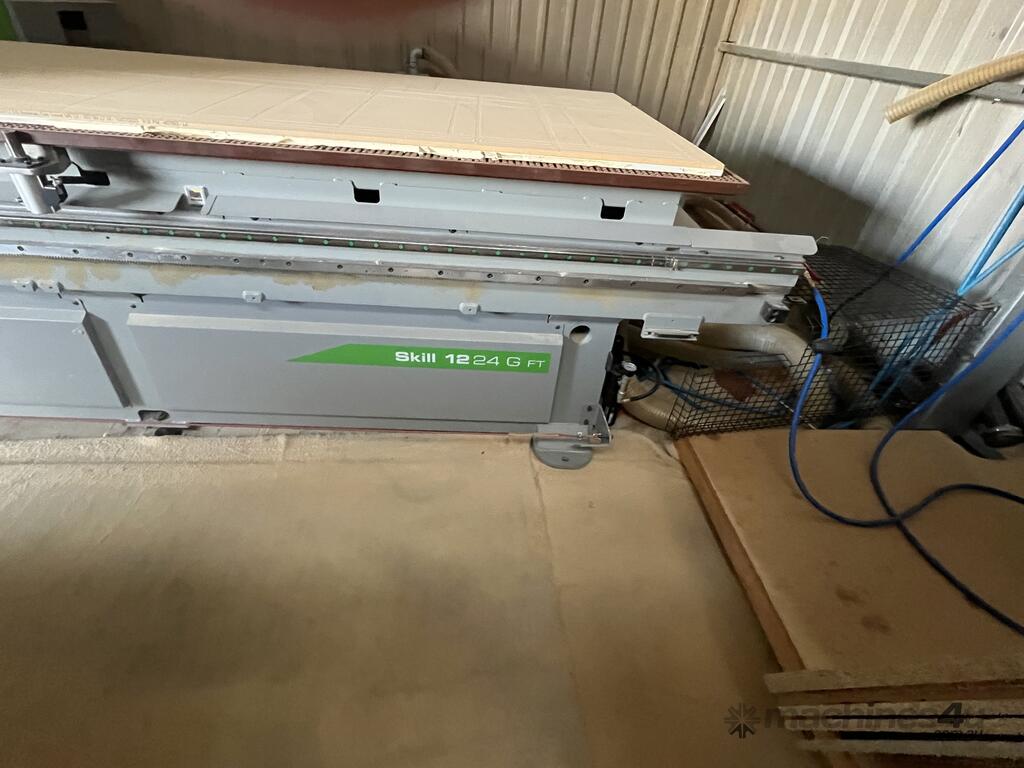

Biesse Skill 1224 Nesting machine

• Biesse Skill 1224G FT Nesting CNC machine in good condition with Biesse works software

• 2500 X 1260 working field.

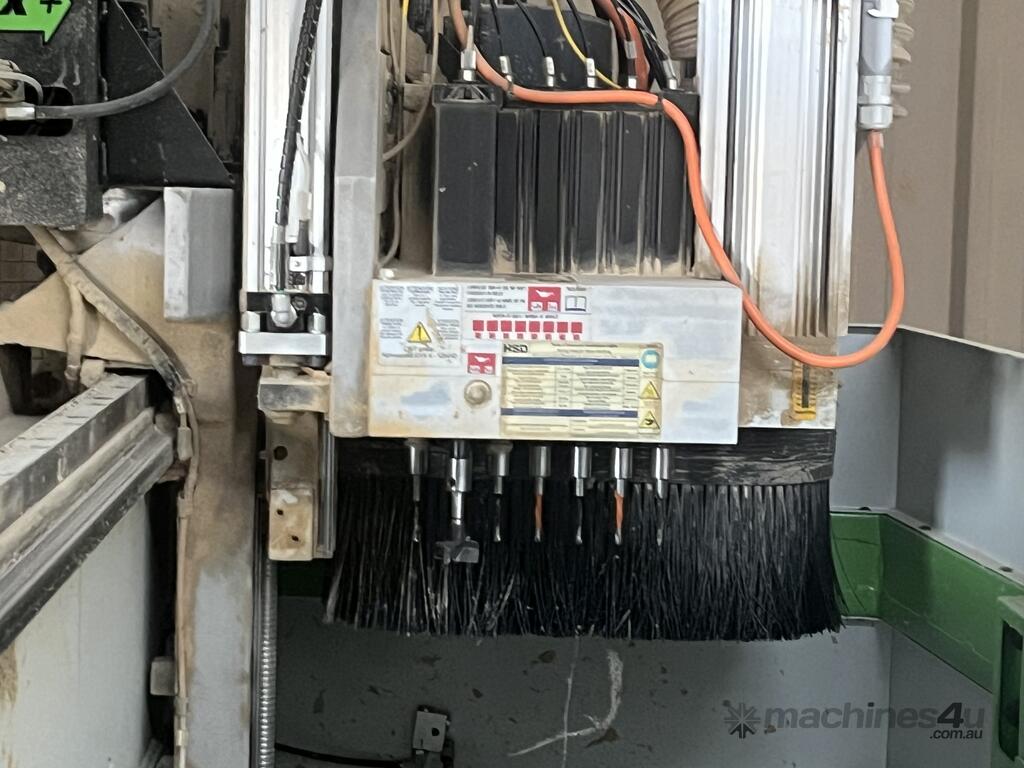

• 10 vertical drills all independent and Variable speed allowing for larger drill bits to be used e.g. 35mm.

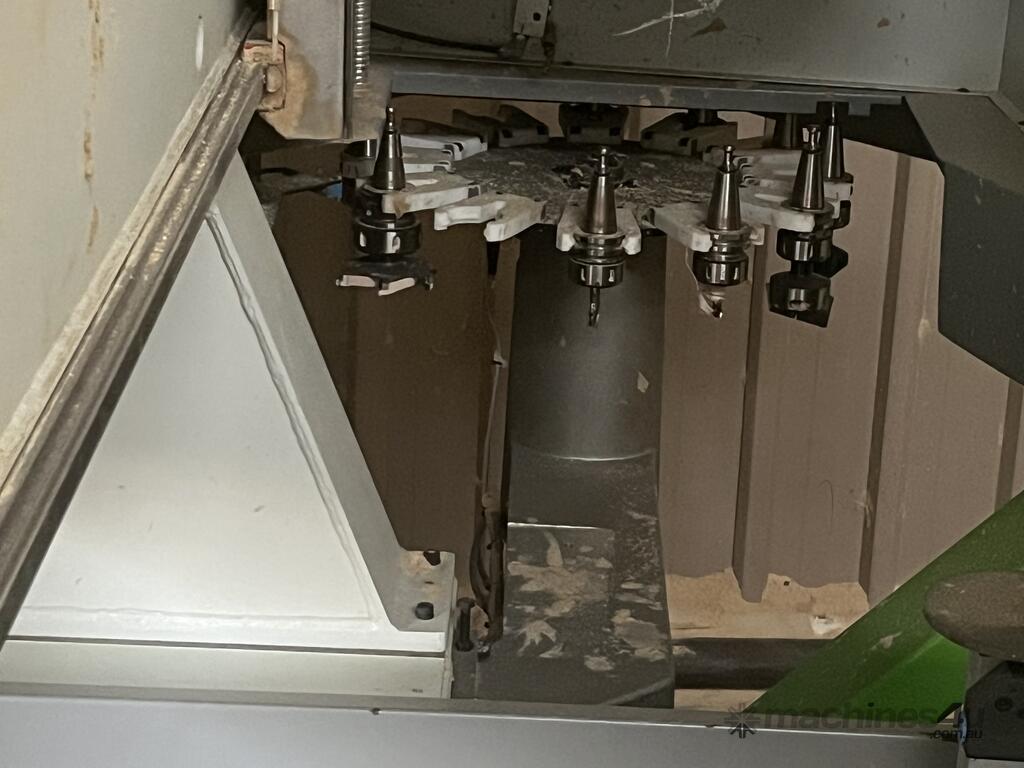

• 12 position tool changer travelling with the Gantry
• 13.2 HP HSD Air cooled main spindle Variable Speed up to 24,000 R.P.M.
• Table type is Matrix and has possibility of putting suction cups to perform unique items.
• Automatic tool sensor which measures the tool length to guarantee accurate machining. Automatically updates the program. Fixed by the machine bed
• Automatic Lubrication of all the X, Y and Z Axis.
• Air conditioner for the electrical cabinet which is sealed.
• Stops at front and rear
• Sensors on stops
• Gantry driven on both sides by independent motors and digital yaskawa drives.

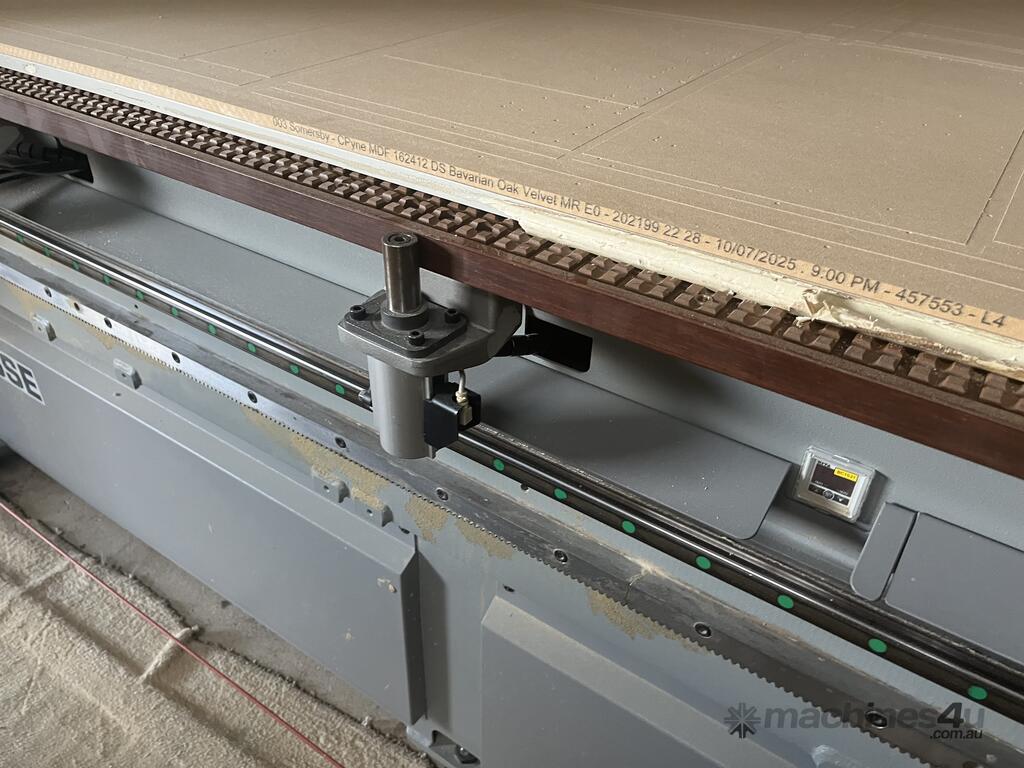

• Rack and Pinion drive in X and Y direction with 19 degree angle ensuring accurate machining
• Ball screw in the Z Axis.
• Linea guides in all Axis.
• 85m/min Vectorial speed

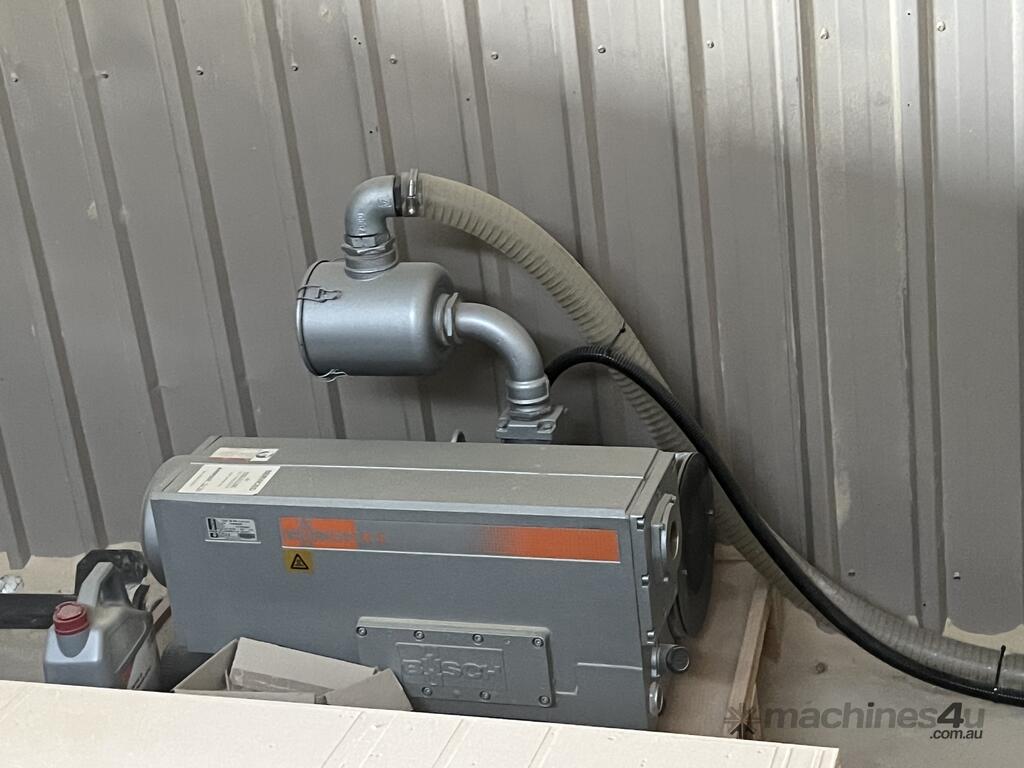

• 1 x 300 Cu/m Busch Oil Vacuum Pump (Simple to service).
• 32 amp circuit breaker is all that is required for the machine.
• Possibility of adding C Axis.
• Sealed linear bearings throughout the machine.
• Standard windows Pc controlled


• Software:

o Biesse works Advanced with 2 Licences.
• Biesse works Nest Advanced Automatic nesting of parts.
• Label Printing software include

Machine is in Adelaide and will be available in March

Can be seen in operation

Please contact Nick Trolio on
