Bottero 340 BCS Classic & DGU Production Line

Cutting machine completely combinable with manual and automatic loading and breakout
modules.

Structure made up of electro-welded steel tubular pipes, protected by two layers of paint: rustprevention and coloured enamel.

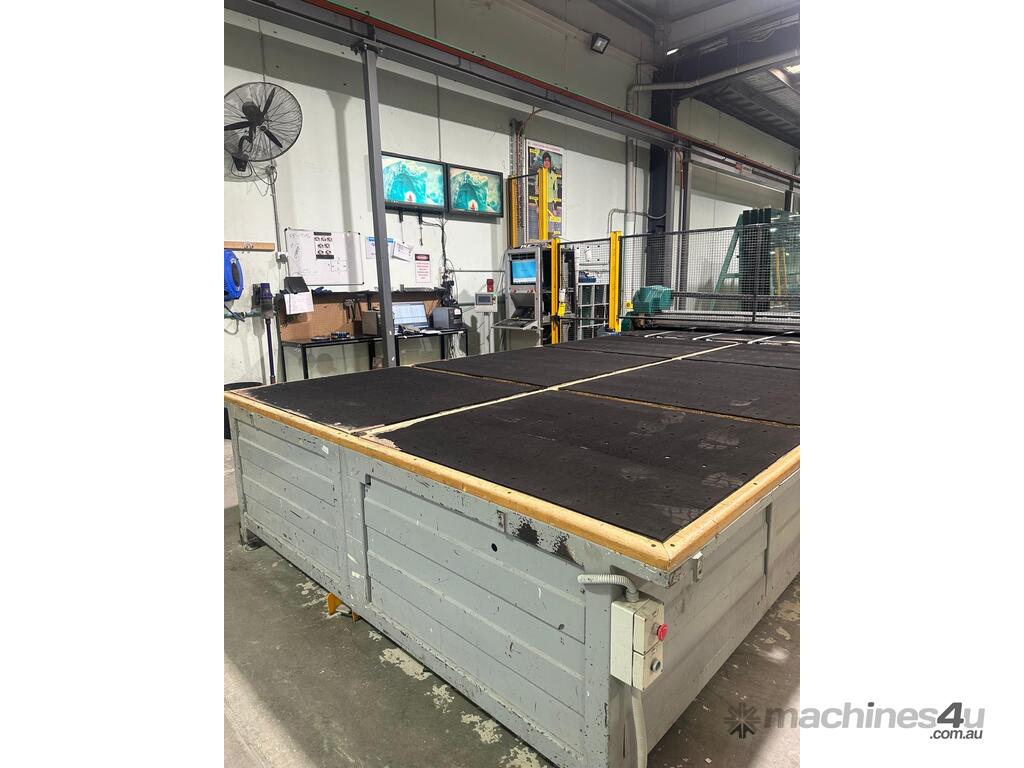

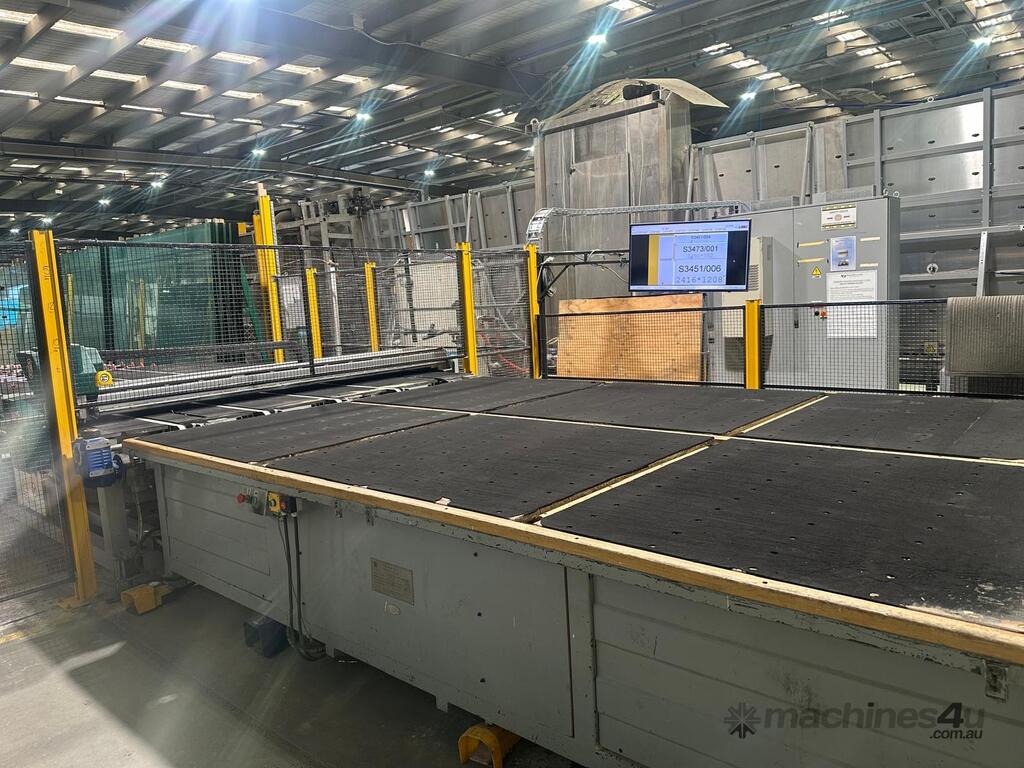

Accurately flat and carpet padded wooden table surface.

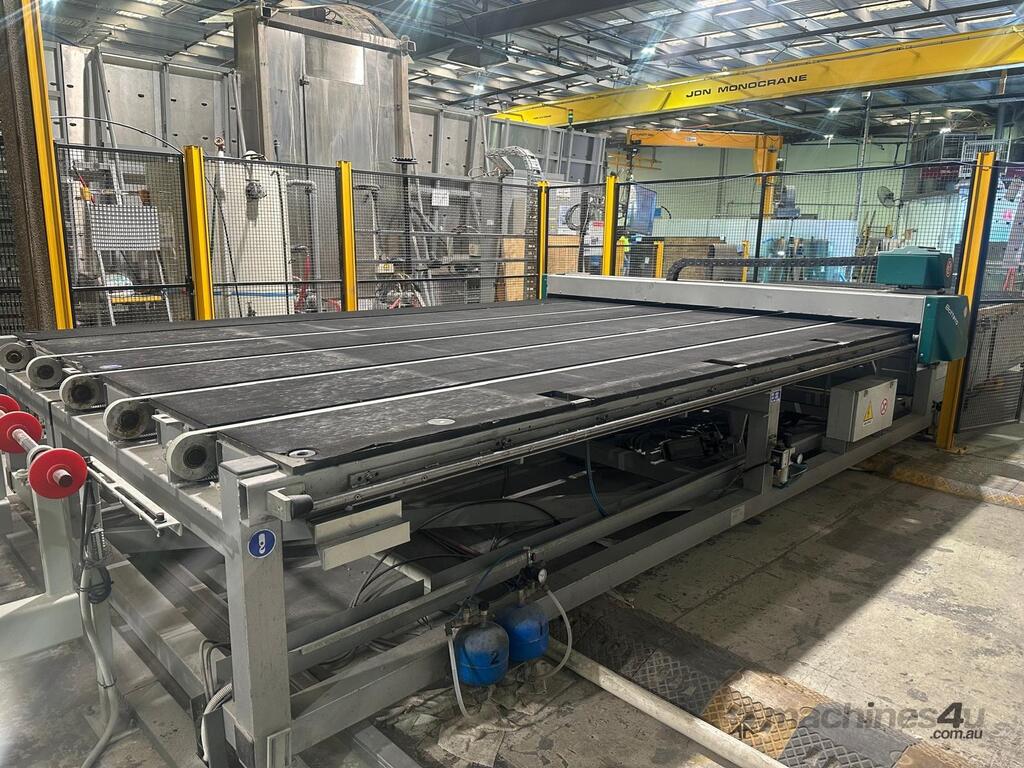

Series of pneumatic lifting timing belts for the loading of the loader and the unloading to the glass
working area.
Possibility of producing any complex cutting scheme including straight cuts and outline cuts.

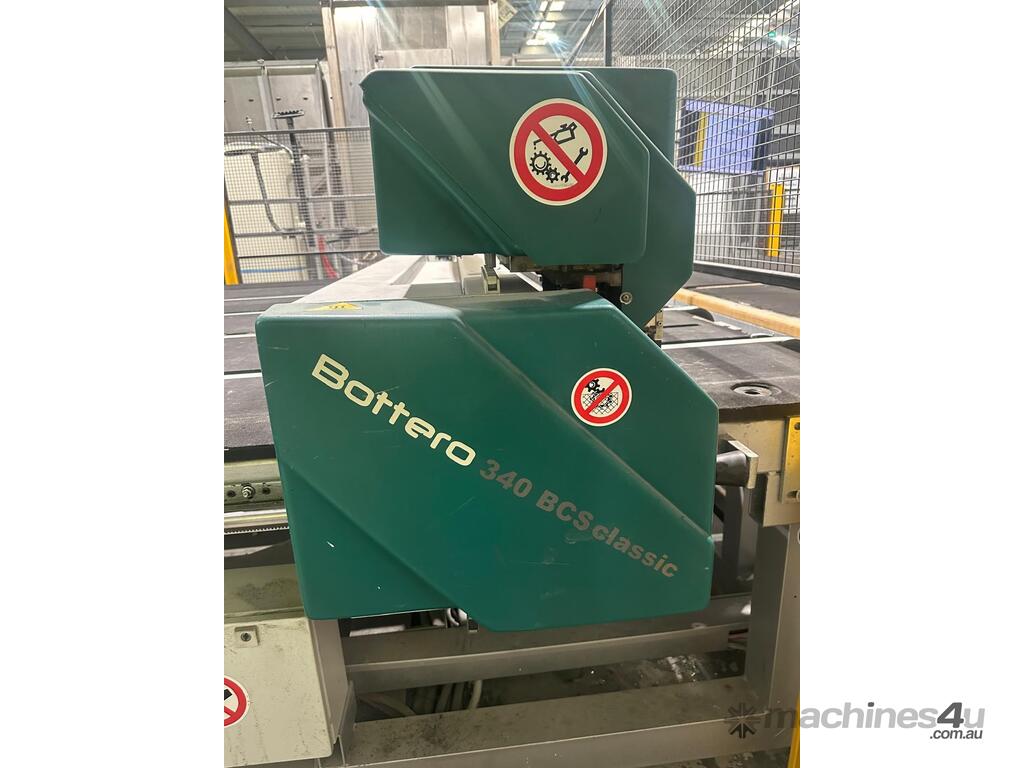

Cutting bridge made up of steel and placed transversally to the machine fitted with state-of-the-art
motoring.
Electronic search glass squaring (mechanic if the machine is associated to automatic breakouts).
Cutting parameters adjustment from keyboard with possibility to memorise parameters
linking them to the type of glass making the use of the machine simple and intuitive.
The electronic control of all the parameters (pressure, speed, cutting acceleration, quantity of oil
on cut, head descent time, beginning of cut head pressure delta) is constantly ensured by the
machine control program. In this way there is an excellent and constant cutting quality which
permits a good glass breakout.
Special solenoid valve for lubrication control, allocated close to the cutting wheel, proper for high
evaporating oils use.


Double Glazing Glass Machinery Production Line
Description
Outside Assembly Flat Press Production Line, ideal for efficient glass production and assembly. This equipment is designed for flat glass processing and is suitable for industrial-scale operations. Below are the detailed features and specifications:

Key Features:

- High Precision Assembly: Ensures accurate assembly of flat glass panels, providing uniform pressure across the surface.
Automated Flat Press Mechanism: Reduces manual intervention and increases production speed, ensuring consistent quality and output.
- Advanced Control System: Features an intuitive PLC control system for easy operation, monitoring, and adjustments, enabling precise customization of the process.
- Robust Construction: Built with high-quality materials that ensure durability and longevity, even in demanding production environments.
- Multi-Layer Capability: Designed to handle single or multi-layer flat glass, providing versatility for various glass thicknesses and types.
- Energy Efficient Design: Optimized for minimal energy consumption without compromising production efficiency.
- Safety Features: Equipped with emergency stop buttons, protective covers, and sensors to ensure operator safety during operation.

Technical Specifications:

Pressing Area: 2000mm x 2500mm
Max Glass Size: 2000mm x 2500mm
Min Glass Size: 500mm x 600mm
Production Speed: 8-45m/min
Input Voltage: 380V, 50HZ
Power Supply: 30.0 KW
Dimensions (L x W x H): 18500mm x 2400mm x 3000mm
Weight: 5500kg
Year of Manufacture: 2019
Condition: Used
Operating direction: Left to right
.ghlglassmachine/outside-assembly-flat-press-production-line/57700443.html

Included Components:

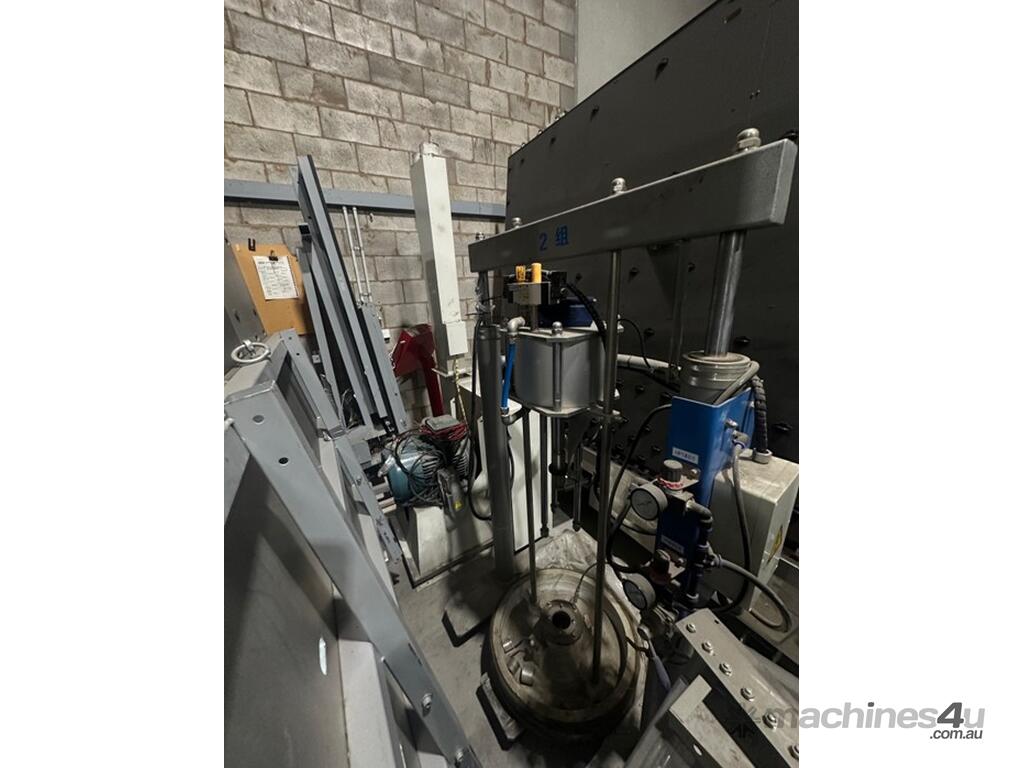

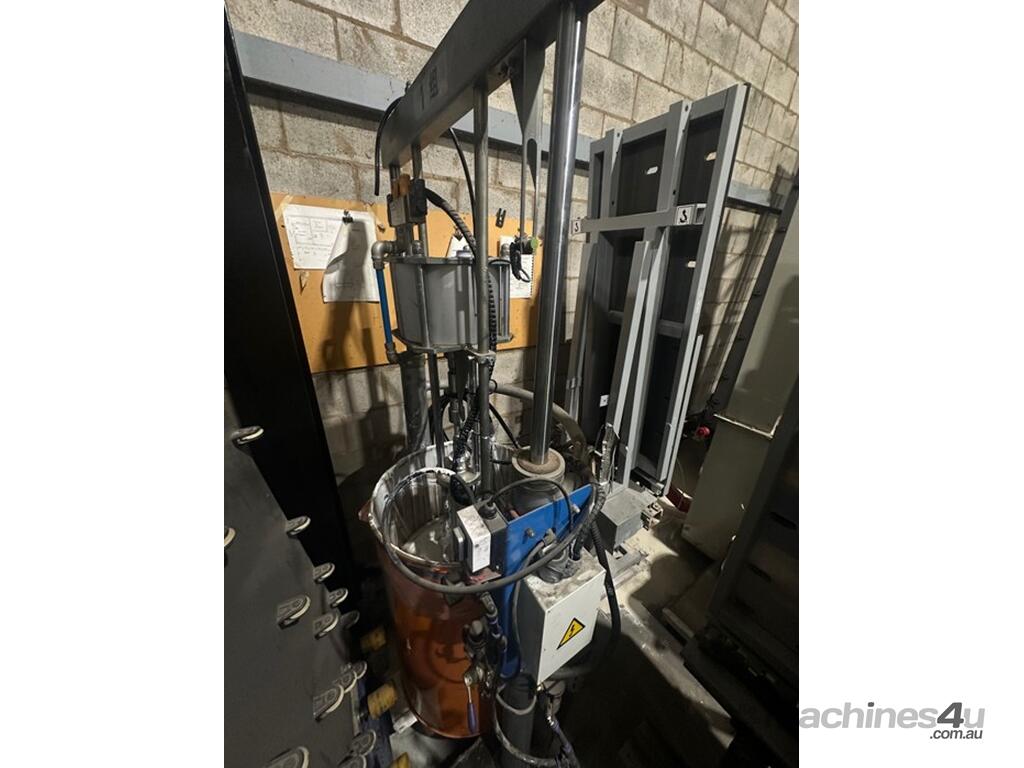

Butyl Sealant Coating Machine

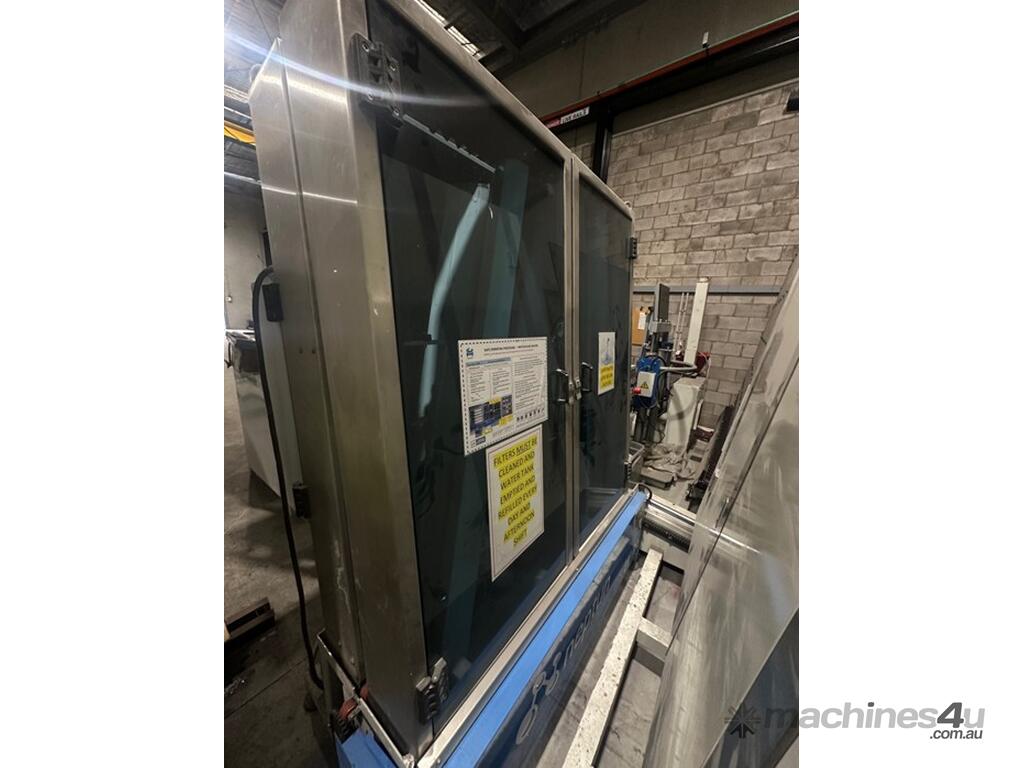

Pre-wash machine

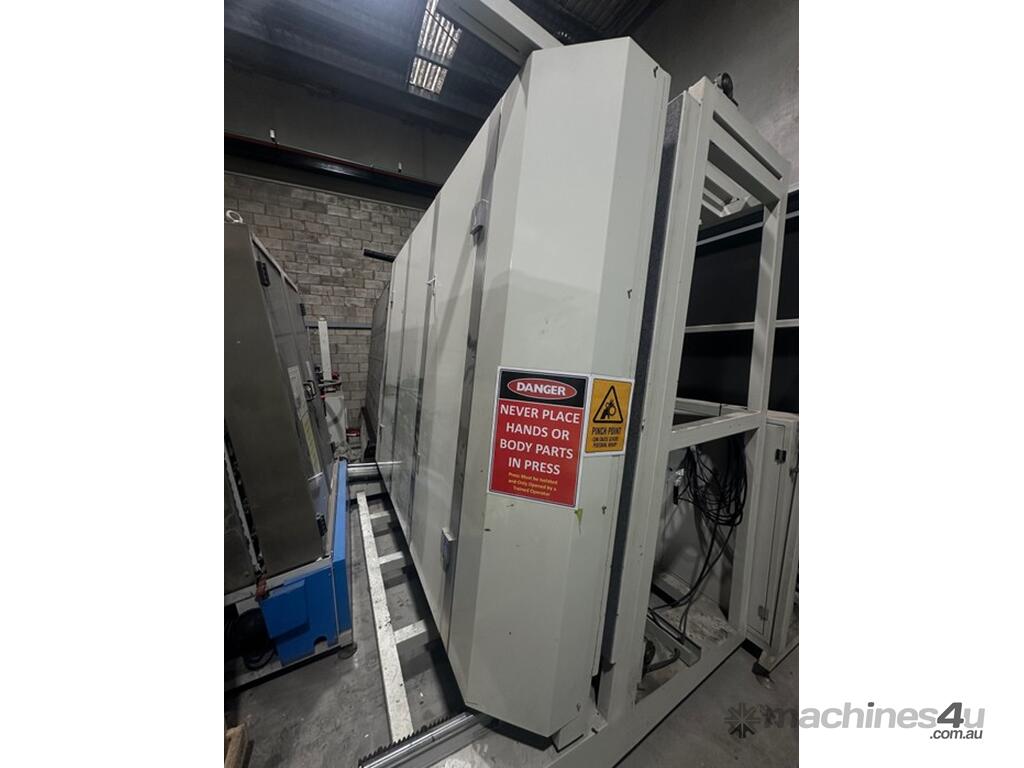

Flat press machine
Assembly line components
Automated control system

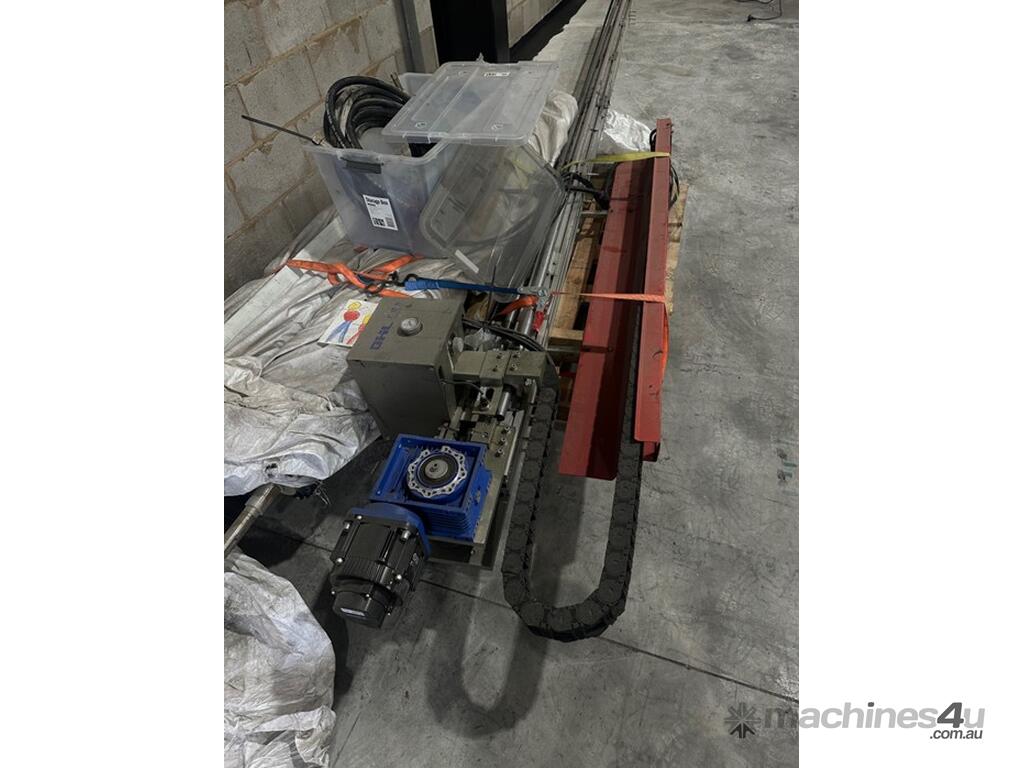

Plenty of spare parts

Applications:
- Tempered Glass Production
- Laminated Glass Assembly
- Insulating Glass Panel Manufacturing
- Ideal for use in factories or production lines where precision and speed are crucial.
